Description

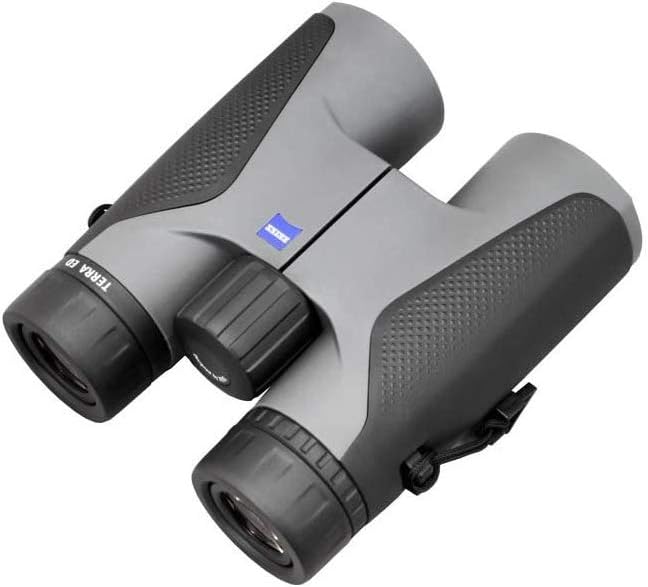

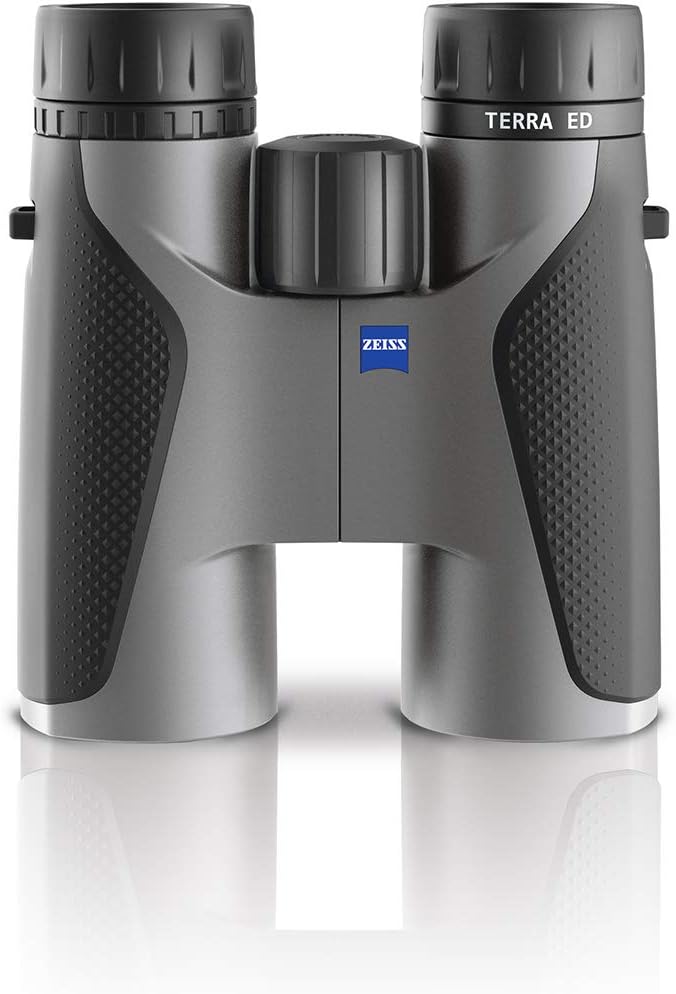

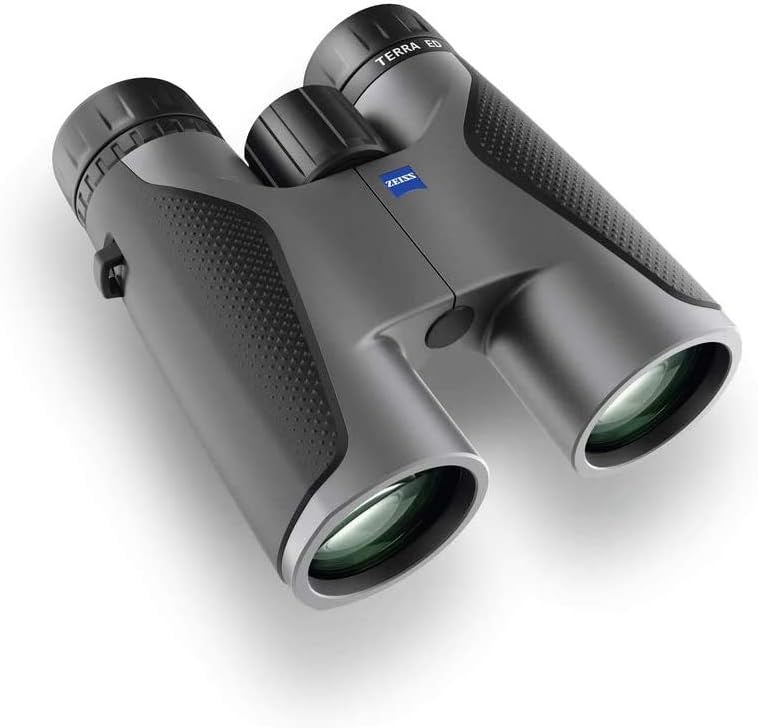

Discover the impressive capabilities of the Zeiss Terra ED 8x32 Grey Binoculars, model 523203-9907-000, and elevate your outdoor viewing experiences with a product designed for supreme reliability and clarity. These lightweight binoculars weigh only 18 ounces and boast dimensions of 4.9 x 4.6 inches, making them highly portable for all your adventures.
Integrating SCHOTT ED glass, the Zeiss Terra ED binoculars substantially reduce chromatic and spherical aberrations. This yields true color rendition and eliminates distortions across the entire 61° field of view. The proprietary hydrophobic multicoated optics strengthen light transmission, enhancing color fidelity, sharpness, and contrast, even in challenging conditions.

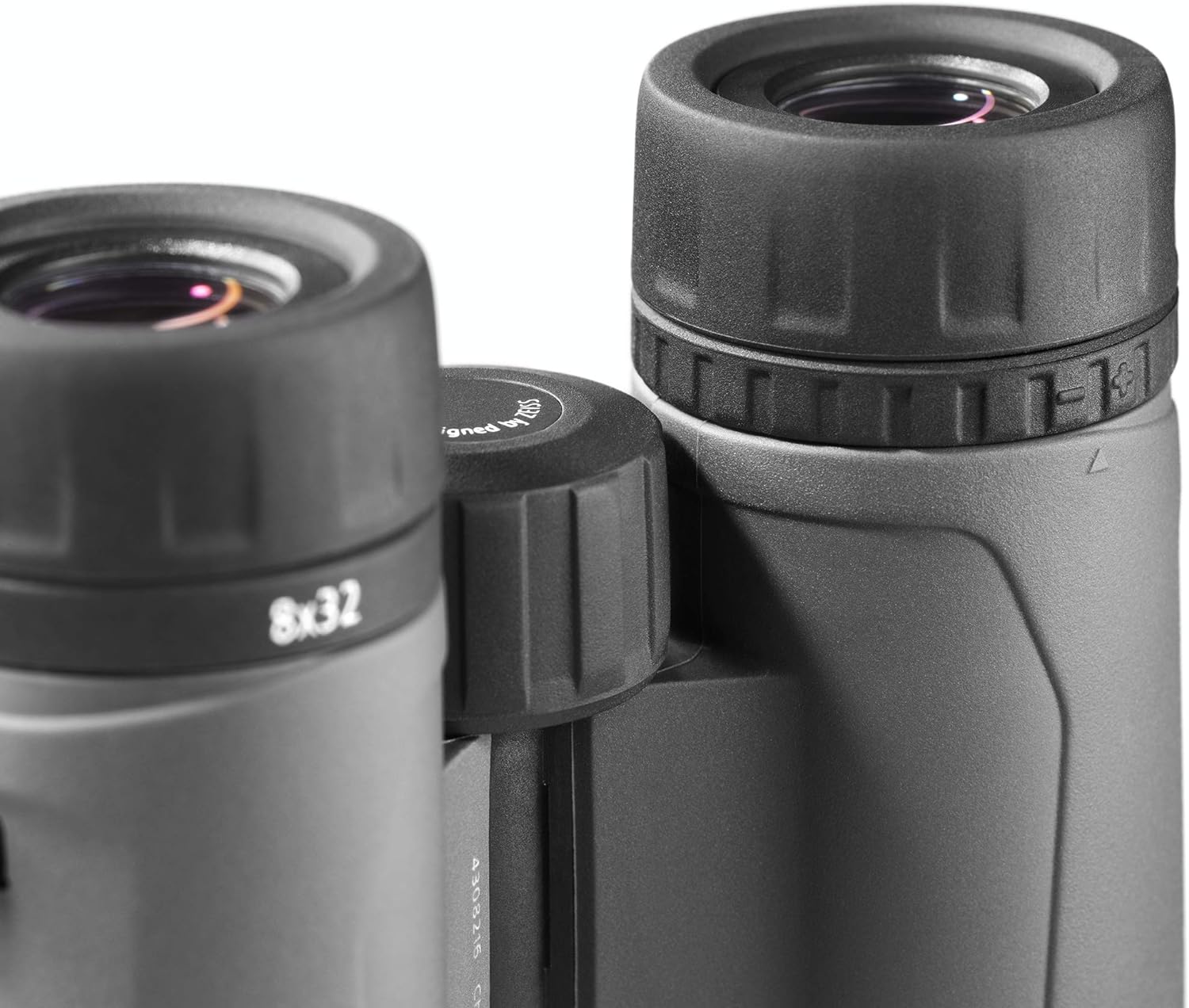

A comfortable viewing experience is paramount, which is why these binoculars feature a large fast-focus center wheel and ergonomic twist-up click-stop rubber eyecups. This ensures that users with or without eyewear enjoy a long 16.5mm eye relief and a generous 4mm exit pupil. The rugged, fiberglass-reinforced polycarbonate chassis is fortified with gray rubber armor for added durability, offering resistance to impacts as well as temperature variances.
Zeiss Terra ED 8x32 523203-9907-000 Features
- OPTICAL EXCELLENCE: SCHOTT ED glass design with proprietary multicoatings provides brilliant, clear, and bright views, even with a 32mm objective lens.
- WIDE VIEWING ANGLE: Offers a broad 61° apparent angle of view and a 405-foot field of view at 1000 yards for comprehensive observation.
- ERGONOMIC DESIGN: Made with durable fiberglass-reinforced polycarbonate and covered in protective rubber armor for a secure, comfortable grip.
- FOCUS WITH EASE: Featured large fast-focus center wheel and twist-up rubber eyecups for a user-friendly viewing experience.
- WEATHERPROOF DURABILITY: Nitrogen-filled with a temperature-resistant chassis, these binoculars remain waterproof and fogproof under various conditions.
- COMFORT FOR EYES: Extended 16.5mm eye relief and a comfortable 4mm exit pupil, ideal for long-term observation sessions.
- PRECISE DETAILS: Close focus range of 5.25 ft for observing subjects at shorter distances with incredible detail.
- TRAVEL-READY: Lightweight at 18 oz with compact dimensions, these binoculars are the perfect companion for on-the-go enthusiasts.
Zeiss Terra ED 8x32 523203-9907-000 Specifications
| Feature | Specification |
|---|---|
| Weight | 18 oz |
| Dimensions | 4.9 x 4.6 in |
| Eye Relief | 16.5 mm |
| Field of View | 405 ft @ 1000 yards |
| Angular Field of View | 61 degrees |
| Exit Pupil | 4mm |
| Twilight Factor | 16 |
| Close Focus Range | 5.25 ft |
| Interpupillary Distance | 56 - 74 mm |
| Objective Diameter | 32mm |
| Product Type | Binoculars |
| Item Condition | New |
| UPC | 740035998056 |
| MPN | 523203-9907-000 |
Included In The Box
- Zeiss Terra ED 8x32 Grey Binoculars (523203-9907-000)

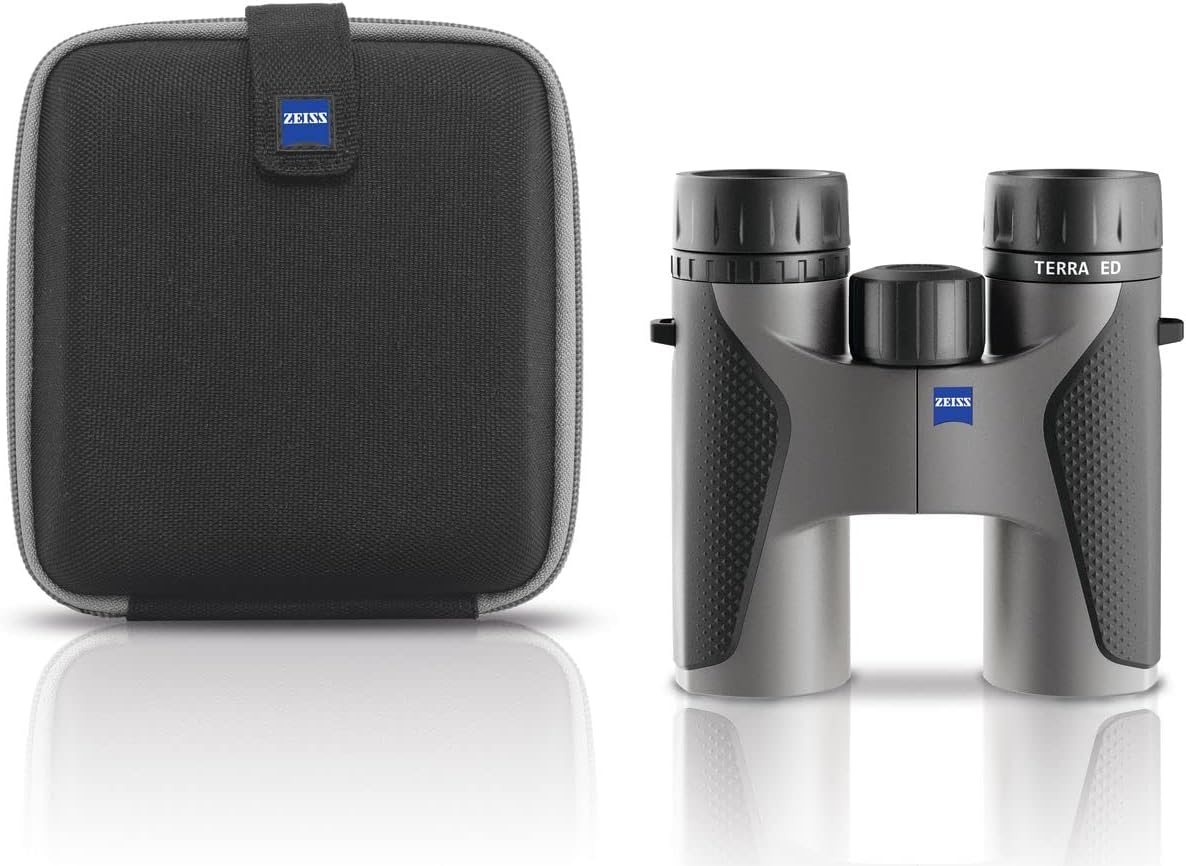

- Protective Carrying Case
- Neck Strap
- Lens Covers
- Lens Cleaning Cloth
- Instruction Manual
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
