Description

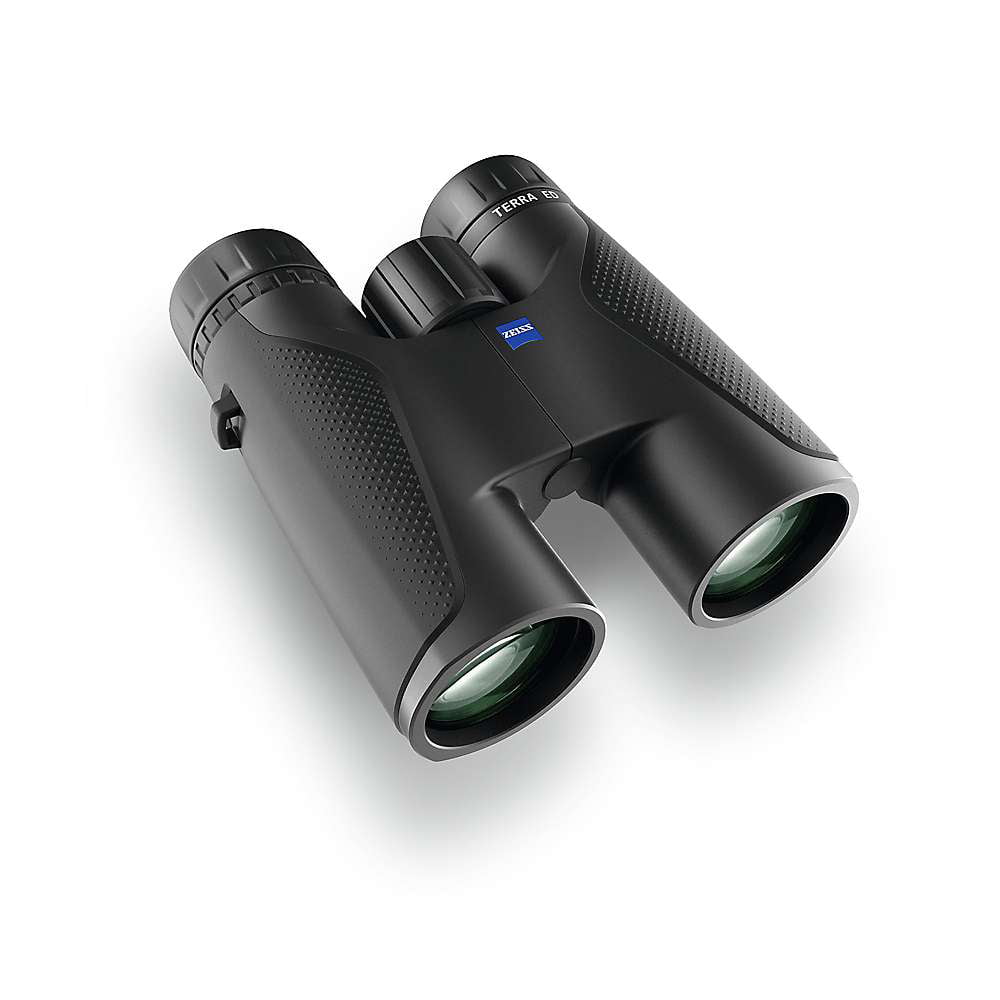

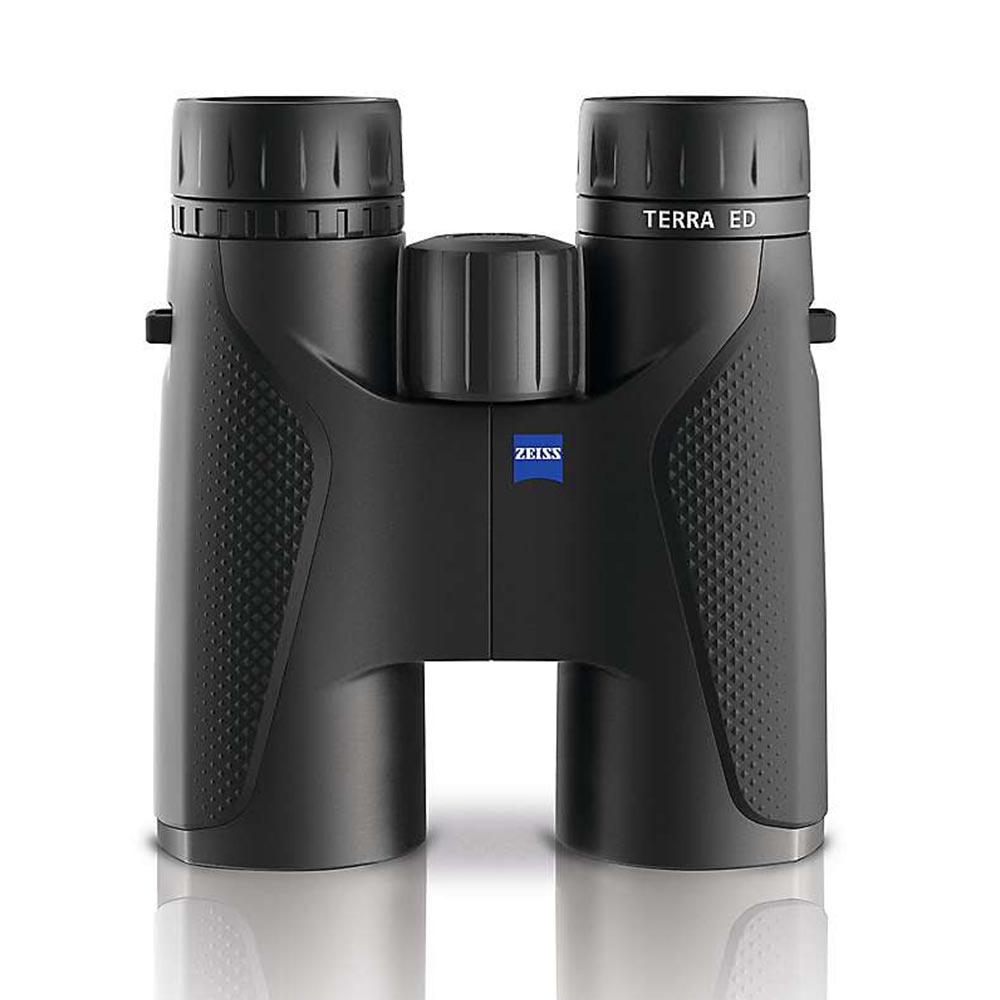

The Zeiss 8x32 Terra ED Black Binoculars 523203-9901-000 stand out as a high-quality optic tool designed for serious outdoor enthusiasts. Impressively compact, these binoculars effortlessly combine lightweight rugged construction with a form that's easy to grip. This model is particularly well-suited for bowhunters, birdwatchers, and wildlife observers who need dependable optics for expansive terrain viewing. Thanks to a superb close focus of just 5.25 feet, users can enjoy detailed observation of subjects at close range.
These Zeiss Terra ED Binoculars boast an expansive field of view at 405 feet per 1000 yards, ensuring that users won't miss any action. Coupled with an angular field of view of 61 degrees, they deliver an immersive viewing experience. The 16.5 mm eye relief provides excellent comfort, especially for those who wear glasses. With a twilight factor of 16, these binoculars ensure clarity in low-light conditions, enhancing your outdoor pursuits from dawn till dusk.
The attention to detail in the design is complemented by exceptional durability. Weighing just 18 ounces and measuring 4.9 x 4.6 inches, the Zeiss 8x32 Terra ED Black Binoculars are effortless to carry on any adventure. The sleek black finish not only adds to the aesthetic appeal but also provides additional protection against the elements. When it comes to reliable, top-tier binoculars, the Zeiss 8x32 Terra ED model is an investment in unparalleled optical performance.
Zeiss Terra ED 8x32 523203-9901-000 Features
- COMPACT DESIGN: Lightweight at just 18 oz, dimensions of 4.9 x 4.6" for optimum portability.
- WIDE VIEWING: Generous 405 ft @ 1000 yd field of view to capture more landscape.
- CLOSE FOCUS: Stunning 5.25 ft close focus range for observing fine details at short distances.
- HIGH CLARITY: Impressive twilight factor of 16, delivering clear images in dim conditions.
- COMFORTABLE USAGE: Designed with a long eye relief of 16.5 mm, perfect for eyeglass wearers.
- EASY ADJUSTMENT: Adjustable interpupillary distance from 56 to 74 mm for customized comfort.
- DURABLE CONSTRUCTION: Rugged and sturdy, built to withstand the demands of outdoor use.
- PREMIUM OPTICS: Renowned Zeiss quality lenses providing sharp, high-contrast viewing.
Zeiss Terra ED 8x32 523203-9901-000 Specifications
| Specification | Detail |
|---|---|
| Weight | 18 oz |
| Dimensions | 4.9 x 4.6 inches |
| Eye Relief | 16.5 mm |
| Field of View | 405 ft @ 1000 yd |
| Angular Field of View | 61 degrees |
| Exit Pupil | 4mm |
| Twilight Factor | 16 |
| Close Focus Range | 5.25 ft |
| Interpupillary Distance | 56 - 74 mm |
| Objective Diameter | 32 mm |
| Product Type | Binoculars |
| Item Condition | New |
| UPC | 740035998025 |
| MPN | 523203-9901-000 |
Included In The Box
- Zeiss 8x32 Terra ED Black Binoculars (523203-9901-000)
- Protective Lens Caps
- Carrying Strap
- Binocular Pouch
- Lens Cleaning Cloth
- Instruction Manual
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
