Description
The XS Sight Systems Lever Rail - Henry .45-70 is your go-to solution for enhancing your shooting setup. Designed specifically for Henry Steel Frame round barrel carbines chambered in .45-70, this rail opens up a world of mounting possibilities. Whether you're looking to attach a FFP rifle scope or a red dot sight, the mil-standard 1913 mounting slots make it a breeze. The lightweight yet durable aircraft-grade aluminum ensures that you get a lifetime of rugged performance, making it perfect for both precision shooting and general hunting.
With a hard anodized finish, this rail stands up to the elements, so you can focus on your shot rather than worrying about your equipment. When paired with XS Ghost Ring Sights, you’ll have an unbeatable sighting system that’s versatile enough for any scenario. Upgrade your Henry rifle today with the XS Sight Systems Lever Rail and elevate your shooting game to new heights!
Features – Key Benefits Bullets
- LIGHTWEIGHT DESIGN for easy mounting without adding bulk.
- PRECISE FIT tailored specifically for Henry .45-70 steel receivers.
- MIL-STD 1913 SLOTS accommodate a variety of optics for enhanced versatility.
- DURABLE MATERIAL made from aircraft-grade aluminum for lasting performance.
- HARD ANODIZED FINISH provides exceptional resistance against corrosion.
- EASY INSTALLATION allows you to upgrade your setup in minutes.
- SUPPORTS VERSATILE OPTICS including scopes and red dots for all shooting applications.
- PATRIOTIC MANUFACTURING proudly made in Fort Worth, TX for quality assurance.
Technical Specifications
| Feature | Detail |
|---|---|
| Material | Aircraft-grade Aluminum |
| Finish | Hard Anodized |
| Compatibility | Henry Steel Frame .45-70 |
| Mount Type | Picatinny, Mil-Std 1913 |
| Weight | Lightweight (specific weight not provided) |
| Dimensions | Specific dimensions not provided |

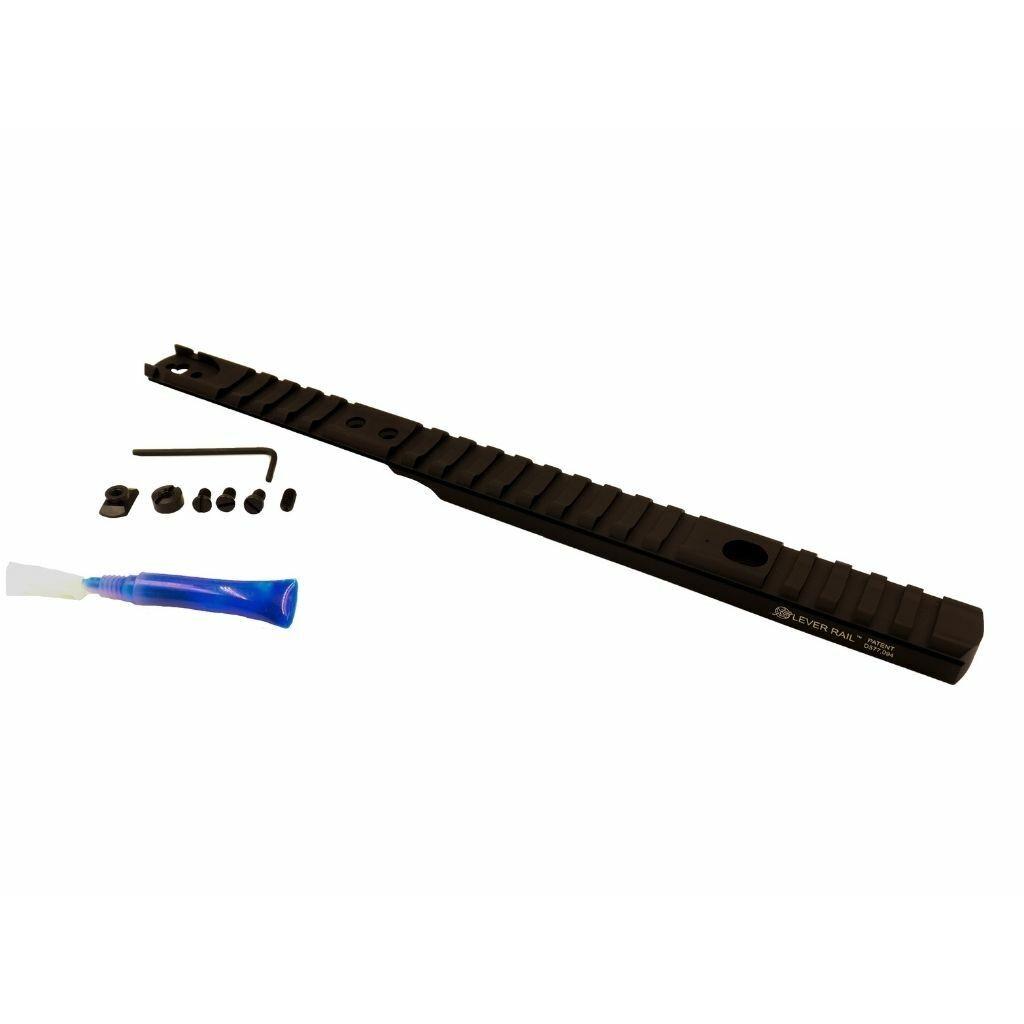

What’s in the Box?
- XS Sight Systems Lever Rail
- Mounting Hardware
- Installation Instructions
Customer Reviews
“The Lever Rail fits perfectly on my Henry .45-70, and the installation was a breeze!”
“I'm impressed with the sturdiness and lightweight design. Perfect for my hunting trips.”
“Combining this with ghost ring sights has improved my accuracy tremendously!”
FAQ
1. Will this rail fit other calibers of Henry rifles? No, the XS Sight Systems Lever Rail is specifically designed for the .45-70 Henry rifles with steel receivers and round barrels.
2. How does this rail improve my shooting experience? By providing a stable and versatile mounting platform for various optics, you can enhance your targeting capabilities with greater precision and ease.
3. Is it easy to install? Yes, the Lever Rail comes with all necessary mounting hardware and straightforward instructions for a hassle-free assembly on your rifle.
4. Can I use this rail with a long-range scope? Absolutely! The mil-standard 1913 slots allow for the use of various optics, including long-range scopes and red dots.
5. How do I maintain the rail? Regular cleaning with a soft cloth and inspection for wear will keep your Lever Rail in optimal condition.
Similar Models
Looking for more great optics? Explore the full XS Sight Systems collection, including models like the XS Ghost Ring Sights for enhanced accuracy and quick target acquisition. Discover the perfect combination for your shooting adventures!
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
