Description

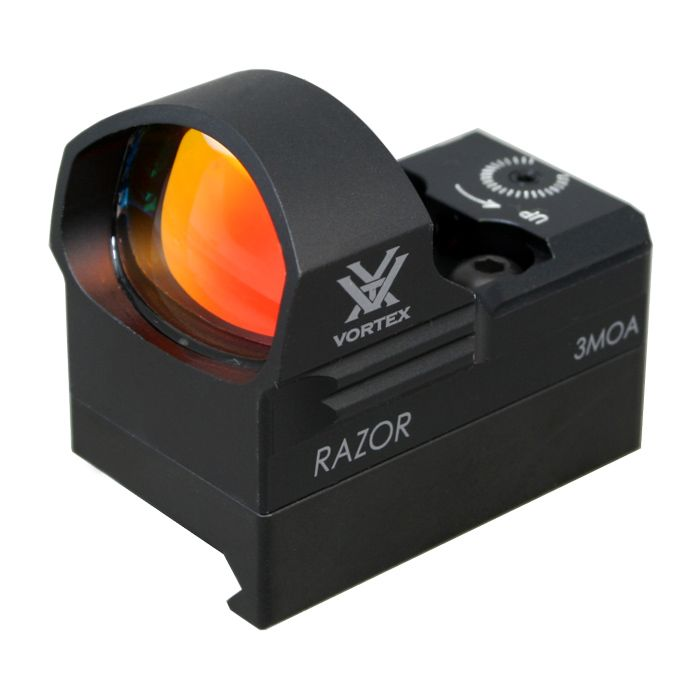

Vortex Razor Red Dot Sight RZR-2001 is a high-end, open-top reflex sight designed for versatility and incredible performance. The large window provides a wide field of view and edge-to-edge picture sharpness. Sideloading battery makes it easy to replace the batteries without removing the sight from your firearm. The glass is fully multi-coated with proprietary XR anti-reflective coating, so you can experience quality optics that deliver excellent color fidelity, superb resolution, and clarity. The Vortex Razor Red Dot Sight is ideal for rifles and shotguns.
Notable Features Include:
- 3 MOA red dot reticle
- ArmorTec: Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
- Multi-Coated: Fully Multi-Coated
- Shockproof: Rugged construction withstands recoil and impact.
What's In The Box?
- Vortex Razor Red Dot Sight
- Picatinny mount
- 1.5mm hex wrench
- 2.5mm hex wrench
- CR2032 battery
Save big on Vortex Razor 3 MOA Red Dot Sight with NO TAX plus FAST & FREE shipping on orders over $199! Authorized stocking dealer, call (985) 269-7799 to talk to a Vortex expert!Picatinny Mount Included - 3 MOA Dot
| Battery Type | (1) CR2032 |
|---|---|
| Max Elevation Adjustment | 170 MOA |
| Battery Life | 1 year continuous on highest setting |
| Eye Relief | Unlimited |
| Field of View @ 100 Yards Spec | 90' @ 4" Eye Relief |
| Illuminated Reticle | Yes |
| Weight | 1.4 oz |
| Length | 1.83" |
| Magnification Type | 1X |
| Magnification | Fixed: 1X |
| Reticle Focal Plane | N/A |
| Tube Diameter | N/A |
| Turret Click Value | 1.0 MOA |
| Weather Resistance | Waterproof & Fogproof |
| Max Windage Adjustment | 114 MOA |
| Warranty | Vortex VIP Warranty |
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
