Description

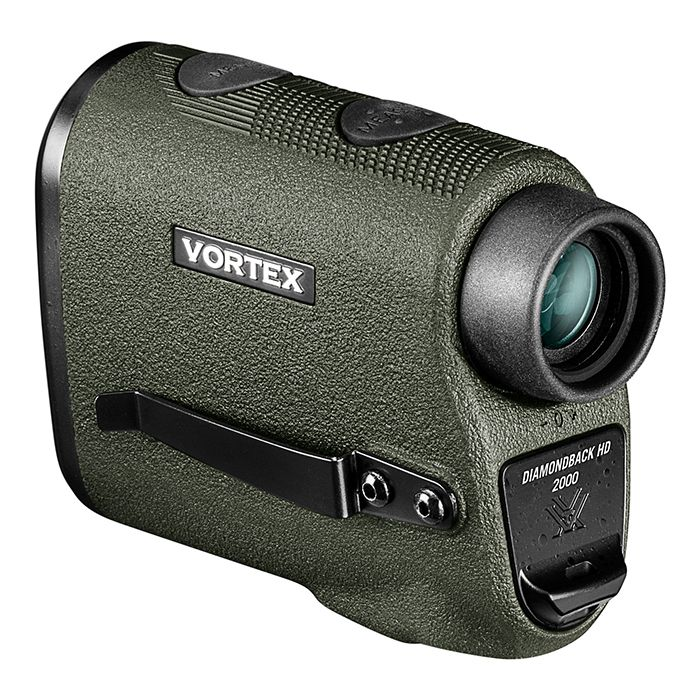

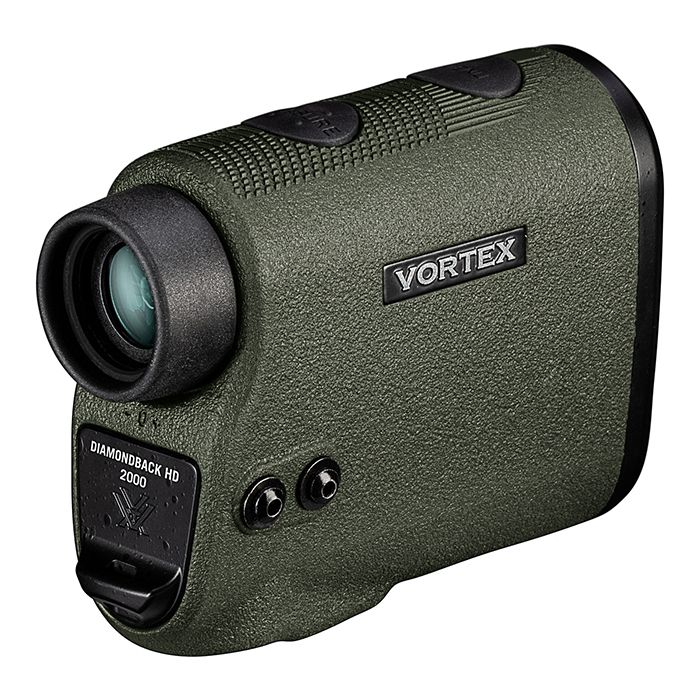

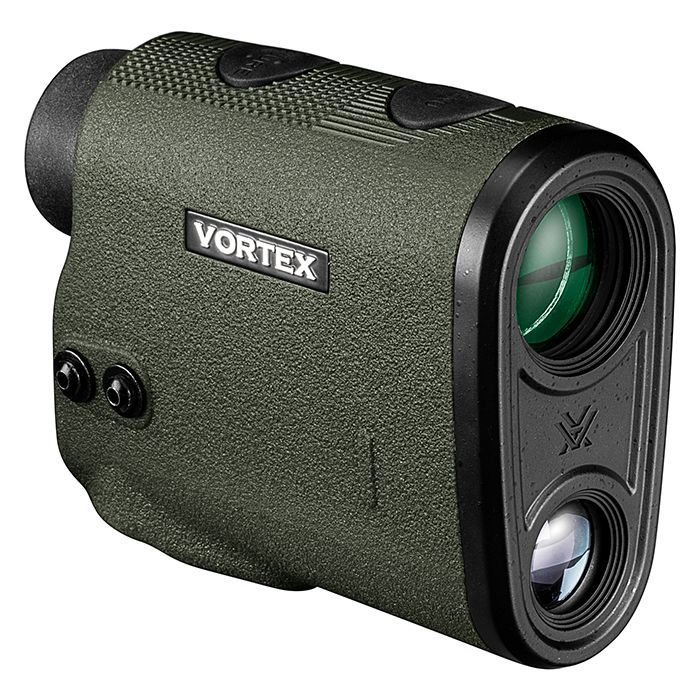

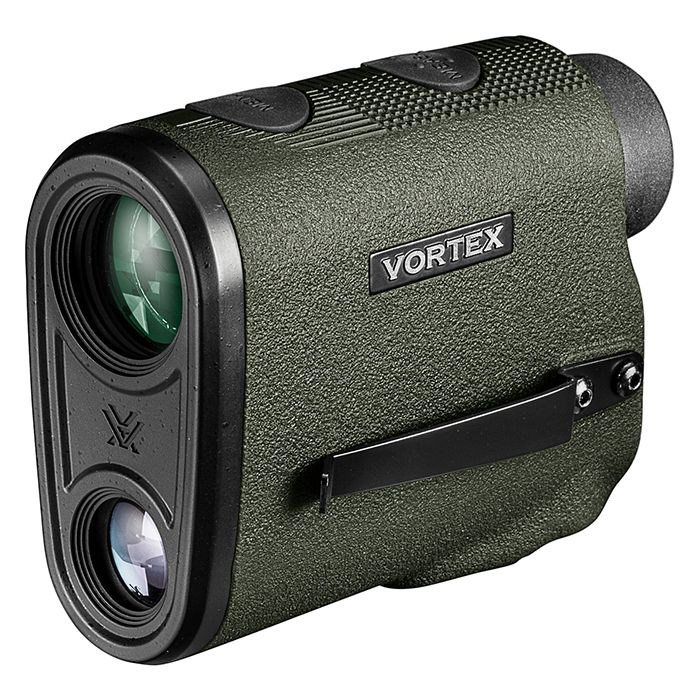

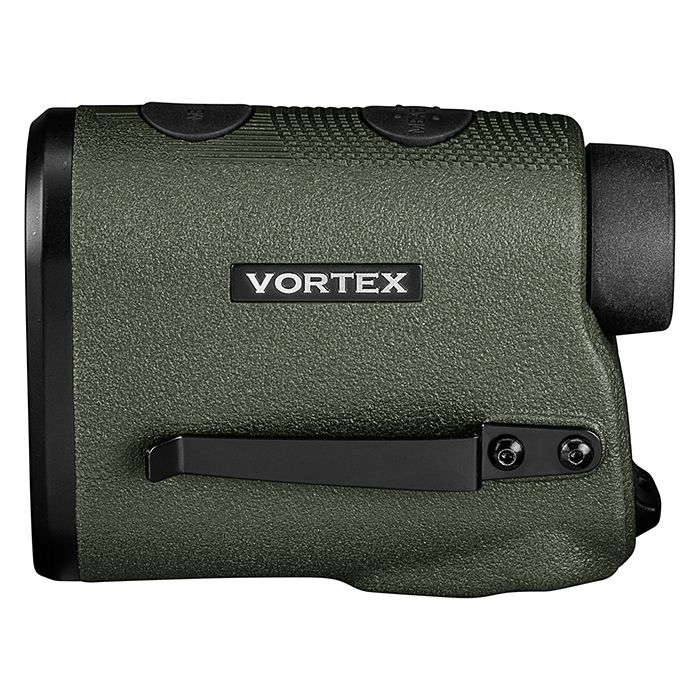

The Vortex Diamondback HD 2000 Laser Rangefinder LRF-DB2000 combines durability and precision into a compact and easy-to-use package, perfect for any rifle scope user looking to enhance their hunting or shooting experience. With its impressive maximum range of 2000 yards and two target modes, this rangefinder excels in varied environmental conditions, ensuring a clear readout through its optimized red OLED display.
Featuring the advanced HCD (Horizontal Component Distance) technology, the Vortex Diamondback HD LRF-DB2000 provides angle-compensated distance measurements critical for bow and rifle shooters to make accurate shots. This technology is complemented by an HD optical system that presents a sharp and bright picture even at long distances.
The Vortex Diamondback HD 2000 is built to withstand the ruggedness of outdoor use with ArmorTec, an ultra-hard, scratch-resistant coating on its exterior lenses. Whether you're tracking deer or aligning for that long-range shot, this laser rangefinder's intuitive interface and feature set cater to the demands of both novice and seasoned marksmen.
Features
- MAX RANGE: Achieve up to 2000 yards measurement with high-definition optical system for clear images.
- HCD TECHNOLOGY: Utilizes Horizontal Component Distance for accurate shoot-to range readings on angled shots.
- TARGET MODES: Offers Normal and Last targeting modes to adapt to different hunting scenarios.
- RANGING MODES: Choose between HCD and LOS modes to tailor your range finding to the situation.
- OLED DISPLAY: Features a clear, bright red OLED display for easy viewing in any light condition.
- ARMORTEC COATING: Equipped with ultra-hard, scratch-resistant coating to protect from external damages.
- DURABLE DESIGN: Engineered with a rugged, waterproof construction suitable for all weather conditions.
- USER FRIENDLY: Designed for ease of use with a comfortable grip and intuitive user interface.
Specifications
| Specifications | Details |
|---|---|
| Weight | 7.6 oz |
| Dimensions | Length: 4.1 inches, Width: 1.8 inches, Height: 3.1 inches |
| Field of View | 335 ft @ 1000 yards |
| Angular Field of View | 6.4 degrees |
| Max Reflective Range | 2000 yards |
| Tree Range | 1800 yards |
| Deer Range | 1400 yards |
| Min Range | 5 yards |
| Objective Lens Diameter | 24mm |
| Measurement Units | Yards |
| Battery Type | CR2 |
| Magnification Range | 7x |
| Waterproof | Yes |
| Display | Red OLED |
| Item Condition | New |
| UPC | 843829125086 |
| MPN | LRF-DB2000 |
| Product Type | Shop All Laser Range Finder |
What's In The Box?
- Vortex Diamondback HD 2000 Laser Rangefinder LRF-DB2000
- Soft Carry Case
- Wrist Lanyard
- Bungee Cord Lanyard
- Utility Clip
- 2mm Hex Wrench
- Lens Cloth
- Hook & Loop Harness Attachment
- CR2 Battery
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
