Description

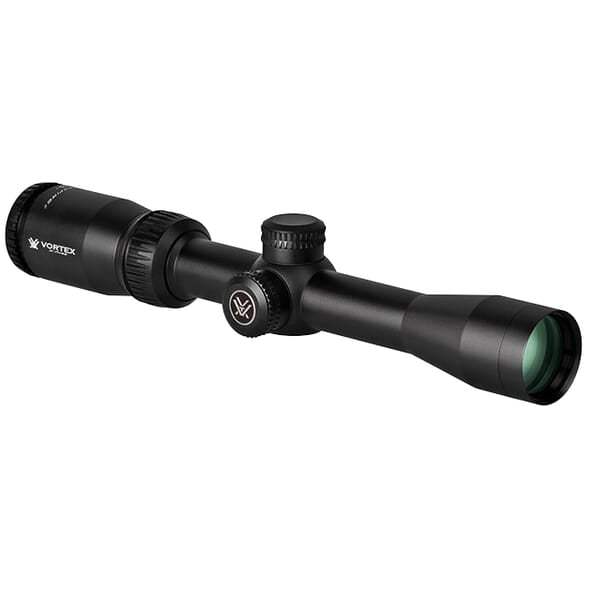

The Vortex Crossfire II 2-7x32 Rimfire V-Plex Riflescope 31001R is a versatile and high-performance optic designed for rimfire rifles. It features a 2-7x magnification range, making it ideal for various shooting applications, from close-range target shooting to mid-range hunting. The 32mm objective lens ensures bright and clear images, while the V-Plex MOA reticle provides precise aiming points for accurate shots.
Constructed from a single piece of aircraft-grade aluminum, the Crossfire II is both durable and lightweight. The hard anodized finish offers a low-glare matte surface, enhancing camouflage and reducing reflections. The riflescope is nitrogen purged and O-ring sealed, ensuring it is waterproof and fogproof, capable of withstanding harsh environmental conditions.
The Crossfire II also boasts fully multi-coated lenses, which increase light transmission and provide a clear, bright sight picture. The capped reset turrets allow for quick re-indexing to zero after sighting in, and the fast-focus eyepiece ensures rapid reticle focusing. This combination of features makes the Crossfire II a reliable and user-friendly choice for shooters of all levels.
Ideal For:
- Rimfire Rifles: Perfect for .22 LR and other rimfire calibers.
- Target Shooting: Excellent for precision shooting at the range.
- Hunting: Suitable for small game and varmint hunting.
- Recreational Shooting: Great for plinking and general shooting activities.
Features:
- EXCEPTIONAL CLARITY: Fully multi-coated lenses enhance light transmission for bright, clear images.
- DURABLE CONSTRUCTION: Made from aircraft-grade aluminum, ensuring strength and rigidity.
- WATERPROOF & FOGPROOF: Nitrogen purged and O-ring sealed for reliable performance in all weather conditions.
- PRECISE ADJUSTMENTS: Capped reset turrets allow for easy re-indexing to zero after sighting in.
- LONG EYE RELIEF: Generous 3.9-inch eye relief for comfortable viewing and quick target acquisition.
- FAST-FOCUS EYEPIECE: Allows for quick and easy reticle focusing, ensuring a sharp sight picture.
- SHOCKPROOF DESIGN: Rugged construction withstands recoil and impact, maintaining accuracy.
- SCRATCH-RESISTANT COATING: ArmorTek coating protects exterior lenses from scratches, oil, and dirt.
Specifications
| Feature | Specification |
|---|---|
| Magnification | 2-7x |
| Objective Lens Diameter | 32 mm |
| Focal Plane | Second Focal Plane |

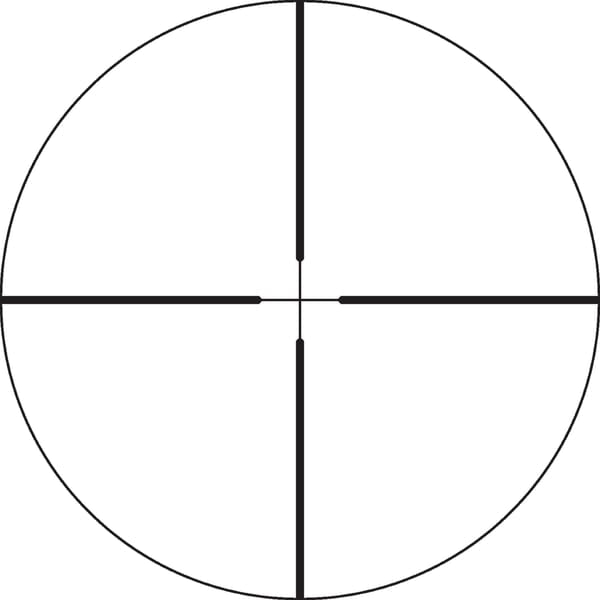

| Reticle | V-Plex (MOA) |
| Turret Style | Capped |
| Tube Size | 1 inch |
| Adjustment Graduation | 1/4 MOA |
| Parallax Setting | 50 yards |
| Max Windage Adjustment | 60 MOA |
| Max Elevation Adjustment | 60 MOA |
| Travel Per Rotation | 15 MOA |
| Field of View | 42-12.6 ft/100 yds |
| Eye Relief | 3.9 inches |
| Length | 11.5 inches |
| Weight | 13.9 oz |
| Aluminum Grade | Aircraft-grade |
| Coating | Fully Multi-Coated, ArmorTek |
| Waterproof/Fogproof | Yes |
| Shockproof | Yes |
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
