Description

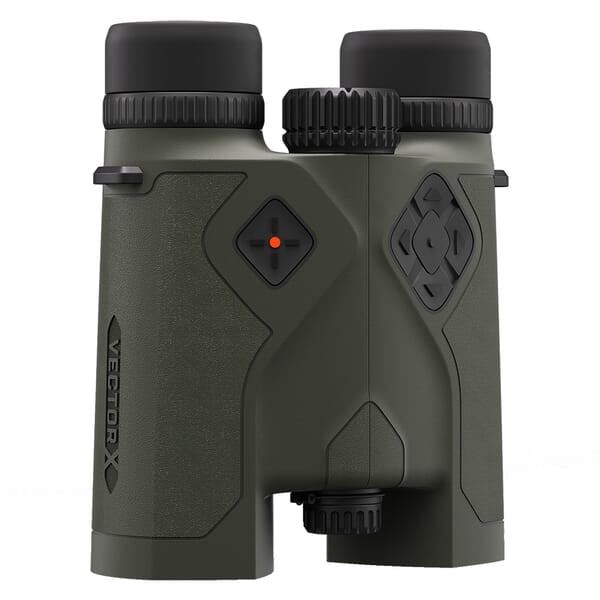

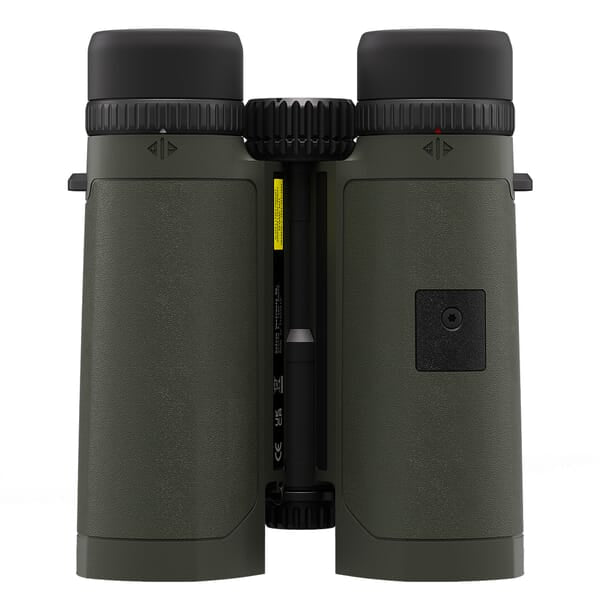

Vectronix Shooting Solutions Vector X 42 8x42 Rangefinding Binoculars integrate high-performance optics with advanced rangefinding capabilities. With 8x magnification and 42mm objective lenses, they provide excellent clarity and light transmission, ensuring detailed observations even in low-light conditions. The rangefinder employs a 905nm Class 1M laser, accurately measuring distances up to 7000 yards. Its intuitive D-Pad control and vibrant OLED display make data navigation straightforward, streamlining the shooting experience in any environment.
This rugged binocular is built to endure challenging conditions, featuring an IP-67 rating for dust and water resistance. The magnesium housing and rubber armoring protect it from impacts, ensuring durability during outdoor escapades. The Vector X 42 is not just about distance; it also includes an integrated ballistic calculator that adjusts for environmental factors, providing real-time shooting solutions. This makes it an essential tool for hunters and precision shooters alike.
Features – Key Benefits Bullets
- ADVANCED RANGEFINDING: 905nm Class 1M laser engine measures targets up to 7000 yards with high precision, enhancing your long-range shooting experience.
- PREMIUM OPTICS: 8x42 configuration ensures bright, sharp images and a wide 390-foot field of view at 1000 yards for effective target acquisition.
- BALLISTIC CALCULATOR: Built-in Applied Ballistics Elite software delivers accurate ballistic solutions, factoring in environmental conditions and weapon profiles.
- DURABLE CONSTRUCTION: Magnesium housing with rubber armoring and IP-67 rating protects against dust and water immersion, ensuring reliable performance.

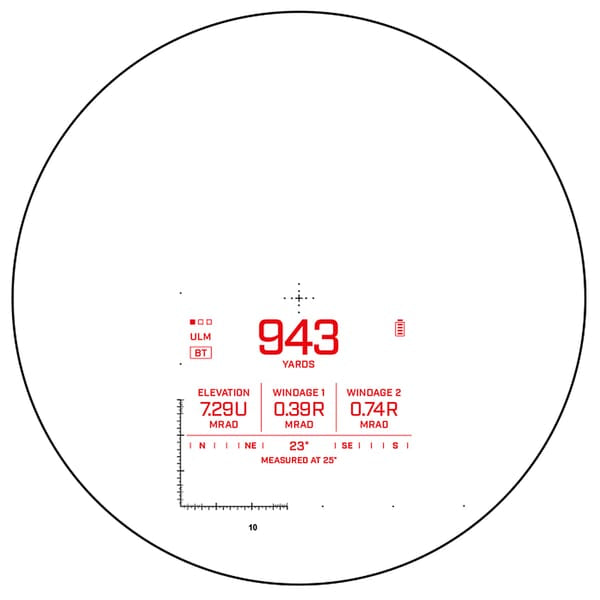

- INTUITIVE INTERFACE: User-friendly D-Pad control and clear OLED display facilitate easy navigation and data presentation in the field.
- VERSATILE POWER OPTIONS: Compatible with standard CR123A batteries and optional 18650 rechargeable batteries for extended use.
- MULTIPLE RETICLE OPTIONS: Etched reticle with dual magnification capability offers versatility for diverse shooting scenarios.
- SMARTPHONE CONNECTIVITY: Works with the Vectronix app for expanded functionality and seamless data management with mobile devices.
Technical Specifications Table
| Specification | Value |
|---|---|
| Magnification | 8x |
| Objective Diameter | 42mm |
| Weight | 35 ounces |
| Dimensions | 2.59" x 5.31" x 6.69" |
| Eye Relief | 18mm |
| Field of View | 390 feet @ 1000 yards |
| Angular Field of View | 7.4° |
| Exit Pupil | 5.25mm |
| Interpupillary Distance | 58mm to 77mm |
| Twilight Factor | 18.3 |
| Max Range | 3 yards to 7000 yards |
| Tree Range | 3 yards to 3000 yards |
| Deer Range | 3 yards to 2400 yards |
| Laser Class | 905nm, Class 1M (IEC 60825-1) |
| Measuring Time | <0.25 sec |
| Measurement Units | Yards/Meters |
| Beam Divergence | 1.8 MRAD x 0.1 MRAD |
| Battery Type | 1 x 3V Lithium Battery CR123A (standard) |
| MPN | 917234 |
What’s in the Box?
- Vectronix Shooting Solutions Vector X 42 8x42 Rangefinding Binocular
- Neckstrap
- CR123A battery
- Flip-up lens covers
- Ocular cover
- Soft case
- Extended battery cap (for 18650)
- Short instructions
- Torx key
- Tripod mount
- Lens cloth
Customer Reviews
"The Vector X 42 exceeded my expectations in the field. The clarity and rangefinding capabilities are top-notch!"
"Perfect for my long-range shooting needs! The ballistic calculator is a game changer."
"Durable and reliable, even in tough weather conditions. Highly recommend!"
FAQ
How accurate is the rangefinder? The Vector X 42 utilizes a 905nm Class 1M laser that offers precise measurements, ensuring accuracy for targets up to 7000 yards. This makes it an ideal choice for long-range shooting and hunting.
Can I use rechargeable batteries? Yes! The Vector X 42 is compatible with both standard CR123A batteries and optional 18650 rechargeable batteries, allowing for longer use without frequent battery changes.
What makes this binocular different from others? The combination of high-quality optics and advanced range
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
