Description

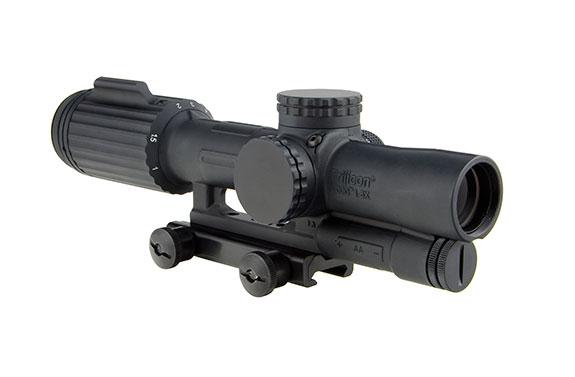

Trijicon VCOG 1-6x24 Red Segmented Circle/Crosshair Scope 1600035 offers precise targeting for competitive shooting and tactical applications. Built with a first focal plane reticle, this scope maintains accuracy across all magnification levels, allowing for quick adjustments. The illuminated reticle enhances visibility in low light conditions, making it suitable for both dawn and dusk hunts. Its robust construction ensures durability in challenging environments, providing reliability for outdoor enthusiasts.
Engineered for performance, the VCOG features a quick magnification adjustment dial for seamless transitions between 1x and 6x. This makes it an excellent choice for varying shooting distances, whether in close-quarter battles or long-range engagements. With waterproof and fog-proof capabilities, this scope is designed to withstand tough conditions while delivering exceptional clarity and performance.
Features – Key Benefits Bullets
- ENHANCED CLARITY for spotting targets in challenging lighting conditions.
- QUICK MAGNIFICATION ADJUSTMENTS with an integrated dial fin for seamless transitions.
- ADJUSTABLE BRIGHTNESS SETTINGS ensure visibility in varied environments with 6 settings.
- BULLET DROP COMPENSATING RETICLE allows for rapid range estimation and accurate holds.
- FIRST FOCAL PLANE DESIGN keeps subtensions true throughout the magnification range.
- WATERPROOF & FOGPROOF construction for reliable performance in all weather conditions.
- LONG BATTERY LIFE of up to 700 hours on a single AA battery for extended use.
- RUGGED ALUMINUM HOUSING designed to endure extreme conditions with ease.
Technical Specifications Table
| Specification | Details |
|---|---|
| Scope Weight | 28.3 oz. (w/mount + battery) |
| Scope Length | 10.05" |
| Magnification Range | 1-6x |
| Scope Objective Diameter | 24mm |
| Scope Tube Size / Mount | 30mm |
| Turret Adjustment (Click Value) | 1/4 MOA |
| Reticle Position | First Focal Plane |
| Reticle Details | Red Segmented Circle w/ Crosshair |
| Field of View | 95' - 15.9 ft @ 100 yards |
| Eye Relief | 4" |
| Illuminated Reticle | Yes |
| Scope Finish | Matte Black |
What’s in the Box?
- Thumb Screw Mount (TA51)
- 1 Lithium AA Battery
- 1 LENSPEN (TA56)
- 1 Trijicon Logo Sticker (PR15)
- 1 Manual
- 1 Warranty Card
Customer Reviews
"The clarity of the Trijicon VCOG is outstanding! I can easily spot my targets during early morning hunts."
"This scope has transformed my shooting. The quick adjustments and durability are impressive!"
FAQ
How does the Trijicon VCOG perform in low light? The Trijicon VCOG 1-6x24 is designed with superior glass quality and adjustable brightness settings, making it an excellent choice for low-light conditions. The illuminated reticle greatly enhances target acquisition even at dusk or dawn.
Can I use this scope for both short and long-range shooting? Absolutely! The variable magnification range of 1-6x allows for versatility, making it suitable for both close-quarter engagements and long-distance shots. The first focal plane reticle ensures accurate holds at any distance.
Do I need a professional for installation? While it's possible to mount the Trijicon VCOG yourself, we recommend consulting with a professional gunsmith to ensure optimal positioning and alignment for the best shooting experience.
Similar Models
Looking for more exceptional optics? Explore our extensive Trijicon lineup, including the Trijicon Accupoint 1-4x24 for a lightweight alternative or the Trijicon ACOG 4x32 for fixed magnification versatility. Discover our full collection to find the perfect optics tailored to your shooting adventures!
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
