Description

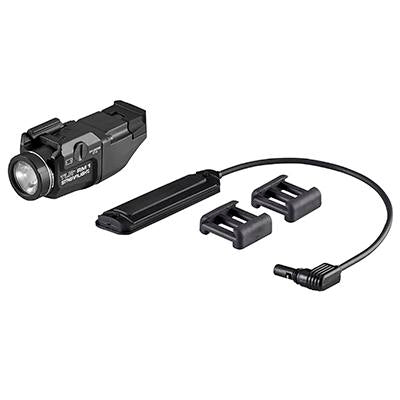

Streamlight TLR RM 1 Rail Mounted Tactical Lighting System offers versatile lighting solutions with both push-button and remote pressure switches. This system provides a powerful output of 500 lumens, illuminating targets up to 140 meters for 1.5 hours on a standard setting and up to 3 hours when using strobe mode. The remote pressure switch, designed to exit at a 90° angle, enhances wire routing while preserving valuable rail space. The included mounting kit ensures easy attachment to long guns equipped with MIL Standard 1913 rails.
Engineered optics deliver a concentrated beam with optimal peripheral illumination, making it ideal for tactical applications. A safe-off feature prevents accidental activation, conserving battery life for when you need it most. There’s no need to worry about water damage, as the TLR RM 1 is rated IPX7, meaning it's waterproof for up to 1 meter for 30 minutes. This tactical light combines functionality with reliability, ensuring you stay prepared in any situation.
Features – Key Benefits Bullets
- POWERFUL ILLUMINATION with 500 lumens for maximum visibility in low-light conditions.
- VERSATILE MOUNTING options with a complete kit for easy attachment to long guns.
- REMOTE PRESSURE SWITCH allows for quick activation without changing your grip.
- OPTIMIZED BEAM PATTERN engineered for both focused and peripheral visibility.
- SAFE-OFF FEATURE prevents accidental activation, protecting battery life.
- DURABLE CONSTRUCTION rated IPX7 for waterproof performance up to 1 meter.
- LIGHTWEIGHT DESIGN at 2.74 oz. ensures minimal impact on weapon handling.
- LONG BATTERY LIFE powered by CR123A lithium battery, included for convenience.
Technical Specifications Table
| Specification | Details |
|---|---|
| Output | 500 lumens |
| Beam Distance | 140 meters |
| Runtime | 1.5 hours (continuous), 3 hours (strobe) |
| Weight | 2.74 oz. (77.9 g) |
| Dimensions | 3.2” (8.12 cm) |
| Battery Type | 1 x CR123A lithium (included) |
| Waterproof Rating | IPX7, waterproof to 1m for 30 minutes |
| Mounting Standard | MIL Standard 1913 Rails |
What's in the Box?
- Streamlight TLR RM 1 Tactical Light
- Remote pressure switch
- Mounting hardware
- CR123A lithium battery
Customer Reviews
"The remote switch makes this light so easy to use. Perfect for my tactical setup!"
"Bright and reliable. The waterproof feature gives me peace of mind during rainy nights."
"Installation was straightforward, and the beam quality is excellent for my needs."
FAQ
How does the TLR RM 1 perform in different weather conditions?
The TLR RM 1 is rated IPX7, which means it can withstand being submerged in water up to 1 meter for 30 minutes. This makes it suitable for use in adverse weather conditions, ensuring reliable performance when you need it most.
What type of battery does the TLR RM 1 use, and how long does it last?
The tactical light is powered by a single CR123A lithium battery, which is included with your purchase. Under standard operation, the light provides up to 1.5 hours of continuous use, and up to 3 hours in strobe mode.
Can the TLR RM 1 be easily mounted on different firearms?
Yes, the TLR RM 1 is designed to securely attach to long guns with MIL Standard 1913 Rails, providing versatility for mounting on various firearms. The included kit ensures you have everything you need for a quick setup.
Similar Models
Looking for more tactical lighting options? Check out our complete Streamlight collection, featuring models like the TLR-6 for compact versatility and the TLR-2 HL for even more powerful illumination. Explore our full range to find the ideal lighting solution tailored to your tactical needs.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
