Description
Streamlight Protac Rail Mount HL-X Laser is a versatile tactical light designed for weapon mounting, featuring both an integrated infrared LED illuminator and a visible white LED illuminator. With a brightness of 1000 lumens and a beam distance of 270 meters, this light excels in low-light conditions, providing ample illumination for tactical scenarios. The Protac HL-X can operate for 0.75 hours with CR123A batteries and up to 1.25 hours with the included 18650 USB battery, offering flexibility based on your power source preference.
This tactical light is built for durability, constructed from high-strength aluminum and featuring an IPX4 rating for water resistance. The easy-to-use ambidextrous switch allows for quick activation, ensuring you're ready when it counts. With its low-profile design, the Streamlight Protac Rail Mount HL-X Laser integrates seamlessly into your firearm setup, enhancing visibility without adding bulk.
Features – Key Benefits Bullets
- HIGH LUMEN OUTPUT for maximum visibility in low-light situations.
- LONG RANGE BEAM reaches 270 meters, ideal for target identification.
- DURABLE CONSTRUCTION with high-strength aluminum for rugged use.
- WATER RESISTANT rated IPX4 to withstand splashes and harsh conditions.
- VERSATILE POWER OPTIONS compatible with CR123A and 18650 USB batteries.
- QUICK ACTIVATION with ambidextrous switch for easy operation in emergencies.
- INTEGRATED LASER enhances targeting accuracy during tactical operations.
- LIGHTWEIGHT DESIGN minimizes firearm bulk while maximizing functionality.
Technical Specifications Table
| Feature | Details |
|---|---|
| Brightness | 1000 lumens |
| Beam Distance | 270 meters |
| Runtime (CR123A) | 0.75 hours |
| Runtime (18650 USB) | 1.25 hours |
| Material | High-strength aluminum |
| Water Resistance | IPX4 |
| Weight | 5.6 oz (with battery) |
| Dimensions | 5.5" (length) x 1.5" (width) |

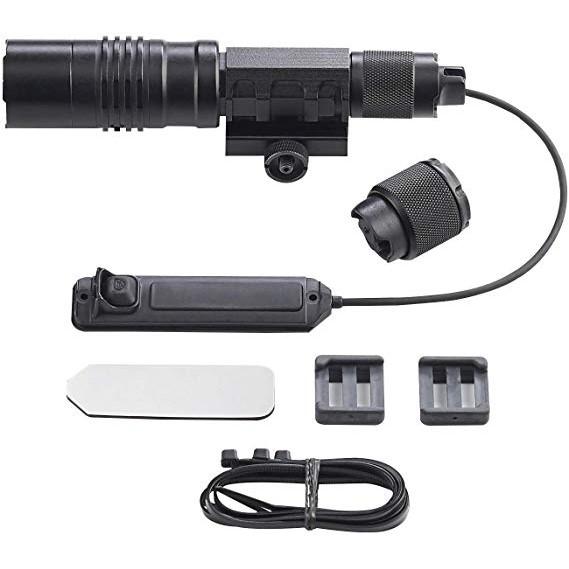

What's in the Box?
- Streamlight Protac Rail Mount HL-X Laser
- 18650 USB battery
- Mounting hardware
- User manual
Customer Reviews
"This light is incredibly bright and works flawlessly in low light. The integrated laser is a game changer." - John D.
"Easy to mount and use. The battery life is excellent, and it fits perfectly on my rifle." - Sarah W.
"Solid build quality. I've used it in the rain, and it held up without any issues." - Mike T.
FAQ
What is the effective range of the Streamlight Protac Rail Mount HL-X Laser? The effective range is up to 270 meters, making it suitable for various tactical applications, including law enforcement and personal defense. The high lumen output ensures that targets are clearly visible even in challenging lighting conditions.
How do I maintain the Protac HL-X? To maintain the light, ensure it is cleaned regularly to remove dirt and debris. Check the battery contacts for corrosion and replace batteries as needed. For the best performance, use Streamlight’s recommended battery types, and store the light in a cool, dry place when not in use.
How does the Protac HL-X compare to other tactical lights? Compared to other tactical lights, the Protac HL-X stands out with its combination of high brightness, durable construction, and integrated laser. Many users appreciate the versatility of battery options, which can be a critical factor in extended use scenarios.
Similar Models
Looking for more tactical lighting solutions? Explore the full range of Streamlight products, including the Streamlight TLR-1 HL for a compact mounting option and the Streamlight ProTac 2L-X for a handheld version. Check out our complete collection for lighting options tailored to your tactical needs.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
