Description

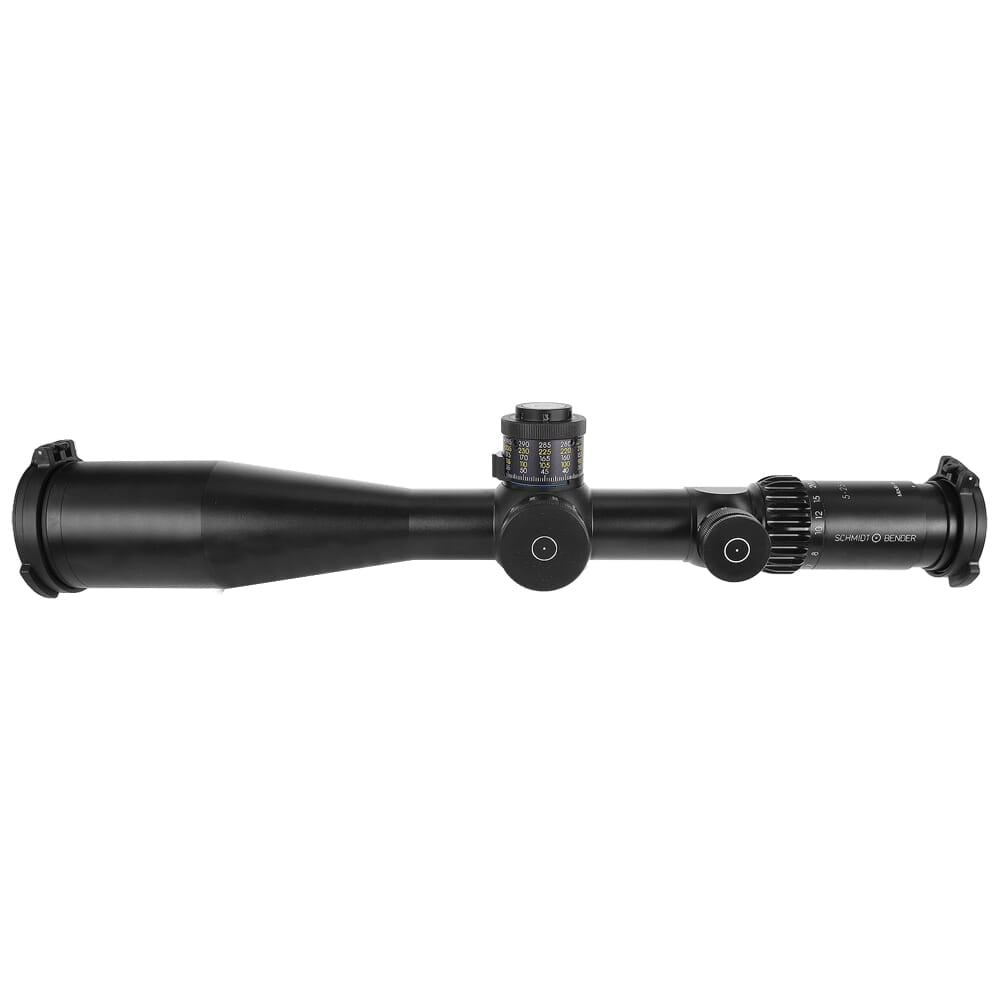

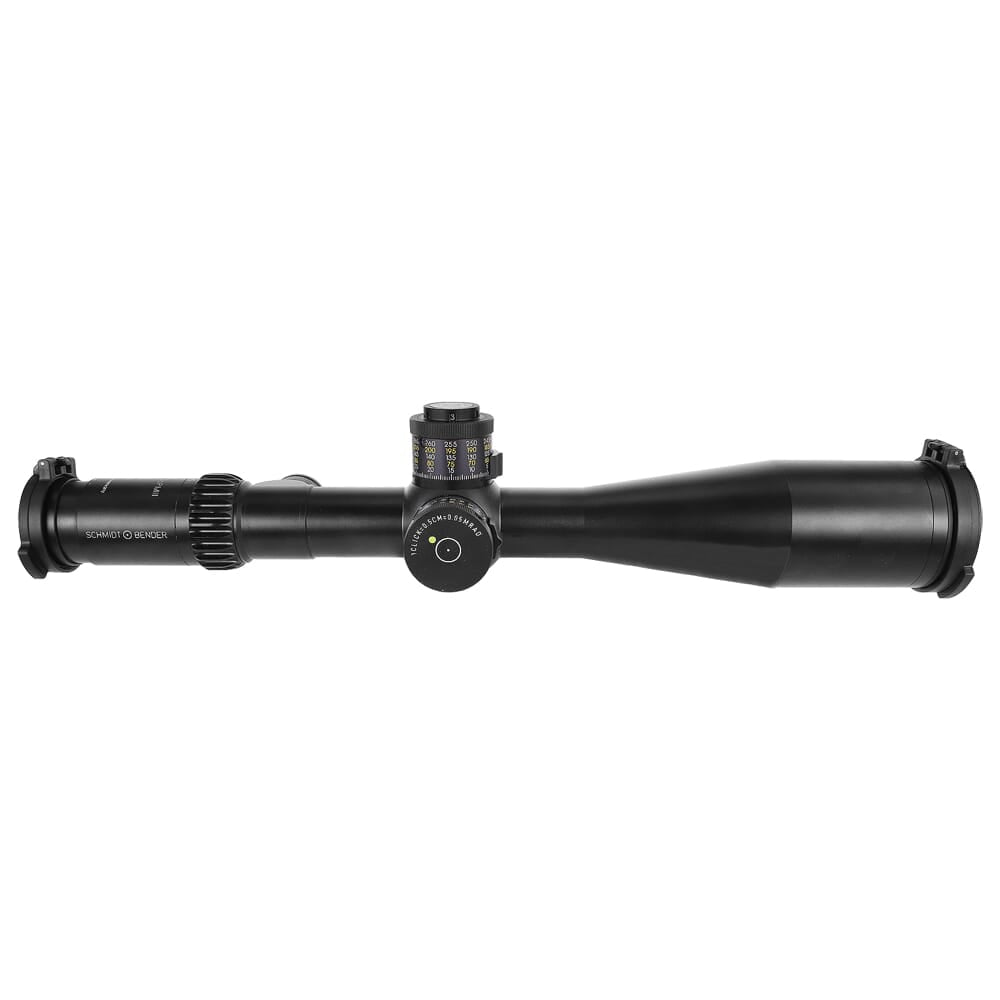

Schmidt Bender PM II 5-25x56mm Riflescope LP P5FL offers precise optical performance with a versatile magnification range suitable for various shooting applications. The first focal plane reticle maintains consistent sizing, ensuring accurate holdovers and windage adjustments at any magnification. With a robust construction, this riflescope is built to withstand harsh conditions while maintaining zero accuracy, making it ideal for both competitive shooters and tactical professionals.
Equipped with an illuminated reticle, this riflescope enhances target acquisition in low-light environments. Parallax adjustments ensure that your reticle aligns perfectly with your target, minimizing errors due to parallax shift. With a wide field of view, tracking moving targets becomes effortless, providing a clear visual of your surroundings during engagements.
Features – Key Benefits Bullets

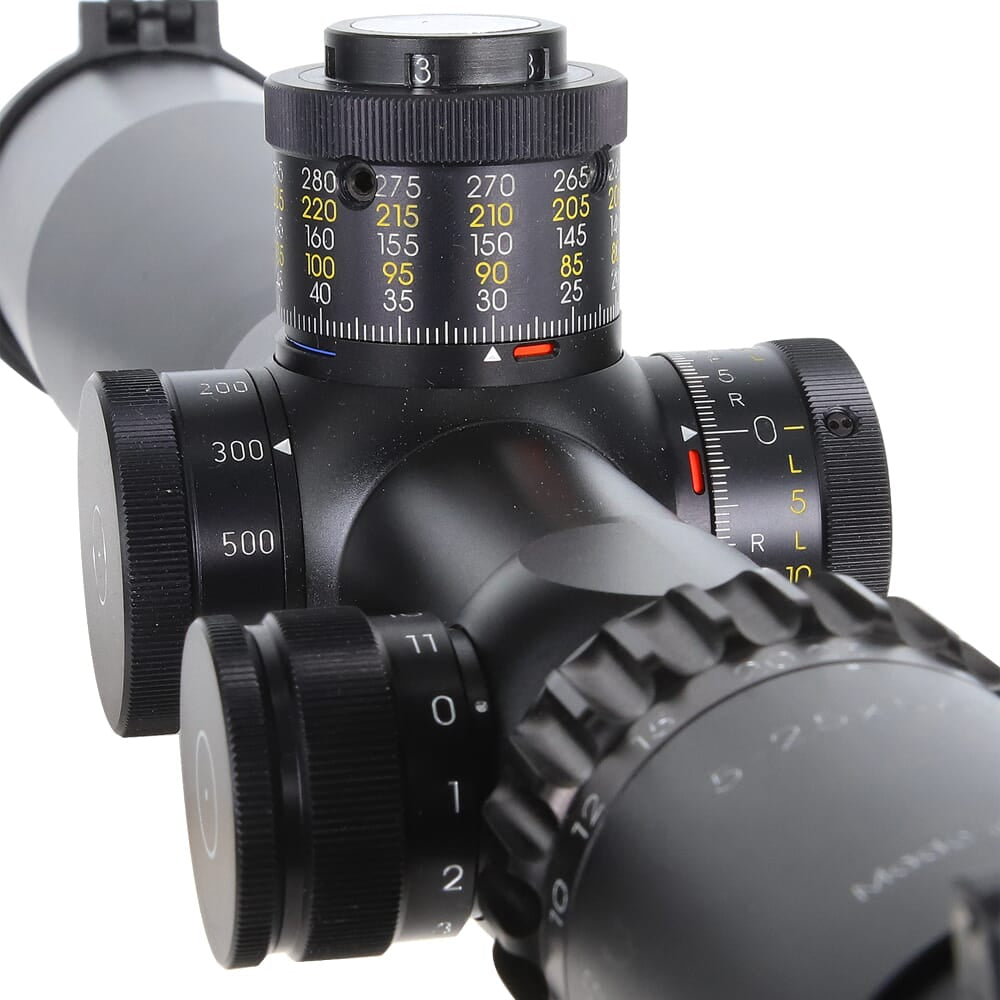

- HIGH-PRECISION TURRETS: The elevation turret's Double Turn design with MTC LT delivers tactile feedback for exact adjustments, making long-range accuracy attainable.
- OPTIMAL MAGNIFICATION: With a range of 5x to 25x, this riflescope adapts to various distances, catering to close and long-range shooting needs.

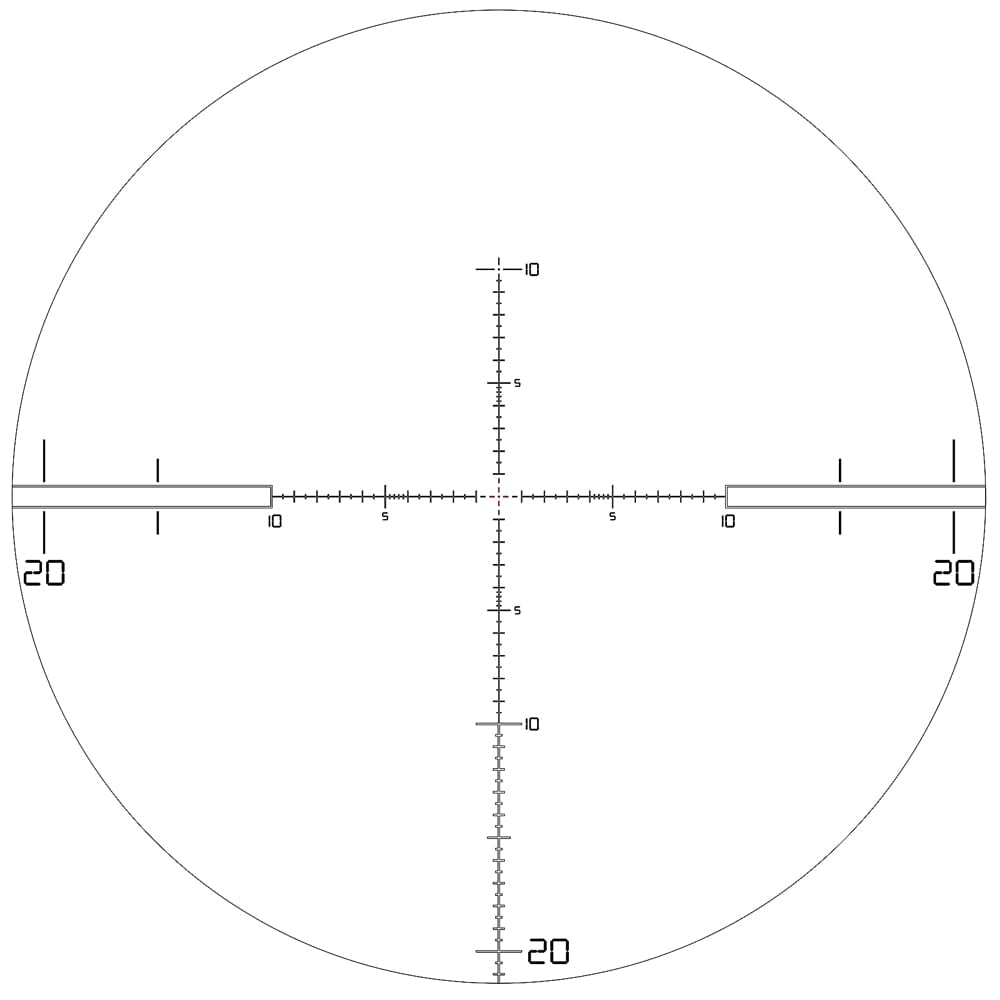

- FIRST FOCAL PLANE: The P5FL reticle provides consistent sizing across all magnifications, aiding in accurate ranging and corrections.
- ILLUMINATED RETICLE: The illumination feature enhances visibility in low-light situations, ensuring quick target engagement.
- PARALLAX COMPENSATION: Comprehensive adjustments minimize reticle movement for precise targeting at varying distances.
- ROBUST CONSTRUCTION: Designed for extreme conditions, this scope remains reliable even with heavy recoil and rugged handling.
- WIDE FIELD OF VIEW: A broad field of view enhances situational awareness, crucial for tracking moving targets.
- TWILIGHT FACTOR: High twilight factor improves optical clarity in challenging light, aiding in target distinction during dawn or dusk.
Technical Specifications
| Feature | Specification |
|---|---|
| Scope Weight | 37.57 oz |
| Scope Length | 16.54 inch |
| Magnification Range | 5-25x |
| Scope Objective Diameter | 56mm |
| Scope Tube Size / Mount | 34mm |
| Turret Adjustment | 0.5cm/100m |
| Elevation Turret Details | 295 cm/100 m, MT II MTC LT |
| Windage Turret Details | ± 65 cm/100m, DT II+ ZC LT |
| Parallax Adjustment | 10m-∞ |
| Reticle Position | 1st Focal Plane |
| Reticle Details | P5FL |
| Field of View | 5.3–1.5m/100m |
| Exit Pupil | 11.0–2.3mm |
| Eye Relief | 90mm |
| Twilight Factor | 15.8 - 31.6 |
| Illuminated Reticle | Yes |
| Scope Finish | Matte Black |
| Scope Turret Rotation | Counter Clockwise (CCW) |
| Product Type | Riflescopes |
| UPC | 191992065501 |
| MPN | 689-911-622-I1-H5 |
What's in the Box?
- Schmidt Bender PM II 5-25x56mm Riflescope LP P5FL
- Protective Lens Caps
- Cleaning Cloth
- User Manual
- Warranty Information Card
Customer Reviews
"This riflescope has changed my accuracy on the range. The reticle is clear, and the adjustments are precise." - Mike L.
"Great performance in low-light conditions. I recommend this for any serious shooter." - Sarah K.
"Rugged and reliable. Perfect for all my hunting trips." - James T.
FAQ
Many buyers want to know how the Schmidt Bender PM II compares to other scopes in terms of performance. This riflescope excels with its first focal plane reticle, allowing for accurate adjustments at any magnification level, unlike many second focal plane options. The illuminated reticle also provides an advantage in low-light situations, making it suitable for dawn and dusk hunting.
Maintenance is another common concern. Regularly cleaning the lenses and checking the turret adjustments can help maintain optimal performance. Its robust construction is designed to withstand harsh environments, but care should still be taken during transport and storage to avoid damage.
Buyers often ask about the ease of use for beginners. Despite its advanced features, the Schmidt Bender PM II is user-friendly. The turrets provide tactile feedback for adjustments, making it easier for shooters of all skill levels to engage targets accurately.
Similar Models
If you're exploring other options, consider the Schmidt Bender PM II 3-20x50mm for a more compact choice or the Schmidt Bender 12-50x56mm for higher magnification needs. Browse our full collection to find the perfect riflescope tailored to your shooting requirements.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
