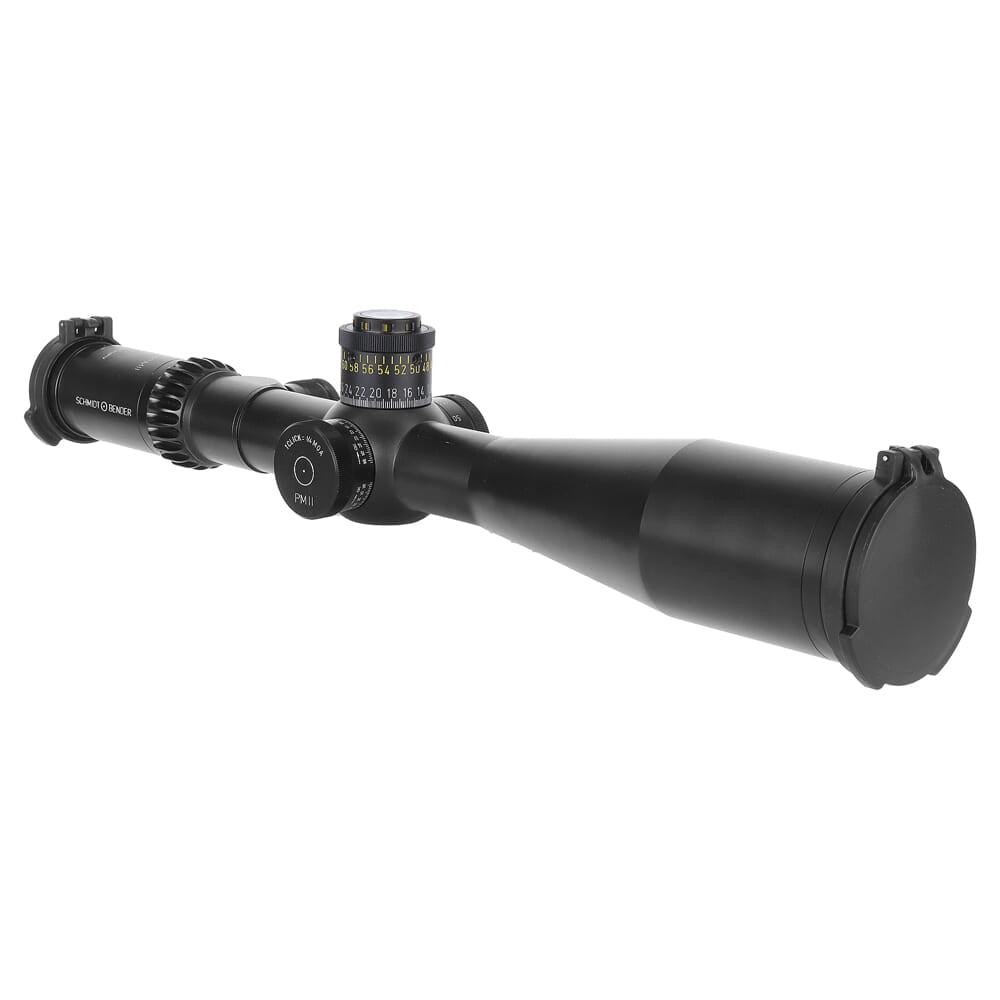

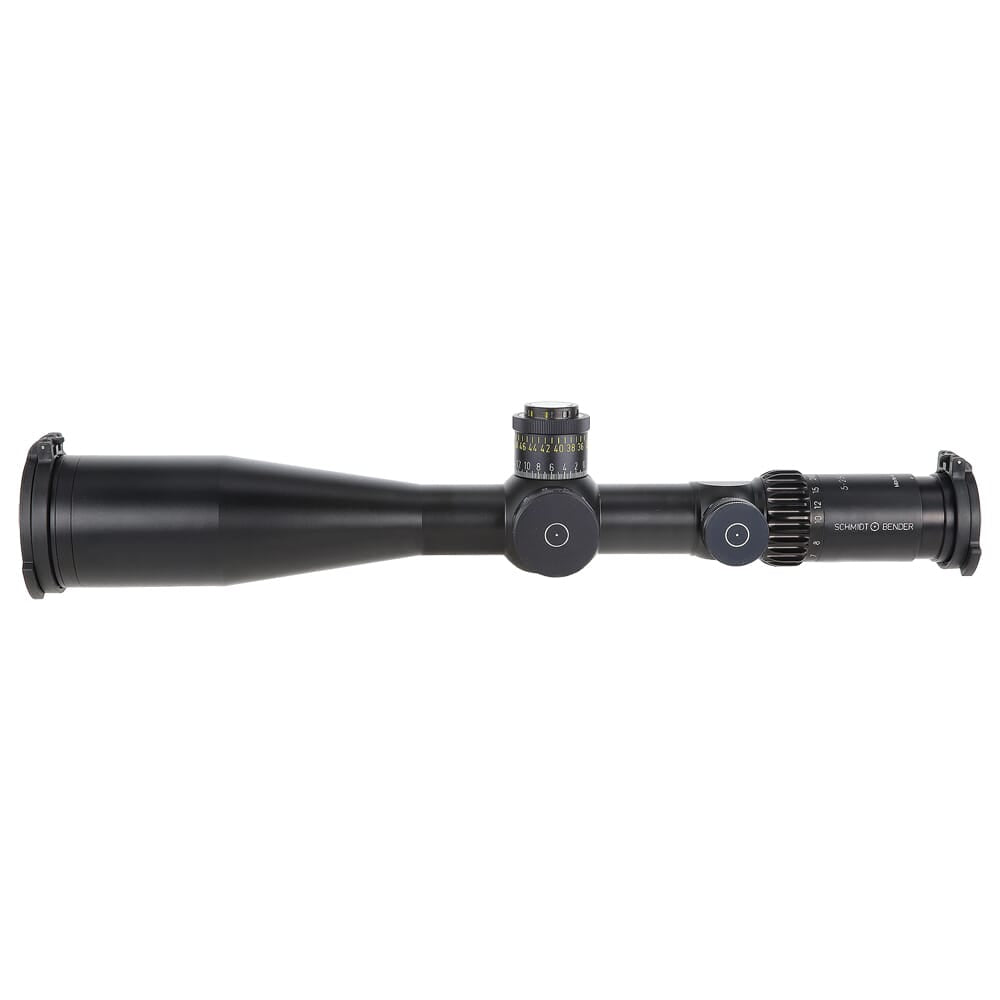

Schmidt Bender PM II 5-25x56mm Riflescope LP P4FL-MOA is engineered for precision and versatility in a variety of shooting scenarios. With a magnification range of 5x to 25x, this riflescope adapts seamlessly to both short and long-range engagements. The illuminated P4FL reticle remains consistent across the entire zoom range, facilitating accurate aiming regardless of lighting conditions. Its robust 34mm main tube enhances durability while providing a wide range of windage and elevation adjustments.
The 56mm objective lens ensures superior brightness and clarity, even in low-light environments. Precise 1/4 MOA turret adjustments allow for fine-tuning to meet the exact demands of competitive shooters and law enforcement professionals. Built to withstand rigorous use, the matte black finish adds to the scope's durability while minimizing glare. Whether you’re in the field or at the range, this riflescope delivers reliable performance and user-friendly functionality.
Features – Key Benefits Bullets

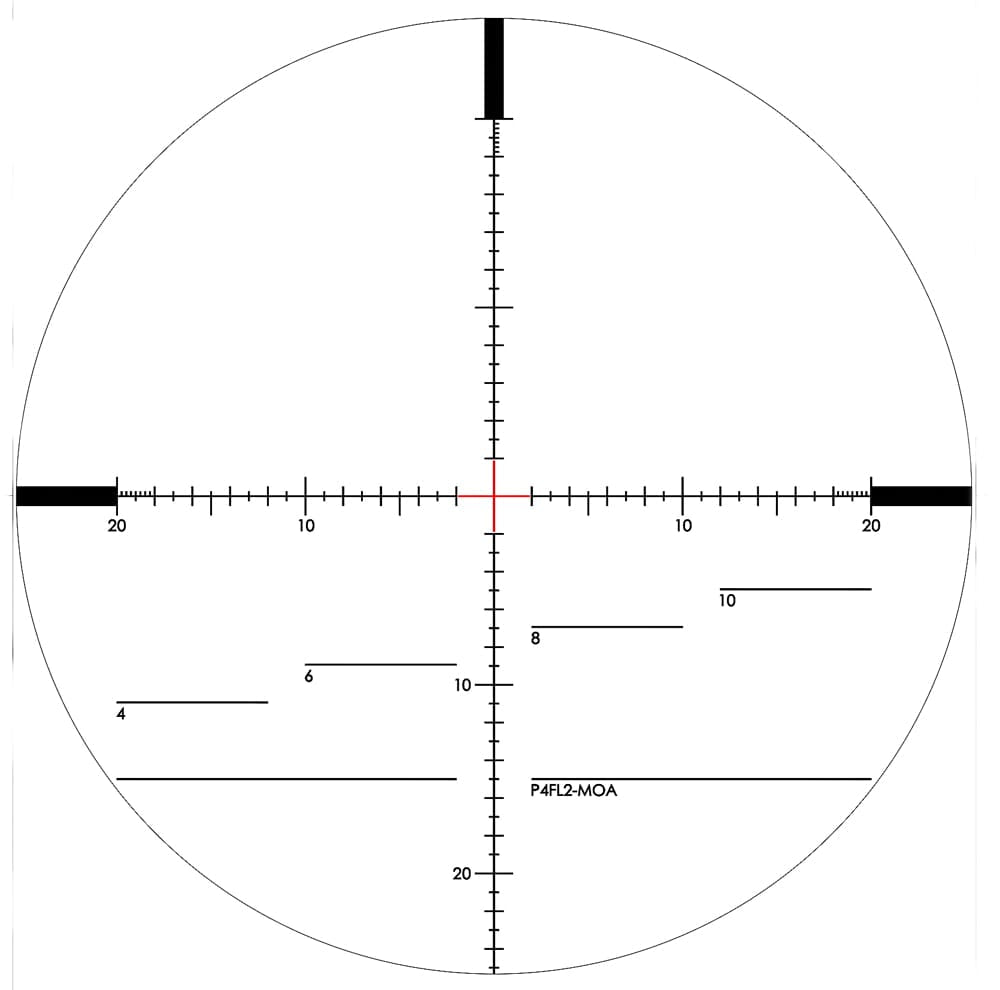

- PRECISION ENGINEERING: The first focal plane P4FL reticle maintains proportion across the 5-25x magnification range, ensuring consistent accuracy.
- ADVANCED ILLUMINATION: An illuminated reticle provides visibility in low-light conditions, aiding quick target acquisition.
- ROBUST CONSTRUCTION: A 34mm main tube enhances structural integrity and allows for extensive windage and elevation adjustments.
- EXTENSIVE RANGE: Offers a wide magnification range, making it suitable for long-range shooting beyond 6500 feet.

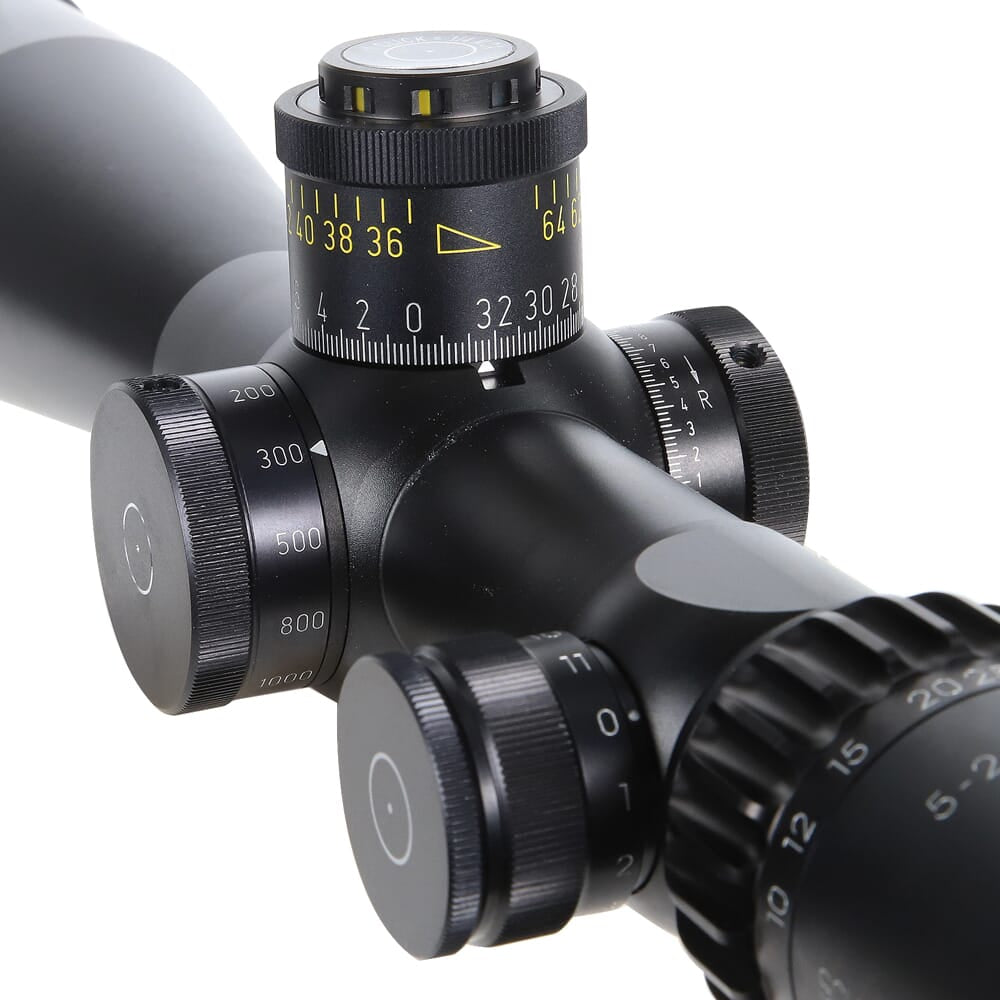

- OPTIMIZED ADJUSTMENTS: Turret adjustments feature 1/4 MOA click values for precise changes in elevation and windage.
- ENHANCED VISIBILITY: The 56mm objective lens ensures a bright sight picture, advantageous in suboptimal lighting.
- DURABLE FINISH: The matte black finish is designed to withstand wear and tear, ensuring longevity in the field.
- COMFORTABLE VIEWING: Offers 90mm eye relief for comfortable positioning, reducing strain during extended use.
Technical Specifications
| Feature | Specification |
|---|---|
| Weight | 37.57 oz |
| Length | 16.54 inch |
| Magnification Range | 5-25x |
| Objective Diameter | 56mm |
| Tube Size / Mount | 34mm |
| Turret Adjustment | 1/4 MOA |
| Elevation Turret Details | 65 MOA DT |
| Windage Turret Details | ± 16 MOA ST |
| Parallax Adjustment | 10m-∞ |
| Reticle Position | 1st Focal Plane |
| Field of View | 5.3–1.5m/100m |
| Exit Pupil | 11.0–2.3mm |
| Eye Relief | 90mm |
| Twilight Factor | 15.8 - 31.6 |
| Illuminated Reticle | Yes |
| Finish | Matte Black |
| Turret Rotation | CCW |
| UPC | 191992065174 |
| MPN | 689-911-982-A8-A2 |
What's in the Box?
- Schmidt Bender PM II 5-25x56 Riflescope
- Sunshade
- Scope Caps
- User Manual
- Cleaning Cloth
- Warranty Information
Customer Reviews
"The clarity and precision of this riflescope are unmatched. Perfect for my long-range shooting needs!"
"I love the illuminated reticle feature; it makes a significant difference in low-light conditions!"
"This scope is built like a tank. I trust it for all my competitive shooting."
FAQ
How does the illuminated reticle perform in low-light conditions? The illuminated reticle enhances visibility, making it easier to acquire targets in low-light scenarios, such as dawn or dusk. This feature is particularly useful for hunters and competitive shooters who often operate in varied lighting.
What kind of maintenance is required for the Schmidt Bender PM II? Regular cleaning of the lenses with the provided cloth is recommended to maintain clarity. Additionally, ensuring that the scope's turrets are free from debris will help maintain optimal adjustment functionality. Routine checks for proper mounting and alignment are also suggested.
How does this scope compare to other long-range options? The Schmidt Bender PM II 5-25x56mm offers a unique combination of durability, precision, and a wide magn
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
