Description

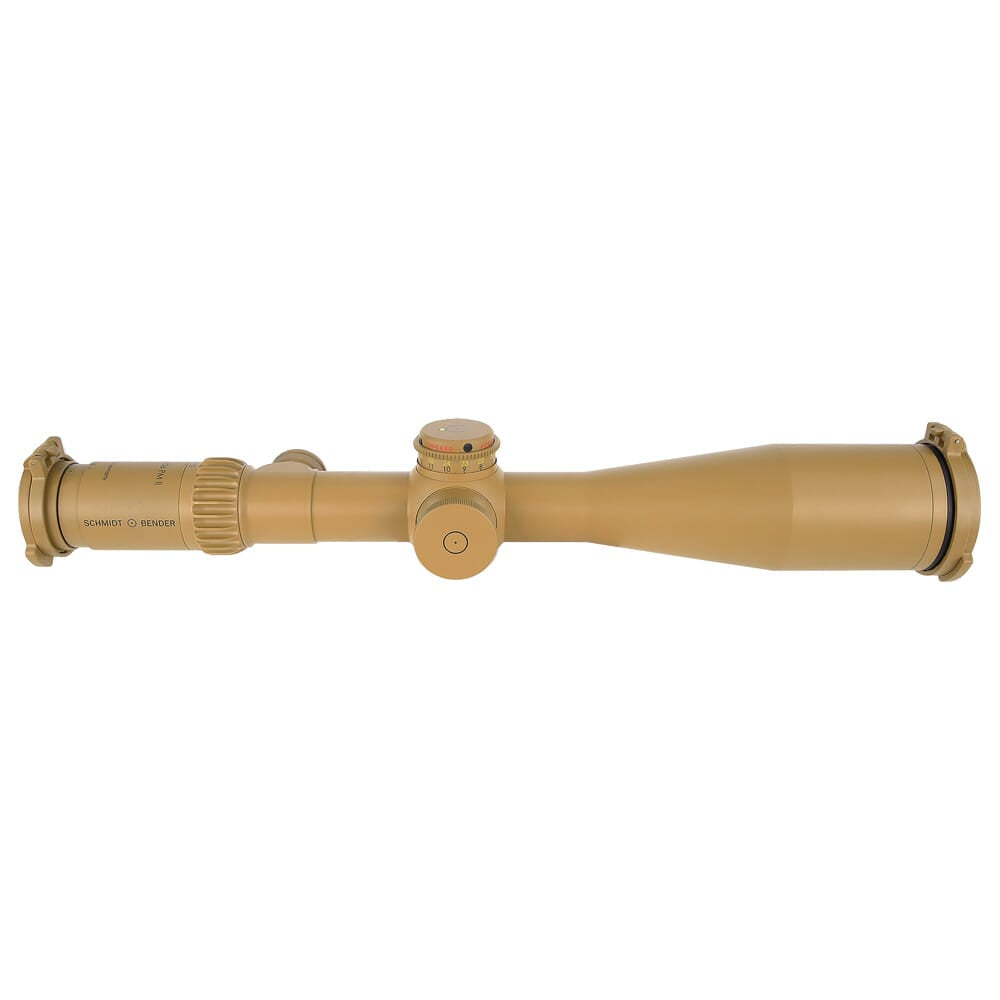

Schmidt Bender PM II 5-25x56mm Riflescope LP P4FL is engineered for precision in long-range shooting. The first focal plane reticle allows for consistent target engagement across the entire magnification range, maintaining accurate sizing for better shot placement. With an objective diameter of 56mm, this scope significantly enhances light transmission and image clarity, making it effective in low-light conditions. Its durable RAL8000 finish not only offers resilience but also reduces glare, which is essential in tactical scenarios.
This model features an advanced DT27 turret system, providing precise elevation adjustments with tactile feedback. The illuminated LP P4FL reticle enhances visibility in challenging environments, giving you a clear advantage. Constructed for reliability, the PM II series is built to withstand harsh conditions, making it suitable for military, law enforcement, and competitive shooting applications. With generous eye relief and a wide field of view, this riflescope is designed for optimal performance, whether in the field or at the range.
Features – Key Benefits
- FIRST FOCAL PLANE: Precision is paramount with the reticle on the first focal plane, ensuring accurate target engagement at varying magnifications without reticle size distortion.

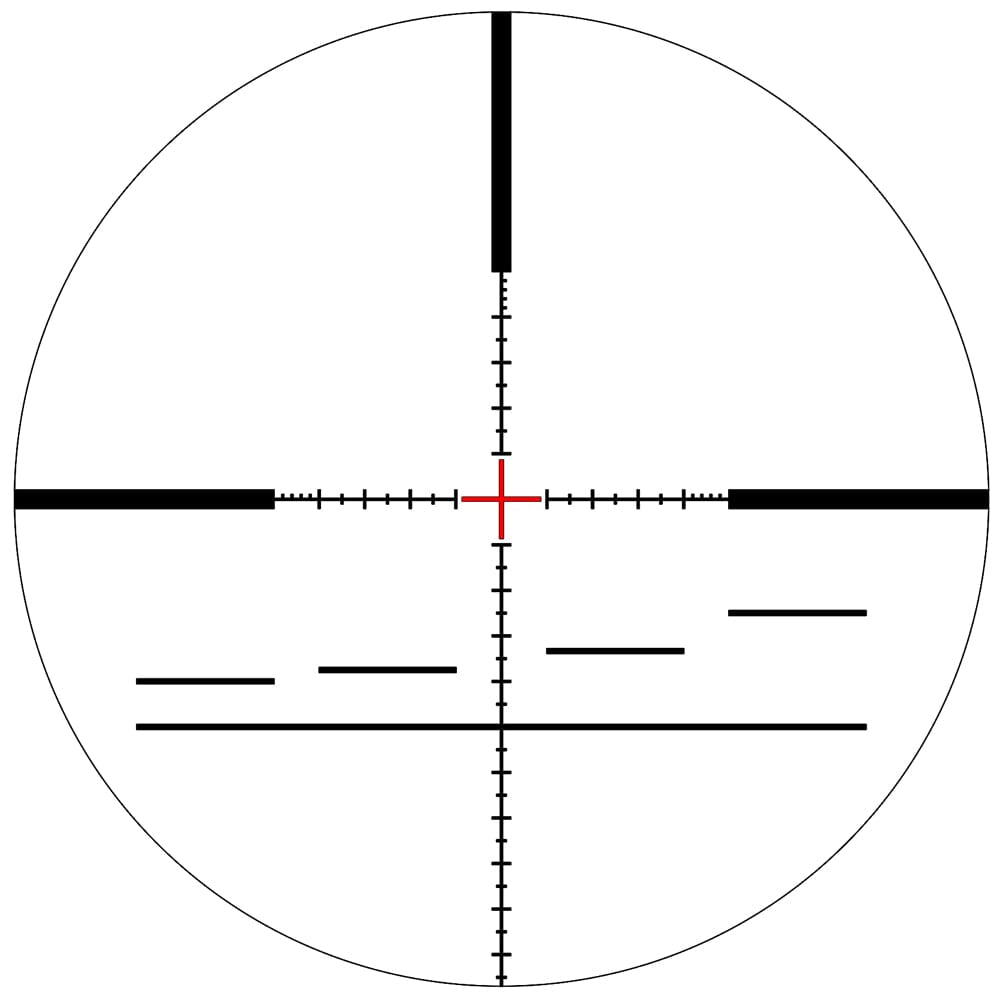

- ADVANCED RETICLE: The LP P4FL illuminated reticle offers sharp aiming points. Its illumination enhances visibility in dim conditions, providing a distinct advantage during critical moments.

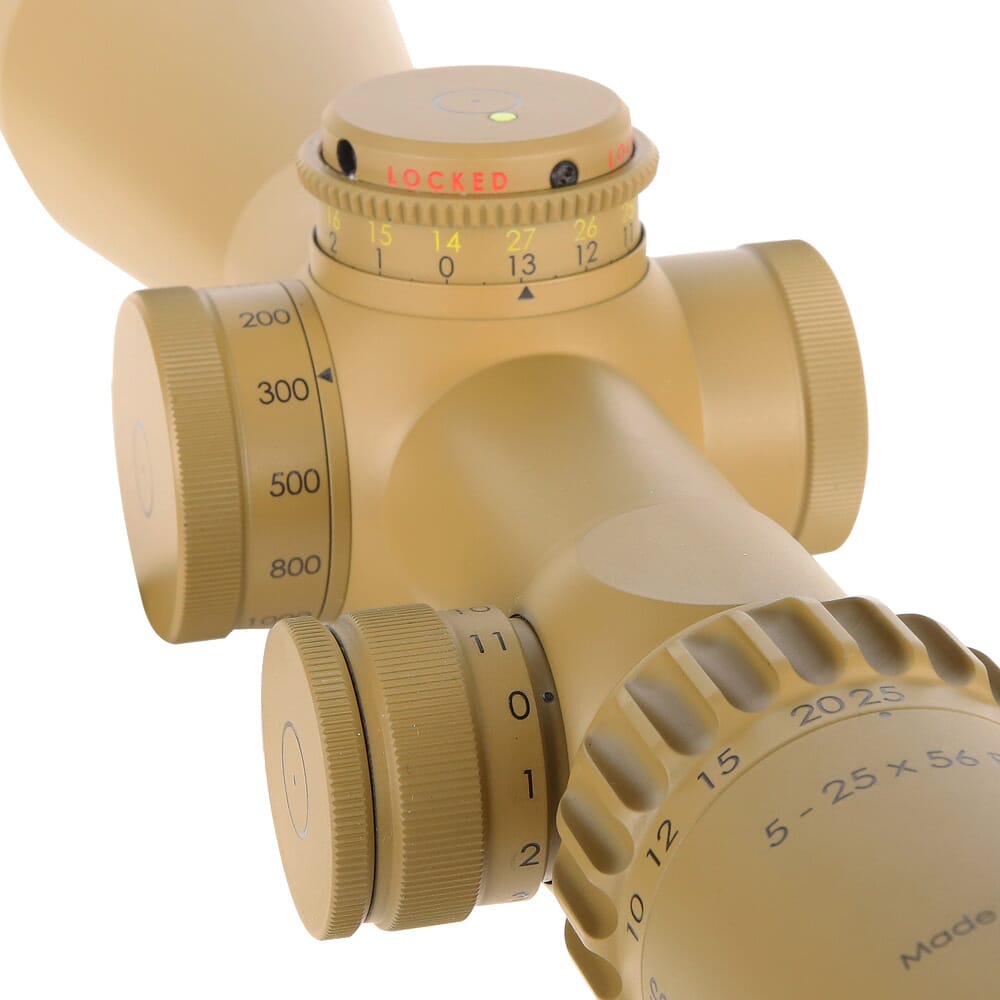

- PRECISION ENGINEERING: The DT27 MTC LT turret system allows for precise elevation adjustments with tactile feedback, critical for making long-range shots with confidence and accuracy.
- ROBUST CONSTRUCTION: Finished with a tactical RAL8000 coating, this riflescope withstands harsh conditions while minimizing reflective surfaces, ideal for stealth and durability in the field.
- ENHANCED OPTICS: With a magnification range of 5-25x and a 56mm objective lens, the scope excels in light transmission, offering clear, bright images at all distances.
- INTUITIVE CONTROLS: The counter-clockwise turret rotation and More Tactile Clicks (MTC) feature provide a user-friendly experience with precise, repeatable adjustments for windage and elevation.
- VERSATILE USE: Whether for military snipers, law enforcement, or competitive shooting, the wide field of view and excellent light gathering cater to diverse, demanding environments.
- READY FOR ACTION: The scope includes a throw lever for swift magnification adjustments and Tenebraex lens covers for lens protection, ensuring readiness and reliability in the field.
Technical Specifications
| Feature | Specification |
|---|---|
| Weight | 37.57 oz |
| Length | 16.54 inch |
| Magnification Range | 5-25x |
| Objective Diameter | 56mm |
| Tube Size/Mount | 34mm |
| Turret Adjustment | 1cm/100m |
| Elevation Turret | 27 MRAD DT27 MTC LT |
| Windage Turret | ± 6 MRAD ST ZC CT |
| Parallax Adjustment | 10m-∞ |
| Reticle Position | 1st Focal Plane |
| Reticle Details | P4FL |
| Field of View | 5.3–1.5m/100m |
| Exit Pupil | 11.0–2.3mm |
| Eye Relief | 90mm |
| Twilight Factor | 15.8 - 31.6 |
| Illuminated Reticle | Yes |
| Finish | RAL8000 |
| Turret Rotation | Counter Clockwise (CCW) |
| UPC | 191992065693 |
| MPN | 689-945-972-G8-E8 |
What's in the Box?
- Schmidt Bender PM II 5-25x56 Riflescope
- Throw Lever
- Tactical Tenebraex Lens Covers
- Polarization Filter (optional)
- Cleaning and Maintenance Kit
- User Manual
Customer Reviews
“This scope exceeded my expectations in clarity and durability. Perfect for long-range targets.”
“The illuminated reticle is a game changer for low-light hunting. Highly recommend!”
“Adjustments are precise and easy to make in the field. Best tactical scope I’ve used.”
FAQ
How does the first focal plane reticle enhance shooting accuracy? The first focal plane design keeps the reticle size proportional to the target at any magnification. This ensures that your holds and adjustments remain accurate, regardless of zoom level.
What maintenance does the Schmidt Bender PM II require? Regularly clean the lenses with a microfiber cloth and check the turret adjustments for precision. For long-term storage, ensure the scope is kept in a dry place to prevent moisture buildup.
How does this scope compare to other tactical scopes? Compared to similar models, the PM II offers superior light transmission and a robust adjustment system. Its RAL8000 finish provides added durability, making it ideal for extreme conditions.
Can I use this scope for hunting? Yes, the PM II is versatile enough for hunting, competitive shooting, and tactical applications. Its illuminated reticle and high magnification range make it suitable for various environments and targets.
What is the warranty for this product? Schmidt Bender typically offers a limited lifetime warranty
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
