Description

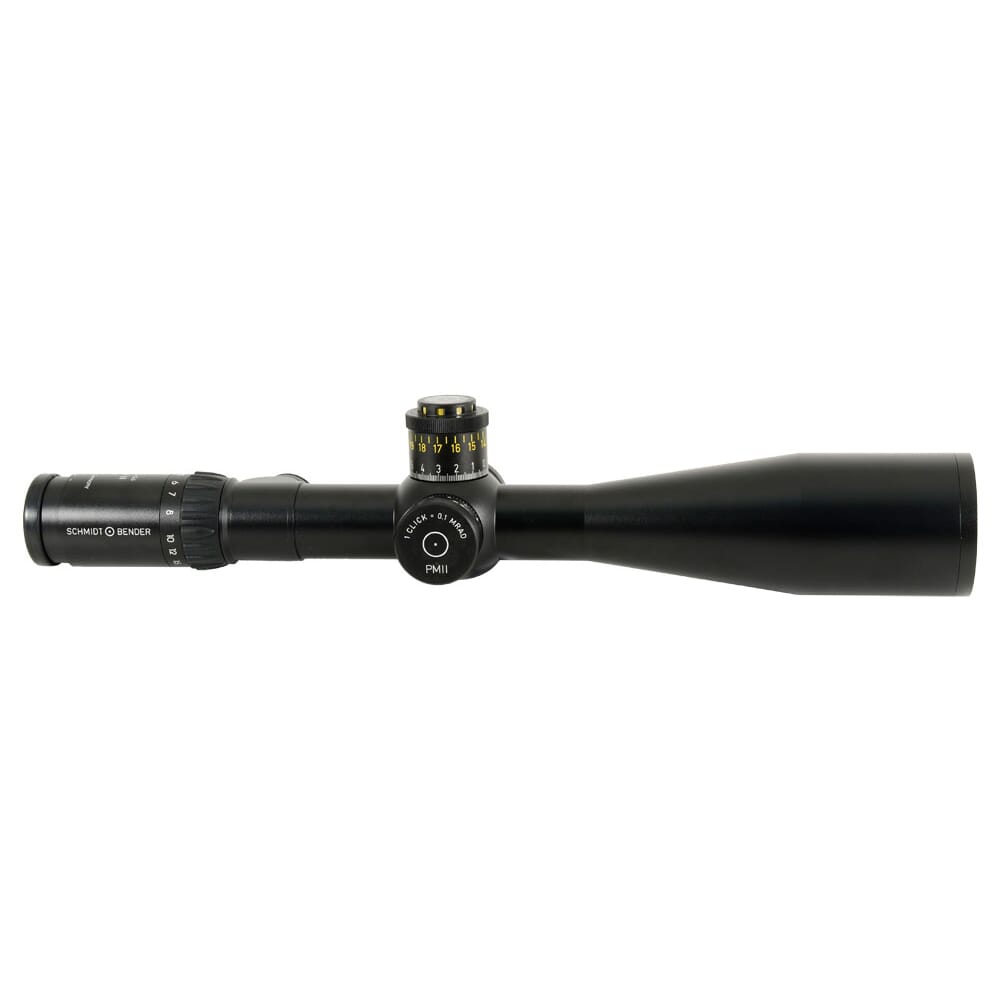

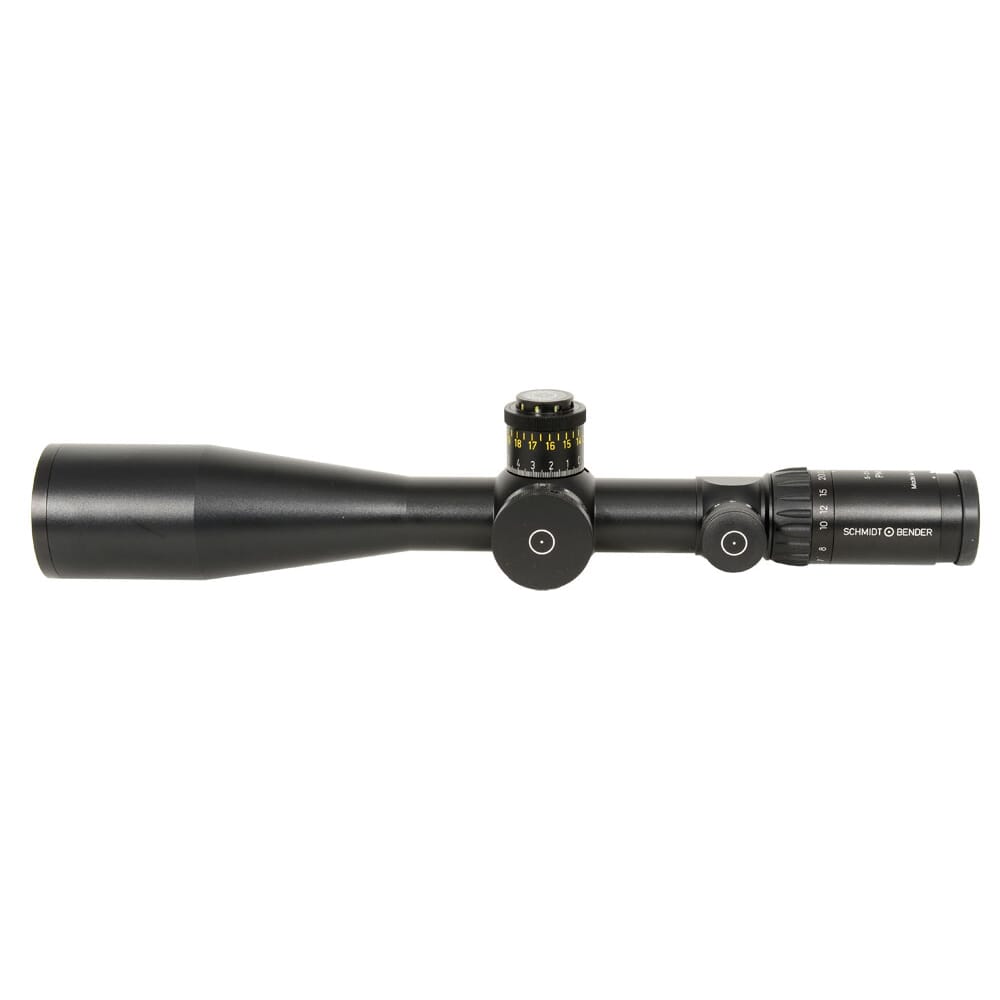

Schmidt Bender PM II 5-25x56mm Riflescope LP MSR2 1cm ccw DT / ST 689-911-812-90-68 delivers precise performance for both civilian and law enforcement shooters. With a magnification range of 5x to 25x and a 56mm objective lens, it provides clear sighting over significant distances, making it ideal for long-range precision shooting. The first focal plane design ensures that reticle subtensions remain accurate at all magnification levels, enhancing usability in various shooting scenarios.
The illuminated LP MSR2 reticle offers improved visibility in low-light conditions, allowing for effective target acquisition even when light is scarce. The scope features robust construction, including a durable 34mm tube and a matte black finish that withstands harsh environments. Additionally, the double turn elevation turret enables precise adjustments, ensuring accuracy when dialing in for long-distance shots. This riflescope combines advanced technology with user-friendly features for an exceptional shooting experience.
Features – Key Benefits Bullets

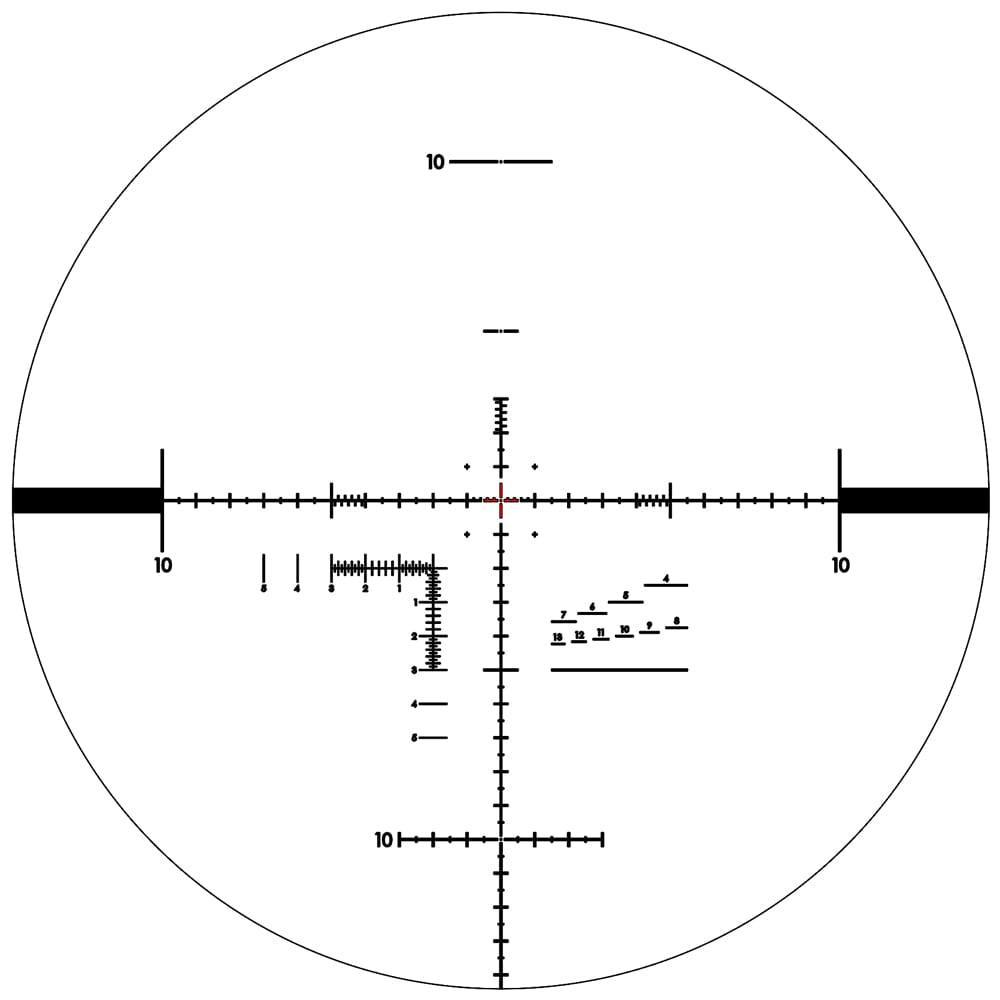

- PRECISE RETICLE: The LP MSR2 reticle in the first focal plane allows for accurate ballistic drop calculations across all magnification levels.
- EXTENDED RANGE: With a magnification range of 5-25x and a 56mm objective lens, this scope ensures superior clarity and detail for long-range observation.
- ENHANCED ILLUMINATION: The illuminated reticle increases visibility in low-light conditions, allowing for effective targeting at dawn or dusk.

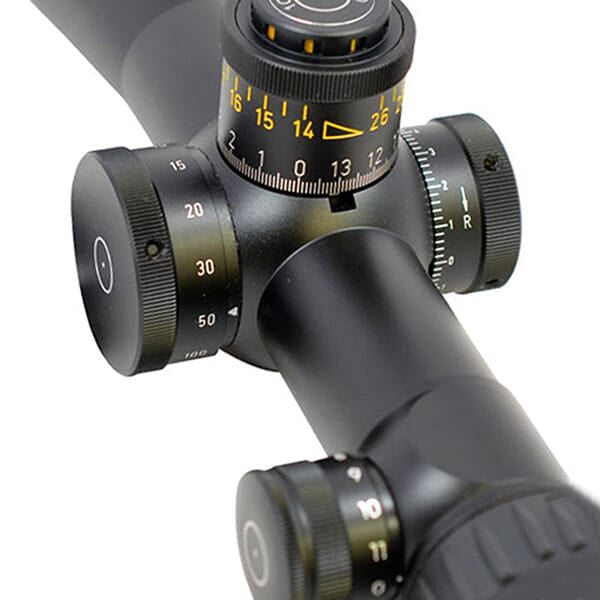

- DOUBLE TURN TURRETS: The elevation turret features a 26 MRAD adjustment range for precise dialing and quick return to zero.
- ROBUST CONSTRUCTION: Built with a durable 34mm main tube and matte black finish, this scope is designed to endure tough field conditions.
- COUNTER CLOCKWISE TURRETS: Intuitive CCW turret rotation allows for quick and error-free adjustments for windage and elevation.
- OPTIMAL EYE RELIEF: Generous 90mm eye relief reduces recoil impact risk, ensuring a comfortable shooting experience.
- WIDE FIELD OF VIEW: Offers a broad field of view, facilitating easy tracking of moving targets and maintaining spatial awareness.
Technical Specifications
| Specification | Detail |
|---|---|
| Weight | 37.57 oz |
| Length | 16.54 inch |
| Magnification Range | 5-25x |
| Objective Diameter | 56mm |
| Tube Size / Mount | 34mm |
| Click Value | .1 MRAD |
| Elevation Turret | 26 MRAD DT |
| Windage Turret | ± 6MRAD ST |
| Parallax Adjustment | 10m-∞ |
| Reticle Position | 1st Focal Plane |
| Reticle Details | MSR2 |
| Field of View | 5.3–1.5m/100m |
| Exit Pupil | 11.0–2.3mm |
| Eye Relief | 90mm |
| Twilight Factor | 15.8 - 31.6 |
| Illuminated Reticle | Yes |
| Finish | Matte Black |
| Turret Rotation | Counter Clockwise (CCW) |
| UPC | 191992065204 |
| MPN | 689-911-812-90-68 |
What's in the Box?
- Schmidt Bender PM II 5-25x56 Riflescope
- Illuminated LP MSR2 Reticle
- Protective Lens Caps
- Lens Cleaning Cloth
- User Manual
Customer Reviews
"This scope has exceeded my expectations with its clarity and ease of use at long distances." - John D.
"The illuminated reticle makes all the difference during low-light hunting trips. Highly recommended!" - Sarah L.
"Sturdy construction and great performance. It’s my go-to scope for precision shooting." - Mike T.
FAQ
How does the Schmidt Bender PM II perform in low-light conditions? The illuminated reticle significantly enhances visibility in low-light scenarios, allowing for effective target acquisition during dawn or dusk. This feature is particularly beneficial for hunters and marksmen who often find themselves shooting in varying light conditions.
What maintenance is required for this riflescope? Regular cleaning of the lenses with a microfiber cloth and ensuring that the protective caps are used when not in use are recommended for maintaining optimal performance. Additionally, periodic checks of turret adjustments can help ensure precision remains intact over time.
How does this scope compare to other long-range options? With its superior optical quality, robust construction, and user-friendly features, the Schmidt Bender PM II stands out among competitors. It offers excellent clarity and durability, making it a preferred choice for both tactical and recreational shooters.
Similar Models
Looking for more options? Explore our extensive Schmidt Bender lineup, including alternatives like Schmidt Bender PM II 3-12x50 for versatile magnification and Schmidt Bender 5-20x50 for enhanced lightweight performance. Discover our full collection of high-quality riflescopes tailored to meet your shooting needs.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
