Description

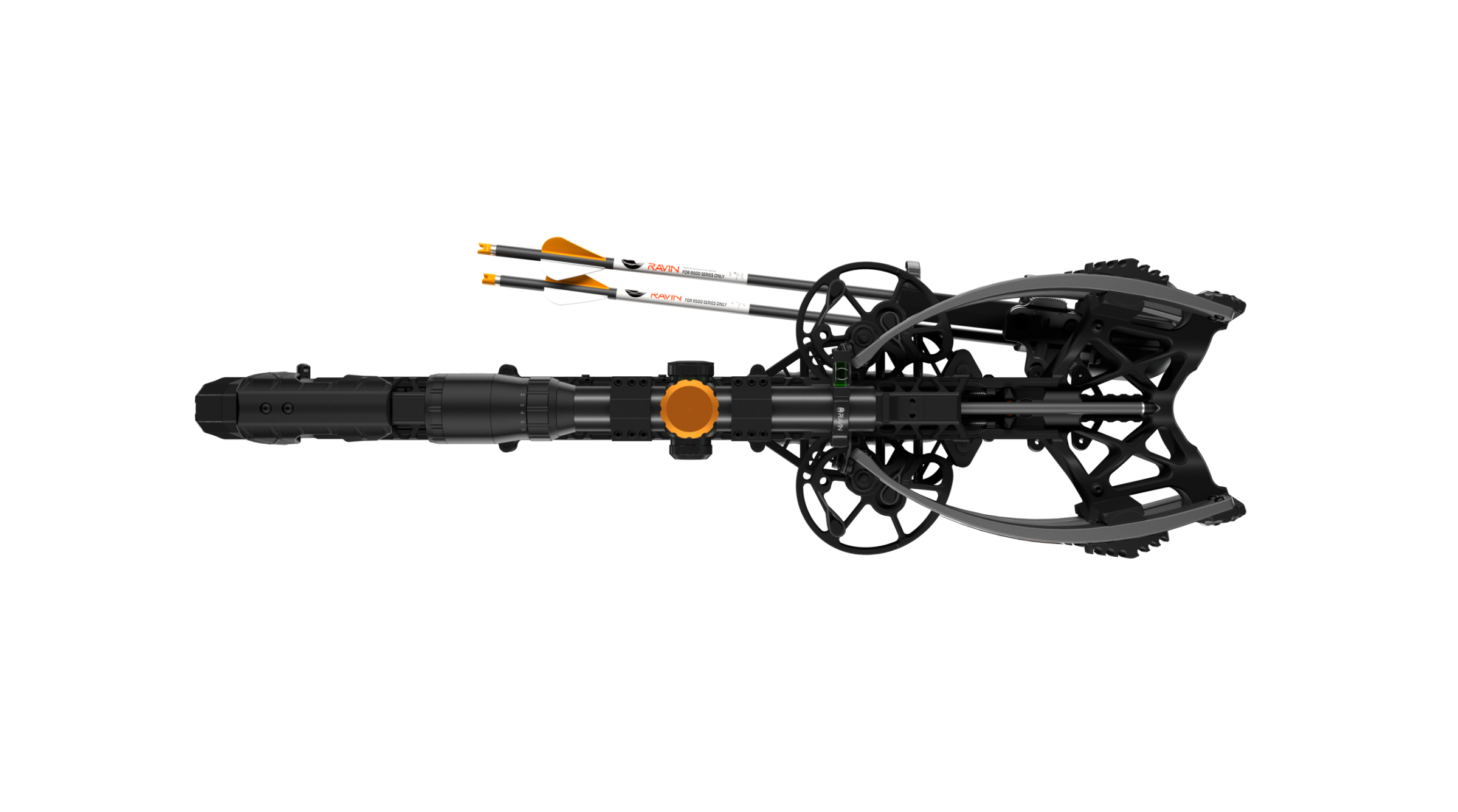

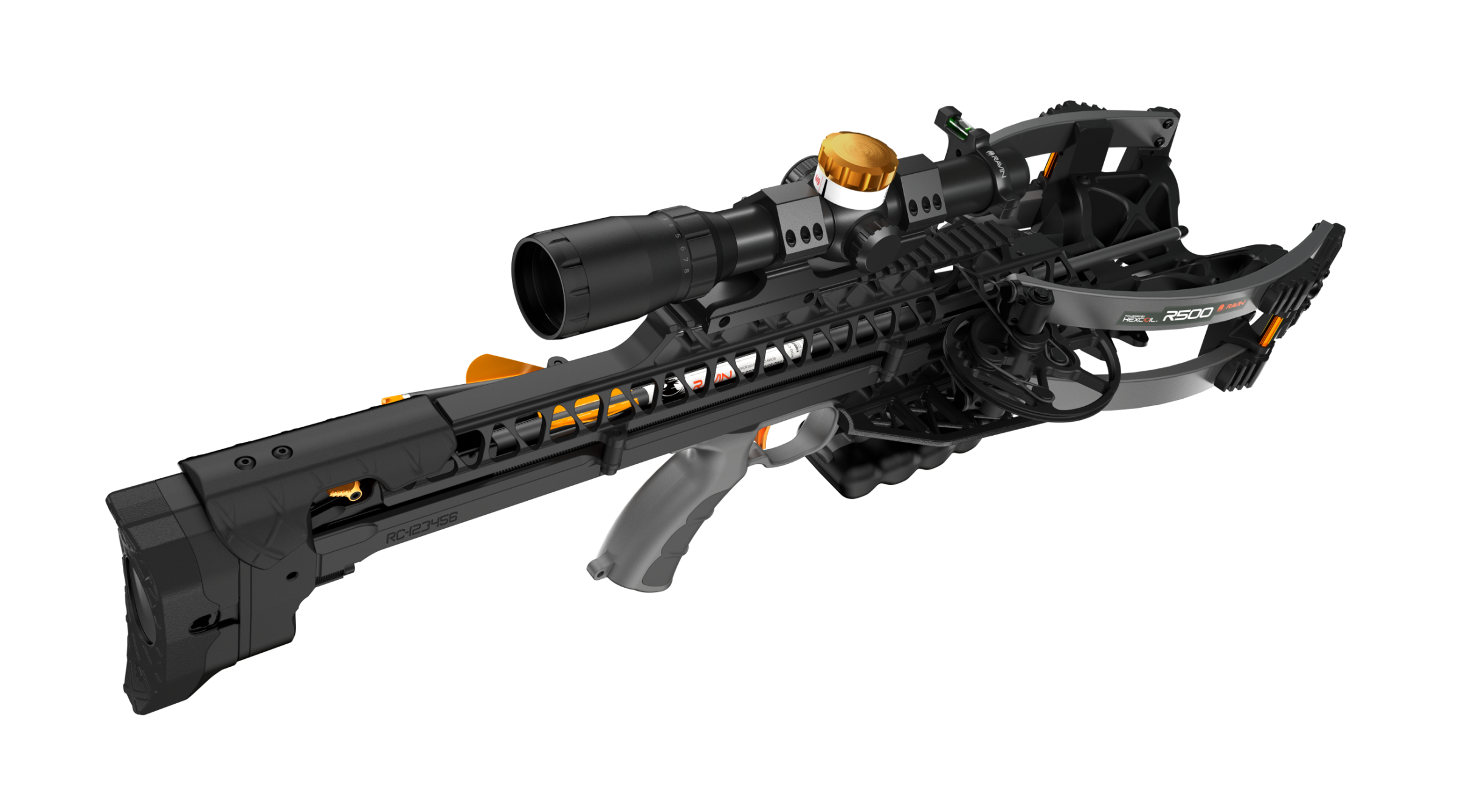

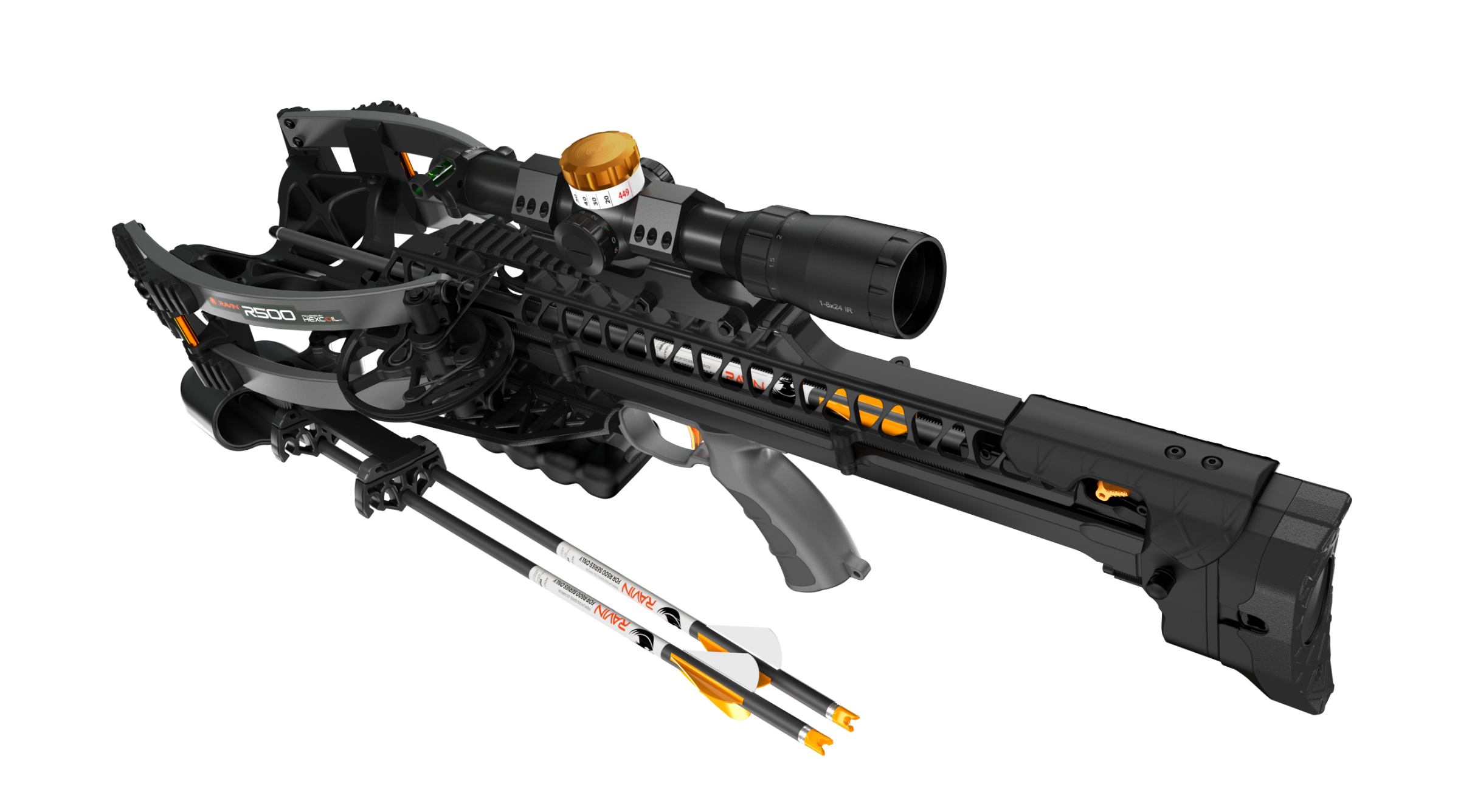

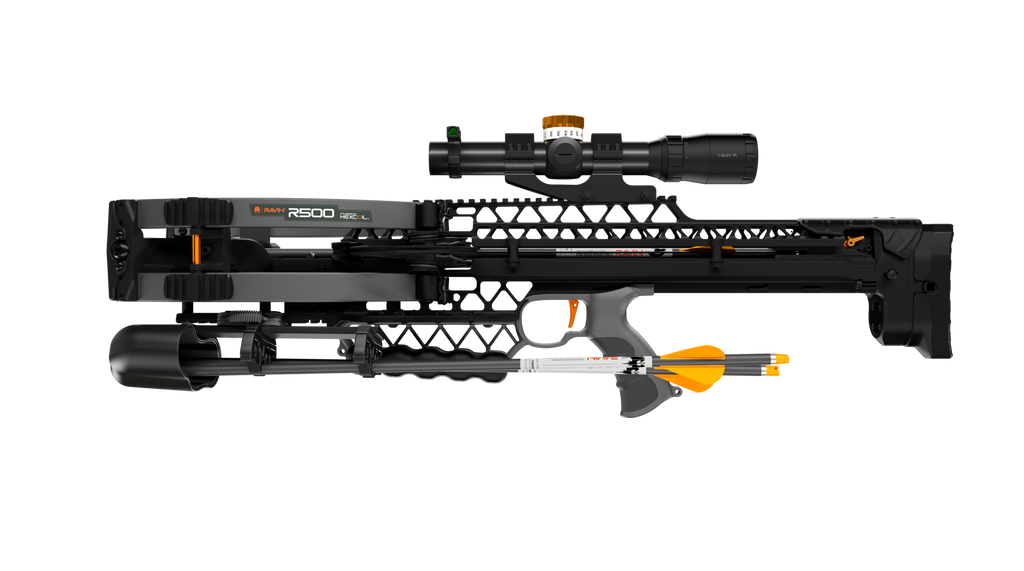

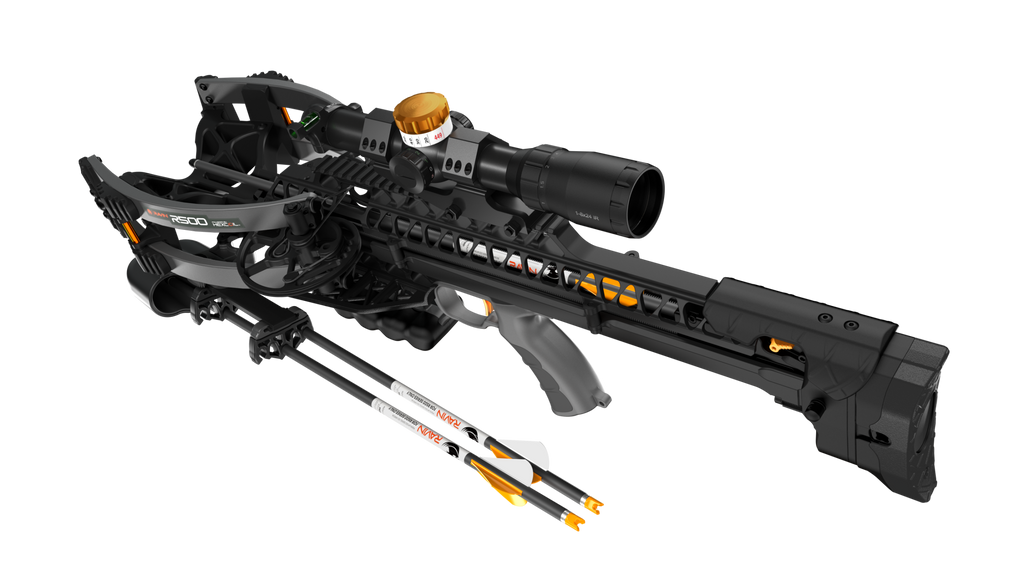

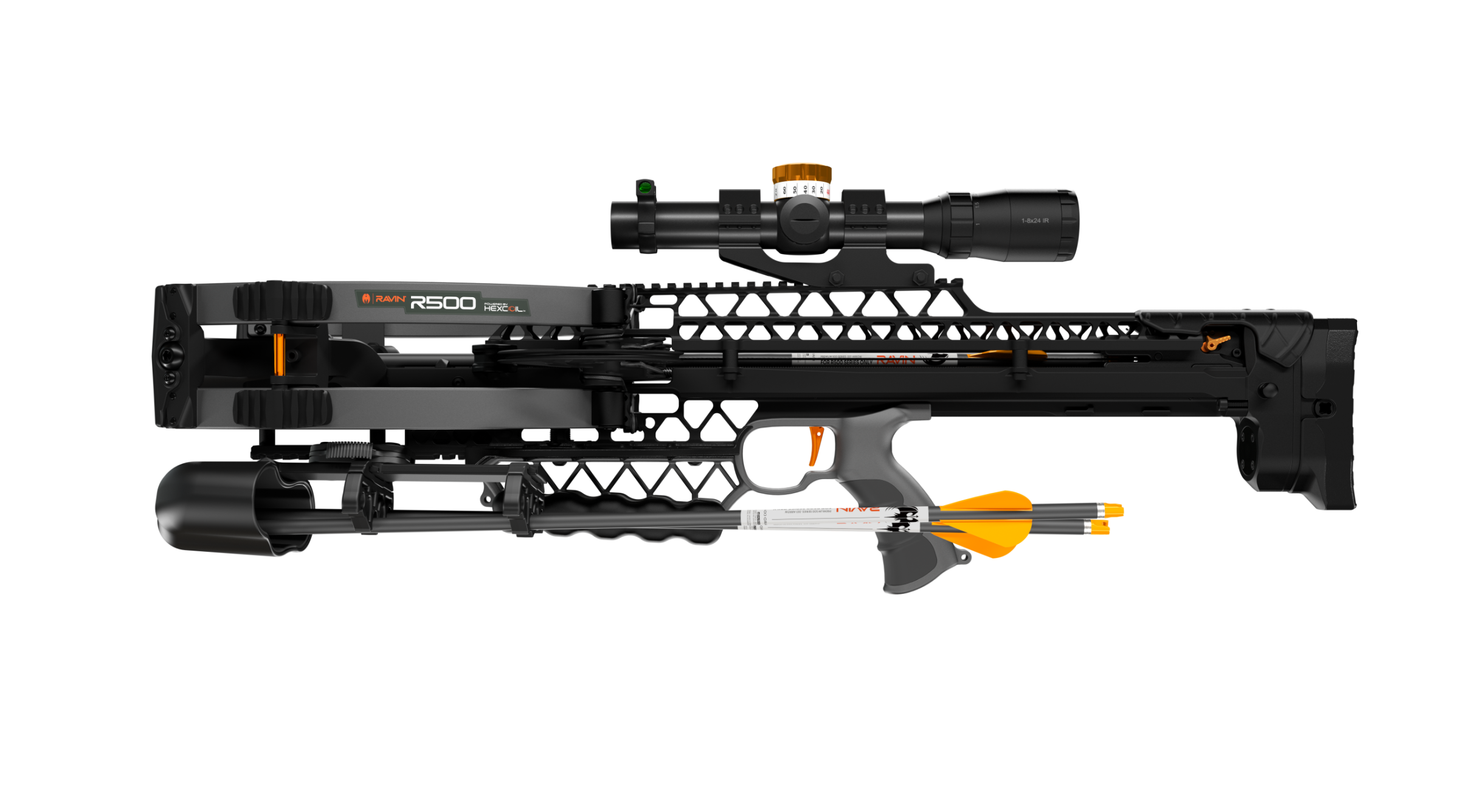

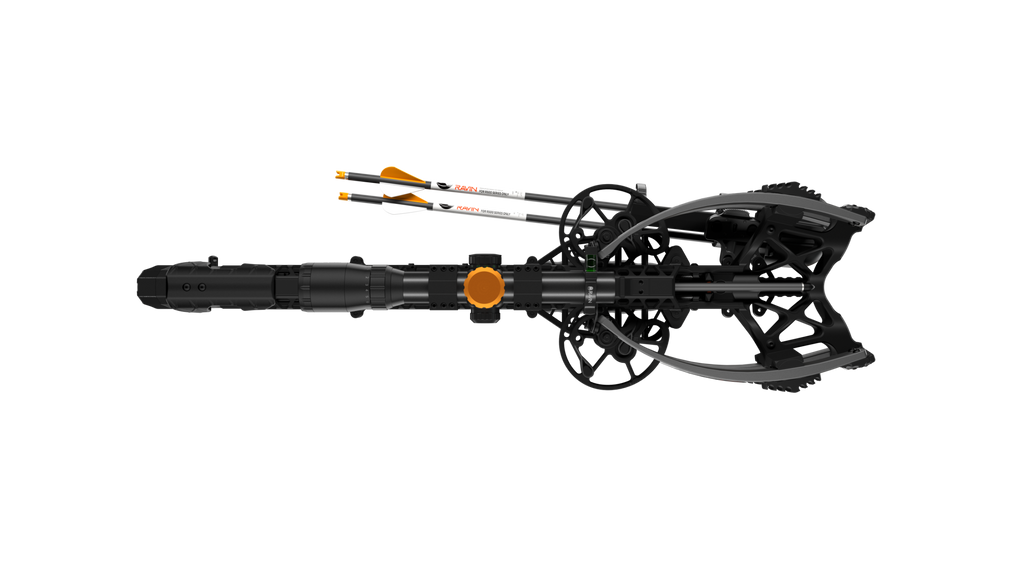

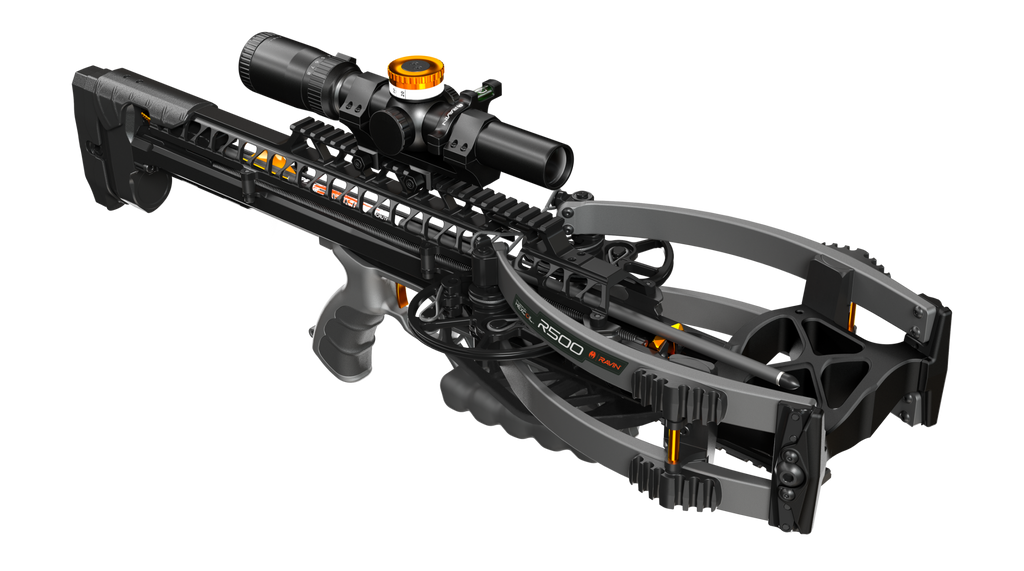

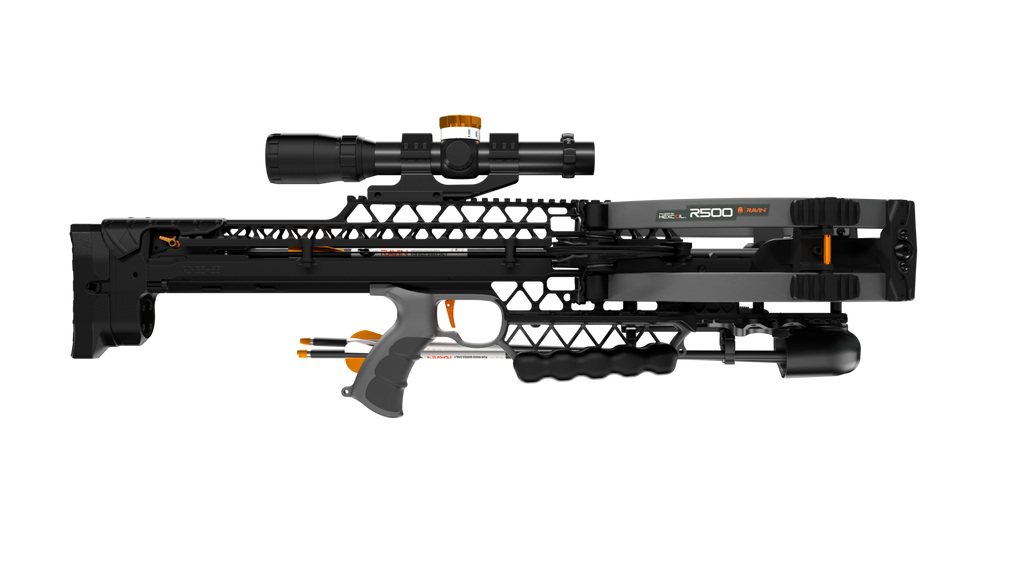

The Ravin R500 Sniper Package Crossbow Slate R051 offers precise control and impressive speed, achieving velocities of up to 500 feet per second. Its innovative HexCoil Cam System features 360-degree rotating cams, allowing for a compact axle-to-axle width of just 3.6 inches when cocked. This design not only enhances maneuverability but also maintains power, making it suitable for various shooting scenarios.
Equipped with the VersaDrive Cocking System, this crossbow ensures a smooth and controlled cocking experience. The internal screw drive mechanism allows seamless operation of the Trac Trigger Firing System (TTFS), reducing the risk of over-cocking. The included Adjustable Turret Scope allows for quick yardage adjustments, essential for achieving accurate shots in different conditions. This package also includes six premium arrows for superior performance.
Features – Key Benefits Bullets
- VERSADRIVE COCKING SYSTEM: Internal screw drive for precise control, eliminating the risk of over-cocking.
- HEXCOIL CAM SYSTEM: 360-degree rotating cams for high speeds and a compact design, enhancing maneuverability.
- TRAC-TRIGGER™ FIRING SYSTEM: Ensures straight-line nock travel, improving downrange accuracy.
- FRICTIONLESS™ FLIGHT SYSTEM: Reduces friction between arrow and string, extending the life of components.
- SILENT COCKING: Integrated system for noiseless operation during the draw cycle, ideal for stealth.
- ADJUSTABLE TURRET SCOPE: Quick adjustments to yardage, allowing for precision shooting in varying conditions.
- BUILT-IN SAFETY FEATURES: Anti-dry fire mechanism and auto safety ensure secure operation.
- PREMIUM ARROWS INCLUDED: Six .001 R500 arrows for superior accuracy and performance right out of the box.
Technical Specifications
| Tech Specifications | Details |
|---|---|
| Archery Bolts Arrows Included | 6 |
| Archery Cocking Device | Removable Draw Handle (VersaDrive) |
| Archery Draw Weight | 17 lbs |
| Archery Foot Pounds of Energy | 222 |
| Archery Item Type | Crossbow |
| Archery Mass Weight | 8.4 lbs |
| Archery Optics | Adjustable Turret Scope |
| Archery Power Stroke | 15" |
| Archery Trigger Type | Anti-Dry Fire Trigger System |
| Archery Velocity | Up to 500 FPS |
| Archery Width | 7.6" |
| Archery Width (Cocked) | 3.6" |
| Brand | Ravin Crossbows |
| CA Prop 65 | Yes |
| Color | Slate |
| Length | 28" |
| Velocity | 500 FPS |
| Warranty | MFG 3 Year Limited |
What's in the Box?
- 6 Premium Arrows
- Adjustable Turret Scope
- Removable Draw Handle (VersaDrive)
- User Manual
Customer Reviews
“The precision of the R500 is unmatched. I’ve hit targets consistently at long ranges.”
“The silent cocking feature is a game-changer for hunting. I can draw without alerting my prey.”
FAQ
Many buyers wonder about the performance of the Ravin R500 compared to other models. Its speed of 500 FPS is among the fastest available, making it ideal for long-range accuracy. The HexCoil Cam System contributes significantly to this performance, ensuring an efficient energy transfer.
Maintenance is straightforward, thanks to the design features that prolong string life and reduce friction. The Anti-Dry Fire Trigger System offers added safety, making it user-friendly for both beginners and seasoned shooters. Additionally, the included premium arrows are specifically designed to maximize the R500's capabilities, ensuring you achieve the best results right out of the box.
When comparing with alternatives, the R500 stands out due to its combination of speed, compact design, and advanced safety features. For those who prioritize silent operation and ease of use, this model is particularly appealing.
Similar Models
If you're exploring other crossbows, consider the Ravin R26 for a lightweight option with high maneuverability or the Ravin R29 for enhanced power and range. Discover our complete collection of Ravin crossbows to find the perfect fit for your shooting needs.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
