Description

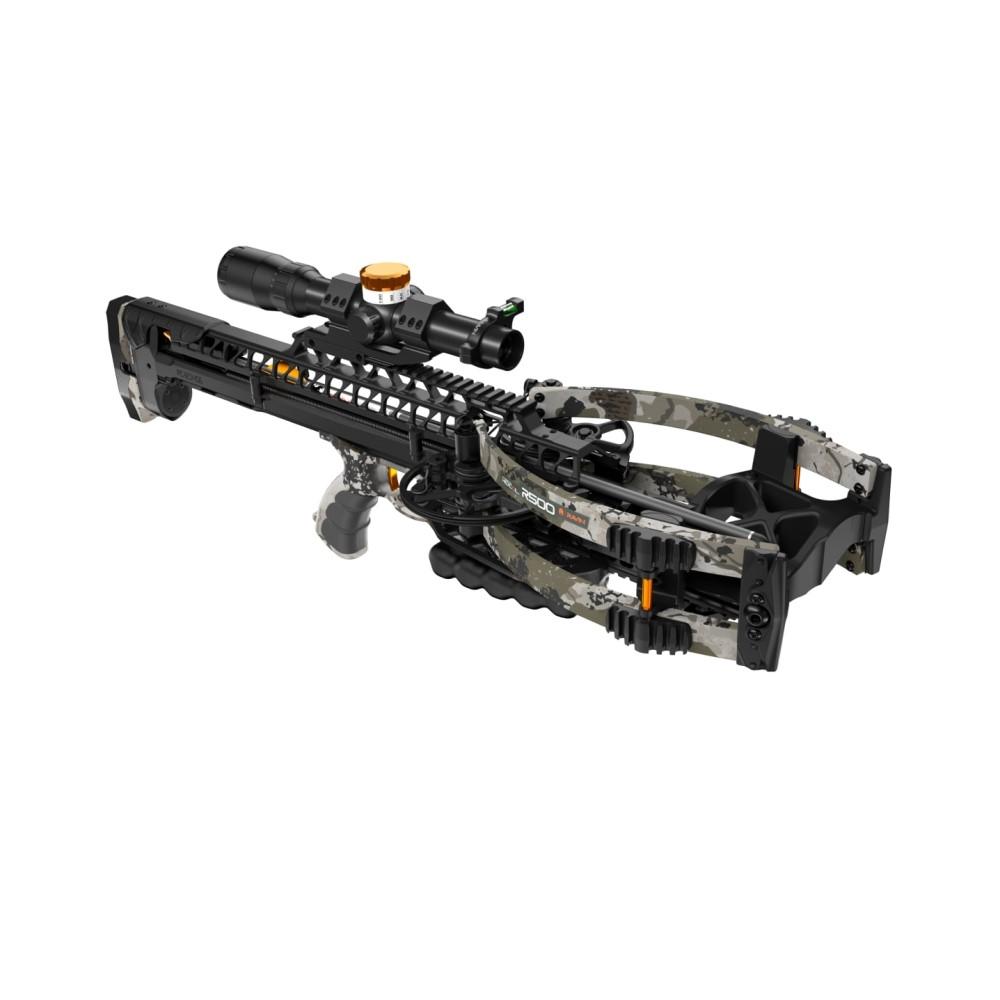

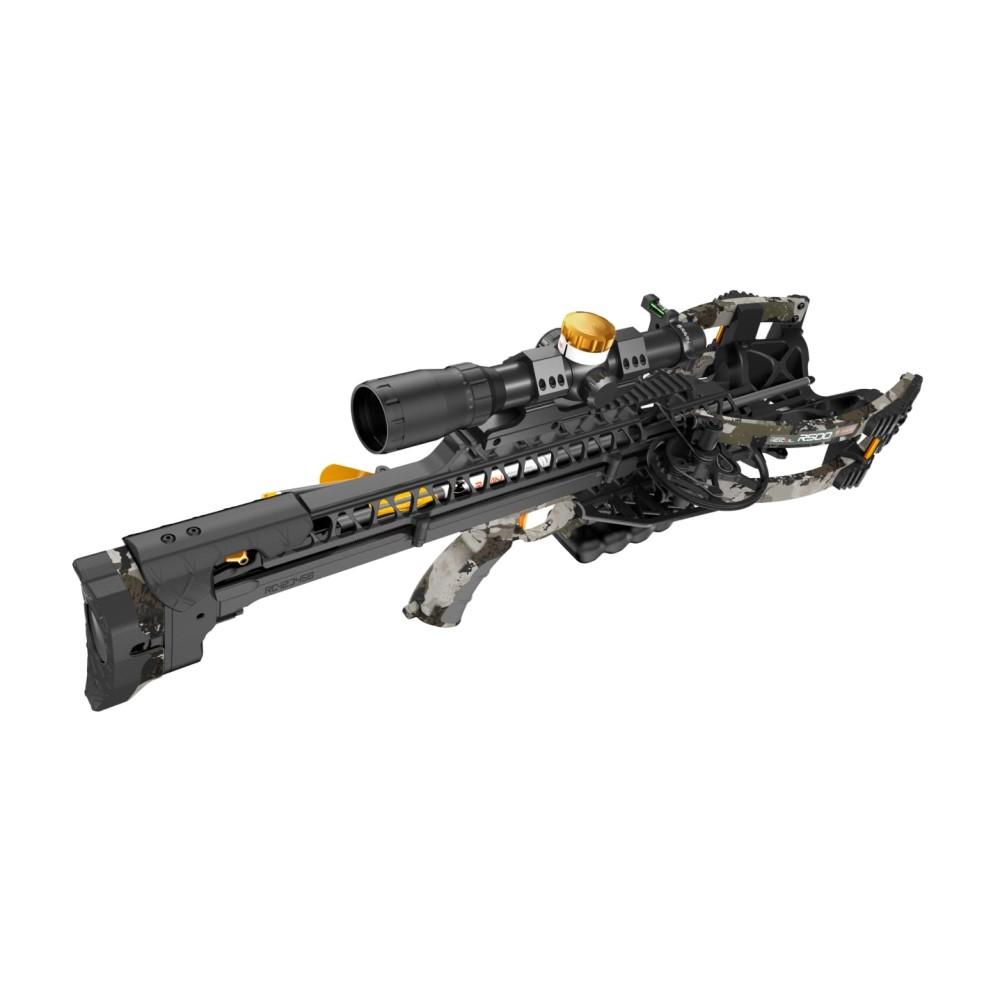

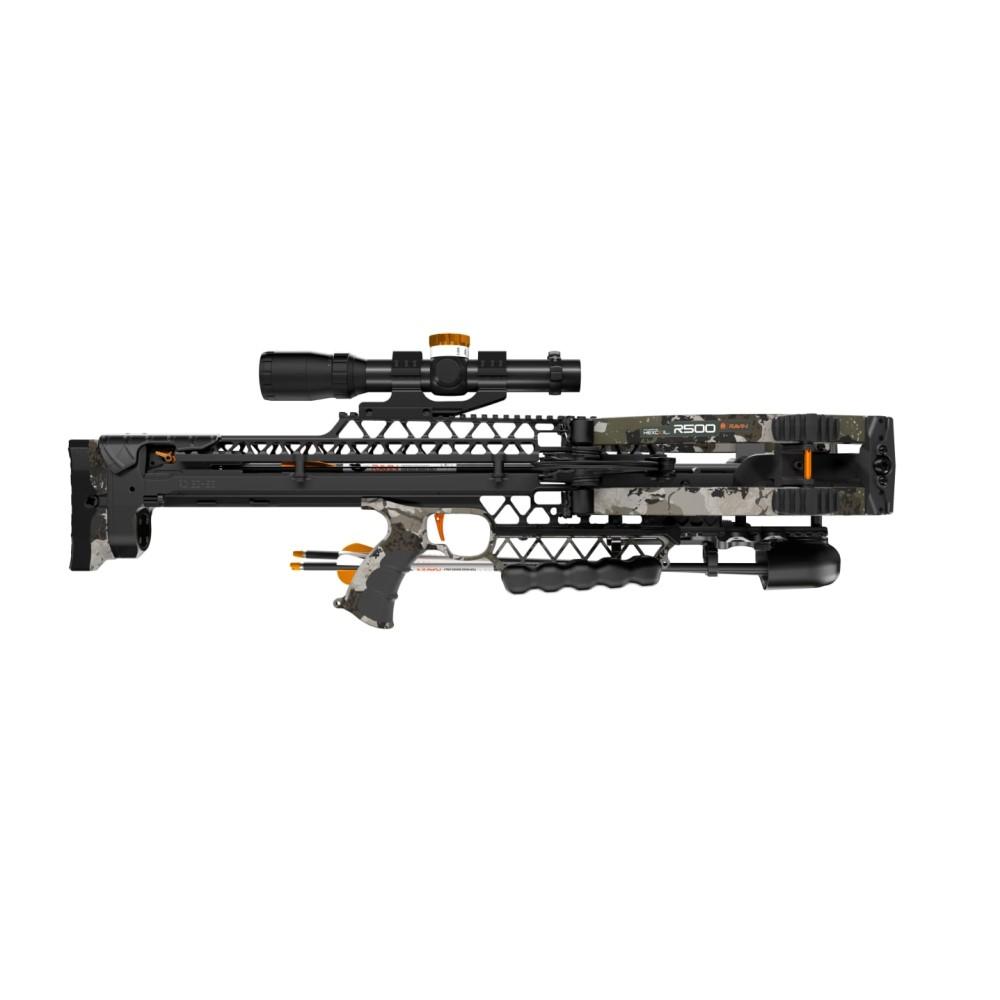

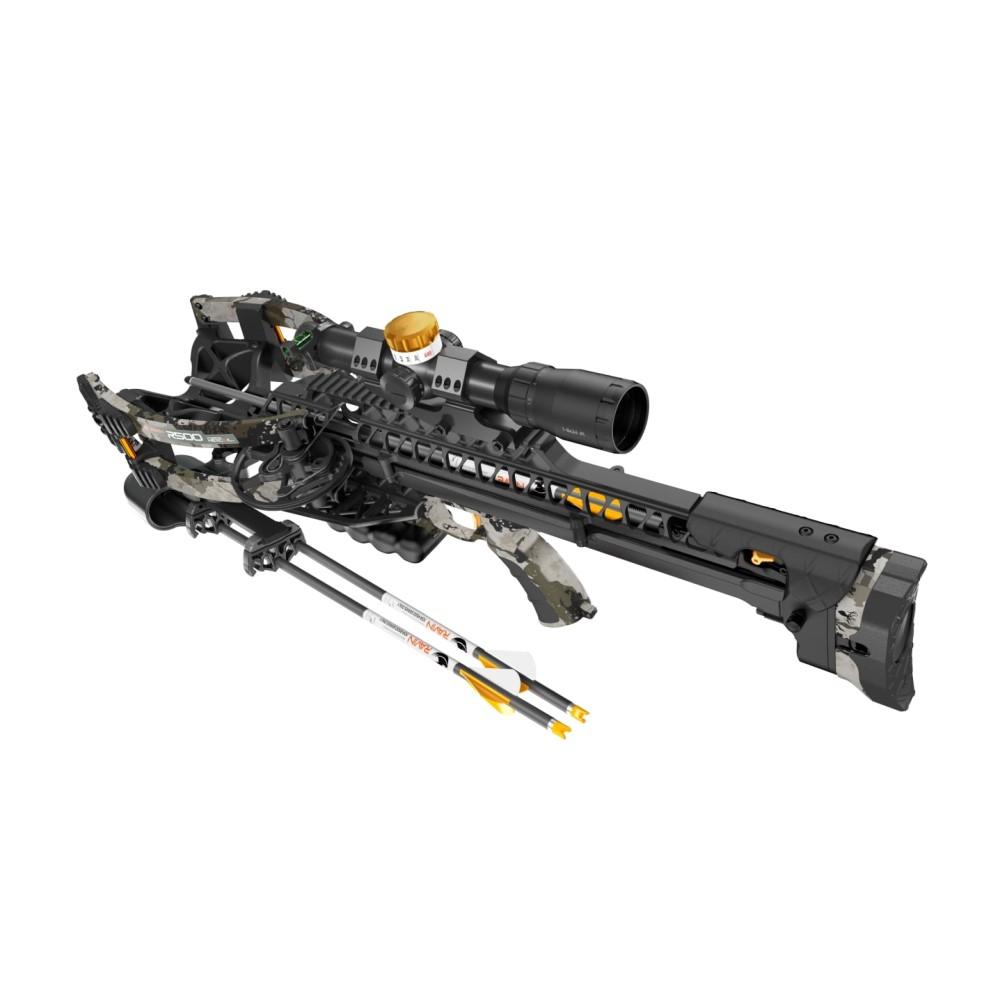

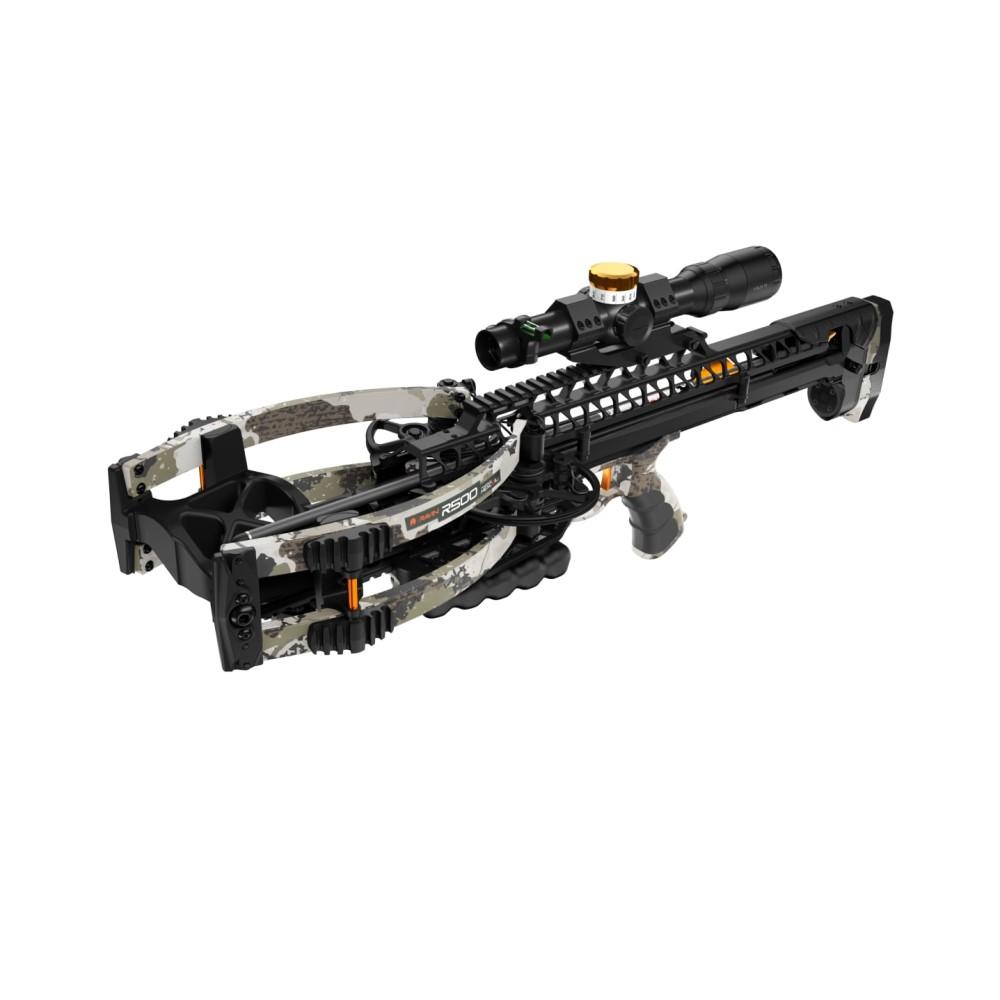

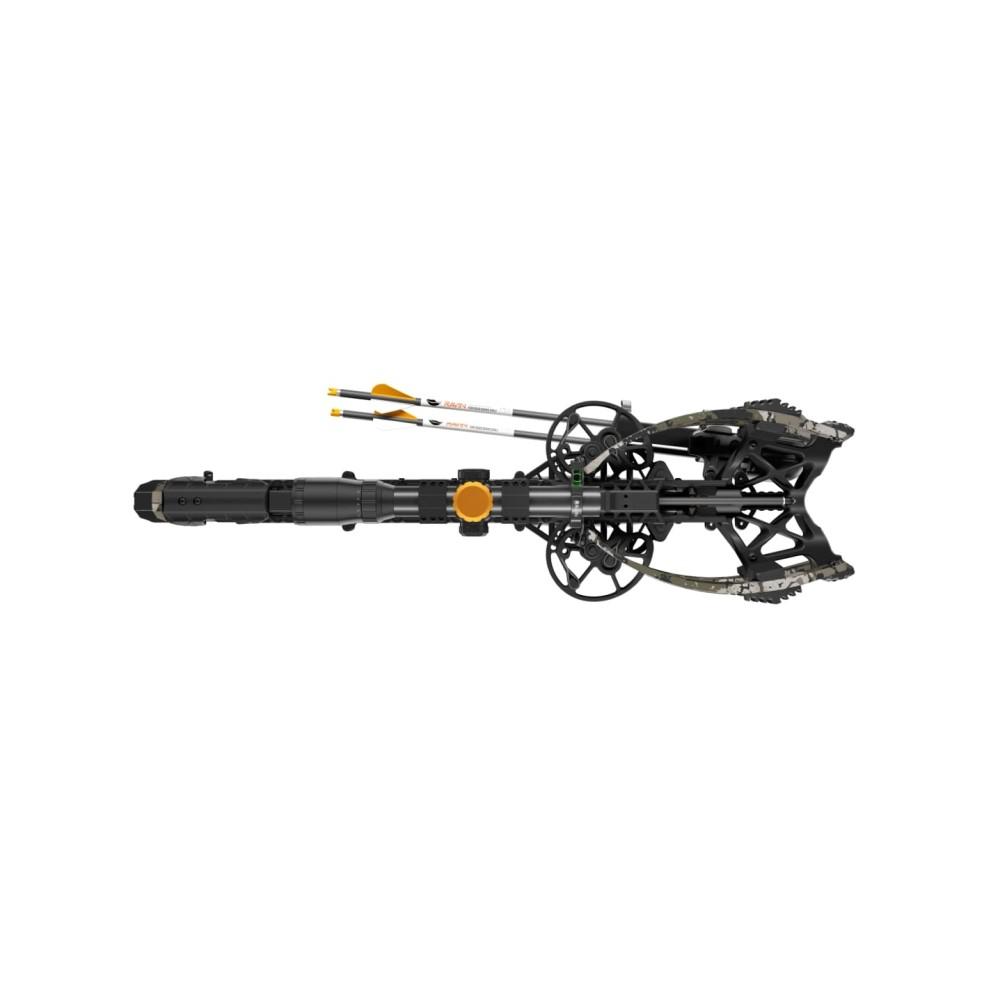

Ravin R500 Crossbow Sniper delivers impressive performance with a 500 FPS speed and a lightweight design of just 8.4 lbs. Equipped with an Adjustable Turret Scope featuring a 1-8x24 zoom, this crossbow allows you to dial in your yardage with precision. It offers ten illumination levels in both red and green, making it easy to target in varying light conditions. The scope is built to endure harsh environments, being fog, shock, recoil, and waterproof. Enhanced clarity from fully coated lenses ensures your shots are accurate and reliable.
Featuring the innovative HexCoil Cam System, the R500 transforms traditional crossbows into fast and compact models. The patented Trac-Trigger Firing System provides straight-line nock travel for improved accuracy. With the Silent Cocking feature, you can maintain stealth during your hunts. The package includes six premium arrows and customization options with yardage tapes, making it an ideal choice for serious hunters and tactical shooters alike.
Features – Key Benefits Bullets
- ADJUSTABLE TURRET SCOPE for easy yardage dialing, featuring 1-8x24 zoom and 10 illumination levels for low-light situations.
- HEXCOIL CAM SYSTEM enhances speed and accuracy, transforming traditional designs into compact, high-performance crossbows.
- SILENT COCKING SYSTEM ensures stealthy operation with minimal noise during the cocking process, keeping you undetected.
- FULLY COATED LENSES provide superior clarity and image quality, enhancing your shooting experience and accuracy.
- TRAC-TRIGGER FIRING SYSTEM allows for straight-line nock travel, ensuring balanced draws and improved downrange accuracy.
- VERSA-DRAW COCKING SYSTEM features an ambidextrous mechanism that requires minimal effort, making it easy to cock and un-cock.
- PRE-TUNED ASSEMBLY comes fully assembled, ready for immediate use, saving you time and effort.
- INCLUDED ACCESSORIES include six premium arrows and customization yardage tapes, perfect for fine-tuning your crossbow setup.
Technical Specifications
| Technical Specifications | |
|---|---|
| Speed | 500 FPS |
| Weight | 8.4 lbs |
| Length | 28" |
| Width Axle to Axle Cocked | 3.6" |
| Width Axle to Axle Uncocked | 7.6" |
| Power-Stroke | 15" |
| Kinetic Energy | 222 ft lbs |
| Draw Force | 17 lbs |
| Cam System | HexCoil |
| Cocking System | VersaDrive |
| Assembly | Fully Assembled |
| Pre-Tuned | Yes |
What's in the Box?
- 6 Premium Arrows
- Adjustable Turret Scope
- Scope Level
- Yardage Tapes and Blank Tapes for Customization
Customer Reviews
"The R500 Sniper is a game-changer in my hunting trips. The accuracy is unmatched!"
"I love the illuminated scope. It makes targeting in low light so easy!"
"Silent operation is key for my tactics, and this crossbow delivers."
FAQ
How does the R500 compare to other models in terms of speed and accuracy? The R500 stands out with a top speed of 500 FPS, making it one of the fastest crossbows available. Its HexCoil Cam System and Trac-Trigger Firing System enhance accuracy significantly, providing a competitive edge for precision shooters.
What maintenance does the R500 require? Regular cleaning of the barrel and strings is essential for optimal performance. Ensure that the scope remains clean and dry, especially after exposure to harsh weather conditions. Following the manufacturer’s guidelines can extend the lifespan of your crossbow.
Can the scope be adjusted for different lighting conditions? Yes, the Adjustable Turret Scope features ten illumination levels in both red and green, allowing for customization based on your environment. This adaptability ensures optimal visibility, whether in bright daylight or low-light conditions.
Similar Models
Looking for more options? Explore our complete lineup of Ravin crossbows, including the Ravin R10 and R26 models for different shooting preferences and features. Each model is designed with precision and performance in mind, tailored to meet the needs of every hunter. Discover your ideal crossbow today!
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
