Description

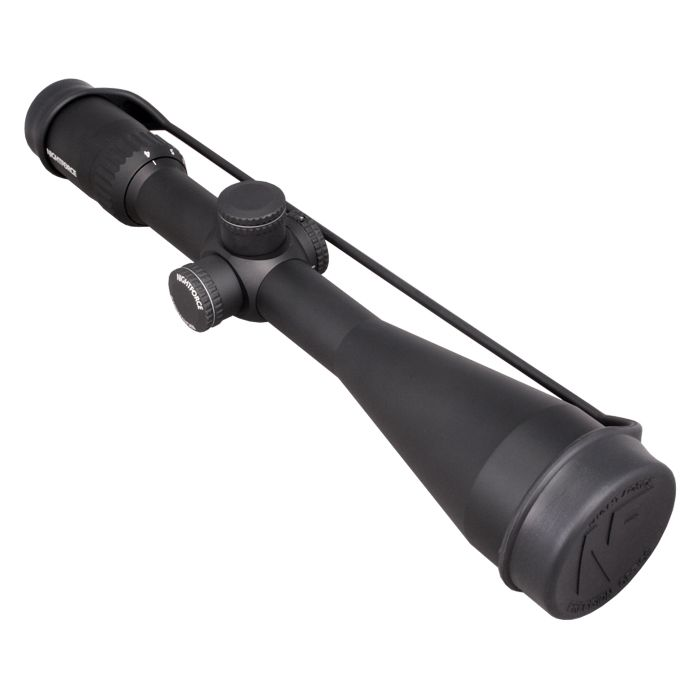

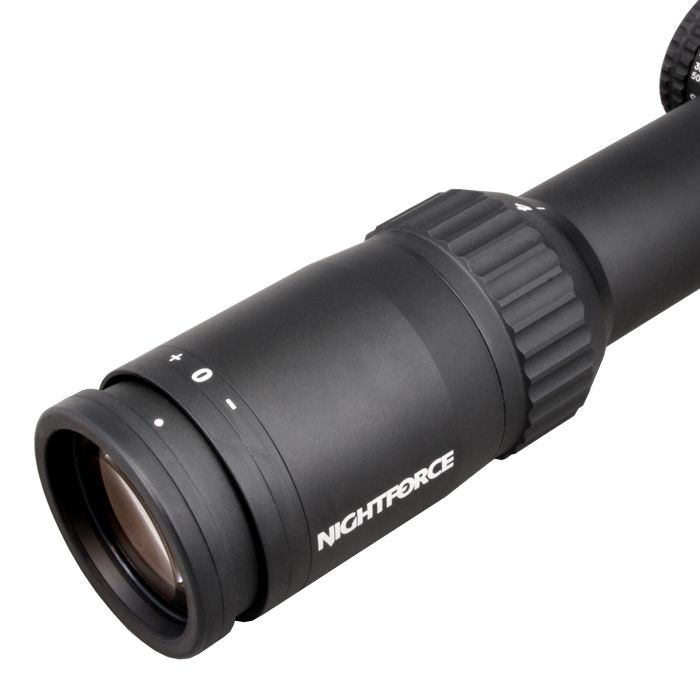

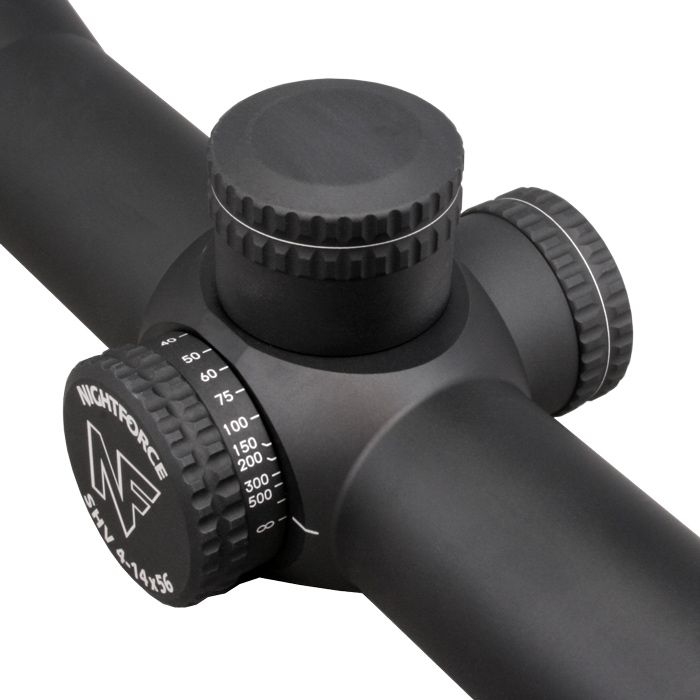

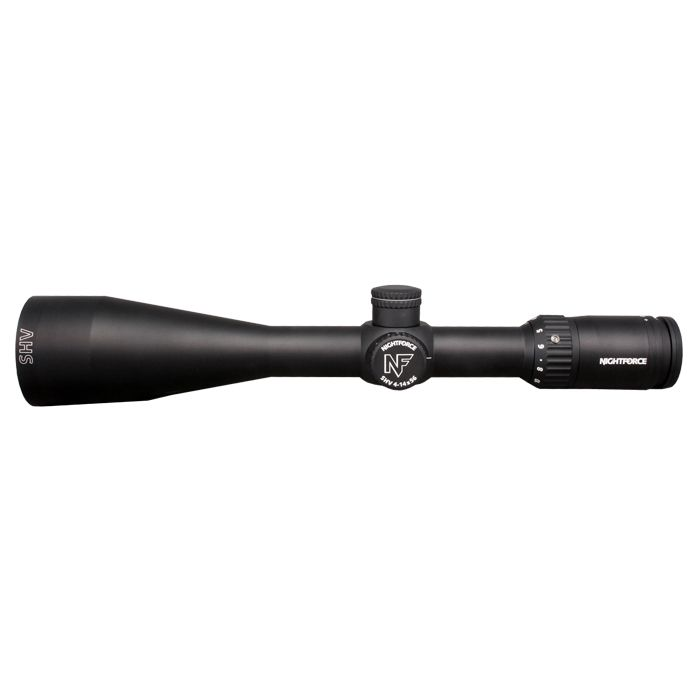

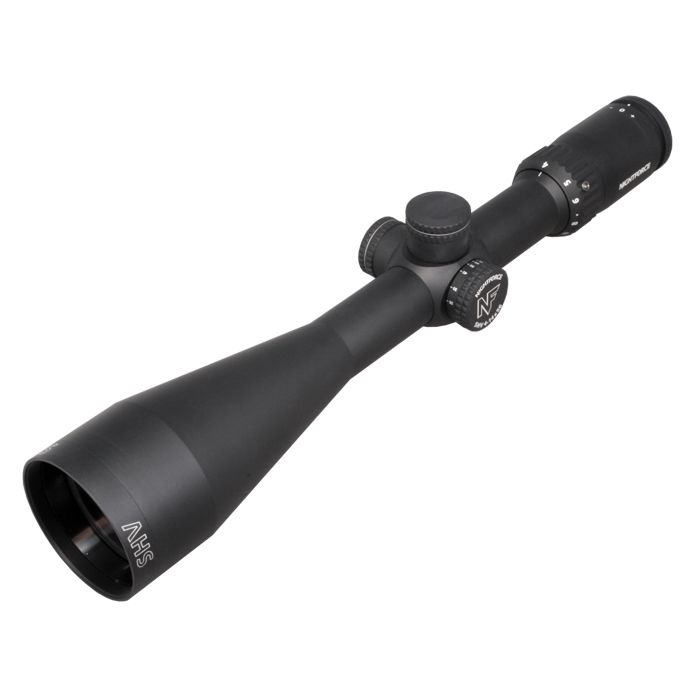

Nightforce SHV 4-14x56 MOAR Riflescope C520 offers precise optics suited for various shooting scenarios, from early morning hunts to tactical range sessions. With a 56mm objective lens, it provides exceptional clarity, enabling you to spot targets even in low-light conditions. The second focal plane MOAR reticle ensures accurate measurements at any magnification, allowing for quick adjustments. Designed with user-friendly features, this riflescope enhances your shooting experience while ensuring durability in challenging environments.
Built with robust materials, the Nightforce SHV stands up to heavy use and adverse weather. Its intuitive turret adjustments allow for quick corrections, ensuring you stay focused on your target. Weighing just 26.9 ounces, this riflescope is lightweight yet offers high-performance optics, making it an excellent choice for both seasoned hunters and competitive shooters.
Features – Key Benefits Bullets
- SUPERIOR OPTICS for precise target acquisition, ensuring clarity at any range.
- OPTIMIZED BRIGHTNESS with a 56mm objective lens, allowing for excellent visibility during low light conditions.
- MOAR RETICLE provides quick holdovers and windage adjustments for enhanced targeting.
- ROBUST CONSTRUCTION ensures durability against harsh weather, making it perfect for outdoor adventures.
- EFFORTLESS ADJUSTMENTS with .25 MOA turret clicks, allowing for quick and easy sight corrections.
- LIGHTWEIGHT DESIGN at only 26.9 oz, offering portability without sacrificing quality.
- 2ND FOCAL PLANE offers consistent reticle size regardless of magnification, making it ideal for various shooting situations.
- WATER AND FOG PROOF ensures reliable performance under any environmental conditions.
Technical Specifications Table
| Specification | Details |
|---|---|
| Magnification Type | 4X - 14X |
| Objective Lens Size | 56mm |
| Exit Pupil | 12mm to 3.6mm |
| Eye Relief | 3.15" to 3.54" |
| Field of View @ 100 Yards | 24.9 ft - 7.3 ft |
| Tube Diameter | 30mm |
| Max Elevation Adjustment | 100 MOA |
| Max Windage Adjustment | 70 MOA |
| Weight | 26.9 oz |
| Length | 14.8" |
What’s in the Box?
- Nightforce SHV 4-14x56 MOAR Riflescope
- Lens covers
- Padded case
- Neck strap
Customer Reviews
"I took this scope out for the first time during a dusk hunt, and the clarity was unbelievable!"
"The adjustments are intuitive, and the durability gives me confidence in the field."
"Absolutely worth the investment for precision shooting!"
FAQ
How does the Nightforce SHV perform in low light? The 56mm objective lens significantly enhances brightness, allowing for excellent performance even during dusk and dawn, making it ideal for hunters who prefer early or late outings.
Is this riflescope suitable for competitive shooting? Yes, the Nightforce SHV 4-14x56 MOAR is well-regarded among competitive shooters for its accurate reticle and durable construction, allowing for reliable performance under pressure.
How do I maintain the Nightforce SHV? Proper maintenance involves regularly checking for dust on the lenses and using a soft cloth to clean them. Regularly inspect the turret adjustments to ensure they remain functional and secure.
Similar Models
Looking for more exceptional optics? Explore our extensive Nightforce lineup, including models like the Nightforce ATACR for advanced shooting experiences and the NXS for versatile performance across various applications. Discover our complete collection tailored to elevate your shooting adventures today!
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
