Description

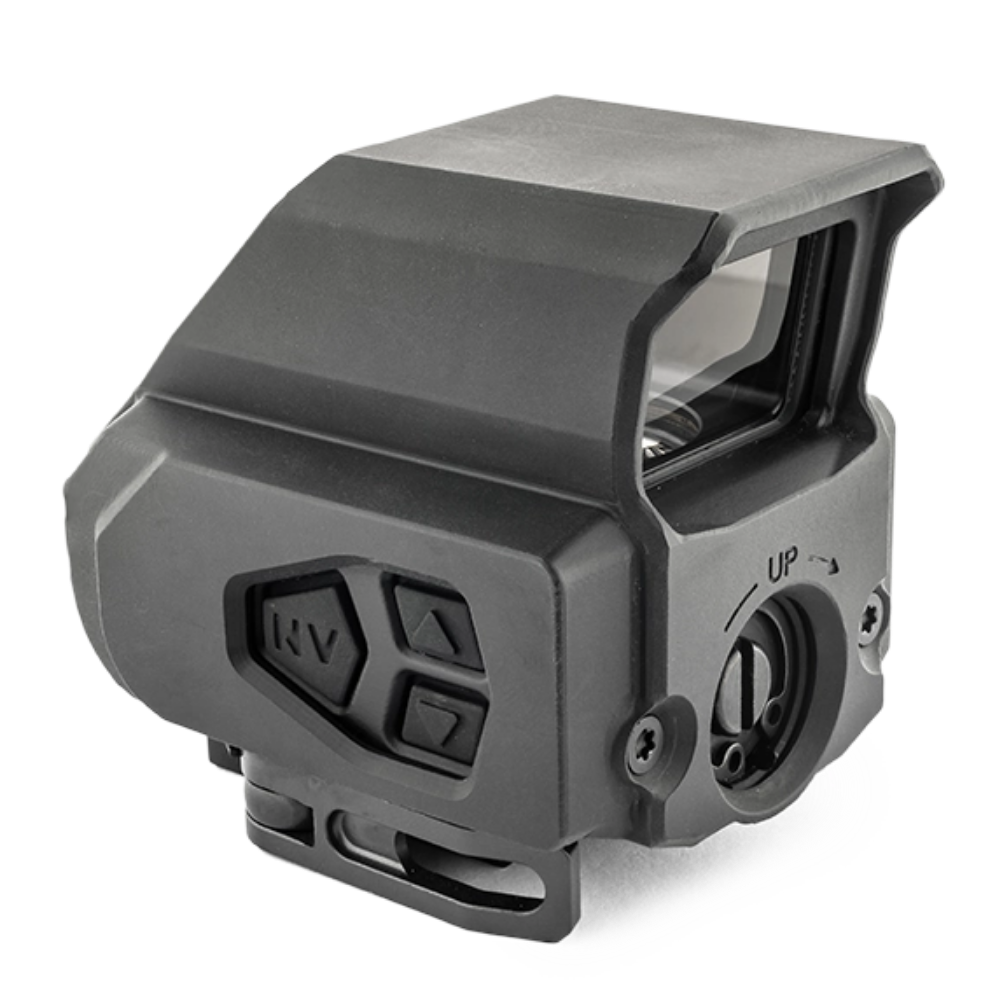

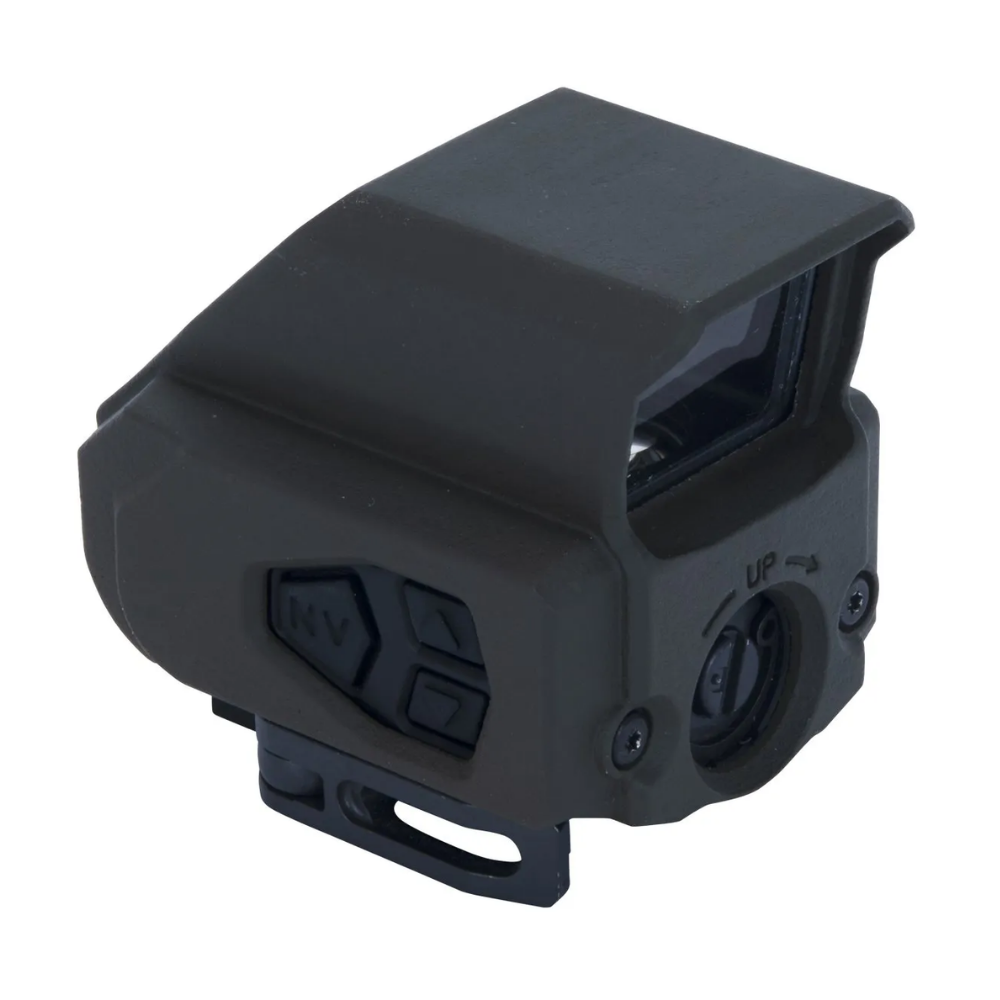

Meprolight Tru-Vision MIL-SPEC Red Dot Sight delivers precise aiming with its compact and lightweight design weighing under 285 grams. Its automatic brightness control adjusts visibility based on surrounding light conditions, ensuring clarity in both bright sunlight and low-light environments. The built-in motion sensor enhances battery life, allowing for continuous operation of up to two years, making it a reliable choice for tactical and competitive use.
This red dot sight features a non-reflective optics design, preventing light signatures and enhancing force protection during operations. The three-button control keypad provides user-friendly navigation, while the large display window (25 x 20 mm) offers quick target acquisition. Its rugged MIL-SPEC mounting design allows for co-mounting with other tactical devices, such as magnifiers and laser pointers, thereby enhancing versatility.
Features – Key Benefits Bullets
- AUTOMATIC BRIGHTNESS CONTROL for optimal visibility in varying light conditions.
- BUILT-IN MOTION SENSOR conserves battery life for extended operation.
- USER-FRIENDLY DESIGN with a three-button control keypad for easy adjustments.
- LIGHTWEIGHT CONSTRUCTION ensures ease of handling without sacrificing durability.
- NON-REFLECTIVE OPTICS enhance stealth and force protection during use.
- RUGGED MIL-SPEC MOUNTING allows for secure attachment of additional tactical devices.
- QUICK TARGET ACQUISITION enabled by the large display window for faster aiming.
- 12 BRIGHTNESS LEVELS ensure adaptability for both day and night operations.
Technical Specifications
| Weight: | < 285 gr. |
| Dimensions: | < 73 x 56 x 68 mm |
| Display Window Dimensions: | 25 x 20 mm |
| Aiming Point Diameter: | 2.0 MOA |
| Reticle Pattern: | Dot |
| Reticle Color: | Red |
| Click Size: | 0.5 MOA (0.14 mRad) |
| Brightness Levels: | 12 Day + 4 Night + Automatic Adjustment |
| Power Supply: | 1x CR123 Battery |
| Weapon Mount: | Picatinny Rail Quick release (Mil-STD 1913) |
| Environmental: | MIL-STD-810 |
What's in the Box?
- Meprolight Tru-Vision Red Dot Sight
- Lens covers
- Quick release mount
- User manual
- CR123 battery
Customer Reviews
"The automatic brightness adjustment is a game changer. I've used it in different lighting and it performs flawlessly!"
"Lightweight and easy to mount. Perfect for my tactical setup."
"The non-reflective optics really help with stealth. Highly recommend for law enforcement."
FAQ
How does the automatic brightness control work? The sight uses a built-in light sensor to adjust the brightness of the reticle automatically based on the surrounding light conditions. This feature ensures that you have optimal visibility without needing to make manual adjustments, making it easier to focus on your target.
Is the Meprolight Tru-Vision compatible with night vision devices? Yes, it is designed to be compatible with night vision goggles (NVG) and can also be co-mounted with magnifier scopes. This versatility allows users to adapt the sight for various tactical situations, especially in low-light environments.
How durable is the sight for harsh conditions? The Meprolight Tru-Vision is built to MIL-SPEC standards, ensuring reliability and durability in demanding environments. It is designed to withstand tough conditions, including shock, moisture, and extreme temperatures, making it suitable for military and outdoor use.
Similar Models
Looking for more options? Explore our collection of Meprolight optics, including models like the Meprolight M21 Reflex Sight for enhanced target acquisition and the Meprolight RDS Pro for advanced features in tactical settings. Discover the full range tailored to meet your shooting needs.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
