Description

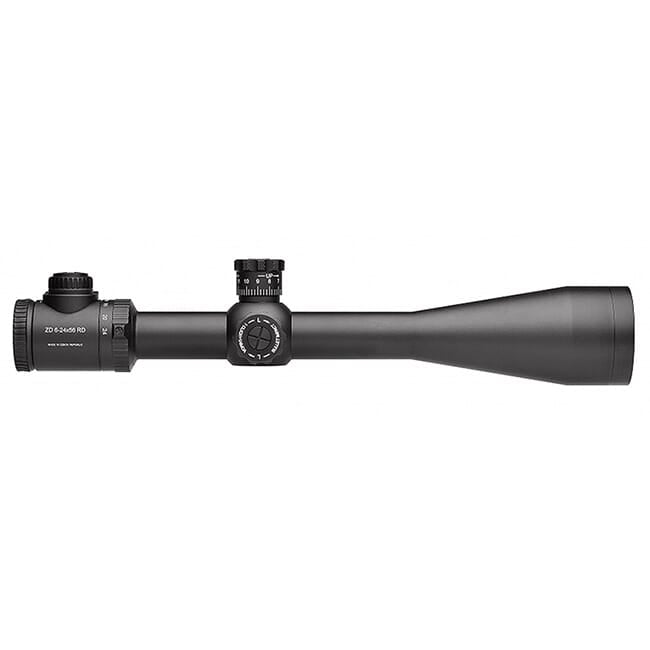

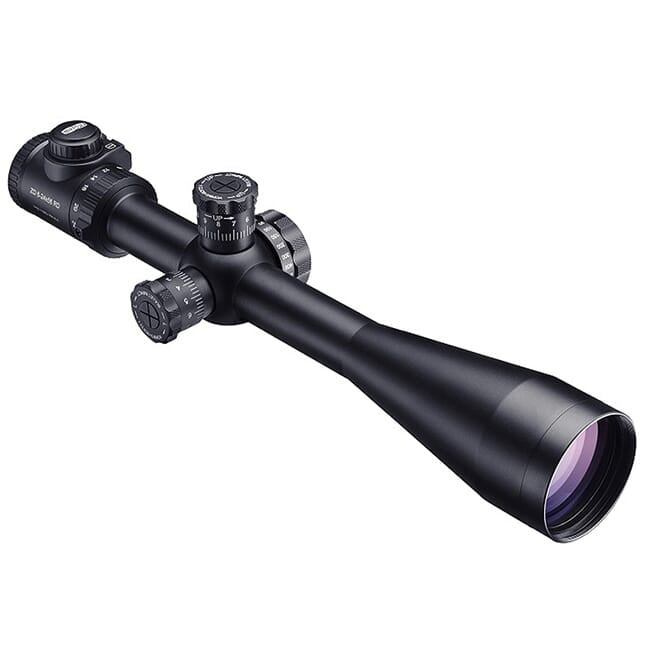

Meopta ZD 6-24x56mm Mil/Mil Illum MT223 Riflescope 580200 is built for sharpshooters seeking precision and reliability. This riflescope features advanced lens coatings, including MeoBright, which enhances light transmission to an impressive 99.8%. The MeoShield treatment protects against scratches, ensuring clarity in various conditions. With a glass-etched MT223 reticle optimized for 52 grain .223 rounds, this scope provides detailed targeting and accurate distance estimation, crucial for long-range shooting.
Windage and elevation adjustments are made easy with the MeoTrak II turrets, offering precise ¼ MOA clicks for consistent tracking. Designed to withstand harsh environments, this scope is both waterproof and fog-proof, making it a dependable choice for outdoor activities. The ergonomic design and generous eye relief ensure comfortable viewing, while the matte black finish adds a sleek touch. Ideal for competitive shooting and tactical training, the Meopta ZD 6-24x56mm is a top-tier option for serious marksmen.
Features – Key Benefits Bullets
- SUPERIOR OPTICAL PERFORMANCE: MeoBright & MeoShield Lens Coatings enhance clarity and light transmission while providing scratch resistance.

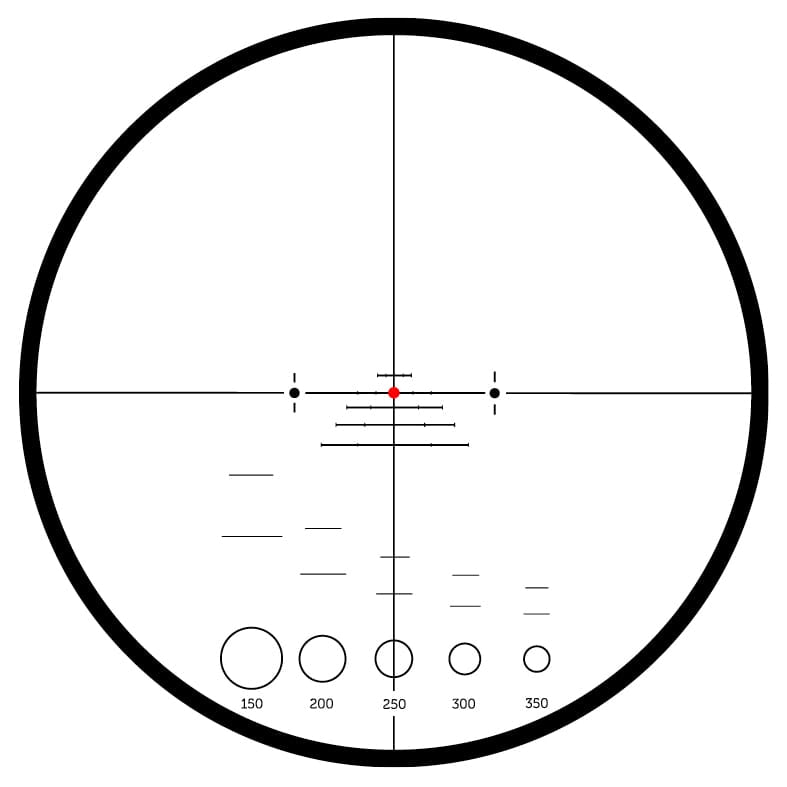

- PRECISE RETICLE: Glass Etched MT223 Reticle optimized for .223 rounds, complete with range-finding scales for accurate target distance estimation.
- ADJUSTABLE TURRETS: MeoTrak II Windage & Elevation Turrets allow for precise ¼ MOA adjustments, ensuring repeatability and accuracy.
- IMPACT RESISTANT: Designed to endure shocks and recoil, meeting military specifications for durability.
- WATER AND FOG PROOF: Ensures reliable performance in wet and foggy conditions, ideal for outdoor shooting ventures.
- IMPECCABLE LIGHT TRANSMISSION: With 99.8% light transmission, this scope delivers bright images even in low-light situations.
- COMFORTABLE VIEWING: Generous eye relief of 89mm - 80mm facilitates comfortable and easy targeting during extended sessions.
- SLEEK DESIGN: Matte black finish and counter-clockwise scope turret rotation optimize both aesthetics and usability.
Technical Specifications
| Specification | Detail |
|---|---|
| Scope Weight | 30.62 oz. |
| Scope Length | 15.2" |
| Magnification Range | 6-24x |
| Scope Objective Diameter | 56mm |
| Scope Tube Size / Mount | 30mm |
| Turret Adjustment | 1/4 MOA |
| Parallax Adjustment | 25 meters to infinity |
| Reticle Position | Second Focal Plane |
| Reticle Details | Illuminated Red MT223 Reticle |
| Field of View | 5.9m - 1.6m @ 100m |
| Exit Pupil | 9.1 - 2.3 mm |
| Eye Relief | 89mm - 80mm |
| Illuminated Reticle | Yes |
| Scope Finish | Matte black |
| Scope Turret Rotation | Counter Clockwise (CCW) |
| Product Type | Riflescopes |
| UPC | 836538003868 |
| MPN | 580200 |
What's in the Box?
- Meopta ZD 6-24x56mm Mil/Mil Illum MT223 Riflescope 580200
- Lens covers
- Lens cleaning cloth
- User manual
- Warranty information
Customer Reviews
"The clarity of this scope is unmatched. Perfect for long-range shooting!"
"I love how easy it is to adjust the turrets. Makes zeroing in a breeze."
"Built tough, I’ve used it in rain and shine with no issues. Highly recommend!"
FAQ
How does the Meopta ZD 6-24x56mm perform in low light?
The riflescope features advanced MeoBright lens coatings, allowing for superior light transmission. With an impressive 99.8% light transmission rate, it excels in low light situations, making it suitable for dawn or dusk hunting.
What maintenance is required for the riflescope?
Regular cleaning of the lenses with the provided cloth will maintain clarity. Ensure that the scope is kept dry and free from dust. The MeoShield coating also provides scratch resistance, minimizing the need for extensive maintenance.
How does this scope compare to others in its class?
Compared to similar scopes, the Meopta ZD stands out due to its exceptional light transmission and durable construction. It's a strong competitor against other high-end brands like Vortex and Leupold, especially in low-light conditions.
Similar Models
Looking for more options? Explore our extensive Meopta lineup, including models like Meopta Optika5 3-12x50 for versatile hunting needs and Meopta ZD 5-25x56 for even greater magnification. Delve into our full collection for exceptional optics tailored to your shooting requirements.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
