Description

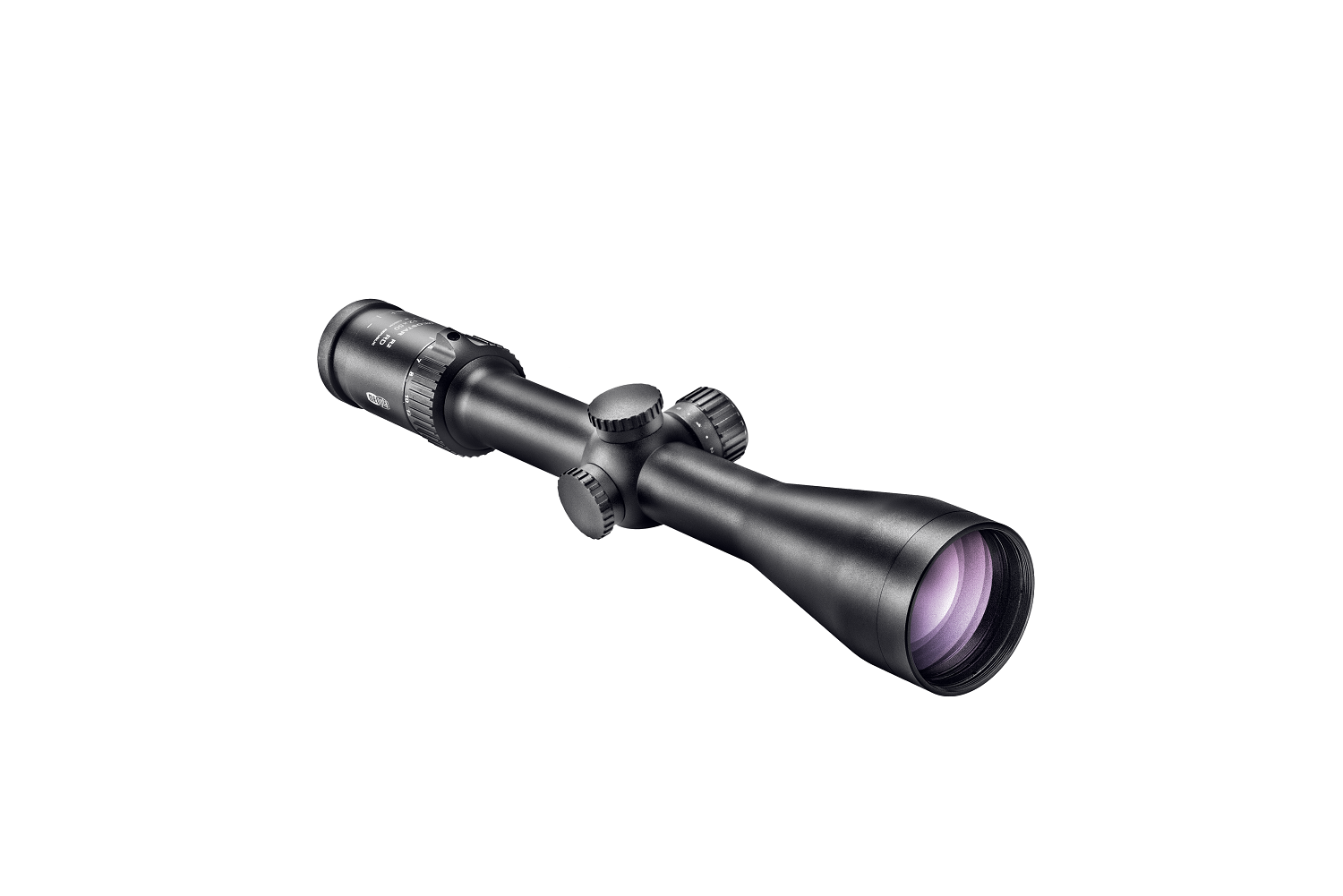

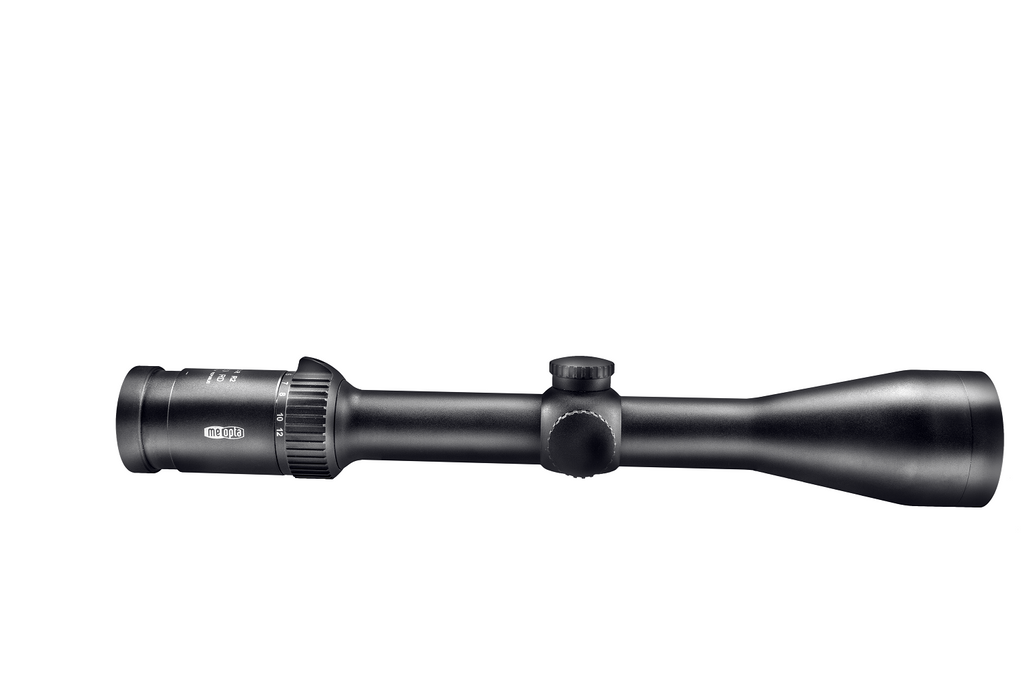

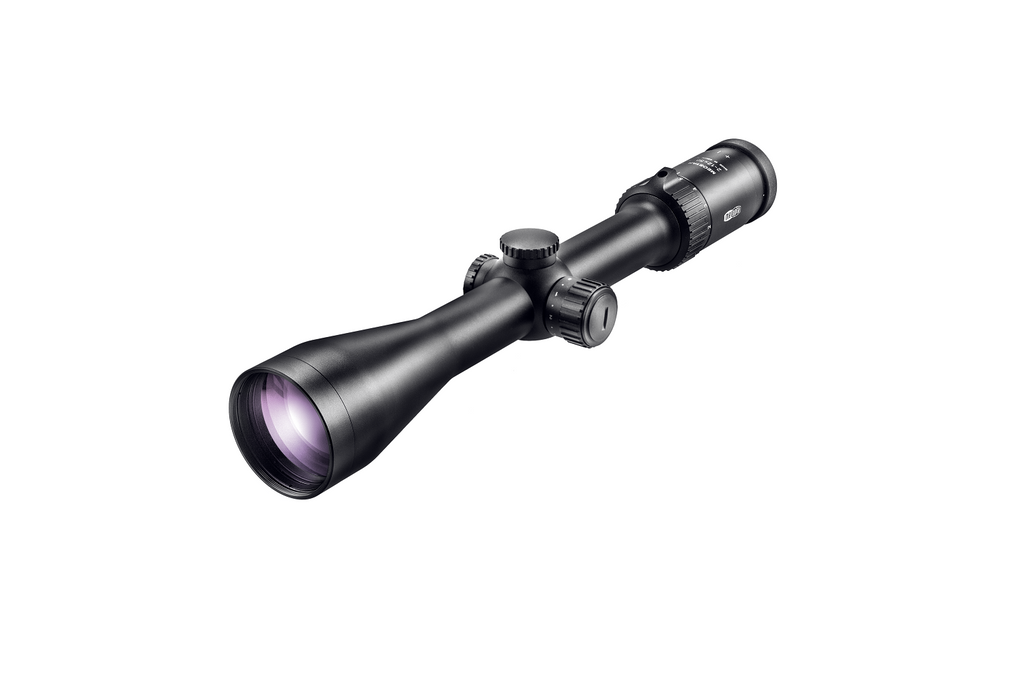

Meopta MeoStar R2 2-12x50mm BDC-3 Riflescope 575690 offers a versatile magnification range of 2-12x, making it suitable for a variety of shooting scenarios, from close-range to long-range targeting. The 50mm objective lens provides enhanced light-gathering capabilities, ensuring bright and clear images even in low-light conditions. With MeoLux multi-coatings, this scope achieves an impressive light transmission rate of 99.8% per lens surface, effectively reducing glare and reflections.
Built from durable aluminum alloy, the riflescope features a single-piece 30mm maintube that is nitrogen-filled and sealed to guarantee waterproof and fog-proof performance. The illuminated RD BDC-3 reticle in the second focal plane supports accurate aiming across varying light levels. Equipped with tactile MeoTrack II turrets for precise adjustments and a fast-focus eyepiece for quick target acquisition, this riflescope is engineered for reliability and performance in the field.
Features
- INDUSTRY-LEADING TRANSMISSION: MeoLux multi-coatings ensure a staggering 99.8% light transmission per lens surface, minimizing reflections and glare, thus promising a clear, bright view in various lighting conditions.
- OPTICAL PROTECTION: MeoShield and MeoDrop coatings protect against scratches, abrasions, and repel water, grease or skin oils to maintain optimal clarity.
- PRECISE FOCUSING: MeoQuick fast-focus eyepiece rapidly brings targets into sharp focus, providing extra diopter travel to accommodate a wider range of visual acuity variations.
- DURABLE CONSTRUCTION: The riflescope is built with a robust aluminum alloy, featuring a 30mm single-piece maintube, ELOX hard-anodized for a durable, scratch-resistant, non-reflective matte black finish.

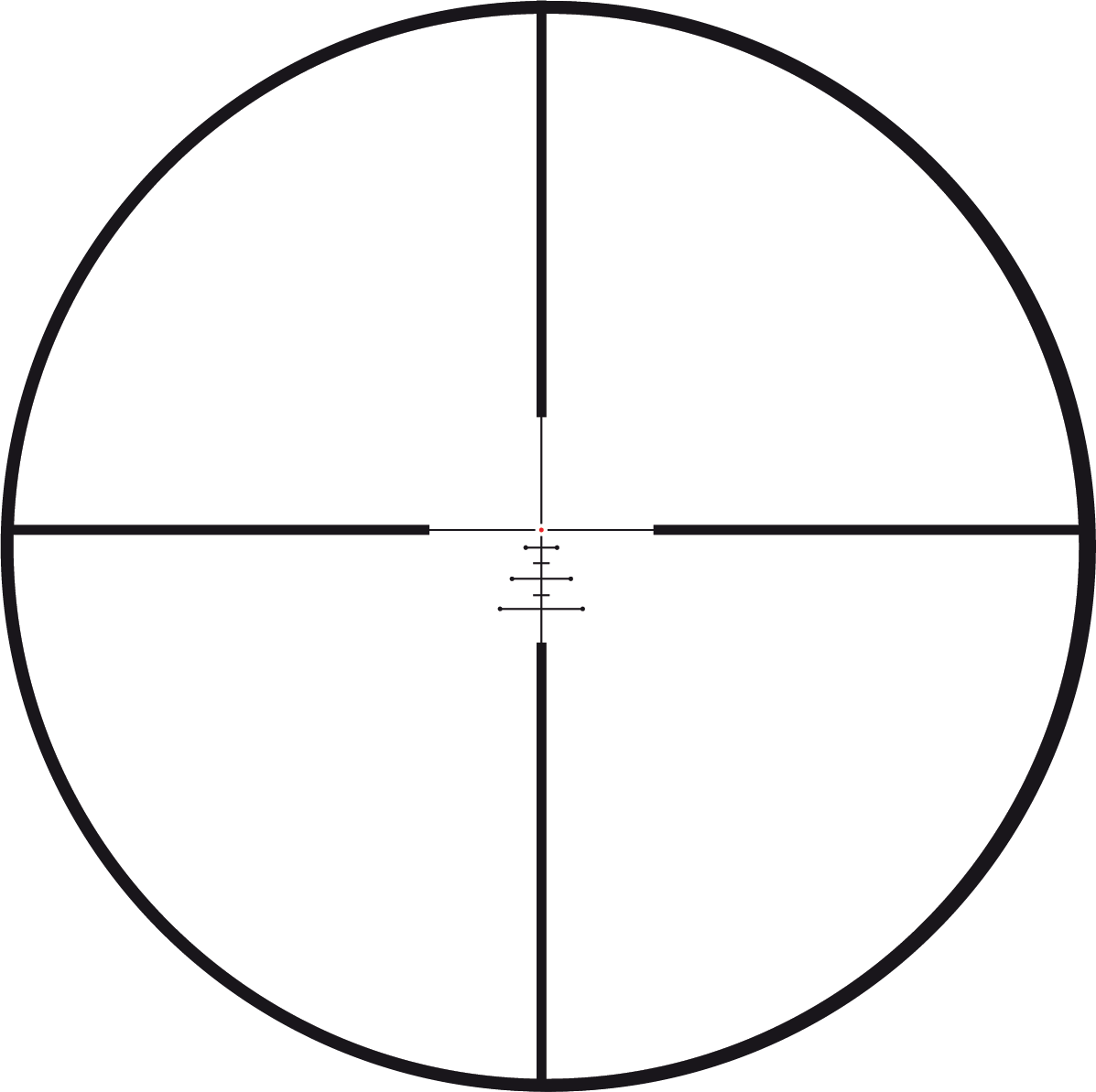

- ILLUMINATED RETICLE: Illuminated RD BDC-3 reticle in the second focal plane aids in accurate aiming under different lighting scenarios.
- TACTILE ADJUSTMENTS: MeoTrack II posi-click windage and elevation turrets offer precise, tactile, and audible adjustments.
- WATER AND FOG PROOF: Nitrogen-filled and sealed for 100% guaranteed waterproof and fogproof performance, ensuring functionality in harsh weather conditions.
- LIFETIME WARRANTY: Meopta’s North American lifetime transferable warranty underlines the riflescope's quality and the brand’s confidence in its performance.
Specifications
| Specification | Detail |
|---|---|
| Scope Weight | 21.02 oz. |
| Scope Length | 14.02" |
| Magnification Range | 2-12x |
| Scope Objective Diameter | 50mm |
| Scope Tube Size / Mount | 30mm |
| Turret Adjustment (Click Value) | 0.7 cm/100 m |
| Elevation Turret Details | 70 MOA |
| Windage Turret Details | 70 MOA |
| Parallax Adjustment | No |
| Reticle Position | Second Focal Plane |
| Reticle Details | Illuminated Red BDC-3 Reticle |
| Field of View | 18.6 m @ 100 m (2x) / 3.1 m @ 100 m (12x) |
| Exit Pupil | 11.2 - 4.3 mm |
| Eye Relief | ~98mm |
| Light Transmission | 94.50% |
| Illuminated Reticle | Yes |
| Scope Finish | Black |
| Scope Turret Rotation | Counter Clockwise (CCW) |
| Product Type | Riflescopes |
| UPC | 836538004469 |
| MPN | 575690 |
Included In The Box
- Meopta MeoStar R2 2-12x50mm BDC-3 Riflescope 575690
- Lens Covers
- Lens Cleaning Cloth
- User Manual
- Warranty Information
Customer Reviews
"The clarity in low light is incredible. Perfect for early morning hunts." - John D.
"Adjustments are precise and easy to make. I highly recommend this scope." - Sarah L.
"Solid construction and great performance. Worth every penny." - Mike T.
FAQ
How does the MeoStar R2 perform in low light conditions?
The MeoStar R2 is engineered for excellent low-light performance, thanks to its 50mm objective lens and MeoLux multi-coatings that enhance light transmission. This makes it suitable for dawn and dusk hunting.
Is the riflescope waterproof and fog-proof?
Yes, the MeoStar R2 is nitrogen-filled and sealed to ensure it is waterproof and fog-proof, allowing reliable performance in various weather conditions.
What type of reticle does this scope have?
It features an illuminated RD BDC-3 reticle in the second focal plane, which assists in accuracy under different lighting scenarios.
How does this scope compare to other brands in terms of durability?
Built from robust aluminum alloy, the MeoStar R2 is designed for durability and features a hard-anodized finish that resists scratches and damage, making it a reliable choice for outdoor use.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
