Description
Meopta MeoStar R2 1-6x24mm 4C Illuminated SFP Riflescope 596431 offers a broad magnification range from 1 to 6x, making it suitable for various shooting scenarios, from close-quarters engagements to mid-range targets. With a 24mm objective diameter, this riflescope delivers a wide field of view and exceptional clarity, allowing for quick target acquisition in any environment.
The proprietary MeoLux anti-reflection coating ensures a remarkable 99.8% light transmission, enhancing visibility during low-light conditions, while the robust MeoShield coating protects against scratches. The hydrophobic MeoDrop film repels water and grease, ensuring a clear sight picture regardless of the weather. The illuminated 4C reticle in the second focal plane is designed for fast target engagement, supported by tactile and audible MeoTrak II turrets that allow for precise adjustments.
Features – Key Benefits Bullets
- UNMATCHED OPTICAL CLARITY: MeoLux anti-reflection coating offers 99.8% light transmission for bright, clear images.
- DURABLE LENS COATING: MeoShield provides scratch resistance, while MeoDrop repels water and grease for a clear view.

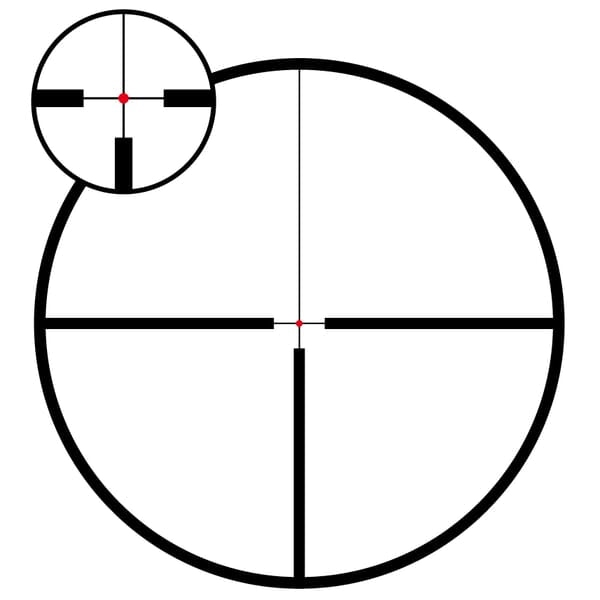

- PRECISE RETICLE: The 4C illuminated etched reticle ensures quick target acquisition and enhanced accuracy.
- USER-FRIENDLY ADJUSTMENTS: MeoTrak II turrets allow for easy, precise adjustments with positive feedback.
- ROBUST CONSTRUCTION: Hard-anodized matte black finish protects against scratches and environmental wear.
- LOW-LIGHT PERFORMANCE: Twilight optimized design enhances visibility in dawn or dusk conditions for effective hunting.
- WATER AND FOG PROOF: Nitrogen purging ensures fog proof performance and waterproof durability.
- FAST FOCUS EYEPIECE: Quick focus eyepiece with a diopter ring provides a sharp image in seconds.
Technical Specifications
| Specification | Detail |
|---|---|
| Scope Weight | 22.93 oz. |
| Scope Length | 13.9" |
| Magnification Range | 1-6x |
| Scope Objective Diameter | 24mm |
| Scope Tube Size / Mount | 30mm |
| Turret Adjustment (Click Value) | 1/10 MRAD |
| Parallax Adjustment | None |
| Reticle Position | Second Focal Plane |
| Reticle Details | 4C Illuminated Reticle |
| Field of View | Data not provided |
| Exit Pupil | 11 to 4mm |
| Eye Relief | 3.9 to 3.8" |
| Twilight Factor | Twilight-optimized design |
| Light Transmission | 99.8% |
| Illuminated Reticle | Yes |
| Scope Finish | Black |
| Scope Turret Rotation | Not provided |
| Product Type | Riflescopes |
| UPC | 836538004407 |
| MPN | 596431 |
What's in the Box?
- Meopta 1-6x24 MeoStar R2 Riflescope (4C Reticle)
- CR-2354 Battery
- Limited 30-Year Warranty
Customer Reviews
"This scope has transformed my hunting experience. The low-light performance is exceptional!"
"Quick target acquisition and precise adjustments make this a must-have for any serious shooter."
"Built to last, this riflescope handles rough conditions effortlessly. Highly recommend!"
FAQ
How does the illuminated reticle work?
The illuminated reticle enhances visibility in low-light conditions, allowing for quick target acquisition. It is powered by a CR-2354 battery, ensuring reliable operation.
Is the MeoStar R2 suitable for competitive shooting?
Yes, the precise adjustments and fast target acquisition features make it an excellent choice for competitive shooting as well as hunting.
How do I maintain the riflescope?
Regularly clean the lenses with a microfiber cloth and store it in a dry place. Avoid using abrasive materials that could scratch the lens coatings.
What makes this riflescope stand out in low-light conditions?
The MeoLux coating allows for superior light transmission, making it ideal for dawn and dusk hunting.
Can I use this scope on different firearms?
Yes, the 30mm tube diameter allows for compatibility with various mounting systems, offering versatility for different rifles.
Similar Models
Looking for more options? Explore our extensive Meopta lineup, including the MeoStar R1 3-12x50 for long-range precision and MeoStar R2 8x56 for enhanced low-light visibility. Discover the full collection for versatile optics tailored to your shooting needs.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
