Description

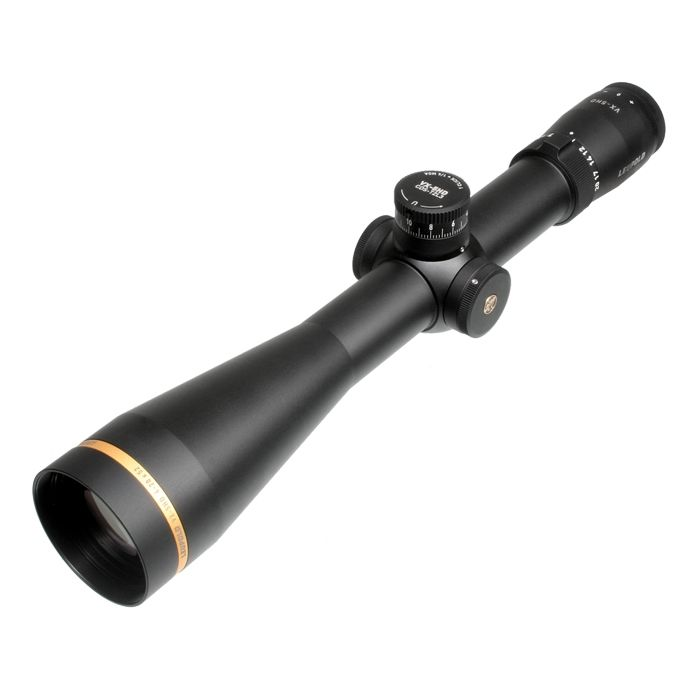

Leupold VX-5HD 4-20X52 CDS-TZL3 Side Focus offers a versatile magnification range from 4x to 20x, providing excellent flexibility for various shooting scenarios. This scope features a 52mm objective lens that enhances light transmission for clear images even in low-light conditions. The rear focal plane TMOA reticle facilitates precise targeting without obstructing the view of your target. With a lightweight design and durable construction, this scope is built to withstand the rigors of tactical use and outdoor hunting.
Designed with the Twilight Light Management System, the VX-5HD extends shooting light by up to 30 minutes while significantly reducing glare. The scope is also waterproof and fog proof, ensuring reliability in adverse weather conditions. Quick focus adjustments are possible with the fast-focusing eyepiece and side focus parallax adjustment, allowing for precise aiming from any position. Enjoy a seamless shooting experience with Leupold's precision turret system, which offers 0.25 MOA adjustments for accurate targeting.
Features – Key Benefits Bullets
- VERSATILE MAGNIFICATION for various shooting scenarios, ranging from 4x to 20x.
- ENHANCED LIGHT TRANSMISSION with a 52mm objective lens for clear images in low-light conditions.

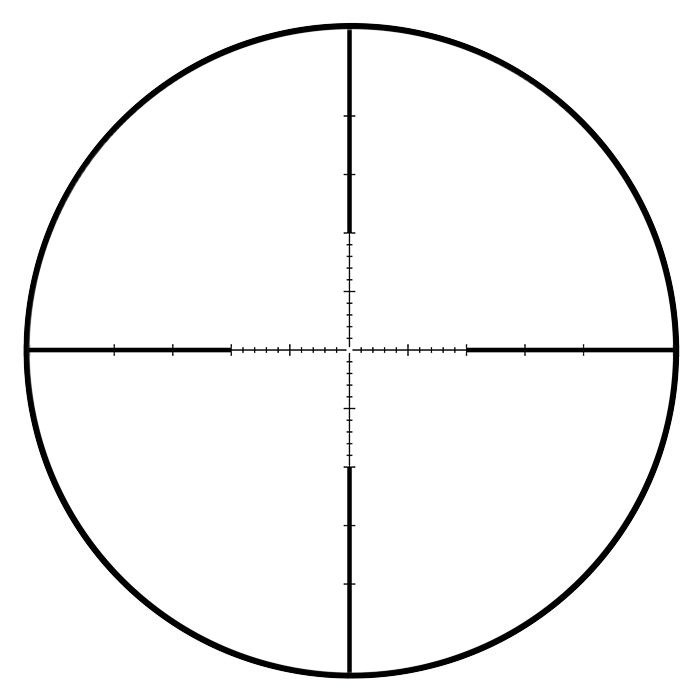

- PRECISION RETICLE PLACEMENT with a rear focal plane TMOA reticle that minimizes target obstruction.
- DURABLE CONSTRUCTION ensures reliability under harsh conditions with a waterproof and fog proof design.
- TWILIGHT LIGHT MANAGEMENT SYSTEM extends shooting light by up to 30 minutes while reducing glare.
- FAST-FOCUSING EYEPIECE allows quick reticle focus adjustments for immediate target acquisition.
- SIDE FOCUS PARALLAX ADJUSTMENT aids in precise aiming from any shooting position.

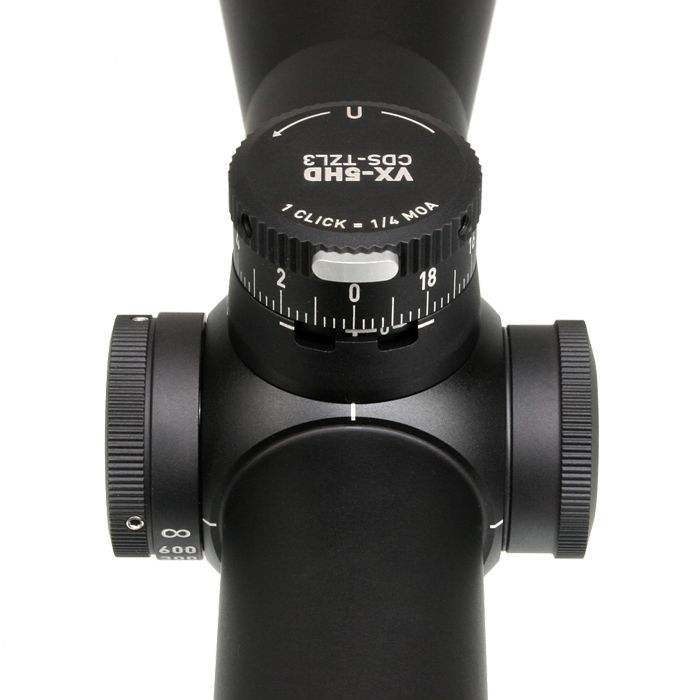

- PRECISION TURRET SYSTEM with 0.25 MOA adjustments for accurate and repeatable targeting.
Technical Specifications Table
| Magnification | 4x to 20x |
|---|---|
| Objective Lens Size | 52mm |
| Eye Relief | 3.7 inches |
| Field of View @ 100 Yards | 28.4 ft - 7.7 ft |
| Tube Diameter | 34mm |
| Turret Click Value | 0.250 MOA |
| Reticle Focal Plane | 2nd Focal Plane |
| Weather Resistance | Water/Fog Proof |
| Weight | 23.3 oz |
| Length | 14.7 inches |
| Max Elevation Adjustment | 55 MOA |
| Max Windage Adjustment | 40 MOA |
What's in the Box?
- Leupold VX-5HD 4-20X52 CDS-TZL3 Side Focus Scope
- Lens covers
- Padded case
- Neck strap
Customer Reviews
“This scope has transformed my shooting experience. The clarity and light management are top-notch!”
“I love the quick adjustments and the lightweight feel. Perfect for long-range hunting!”
“Reliable in all weather. I’ve put it through the test, and it performs flawlessly.”
FAQ
How does the VX-5HD perform in low-light conditions?
The Twilight Light Management System enhances light transmission, allowing for effective use even during dawn or dusk. This feature adds up to 30 minutes of additional shooting time while significantly reducing glare.
Is the VX-5HD durable enough for rugged environments?
Yes, this scope is constructed to be waterproof and fog proof, making it suitable for adverse weather conditions. Its durable design ensures it can withstand tough outdoor use.
How does the precision turret system work?
The precision turret system allows for 0.25 MOA adjustments, enabling precise targeting adjustments. This feature is beneficial for zeroing in on long-range shots or making tactical adjustments in the field.
Similar Models
Explore the complete Leupold lineup for additional options tailored to your shooting needs. Consider the Leupold VX-3HD series for enhanced low-light performance or the Leupold Mark 5HD for advanced tactical features. Each model is designed with precision and durability in mind, ensuring you find the perfect fit for your shooting experience.Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
