Description

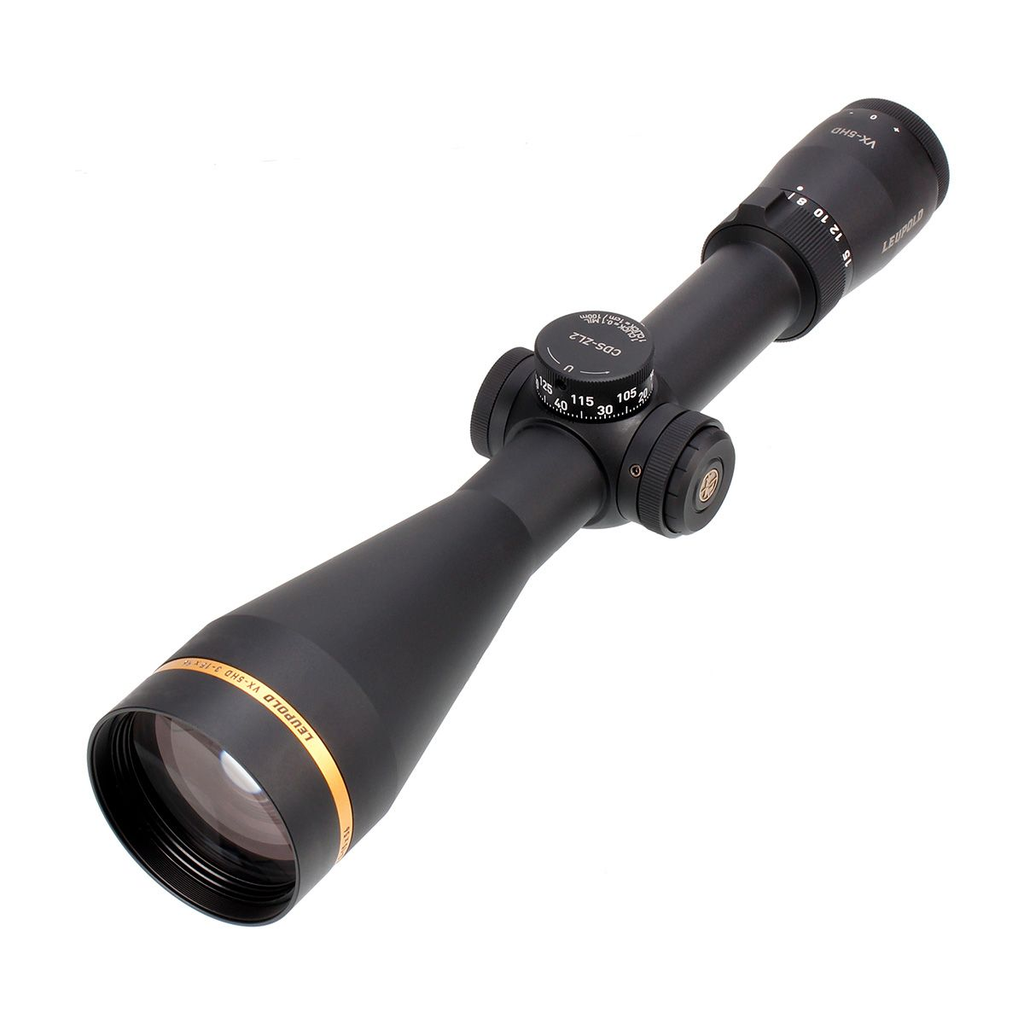

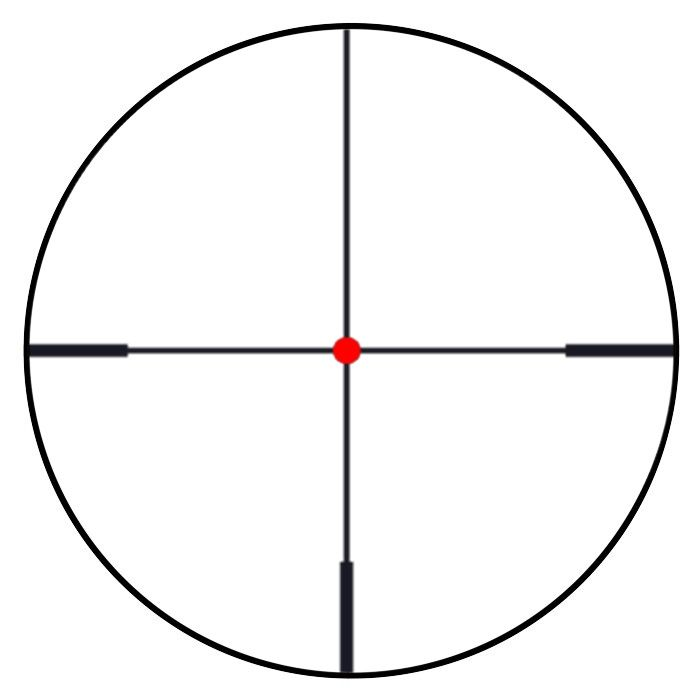

Leupold VX-5HD 3-15x56 CDS-ZL2 riflescope provides precision and versatility in the field. With a magnification range of 3 to 15x, this scope allows users to engage targets at various distances while maintaining a wide field of view. The illuminated Fine FireDot #4 reticle enhances visibility during low-light conditions, making it ideal for dawn or dusk hunting. A motion sensor automatically activates the reticle illumination when needed, ensuring efficiency and battery conservation.
Constructed with a 56mm objective lens, this scope utilizes Guard-Ion coating to resist scratches and abrasions. It is fully waterproof and fog proof, ensuring reliable performance in extreme weather. The Twilight Light Management System provides up to an additional 30 minutes of shooting light, significantly reducing glare. Its lightweight design and recoil-resistant build enhance durability, while quick-focus eyepiece and side parallax adjustment ensure rapid target acquisition.
Features – Key Benefits Bullets
- VERSATILE MAGNIFICATION for engaging targets from close range to long distance.
- ILLUMINATED RETICLE enhances visibility in low-light settings, improving accuracy.
- MOTION SENSOR TECHNOLOGY automatically activates illumination for battery efficiency.
- GUARD-ION COATING ensures lens durability against scratches and environmental damage.
- TWILIGHT LIGHT MANAGEMENT increases shooting light duration, reducing glare.
- WATERPROOF AND FOG PROOF construction ensures reliable performance in all weather conditions.

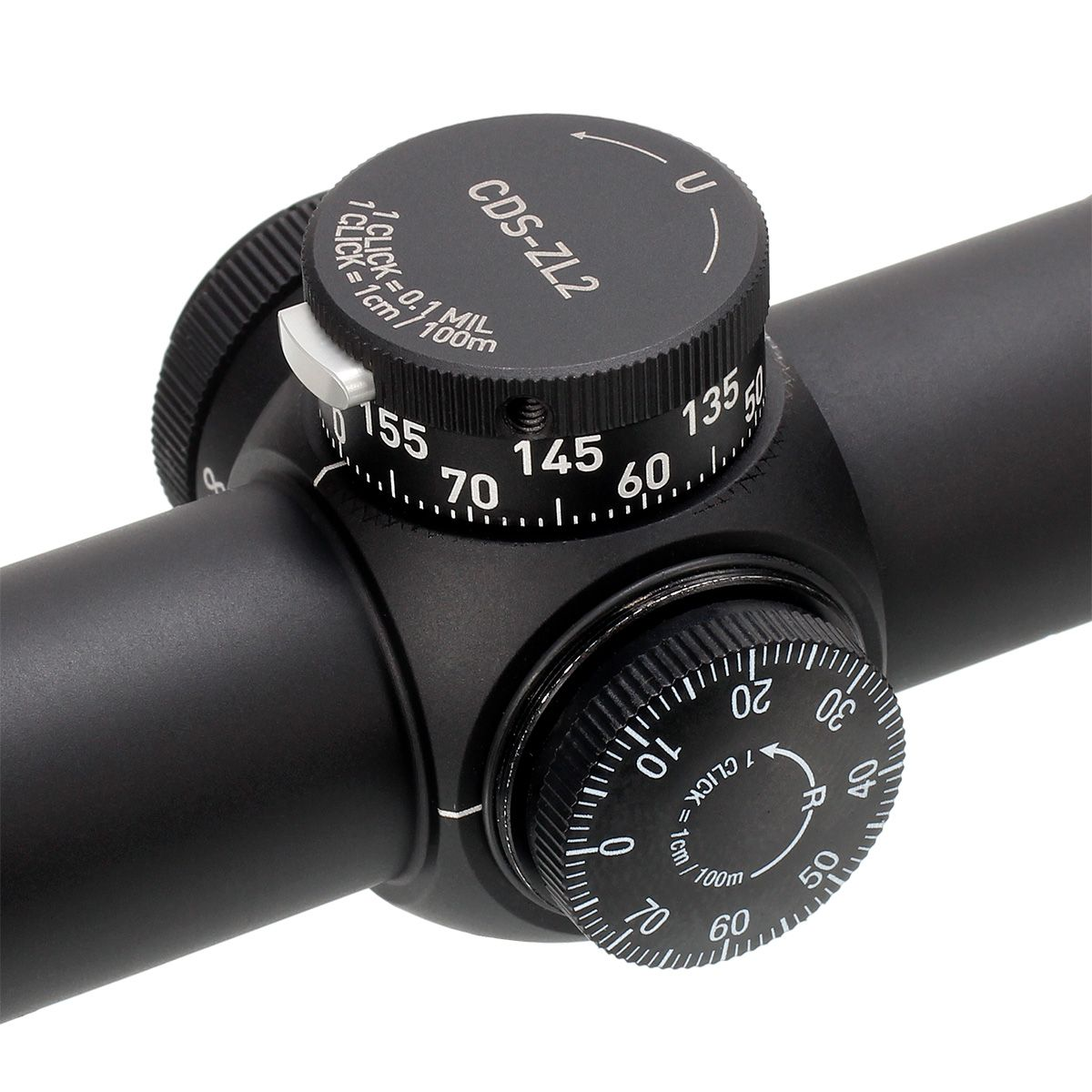

- FAST-FOCUSING EYEPIECE allows for quick adjustments to reticle clarity and focus.
- PARALLAX ADJUSTMENT enables precise targeting from 50 yards to infinity.
Technical Specifications Table
| Magnification | 3X to 15X |
|---|---|
| Objective Lens Size | 56mm |
| Exit Pupil | 18.7 mm - 3.7 mm |
| Eye Relief | 3.7" |
| Field of View @ 100 Yards | 38.3 ft - 7.7 ft |
| Tube Diameter | 30mm |
| Turret Type | BDC/Adjustable |
| Turret Click Value | 0.1 MRAD |
| Illuminated Reticle | Yes |
| Reticle Focal Plane | 2nd Focal Plane |
| Parallax Adjustable | Yes - 50 yards to infinity |
| Weather Resistance | Water/Fog Proof |
| Weight | 22.3oz |
| Length | 13.58" |
| Max Elevation Adjustment | 21.8 MIL |
| Max Windage Adjustment | 21.8 MIL |
What's in the Box?
- Leupold VX-5HD 3-15x56 Riflescope
- Lens covers
- Padded case
- Neck strap
Customer Reviews
"This scope is a game-changer for low-light hunting. The clarity is unmatched!"
"Lightweight and durable. It holds zero even after heavy recoil."
"The illuminated reticle is fantastic for early morning and late evening shots."
FAQ
How does the Twilight Light Management System work? This system enhances brightness during low-light conditions, allowing for increased visibility as the sun sets. It is designed to maximize usable light while minimizing glare for a clearer sight picture.
Is the VX-5HD suitable for extreme weather conditions? Yes, the scope is designed to be waterproof and fog proof, ensuring reliable performance in rain, snow, or fog. The robust construction also allows it to withstand harsh environments.
How does this scope compare with other Leupold models? The VX-5HD features a versatile 3-15x magnification range and a large 56mm objective lens, making it suitable for a wide range of shooting applications. Compared to other models, it offers enhanced light management and a lightweight design.
Similar Models
Looking for other high-performance optics? Explore Leupold's full range of riflescopes, including the VX-3i 4.5-14x40 for a more compact option and the VX-6HD 2-12x42 for added versatility. Each model is designed to meet various hunting and shooting needs.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
