Description

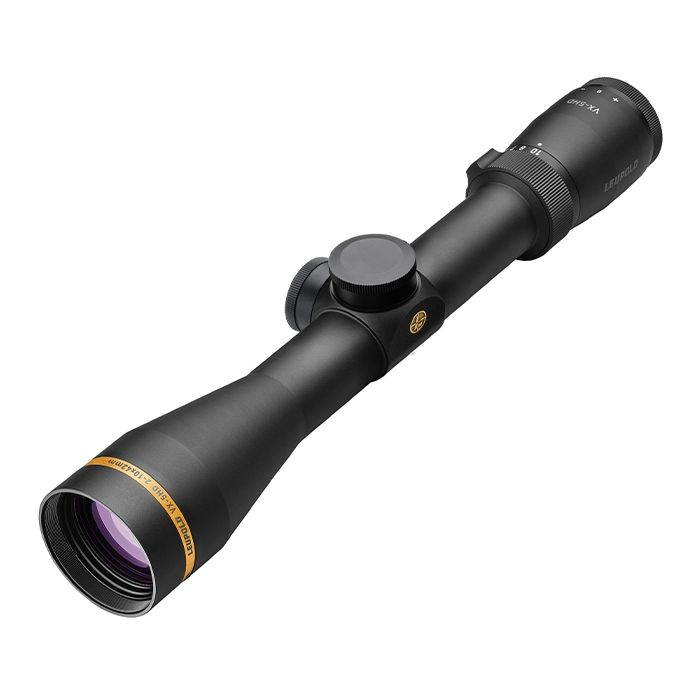

Leupold VX-5HD 2-10x42 Duplex riflescope features a versatile 2-10x magnification range, allowing for quick adjustments in various shooting scenarios. The rear focal plane Duplex reticle minimizes target coverage while providing accurate subtensions that adapt as you zoom in. With a 42mm objective lens, equipped with Guard-Ion coating, the lens is resistant to scratches and abrasions while ensuring optimal light transmission. This scope is sealed to guarantee waterproof and fog-proof performance in any environment. The Twilight Light Management System enhances visibility in low light conditions, extending shooting time by up to 30 minutes and reducing glare significantly.
Designed for rugged use, the lightweight construction disperses recoil energy, enhancing durability and performance. The fast-focusing eyepiece enables quick reticle adjustments, while the pop-up re-zero adjustments ensure rapid return to zero after making corrections. Weighing only 16.4 ounces and measuring 12.5 inches in length, this riflescope is built for long days in the field, making it ideal for both competitive shooting and hunting applications.
Features – Key Benefits Bullets
- VERSATILE MAGNIFICATION for adaptable shooting across various distances.
- SCRATCH-RESISTANT COATING protects lens surfaces, ensuring clarity in harsh conditions.
- WATERPROOF & FOGPROOF construction allows reliable use in all weather.
- LOW LIGHT PERFORMANCE with Twilight Light Management for extended shooting hours.
- FAST FOCUSING EYEPIECE for quick adjustments, keeping your target in sharp view.
- POP-UP ZERO ADJUSTMENTS facilitate easy and rapid reticle zeroing.
- LIGHTWEIGHT DESIGN minimizes fatigue during extended use.

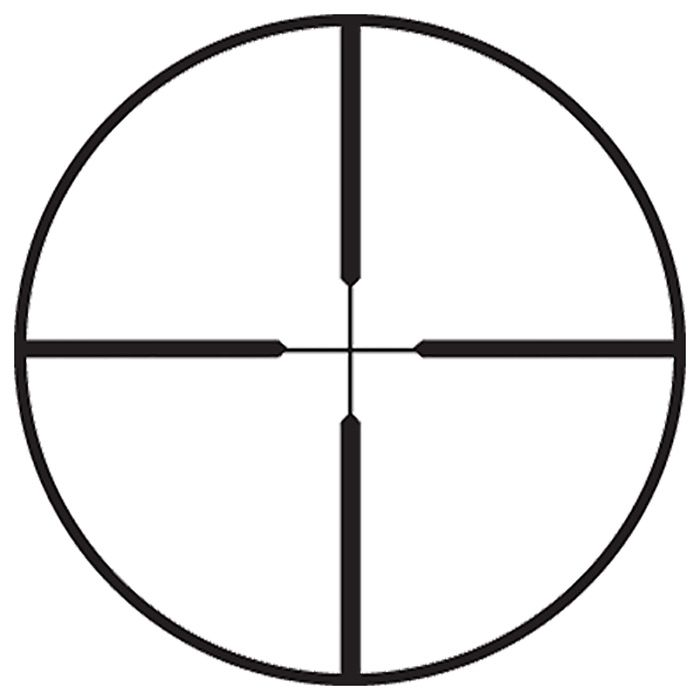

- 2ND FOCAL PLANE Duplex reticle provides accuracy without obscuring targets.
Technical Specifications Table
| Specification | Details |
|---|---|
| Magnification | 2X to 10X |
| Objective Lens Size | 42mm |
| Exit Pupil | 24mm-4.8mm |
| Eye Relief | 3.8" |
| Field of View @ 100 Yards | 57.5 ft-11.7 ft |
| Tube Diameter | 30mm |
| Turret Type | Capped |
| Turret Click Value | .250 MOA |
| Illuminated Reticle | None |
| Reticle Focal Plane | 2nd Focal Plane |
| Weather Resistance | Water/Fog Proof |
| Weight | 16.4oz |
| Length | 12.5" |
| Max Elevation Adjustment | 120 MOA |
| Max Windage Adjustment | 120 MOA |
What's in the Box?
- Leupold VX-5HD 2-10x42 Duplex Riflescope
- Lens covers
- Padded case
- Neck strap
Customer Reviews
“Excellent clarity and ease of use in low light. This scope has enhanced my shooting experience significantly.”
“Lightweight and durable, the VX-5HD is perfect for my long hunting trips.”
“Fast adjustments and clear optics make this a top choice for competitive shooting.”
FAQ
How does the VX-5HD perform in low light conditions? The Twilight Light Management System allows for better visibility at dusk and dawn, extending your shooting time by up to 30 minutes while reducing glare. This feature is particularly beneficial for hunters and shooters who often find themselves in variable lighting.
How does this scope compare to other models? The VX-5HD offers a versatile 2-10x zoom range, making it suitable for various shooting scenarios. In contrast to fixed magnification scopes, the variable range allows for adaptability in different environments, whether in the field or at the range.
What maintenance does the VX-5HD require? Regular cleaning with a soft, lint-free cloth is recommended to maintain the clarity of the lenses. Avoid using harsh chemicals that may damage the coatings. The scope's rugged construction is designed to withstand heavy use, but proper care will ensure longevity.
Similar Models
If you're interested in additional optics, explore our range of Leupold scopes, including the VX-3HD for high-performance hunting and the VX-Freedom series for budget-friendly options. Each model is designed to meet the needs of various shooting applications, ensuring you find the perfect fit for your adventures.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
