Description

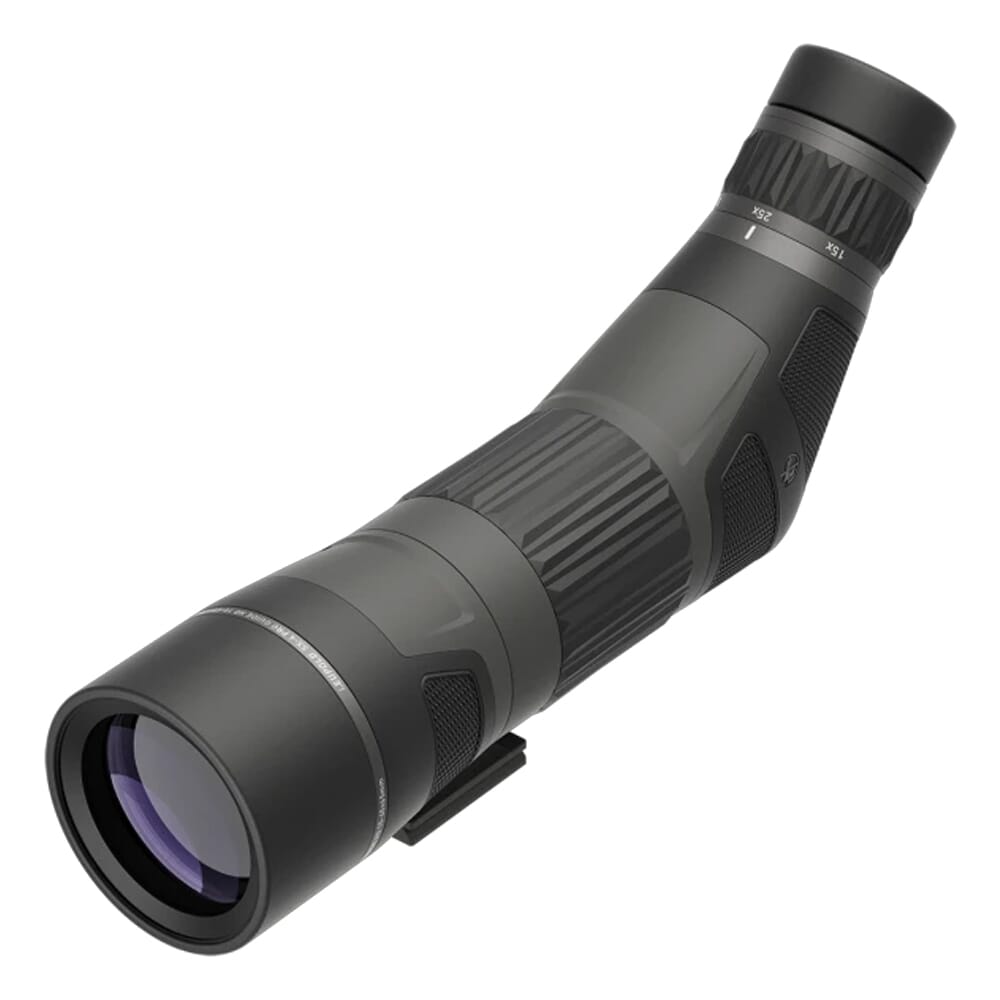

Leupold SX-4 Pro Guide HD Gen 2 20-60x85mm Angled spotting scope offers a rugged design built for harsh conditions. Its magnesium body is 100% waterproof and fogproof, ensuring lasting durability in the field. The oversized eyepiece enhances comfort for extended viewing sessions, making it ideal for hunters and shooters alike. The Elite Optical System provides exceptional light transmission, delivering bright images at dawn and dusk while effectively reducing glare in bright conditions. The straight eyepiece design adds convenience, allowing for easy packing and intuitive target tracking.
Featuring Diamond-Coat scratch-resistant lenses, this spotting scope ensures clarity and resolution across all magnification levels. The Guard-ion lens coating repels dirt, water, and smudges, maintaining image quality. Upgraded features include an Arca Swiss tripod adapter for stable setup and interchangeable FormFit eyecups for additional comfort. With a lifetime performance guarantee, the SX-4 Pro Guide HD is a reliable companion for any serious outdoor enthusiast.
Features – Key Benefits Bullets
- RUGGED DESIGN for reliable performance in extreme conditions.
- HIGH LIGHT TRANSMISSION ensures bright images during low-light situations.
- COMFORTABLE EYEPIECE for long viewing sessions without fatigue.
- SCRATCH-RESISTANT LENSES maintain clarity and durability over time.
- WATERPROOF & FOGPROOF construction for all-weather reliability.
- QUICK SETUP with Arca Swiss tripod adapter for stability.
- INTERCHANGEABLE EYECUPS allow for personalized comfort.
- LIFETIME GUARANTEE ensures product reliability for years of use.
Technical Specifications
| SKU | 185679-Leupold |
|---|---|
| UPC | 030317042202 |
| MPN | 185679 |
| Close Focus Range | 35' |
| Exit Pupil | 1.4mm - 4.1mm |
| Eye Relief | 19mm |
| Field of View | 50.6' - 91.7' @ 1000 yards |
| Magnification Range | 20x - 60x |
| Item Condition | New |
| Product Type | Spotting Scopes |
| Body Type | Angled |
| Eyepiece Included | Yes |
What's in the Box?
- Leupold SX-4 Pro Guide HD Gen 2 Spotting Scope
- Lens covers
- Padded case
- Neck strap
- User manual
Customer Reviews
"This scope offers incredible clarity and is built to last. The waterproof feature is a game changer for my hunting trips." - Alex R.
"The comfort of the eyepiece makes it easy to use for hours. I appreciate the quality and performance." - Sarah T.
FAQ
How does the SX-4 Pro Guide HD compare to other spotting scopes? The SX-4 Pro Guide HD stands out with its high-quality optical system that maximizes light transmission, providing clearer images than many competitors. Its rugged design and lifetime warranty make it a reliable choice for serious users.
What maintenance is required for this spotting scope? Regularly clean the lenses with a microfiber cloth and ensure the body is free of dirt and moisture. Store it in a protective case when not in use to prolong its lifespan.
Is this spotting scope suitable for both hunting and birdwatching? Yes, its versatile magnification range and superior light transmission make it ideal for various outdoor activities, including hunting and birdwatching.
Similar Models
Looking for more options? Explore our range of Leupold spotting scopes, including the Leupold VX-3i series for enhanced versatility and the Leupold Mark 4 for professional-grade optics. Find the perfect fit for your outdoor adventures.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
