Description

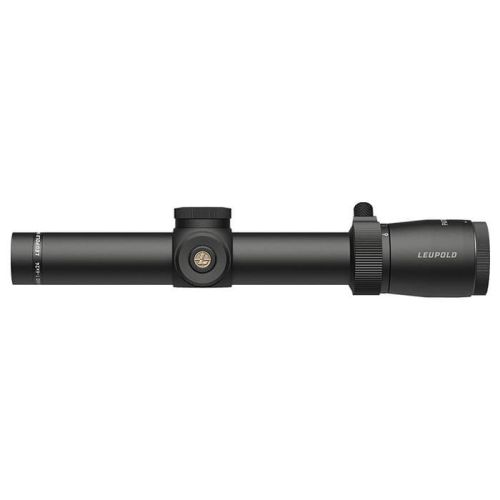

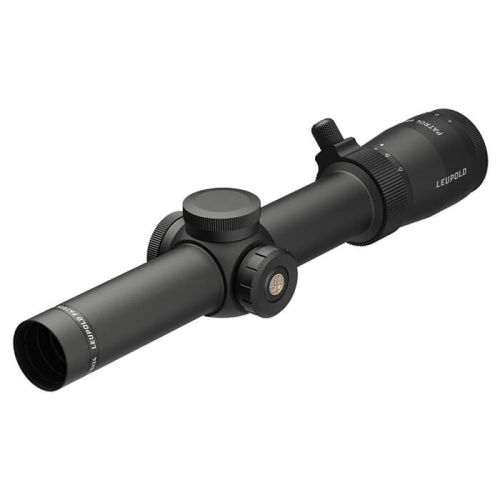

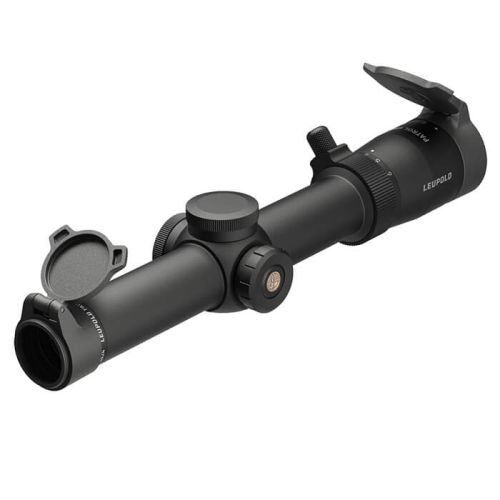

Leupold Patrol 6HD 1-6x24 Riflescope offers a lightweight, compact design with a versatile magnification range. Ideal for law enforcement and competitive shooting, this scope excels in various environments, from close quarters to open fields. The second focal plane reticle maintains its size across all magnification settings, providing consistent targeting at any range. Enhanced with a hydrophobic lens coating, it ensures a clear view by repelling dirt and water, while the Motion Sensor Technology extends battery life, activating the illuminated reticle only when needed.
With high-definition calcium fluoride lenses, this riflescope delivers exceptional clarity and light transmission in challenging lighting conditions. The tactical MOA turrets allow for precise adjustments, helping you maintain accuracy during critical moments. The removable throw lever simplifies quick magnification changes, making it a practical choice for dynamic situations. Waterproof, fogproof, and shockproof construction ensure reliability, whether in the field or at the range.
Features – Key Benefits Bullets
- ILLUMINATED RETICLE for improved visibility in low light conditions.
- HIGH-DEFINITION LENSES provide exceptional clarity and color fidelity at all magnifications.
- WATERPROOF & FOGPROOF design ensures reliable performance in any weather.
- QUICK MAGNIFICATION CHANGES with a low-profile throw lever for fast adjustments.
- MOTION SENSOR TECHNOLOGY extends battery life by activating the reticle only on movement.
- TACTICAL MOA TURRETS for precise and reliable adjustments in the field.
- LIGHTWEIGHT CONSTRUCTION enhances portability and ease of use during extended missions.
- SECOND FOCAL PLANE RETICLE maintains size for consistent targeting across the magnification range.
Technical Specifications Table
| Magnification | 1-6x |
|---|---|
| Objective Lens Size | 24mm |
| Eye Relief | 3.7" - 3.8" |
| Field of View @ 100 Yards | 19.2 ft - 120.9 ft |
| Tube Diameter | 30mm |
| Turret Type | Tactical MOA |
| Turret Click Value | 0.125 MOA |
| Illuminated Reticle | Yes |
| Reticle Focal Plane | 2nd Focal Plane |
| Battery Type | CR2032 |
| Exterior Finish | Matte Black |
| Weather Resistance | Waterproof, Fogproof, & Shockproof |
| Weight | 16.2 oz |
| Length | 10.8" |
| Battery Life | 300 - 1600 hrs |
| Max Elevation Adjustment | 170 MOA |
| Max Windage Adjustment | Pop-Up Rezero |
What's in the Box?
- Leupold Patrol 6HD 1-6x24 Riflescope
Customer Reviews
"This scope has significantly improved my target acquisition during competitive events. The clarity is unmatched, even in low light!"
"I depend on this riflescope for my duties. The illumination feature is a game-changer for night operations."
FAQ
How does the Leupold Patrol 6HD perform in low light situations? The advanced lens coatings and high-definition optics ensure that you maintain visibility and clarity even in challenging lighting conditions, making it ideal for tactical and competitive environments.
What maintenance is required for this riflescope? The hydrophobic lens coating minimizes dirt and water buildup, reducing the need for frequent cleaning. However, regular inspections and careful storage are recommended to ensure optimal performance over time.
How does the Leupold Patrol 6HD compare to other tactical scopes? Compared to similar models, this riflescope offers a unique combination of lightweight design, quick magnification changes, and superior optical clarity, making it a top choice for both law enforcement and competitive shooters.
Similar Models
Looking for more options? Explore our complete collection of Leupold riflescopes, including models like the Leupold VX-Freedom for hunting or the Leupold Mark 5HD for precision shooting. Find the perfect optic tailored to your needs today.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
