Description

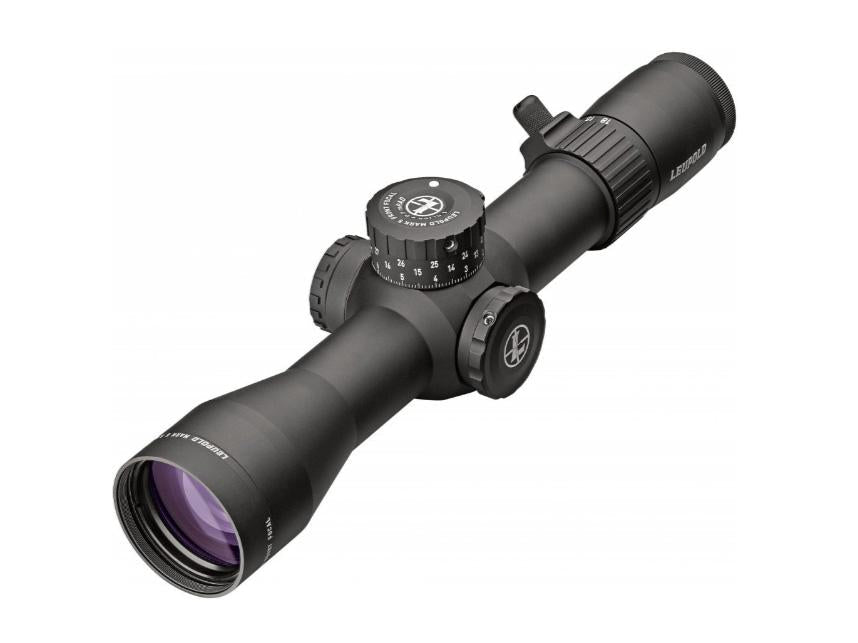

Leupold Mark 5HD Rifle Scope - 3.6-18x44 offers a lightweight design, weighing up to 20 ounces less than competitors in its class. This scope features superior edge-to-edge clarity and extreme low-light performance, ensuring visibility in various conditions. The illuminated Tremor 3 reticle simplifies fast target acquisition, while the three revolutions of elevation adjustment allow for precision tuning with the latest long-range rifles and ammunition. Ergonomic design elements, including tactile click adjustments and a high-speed throw lever, enhance usability for competitive shooters and hunters alike.
With its durable construction, the Mark 5HD is waterproof and fogproof, making it suitable for demanding outdoor environments. The side focus adjustment provides quick parallax corrections, while the first focal plane (FFP) reticle allows for accurate holdovers at any magnification level. This scope is engineered for serious shooters seeking reliability and performance in the field.
Features – Key Benefits Bullets
- LIGHTWEIGHT DESIGN for easy handling during extended use.
- SUPERIOR CLARITY ensures accurate targeting even in low light conditions.
- FAST TARGET ACQUISITION with illuminated Tremor 3 reticle for quick aiming.
- PRECISION ADJUSTMENTS through 1/10th MIL click turrets for exacting control.
- WATERPROOF & FOGPROOF construction for reliable performance in any weather.
- SIDE FOCUS ADJUSTMENT allows for rapid parallax correction at varying distances.
- TOUGH ALUMINUM BODY ensures durability in rugged outdoor conditions.
- HIGH-SPEED THROW LEVER enables swift magnification changes for fast action.
Technical Specifications Table
| Magnification | 3.6-18x |
|---|---|
| Lens Diameter | 44mm |
| Tube Diameter | 35mm |
| Weight | 22 ounces |
| Dimensions | Length: 14.8 inches |
| Material | Aluminum |
| Waterproof | Yes |
| Fogproof | Yes |
What's in the Box?
- Mark 5HD Rifle Scope
- Lens covers
- Padded case
- User manual
Customer Reviews
"The clarity at dusk is incredible. I can see my target clearly when others can't." - John D.
"Lightweight and easy to adjust. Perfect for my long-range shooting needs." - Sarah T.
"This is the best scope I've owned. It holds zero and performs well in all conditions." - Mark R.
FAQ
What makes the Leupold Mark 5HD suitable for low-light conditions? The scope features Twilight Max HD Light Management technology, which enhances clarity and brightness in low-light environments, making it easier to spot and identify targets at dawn and dusk.
How does the first focal plane (FFP) reticle work? In an FFP scope, the reticle scales with the magnification, allowing for accurate measurements and holdovers at any power level. This is particularly beneficial for long-range shooting where precision is essential.
How does the Mark 5HD compare to other scopes in its class? The Mark 5HD stands out with its lightweight design and superior optical clarity, making it a favorite among competitive shooters and hunters. Its rugged build and advanced features, like side focus and fast target acquisition, enhance its usability over competitors.
Similar Models
Looking for additional options in high-performance scopes? Explore the Leupold VX-5HD series for versatile magnification ranges or the Leupold Mark 4 series for tactical applications. Each model is designed to meet the needs of serious shooters. Check out our full Leupold collection for more exceptional optics tailored to your shooting style.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
