Description

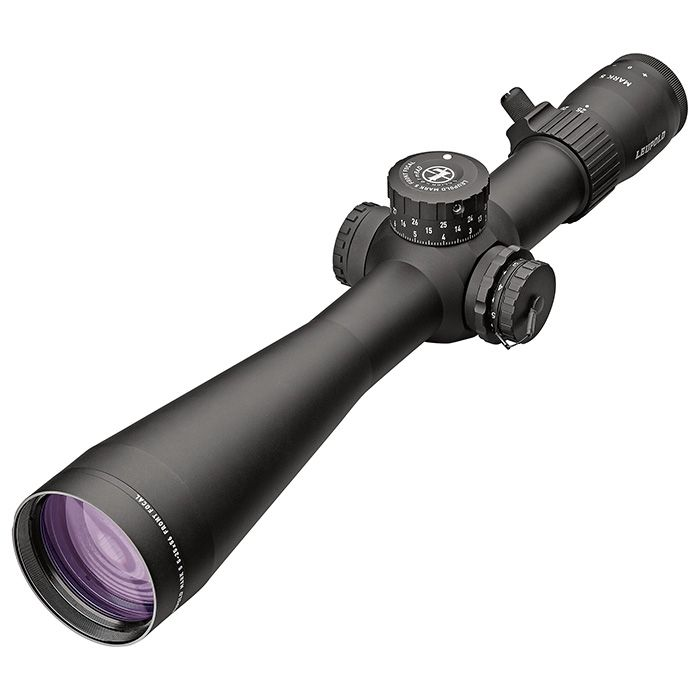

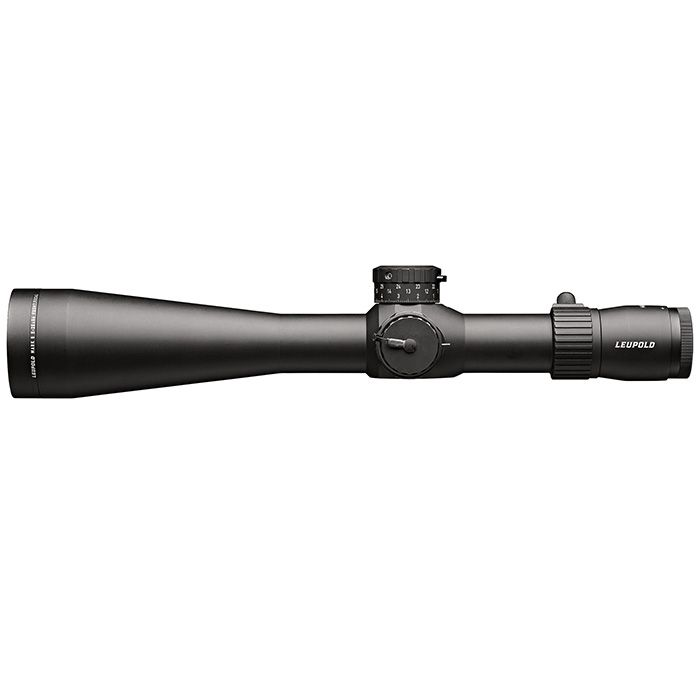

The Leupold Mark 5HD 5-25x56mm M5C3 Riflescope 171777 offers a wide magnification range from 5x to 25x, making it ideal for both tactical shooting and long-range hunting. Its 56mm objective lens ensures excellent light transmission, providing bright and clear images in various lighting conditions, including low-light scenarios. The illuminated Tremor3 reticle, positioned in the first focal plane, maintains size consistency across all magnification levels, aiding in precise distance calculations and adjustments.
Engineered for durability, this riflescope features a robust 35mm tube constructed from aircraft-grade aluminum. It's designed to withstand harsh conditions, ensuring reliable performance in the field. With tactile and audible 0.1 MRAD click adjustments via the M5C3 turret system, shooters can make accurate windage and elevation adjustments. The side focus parallax adjustment allows for quick refocusing at different distances, keeping targets sharp and in focus at all times.
Features – Key Benefits Bullets
- SUPERIOR OPTICS: Leupold’s Elite Optical System delivers exceptional light transmission, ensuring bright and crisp images in various lighting conditions.
- VERSATILE MAGNIFICATION: 5-25x magnification range offers a flexible solution for close-quarter and long-distance targeting.
- LARGE OBJECTIVE LENS: The 56mm objective lens diameter enhances low-light performance, crucial for dawn and dusk scenarios.

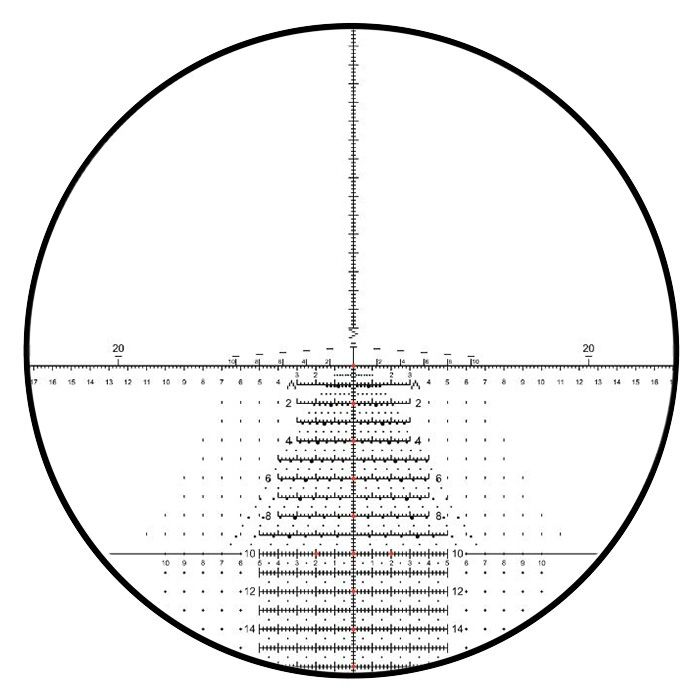

- ILLUMINATED TREMOR3 RETICLE: First Focal Plane illuminated reticle allows for range estimation and holdover in any light.
- PRECISE ADJUSTMENTS: M5C3 turrets with 0.1 MRAD click adjustments for accurate elevation and windage fine-tuning.
- SIDE FOCUS PARALLAX: Side focus enables parallax correction and delivers a sharp image regardless of target distance.
- EXTREME DURABILITY: Built to withstand the toughest conditions, with a robust and waterproof construction.
- LEUPOLD'S GUARANTEE: Backed by Leupold's Full Lifetime Guarantee, ensuring performance and reliability for a lifetime of use.
Technical Specifications
| Specification | Detail |
|---|---|
| Scope Weight | 30 oz. |
| Scope Length | 15.7" |
| Magnification Range | 5-25x |
| Scope Objective Diameter | 56mm |
| Scope Tube Size / Mount | 35mm |
| Turret Adjustment (Click Value) | 0.1 mRAD, CCW |
| Elevation Turret Details | 34.9 MIL, M5C3 |
| Windage Turret Details | 17.5 MIL |
| Parallax Adjustment | Side Focus |
| Reticle Position | First Focal Plane |
| Reticle Details | Illuminated Red Tremor 3 Reticle |
| Field of View | 20.4-4.2 ft @ 100 yards |
| Exit Pupil | 2.2 mm |
| Eye Relief | 3.6 - 3.8" |
| Illuminated Reticle | Yes |
| Scope Finish | Black |
| Scope Turret Rotation | Counter Clockwise (CCW) |
| Product Type | Riflescopes |
| UPC | 030317012953 |
| MPN | 171777 |
What's in the Box?
- Leupold Mark 5HD 5-25x56mm M5C3 Riflescope 171777
- Lens Covers
- Lens Cloth
- Product Documentation
- Full Lifetime Guarantee Card
Customer Reviews
“Absolutely love this scope. The clarity is unmatched, even in low light.”
“The adjustments are precise, and the reticle is easy to see. A great investment for any serious shooter.”
“Built tough for harsh conditions, this riflescope has exceeded my expectations.”
FAQ
What is the performance of the Leupold Mark 5HD in low-light conditions? The 56mm objective lens enhances light transmission, providing clear visibility during dawn and dusk, ideal for both hunting and tactical situations.
How do I maintain my Leupold Mark 5HD riflescope? Regularly clean the lenses with a microfiber cloth and avoid using harsh chemicals. Store it in a dry place to prevent moisture buildup, and always use lens covers to protect from scratches.
How does this scope compare to other brands like Nightforce? The Mark 5HD offers similar high-end optics and durability, but its illuminated reticle and parallax adjustment features make it a preferred choice for many competitive shooters and hunters.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
