Description

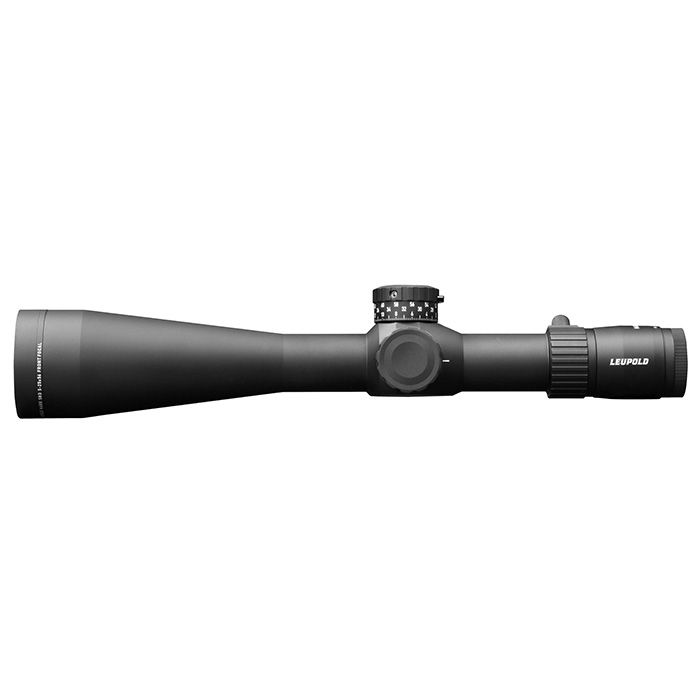

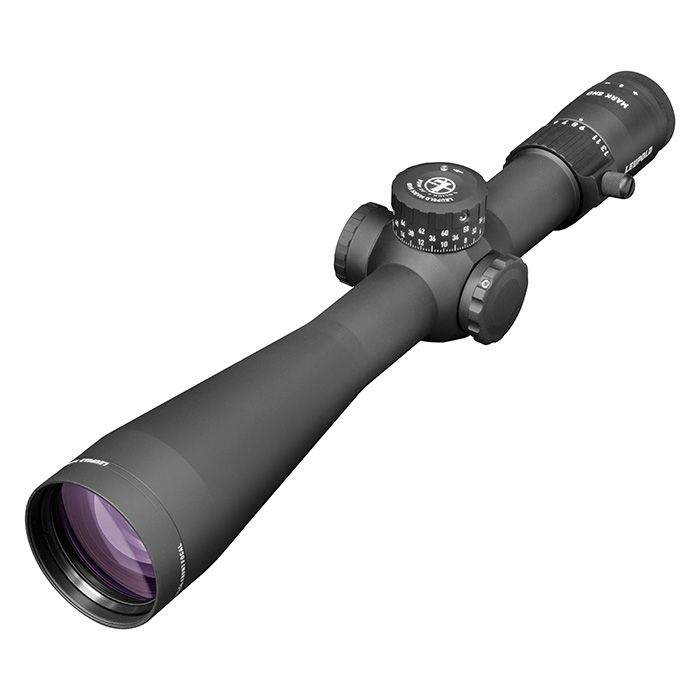

The Leupold Mark 5HD 5-25x56mm M1C3 FFP Riflescope delivers precision and reliability tailored for serious shooters. With a magnification range of 5x to 25x, this scope addresses various shooting needs, from tactical engagements to long-range competitions. Its 56mm objective lens maximizes light transmission, providing a clear image in low-light conditions, ensuring you never miss a shot when it matters most.
Constructed to endure tough environments, the Mark 5HD features a first focal plane design that adjusts the reticle size with magnification, allowing for accurate aiming at any power setting. The M1C3 turret system offers precise adjustments with tactile feedback, making it easy to track changes in elevation and windage. An illuminated PR-1MOA reticle enhances visibility under challenging lighting, while the side focus parallax adjustment allows quick corrections without altering your shooting position.
Features – Key Benefits Bullets
- FIRST FOCAL PLANE: Reticle size adjusts with magnification for accurate ballistic calculations at all power settings.
- HIGH MAGNIFICATION RANGE: 5x to 25x magnification allows versatility for both close and long-range shots.
- LARGE OBJECTIVE LENS: 56mm diameter ensures exceptional light transmission for bright, clear images.

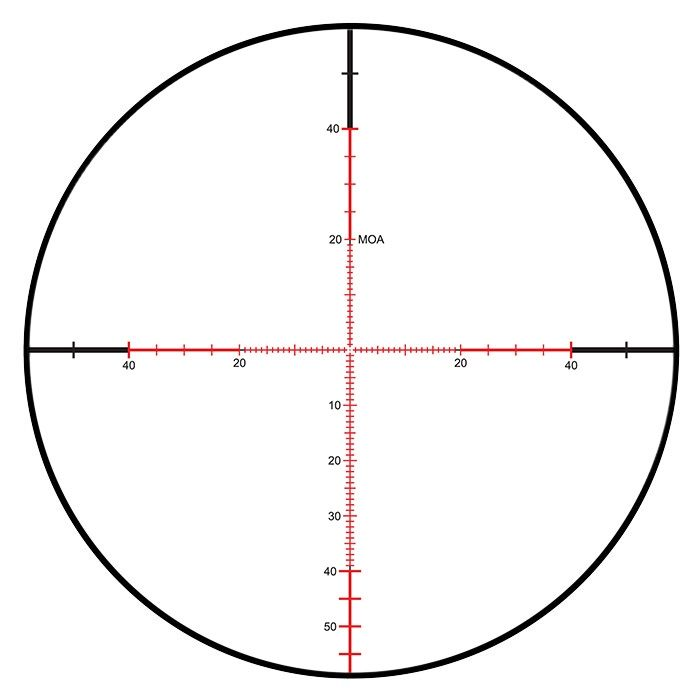

- ILLUMINATED RETICLE: PR-1MOA reticle enhances visibility in low-light scenarios for precise aiming.
- M1C3 TURRETS: Precise adjustments with a three-turn dial for rapid elevation and windage changes.
- SIDE FOCUS: Easy parallax adjustments without changing shooting position for improved accuracy.
- RUGGED CONSTRUCTION: Durable design withstands harsh conditions, ensuring performance reliability.
- LONG EYE RELIEF: Generous eye relief protects against recoil and provides comfortable viewing.
Technical Specifications
| Feature | Specification |
|---|---|
| Scope Weight | 30 oz. |
| Scope Length | 15.67" |
| Magnification Range | 5 - 25x |
| Scope Objective Diameter | 56mm |
| Scope Tube Size / Mount | 35mm |
| Turret Adjustment | 0.25 MOA |
| Elevation Turret Details | 120 MOA, M1C3 |
| Windage Turret Details | 60 MOA |
| Parallax Adjustment | 50 yards - infinity |
| Reticle Position | First Focal Plane |
| Reticle Details | Illum. PR-1MOA |
| Field of View | 20.5 - 4.2 ft. per 100 yd |
| Exit Pupil | 2.2 mm |
| Eye Relief | 3.58" - 3.82" |
| Illuminated Reticle | Yes |
| Scope Finish | Black |
| Scope Turret Rotation | Counter Clockwise (CCW) |
| Product Type | Riflescopes |
| UPC | 030317021085 |
| MPN | 176449 |
What's in the Box?
- Leupold Mark 5HD 5-25x56mm M1C3 FFP Riflescope 176449
- Lens Covers
- Lens Cloth
- Product Documentation
Customer Reviews
"The clarity and precision are unmatched. Perfect for long-range shooting!"
"Adjustments are crisp and easy to make. A fantastic scope for tactical use."
"Excellent low-light performance. I can always count on it in the field."
FAQ
How does the first focal plane reticle benefit me? The first focal plane design allows the reticle to scale with magnification, providing accurate holdover and range estimation at any zoom level. This feature is particularly useful for long-range shooters who need precision at varying distances.
What maintenance is required for the Leupold Mark 5HD? Regularly clean the lenses with a soft cloth to avoid scratches and ensure clear visibility. It’s also advisable to check turret adjustments before each use to confirm they are set correctly. The rugged construction means it can handle tough conditions, but proper care will extend its lifespan.
How does this scope compare to other models? The Leupold Mark 5HD stands out with its illuminated reticle and precision turret adjustments. Compared to alternatives like the Nightforce ATACR, it offers similar durability but may be preferred for its user-friendly features and lighter weight.
Similar Models
Looking for additional optics? Explore the Leupold lineup, including the Leupold VX-5HD for versatile hunting applications and the Leupold Mark 6 for enhanced tactical performance. Check out our fullOur Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
