Description

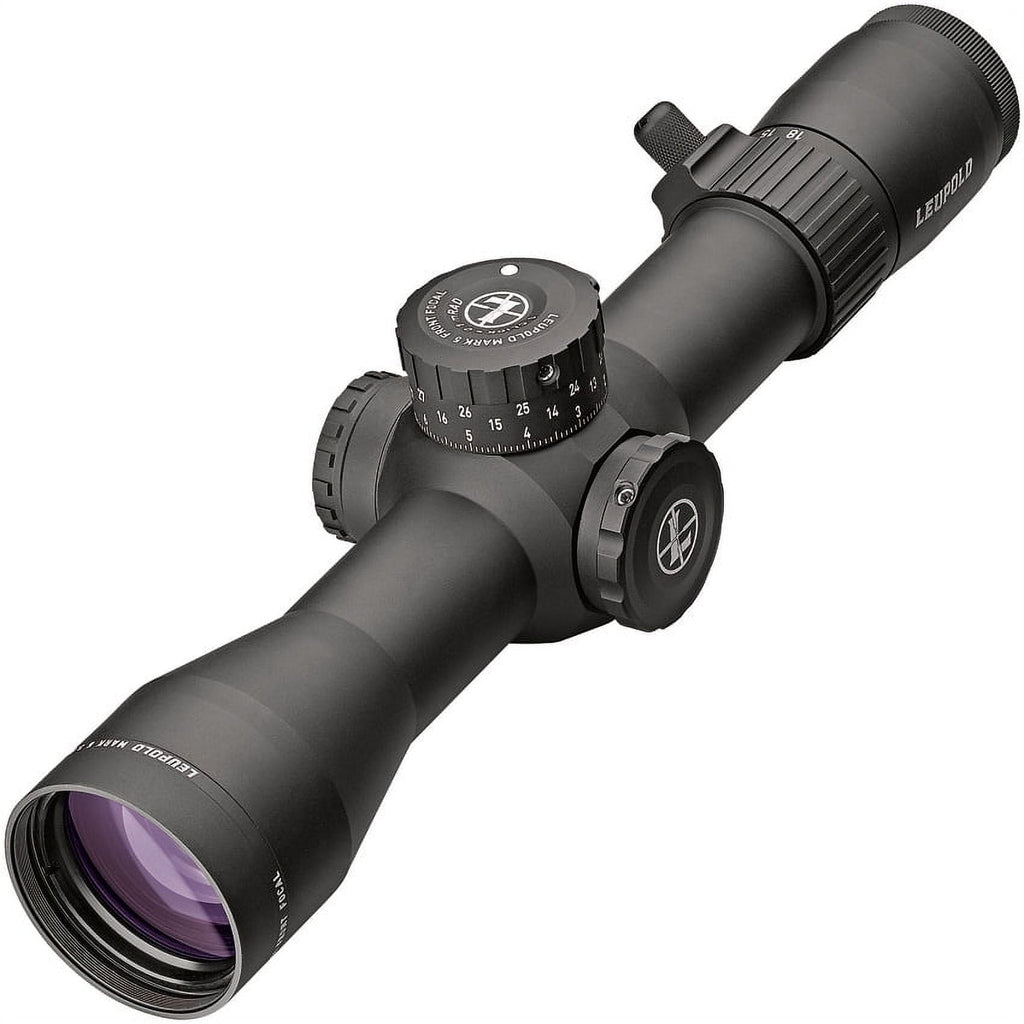

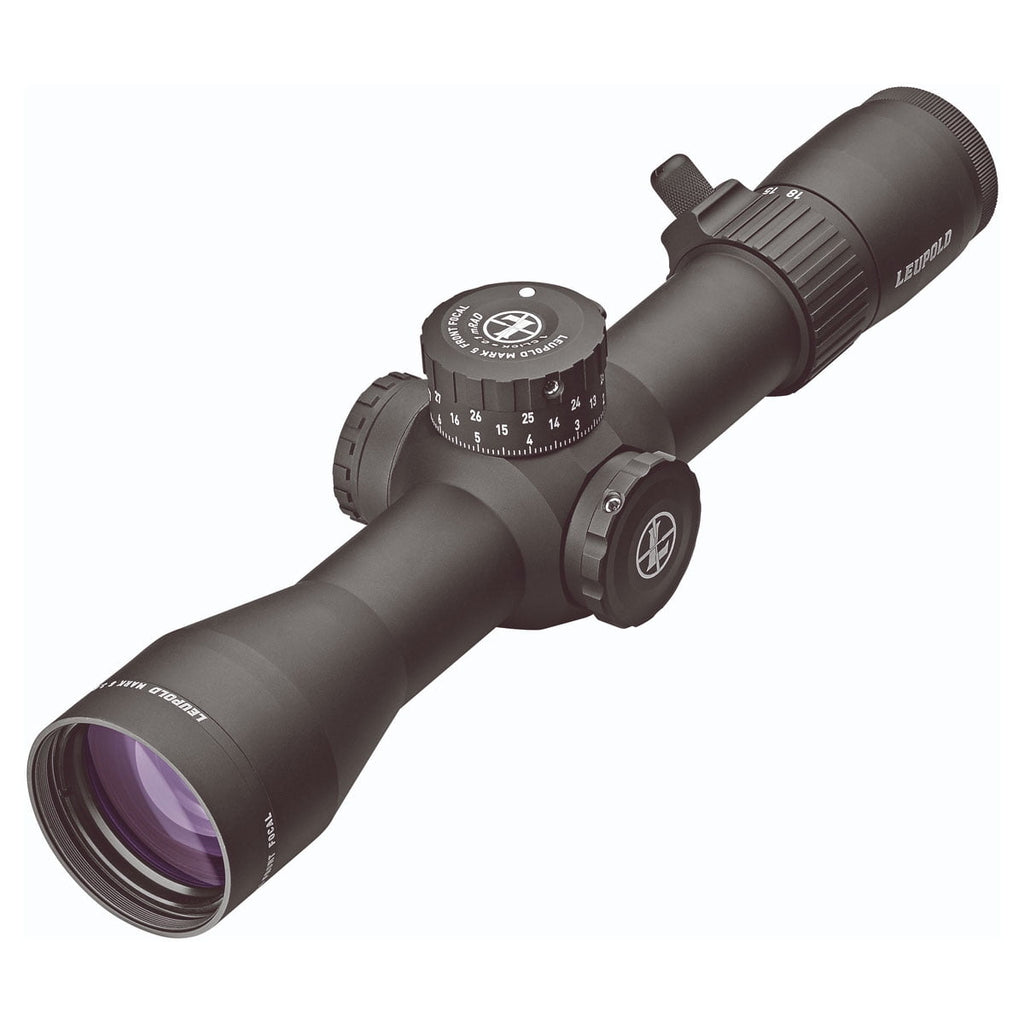

Leupold Mark 5HD 3.6-18x44mm Rifle Scope M5C3 TMR 173296 offers precision and reliability, tailored for serious shooters. This tactical scope features a 3.6-18x magnification range and a 44mm objective diameter, providing versatility for various shooting scenarios. Weighing only 26 ounces and measuring 12.1 inches in length, it balances portability with rugged durability, making it an ideal choice for both tactical operations and hunting.
The Twilight Max HD Management System enhances clarity and low-light performance, while M5C3 ZeroLock adjustments ensure precise tracking with a three-turn dial and 10 Mils per turn. The first focal plane TMR reticle allows for consistent aiming across all magnifications, complemented by a robust 35mm main tube to withstand harsh conditions. Waterproof and fog-proof features provide reliable performance, regardless of the environment.
Features – Key Benefits Bullets
- PRECISION ENGINEERING: Twilight Max HD Management for superior low-light visibility and edge-to-edge clarity.
- M5C3 ZEROLOCK: Features a 3-turn dial with 10 Mils per turn for reliable elevation adjustments and consistent return to zero.
- LIGHTWEIGHT DURABILITY: At just 26 oz., this scope combines portability with robust construction, backed by a Full Lifetime Guarantee.
- VERSATILE MAGNIFICATION: 3.6-18x magnification range and 44mm objective diameter cater to various tactical and hunting applications.

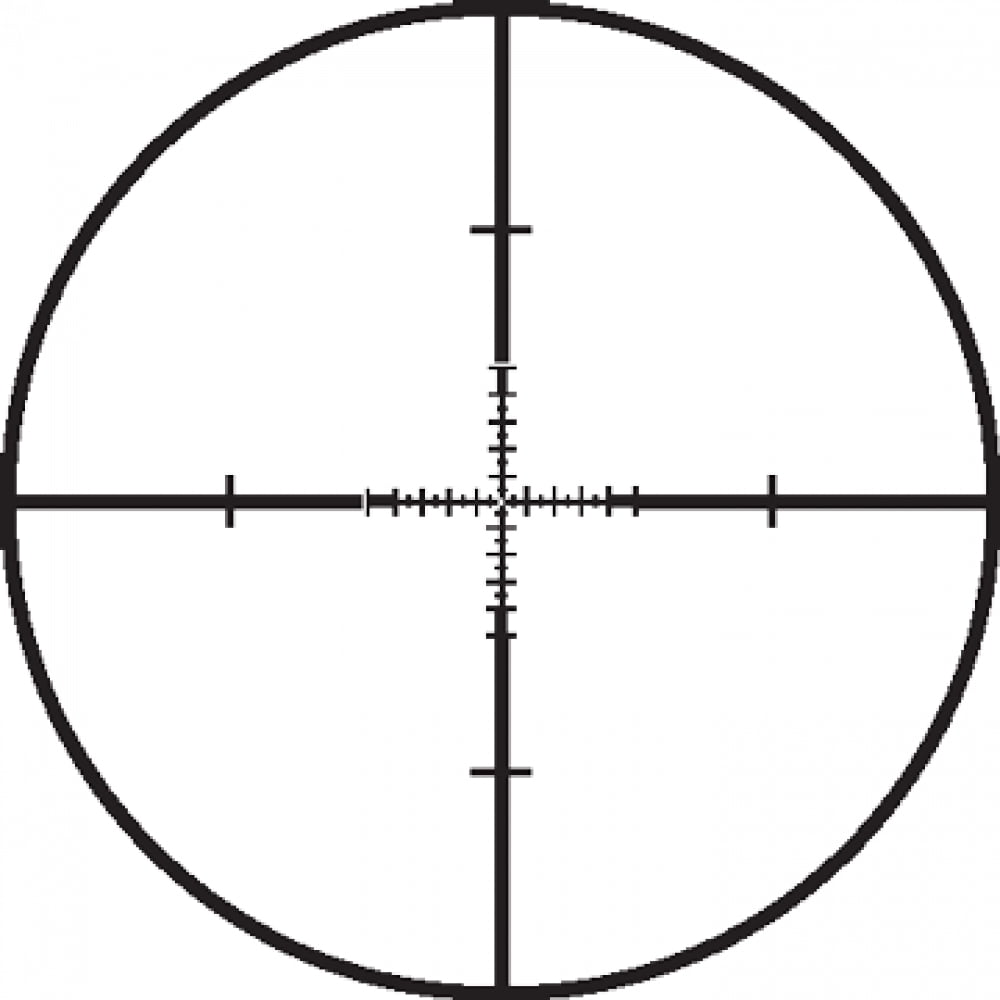

- FIRST FOCAL PLANE: TMR reticle ensures accurate aiming at all magnifications, providing a wide field of view (28.3 - 5.8 ft @ 100 yards).
- USER-FRIENDLY DESIGN: High-speed power selector and integrated throw lever enable quick adjustments for target acquisition.
- ALL-WEATHER PERFORMANCE: Waterproof and fog-proof construction guarantees functionality in challenging weather conditions.
- TERMINAL PRECISION: CCW turret rotation with precise side focus to enhance accuracy at varying distances.
Technical Specifications
| Specification | Detail |
|---|---|
| Item Condition | New |
| Scope Weight | 26 oz. |
| Scope Length | 12.1" |
| Magnification Range | 3.6-18x |
| Objective Diameter | 44mm |
| Tube Size / Mount | 35mm |
| Turret Adjustment | 0.1 mRAD, CCW |
| Elevation Turret Details | 29.1 MIL, M5C3 |
| Windage Turret Details | 23.3 MIL |
| Parallax Adjustment | 50 yards - infinity |
| Reticle Position | First Focal Plane |
| Reticle Details | TMR Reticle |
| Field of View | 28.3 - 5.8 ft @ 100 yards |
| Exit Pupil | 2.4 mm |
| Eye Relief | 3.5 - 3.8" |
| Illuminated Reticle | No |
| Scope Finish | Black |
| Turret Rotation | Counter Clockwise (CCW) |
| Product Type | Riflescopes |
| UPC | 030317016357 |
| MPN | 173296 |
What's in the Box?
Included with your Leupold Mark 5HD 3.6-18x44mm Rifle Scope M5C3 TMR 173296 are essential accessories that prepare you for immediate use. The box contains the scope itself, along with lens covers and an integrated throw lever for easy adjustments.
Customer Reviews
"The clarity and low-light performance are impressive. Perfect for early morning hunts!"
"Durable and lightweight, it has held up well in adverse conditions. Highly recommend!"
"The adjustments are precise, making it easy to stay on target. A solid investment for any serious shooter."
FAQ
How does the Mark 5HD perform in low light conditions? The Twilight Max HD Management System significantly enhances visibility in low light, providing clear images even during dawn or dusk. This makes it ideal for hunting in varying light conditions.
What maintenance is required for this scope? Regular cleaning of the lens with a soft cloth is recommended. Ensure that the scope is stored in a dry environment to prevent moisture build-up. The rugged construction helps maintain performance without frequent adjustments.
How does the Mark 5HD compare to other tactical scopes? The Mark 5HD stands out with its first focal plane reticle and superior low-light performance, making it a preferred choice for professional marksmen. Its lightweight yet durable design offers a balance that some heavier tactical scopes may lack.
Similar Models
Looking for more options? Explore our complete collection of Leupold tactical scopes, including models like the Leupold VX-5HD for versatile hunting applications and the Leupold VX-Freedom for a reliable, budget-friendly alternative. Discover the full range of Leupold optics tailored for performance and precision.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
