Description

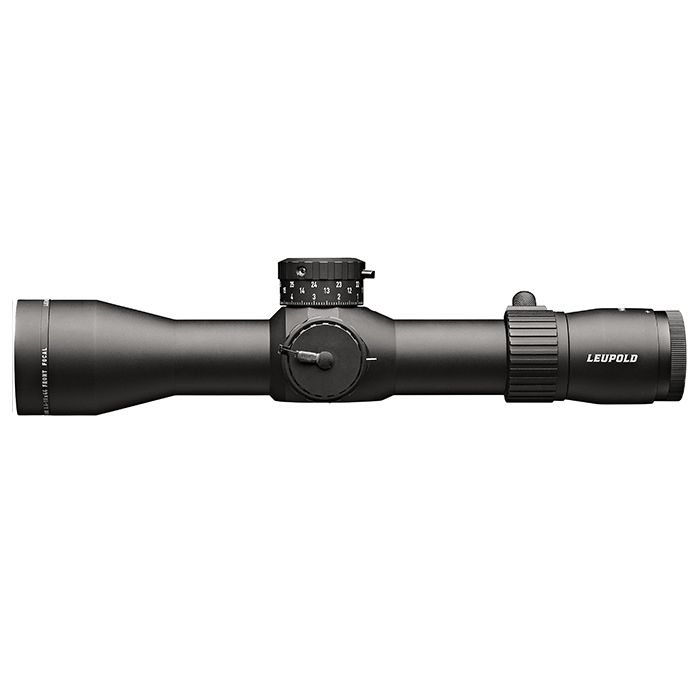

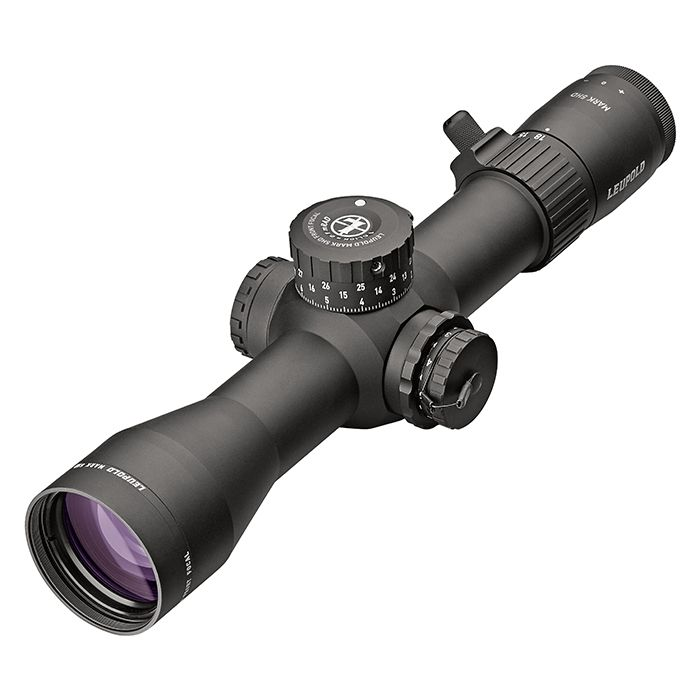

Leupold Mark 5HD 3.6-18x44mm M5C3 FFP Riflescope 176811 is engineered for precision and durability, ideal for long-range shooting. Its lightweight design minimizes excess weight while maintaining structural integrity. The advanced lens system delivers clear, bright images, even at peak magnification, facilitating quick target acquisition and enhancing shooting accuracy.

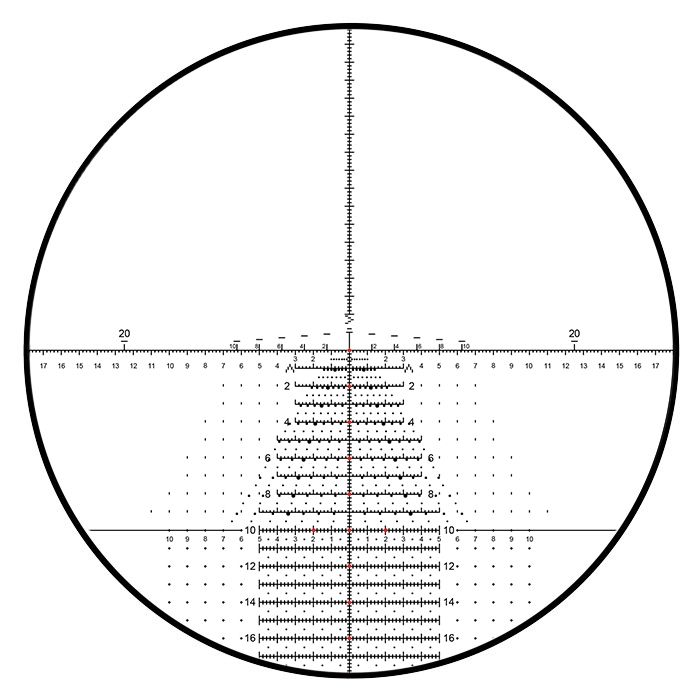

Featuring the TREMOR3 reticle, this riflescope is designed for effective ranging and holdovers across various magnification levels, making it suitable for competitive and tactical shooting. The Twilight Light Management System enhances visibility in low-light conditions and reduces glare, providing a tactical edge in challenging environments. With its resilient construction, this scope is ready for any shooting scenario, delivering consistent performance shot after shot.
Features – Key Benefits Bullets
- ADVANCED OPTICS: Superior edge-to-edge clarity and bright images, thanks to Leupold's Twilight Light Management System.
- IMPRESSIVE DURABILITY: Ultra-lightweight, recoil-resistant body ensures full waterproof and fog-proof performance.
- PRECISION ENGINEERING: First Focal Plane Illuminated TREMOR3 reticle provides accurate holdovers and ranging at all power settings.
- VERSATILE MAGNIFICATION: 3.6-18x magnification range is perfect for shooting scenarios from close to long-range.
- INTUITIVE CONTROLS: Fast-focusing eyepiece and reversible throw lever allow for quick adjustments.
- ILLUMINATION CONTROL: Dual illumination control with intensity indicators offers customizable brightness settings.
- EXTENDED SHOOTING LIGHT: Enhances shooting light and significantly reduces glare for improved visibility.
- PRECISION TURRETS: M5C3 turrets feature tactile and audible clicks with 29.1 MIL elevation and 23.3 MIL windage adjustments.
Technical Specifications
| Specification | Detail |
|---|---|
| Scope Weight | 26 oz. |
| Scope Length | 12.06" |
| Magnification Range | 3.6 - 18x |
| Scope Objective Diameter | 44mm |
| Scope Tube Size / Mount | 35mm |
| Turret Adjustment (Click Value) | 0.1 MRAD |
| Elevation Turret Details | 29.1 MIL, M5C3 |
| Windage Turret Details | 23.3 MIL |
| Parallax Adjustment | 50 yards - infinity |
| Reticle Position | First Focal Plane |
| Reticle Details | Illum. Tremor 3 Reticle |
| Field of View | 28.4 - 5.8 ft per 100 yd |
| Exit Pupil | 2.4 mm |
| Eye Relief | 3.54" - 3.82" |
| Illuminated Reticle | Yes |
| Scope Finish | Black |
| Scope Turret Rotation | Counter Clockwise (CCW) |
| Product Type | Riflescopes |
| UPC | 030317021627 |
| MPN | 176811 |
What's in the Box?
- Leupold Mark 5HD 3.6-18x44mm M5C3 FFP Riflescope 176811
- Reversible Throw Lever
- Lens Covers
- Lens Cloth
- Product Documentation
Customer Reviews
“The clarity at long distances is incredible. This scope has improved my accuracy significantly.”
“I love the lightweight design and how easy it is to adjust. Perfect for my competitive shooting needs.”
“Best scope I’ve ever used. The low-light performance is a game-changer.”
FAQ
How does the First Focal Plane work? The First Focal Plane reticle size changes with the magnification level, allowing for accurate targeting and holdovers at any zoom level. This is especially useful in dynamic shooting environments where rapid adjustments are necessary.
What maintenance is required for the Leupold Mark 5HD? Regular cleaning of the lenses with a soft cloth is recommended to maintain clarity. Ensure that the scope is stored in a dry, protected area to prevent moisture damage. It is also advisable to check turret adjustments periodically.
How does this scope compare to other brands like Nightforce or Schmidt & Bender? While Nightforce and Schmidt & Bender offer robust options, the Leupold Mark 5HD stands out with its lightweight design and Twilight Light Management System. It also features an intuitive control system, making it user-friendly for both experienced and novice shooters.
Similar Models
Looking for more options? Check out our selection of Leupold scopes, including the Mark 4 series for enhanced tactical capabilities and the VX-3i for versatile hunting performance. Explore our full collection for optics tailored to meet your shooting needs.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
