Description

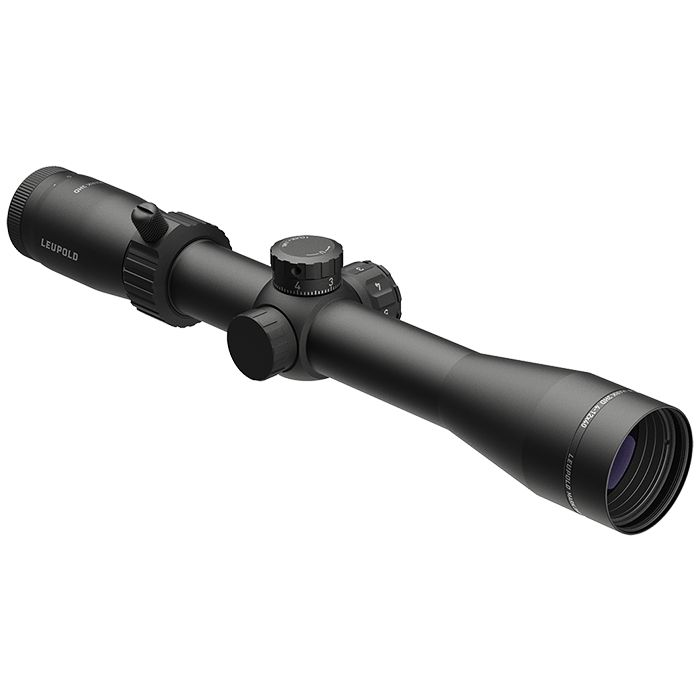

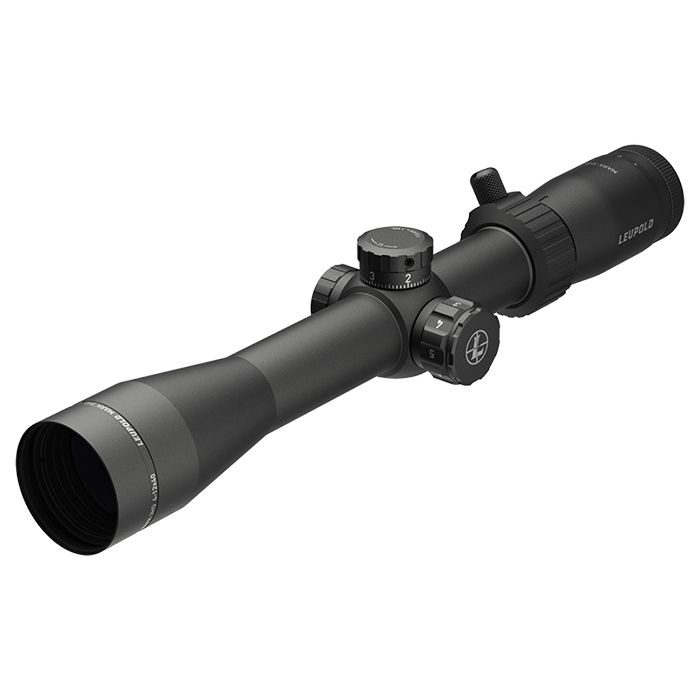

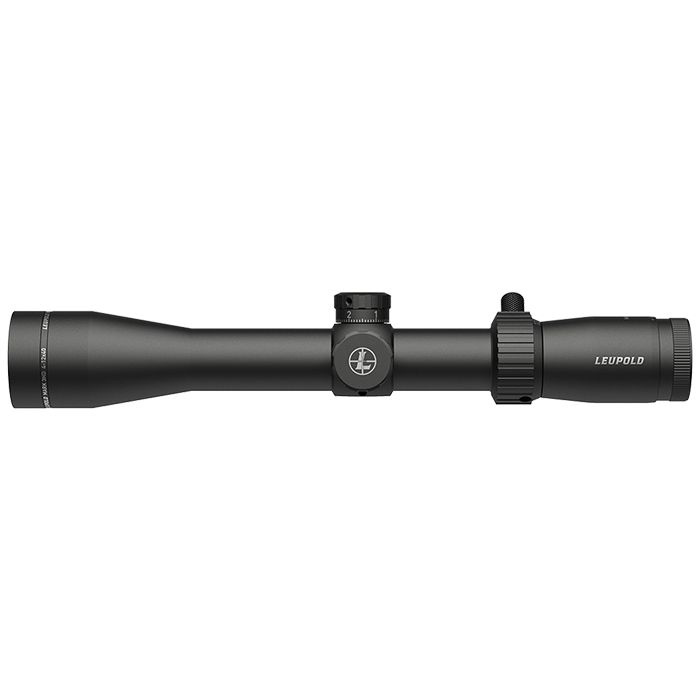

Leupold Mark 3HD 4-12x40mm riflescope (180668) offers a versatile magnification range of 4x to 12x, allowing for effective target engagement at varying distances. Its 40mm objective lens enhances light transmission, ensuring clear visibility even in low-light conditions. The FireDot TMR illuminated reticle improves aiming accuracy against dark backgrounds, making it an essential tool for serious shooters and hunters.
Featuring Leupold's Elite Optical System, this scope minimizes glare and optimizes resolution for detailed sighting. The Custom Dial System (CDS) allows for easy adjustments to compensate for bullet drop and environmental factors. Built with a robust 30mm maintube, the Mark 3HD is waterproof, fog-proof, and shockproof, ensuring reliability in harsh field conditions. The ZeroStop system facilitates quick returns to zero, allowing for faster follow-up shots and enhanced shooting precision.
Features – Key Benefits Bullets
- HD LENS CLARITY: Advanced Elite Optical System delivers excellent light transmission, glare reduction, and resolution for clear sightings.

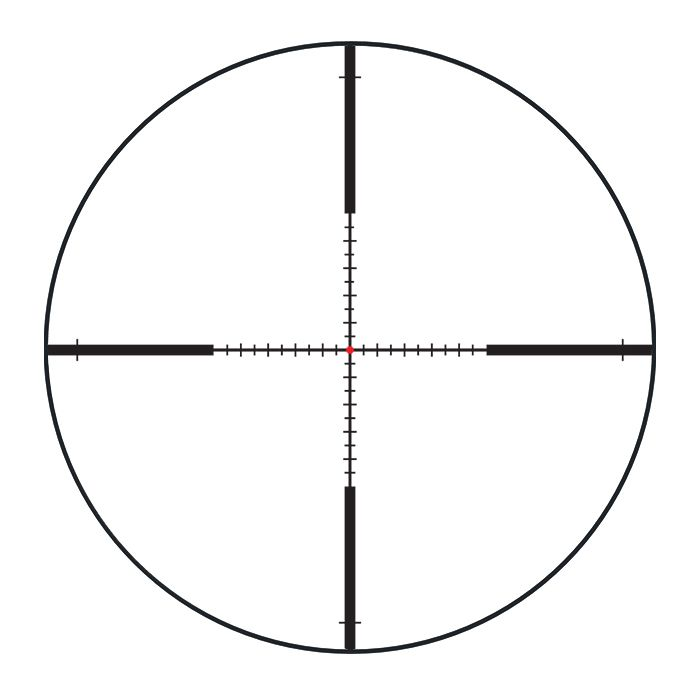

- ILLUMINATED RETICLE: Equipped with the FireDot TMR, offering precise aim in low-light conditions.
- CUSTOM DIAL SYSTEM: Leupold's CDS enables quick ballistic adjustments for precise shooting.
- BUILT TO ENDURE: The scope is fully waterproof, fogproof, and shockproof, ensuring dependability in harsh conditions.
- LIGHT MANAGEMENT: Twilight Max Light Management system for better visibility during dusk and dawn.
- MAGNIFICATION VERSATILITY: Offers a broad 3:1 zoom ratio from 4x to 12x magnification.
- RAPID ZEROING: ZeroStop system guarantees a swift return to zero under any conditions.
- DURABLE CONSTRUCTION: A solid 30mm maintube provides added strength and greater adjustment capability.
Technical Specifications
| Specification | Detail |
|---|---|
| Scope Weight | 16 ounces |
| Scope Length | 12.7 inches |
| Magnification Range | 4x - 12x |
| Scope Objective Diameter | 40mm |
| Scope Tube Size/Mount | 30mm |
| Turret Adjustment | .1 MIL |
| Elevation Turret Details | Exposed, 5.6 MIL |
| Windage Turret Details | 5 MIL |
| Reticle Position | Second Focal Plane |
| Reticle Details | Illum. FireDot TMR |
| Field of View | 21.5 ft/100 yd (low), 10.1 ft/100 yd (high) |
| Eye Relief | 4.9" (low), 3.7" (high) |
| Illuminated Reticle | Yes |
| Scope Finish | Black |
| Scope Turret Rotation | Counter Clockwise (CCW) |
| Product Type | Riflescopes |
| UPC | 030317028763 |
| MPN | 180668 |
What's in the Box?
- Leupold Mark 3HD 4-12x40mm (180668) Rifle Scope
- Lens Covers
- Lens Cloth
- User Manual
- Warranty Card
Customer Reviews
"This scope is perfect for my hunting trips. The clarity is outstanding, and the illuminated reticle really helps during early dawn." - Mark R.
"The Custom Dial System makes adjustments easy on the fly. I've never felt more confident in my shots." - Lisa H.
FAQ
How does the illuminated reticle perform in low-light conditions? The FireDot TMR reticle is designed specifically for low-light scenarios, providing clear visibility against dark backgrounds, making it ideal for dawn and dusk hunting.
What type of maintenance does the Leupold Mark 3HD require? Regular cleaning of the lenses with the included lens cloth is recommended. Ensure the turret adjustments are functioning smoothly, and store the scope in a protective case to maintain its condition.
How does this scope compare to other brands in similar price ranges? The Leupold Mark 3HD stands out due to its durable construction and advanced optical features. While other brands may offer similar magnification, the combination of light management and ruggedness provides added value for serious shooters.
Can I use this scope for competitive shooting? Yes, the precision adjustments and rapid zeroing capabilities make the Mark 3HD suitable for both competitive shooting and hunting.
Is it easy to mount this scope on my rifle? The 30mm tube size fits standard mounts, and the user manual provides clear instructions for installation, ensuring a hassle-free setup.
Similar Models
Looking for more options? Check out our extensive Leupold collection, including models like the Leupold VX-3i for enhanced low-light performance and the Leupold VX-Freedom for versatile shooting applications. Explore our full range for optics tailored to your shooting needs.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
