Description

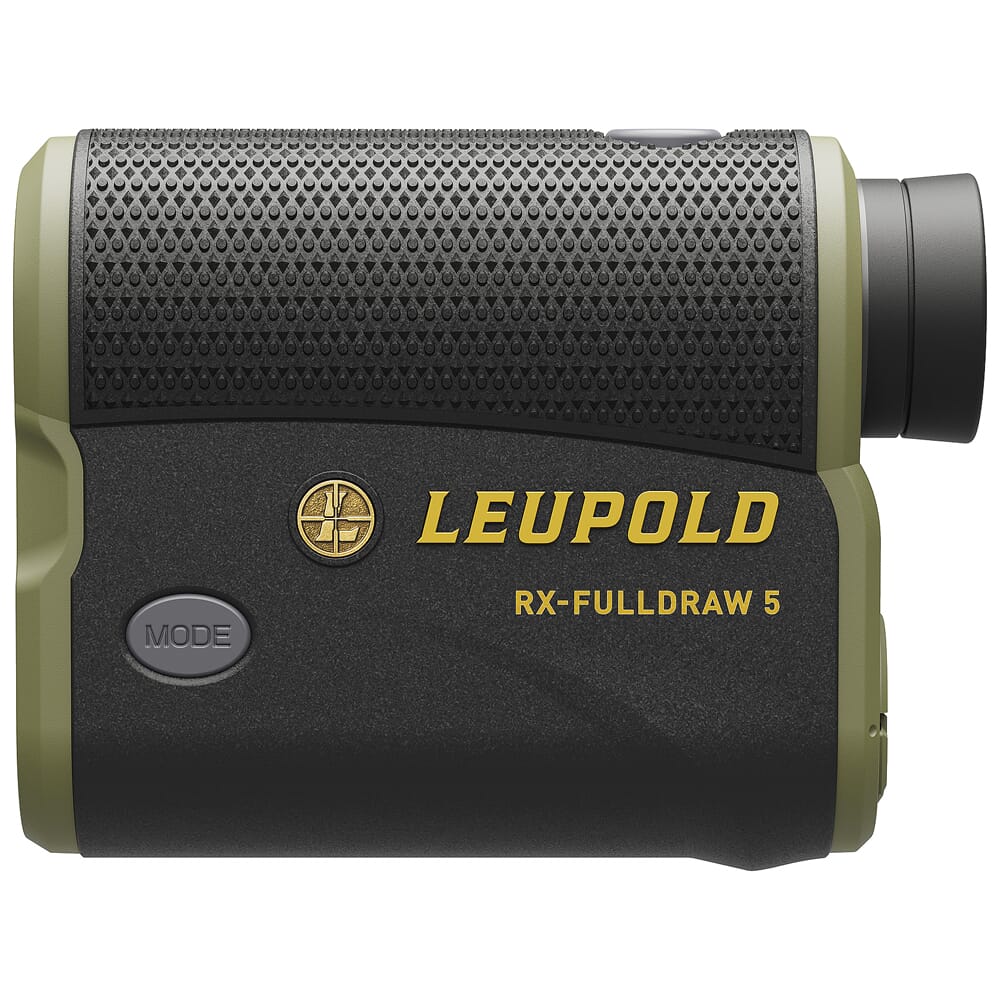

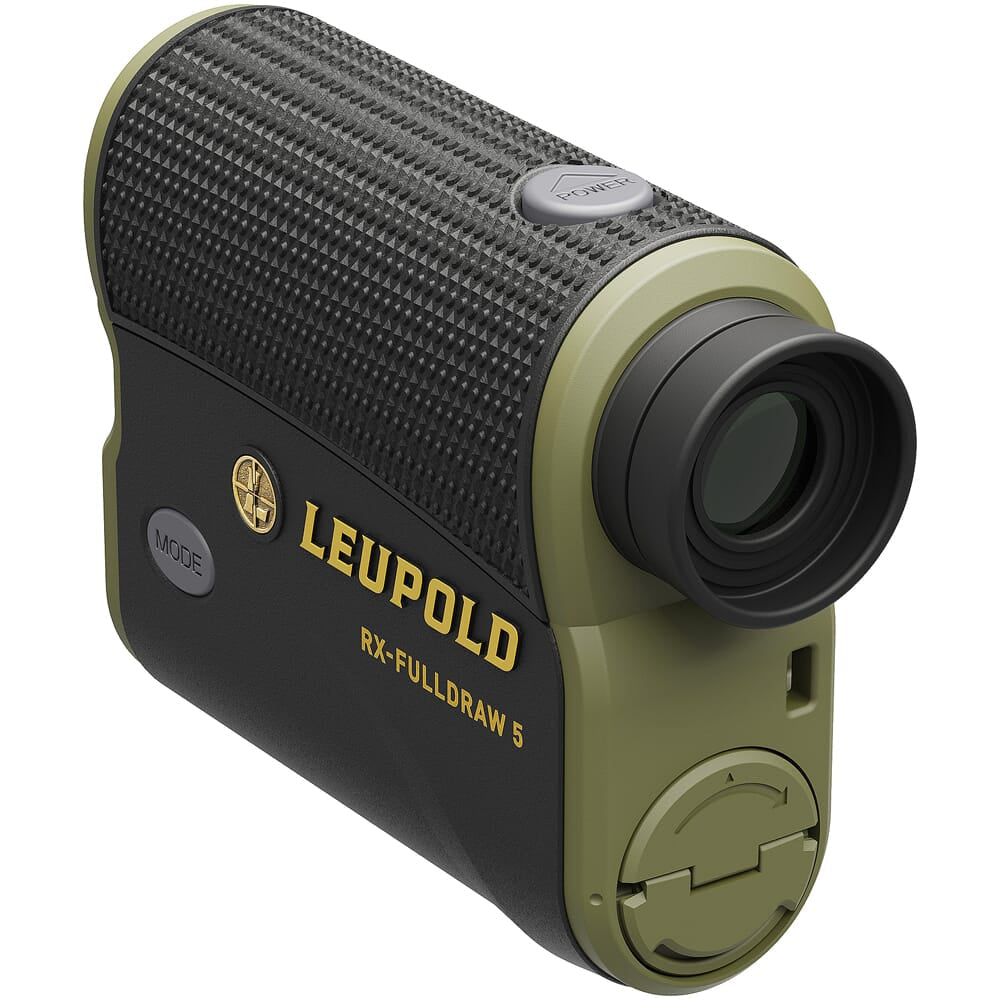

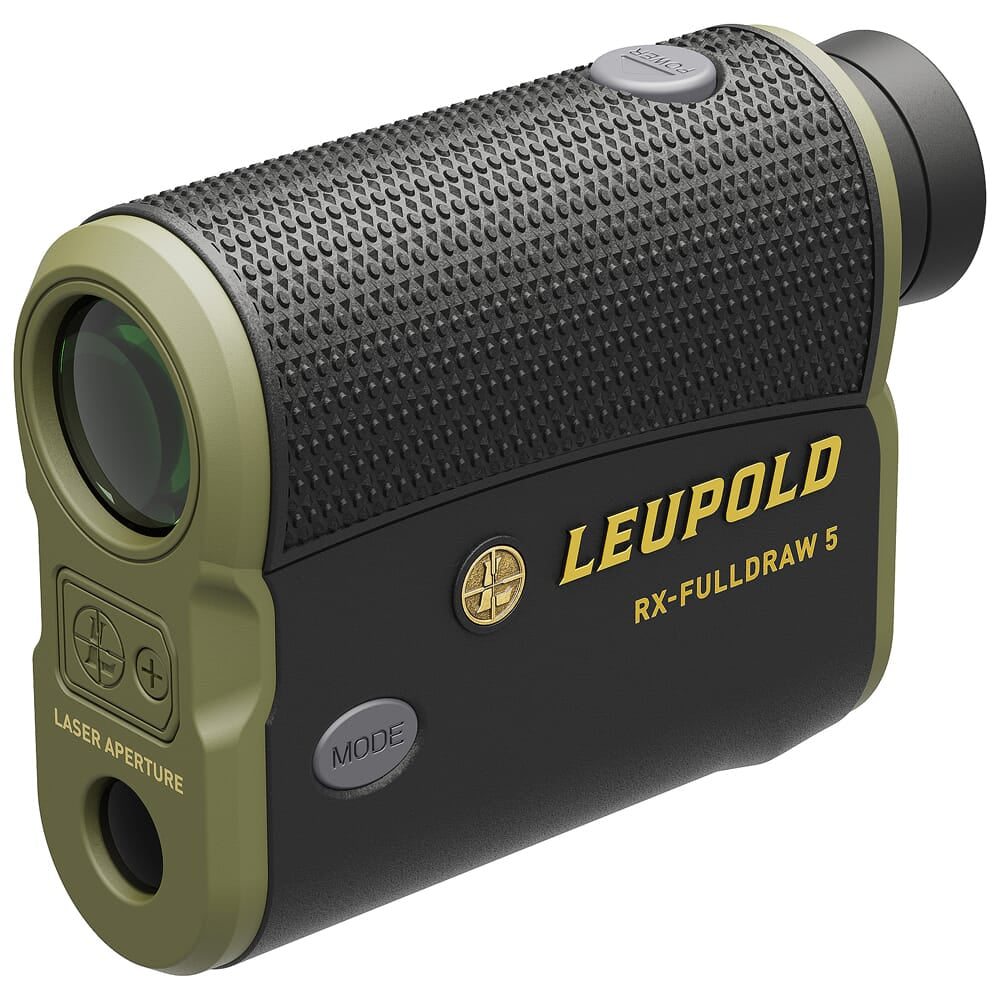

Leupold FX-FullDraw 5 Laser Rangefinder OLED 182444 is engineered for serious bowhunters and competitive archers. This compact device delivers accurate range measurements tailored to your bow’s specifics, like velocity, peep height, arrow weight, and shot angles. With Archer's Advantage software and Flightpath Technology, it provides essential information for making precise shots in various hunting situations.
The rangefinder features a bright red OLED display for visibility in all lighting conditions and offers 6x magnification for clear target acquisition. Its rapid-fire laser engine ensures quick readings from 6 to 900 yards on deer-sized targets. Additionally, the Last Target mode allows it to perform reliably in rain, fog, and snow, making it ideal for challenging weather conditions.
Ideal For: Bowhunters seeking precision in varying terrains and weather, competitive archers needing accurate distance calculations, and outdoor enthusiasts requiring high-performance rangefinding tools.
Features – Key Benefits Bullets
- ADVANCED BALLISTICS: Incorporates Archer's Advantage software for precise ranges based on your bow setup and accepts velocity inputs as low as 170 fps.
- FLIGHTPATH TECHNOLOGY: Two modes to view arrow obstructions up to 85 yards, ensuring clear shooting lanes.
- WEATHER RESISTANT: Last Target mode penetrates rain, fog, and snow for reliable readings in adverse conditions.
- CUSTOMIZABLE DISPLAY: Bright red OLED display with adjustable brightness for optimal visibility in any lighting situation.
- ANGLE COMPENSATION: True Ballistic Range (TBR) technology adjusts for shot angles, crucial for elevated stands or mountain hunting.
- RAPID RANGING: Fast laser engine provides quick target acquisition and distance readouts for time-sensitive situations.
- DURABLE CONSTRUCTION: Compact aluminum housing with rubber armor ensures waterproof performance and rugged reliability in the field.
- VERSATILE RANGE: Ranges deer-sized targets from 6 to 900 yards, with maximum reflective ranging up to 1200 yards.
Technical Specifications Table
| Specification | Value |
|---|---|
| Weight | 7.5 ounces |
| Dimensions | 3.8" x 1.4" x 3" (LxWxH) |
| Magnification | 6x |
| Max Range (Deer) | 900 yards |
| Max Range (Tree) | 1100 yards |
| Max Range (Reflective) | 1200 yards |
| Field of View | 315 feet @ 1000 yards (linear), 6° (angular) |
| Laser Class | 1M |
| Angle Compensation | TBR - Archery |
| Battery Type | CR2 |
What's in the Box?
- Leupold FX-FullDraw 5 Laser Rangefinder
- Carrying case
- CR2 battery
- User manual
Customer Reviews
“This rangefinder is a game changer for my bowhunting. The accuracy is spot on, and the display is easy to read.”
“I love how lightweight it is! It fits perfectly in my pocket during long hikes.”
“The weather resistance really came through on a foggy day. Highly recommend it!”
FAQ
How accurate is the Leupold FX-FullDraw 5? The rangefinder utilizes advanced ballistics technology to provide highly accurate readings based on your specific equipment settings. This precision ensures that you can rely on it even in varying environments.
Can I use this rangefinder in wet conditions? Yes, the FX-FullDraw 5 is designed to be weather resistant, allowing it to function effectively in rain, fog, and snow. Its Last Target mode helps in challenging weather scenarios.
How does this compare to other brands? When compared to competitors like Bushnell or Nikon, the FX-FullDraw stands out due to its specialized features for archers, such as angle compensation and customizable settings tailored to bowh
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
