Description

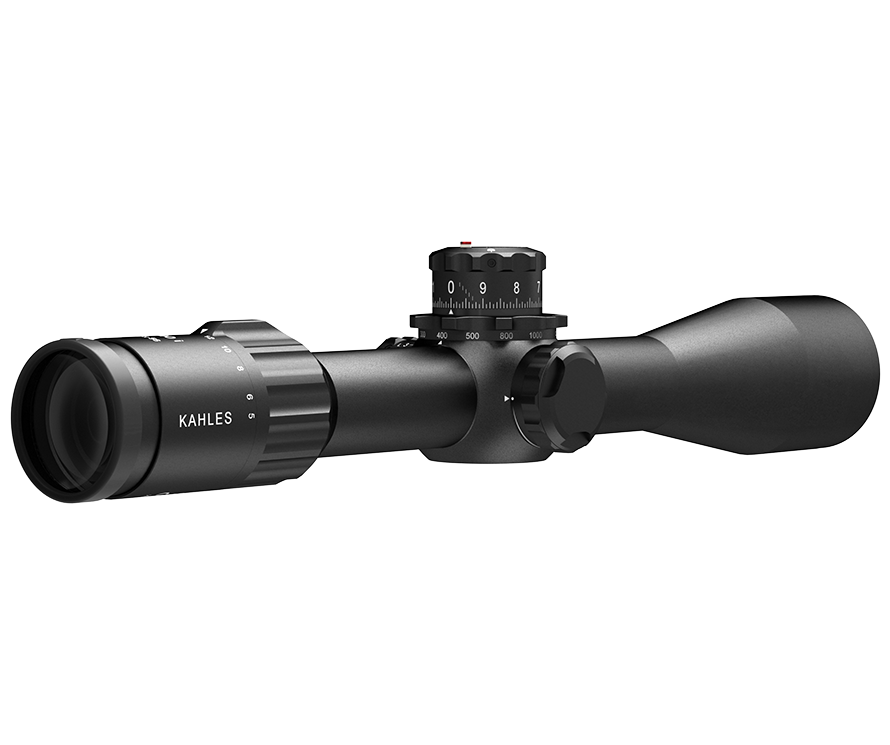

Kahles K540i 5-40x56 DLR CCW SKMR4+ Riflescope offers advanced optical technology designed for precise long-range shooting. Featuring a first focal plane (FFP) reticle, this scope allows for accurate holdovers at any magnification level. The 40% wider field of view compared to previous models ensures you can spot targets more effectively. With an exit pupil range of 1.4mm to 7.7mm, it provides a comfortable viewing experience even in varying light conditions. This riflescope is engineered for reliability and performance, making it a strong choice for competitive shooting and tactical applications.
Equipped with an illuminated reticle, this riflescope enhances visibility in low-light scenarios, ensuring you never miss a shot when conditions become challenging. The patented parallax adjustment integrated into the elevation turret allows for precision shooting from 20 meters to infinity. With 160 clicks per rotation, adjustments are both precise and user-friendly. Weighing just 39.1 ounces, the K540i is lightweight yet durable, designed to withstand the demands of rigorous shooting environments.
Features – Key Benefits Bullets
- WIDER FIELD OF VIEW for enhanced situational awareness at long distances.
- COMFORTABLE EYEBOX allows for easy target acquisition at high magnification levels.
- PATENTED PARALLAX ADJUSTMENT ensures accuracy from 20m to infinity.
- ILLUMINATED RETICLE provides clarity in low-light environments.
- 160 CLICKS PER ROTATION guarantees precise adjustments every time.

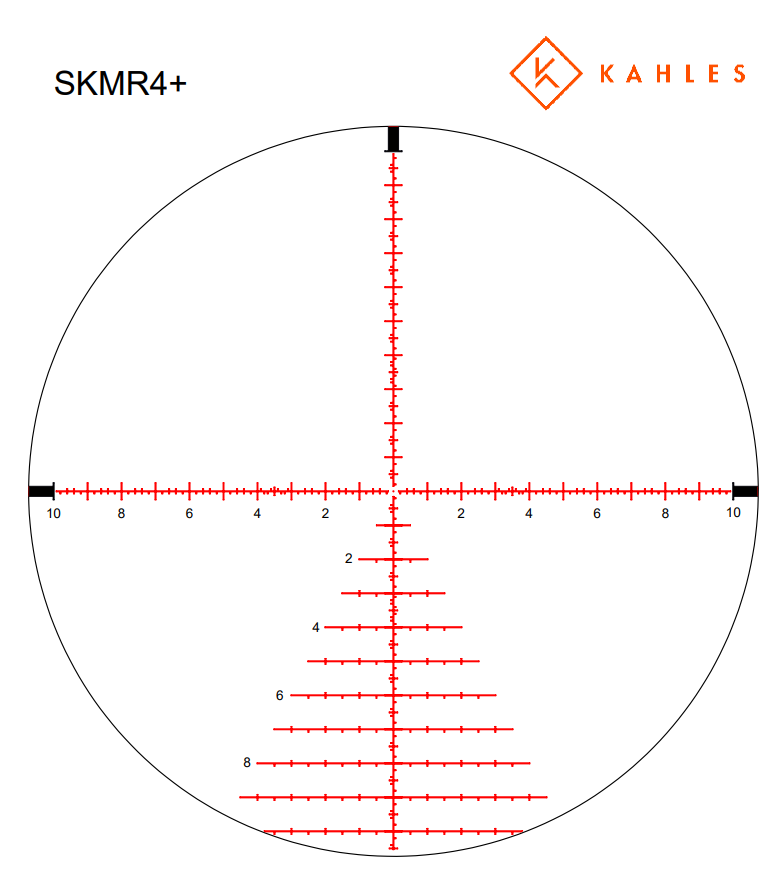

- FIRST FOCAL PLANE RETICLE maintains accuracy at any magnification level.
- LIGHTWEIGHT DESIGN at just 39.1 ounces for easy handling.
- COUNTER-CLOCKWISE WINDAGE adjustment for user-friendly operation.
Technical Specifications Table
| Specification | Details |
|---|---|
| SKU | 10721-Kahles |
| Magnification Range | 5x - 40x |
| Exit Pupil | 1.4mm - 7.7mm |
| Eye Relief | 3.62" |
| Field of View | 30.6 feet @ 100 yards (low), 3.9 feet @ 100 yards (high) |
| Parallax Adjustment | 20 meters to infinity |
| Weight | 39.1 ounces |
| Scope Length | 16.1" |
| Scope Objective Diameter | 56mm |
| Turret Adjustment (Click Value) | 0.1 MRAD Per Click |
What’s in the Box?
- Lens covers
- Padded case
- Neck strap
Customer Reviews
"This is the best long-range scope I've used. The clarity and adjustments are top-notch!"
"The K540i has made my shooting at distance so much easier. I highly recommend it!"
FAQ
Buyers often ask how the Kahles K540i compares with other long-range scopes. The K540i stands out for its impressive zoom range and optical clarity. Many users appreciate the illuminated reticle, which significantly improves performance in low-light conditions. The patented parallax adjustment also differentiates it, providing accuracy that is essential for competitive shooters.
Maintenance is simple for the K540i. Regularly check the scope for any loose fittings and clean the lenses with a soft cloth to ensure unobstructed views. Users frequently compare it with similar models and find that the features, including the enhanced field of view and user-friendly adjustments, offer significant advantages for serious shooters.
Similar Models
Looking for a perfect companion to your Kahles K540i? Explore our extensive lineup, including the Kahles K318i for a more compact option and the Kahles K624i for even greater magnification. Discover our full collection for exceptional optics tailored to your long-range adventures.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
