Description

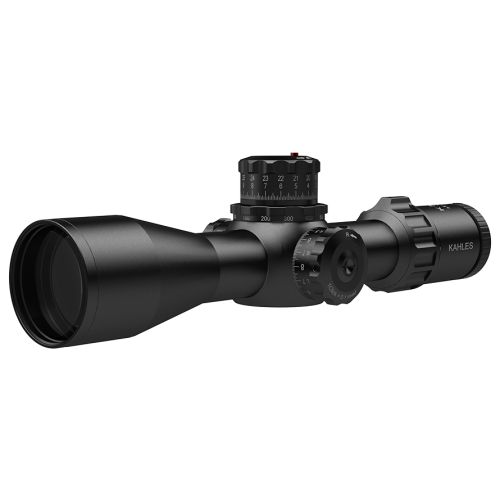

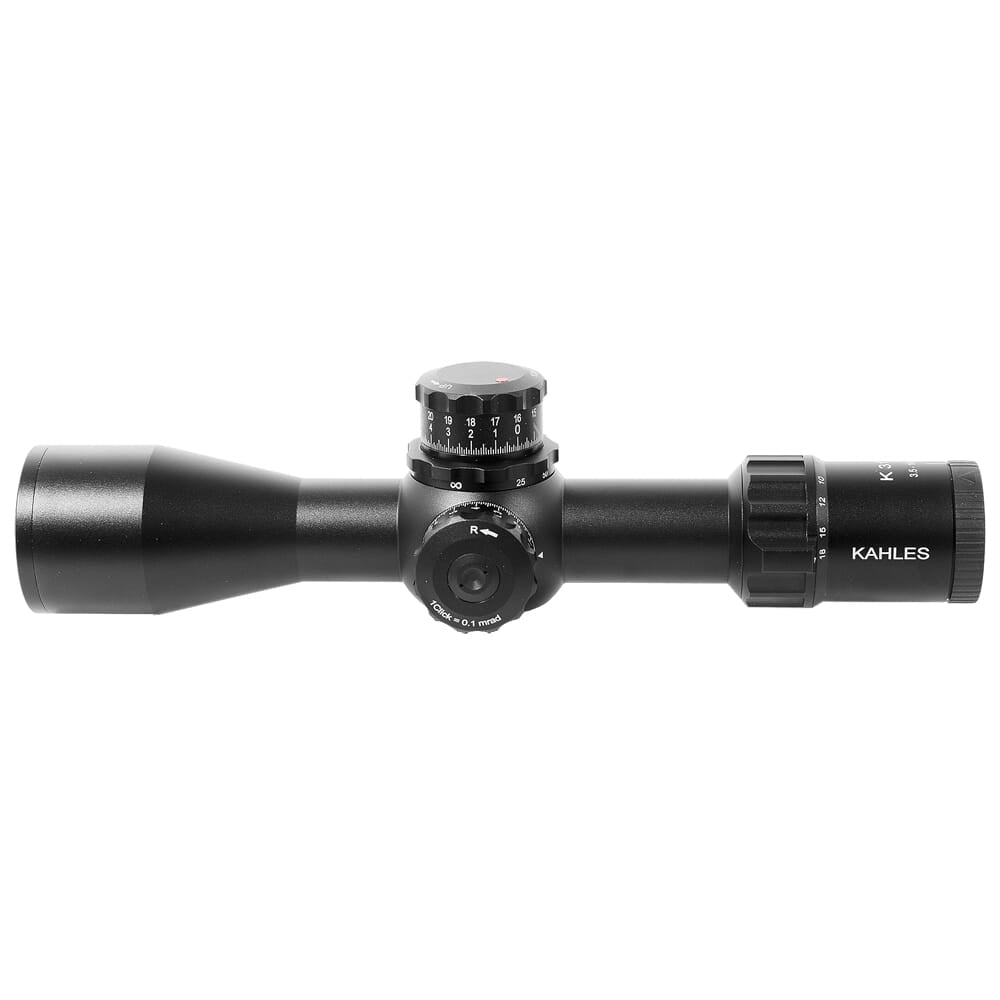

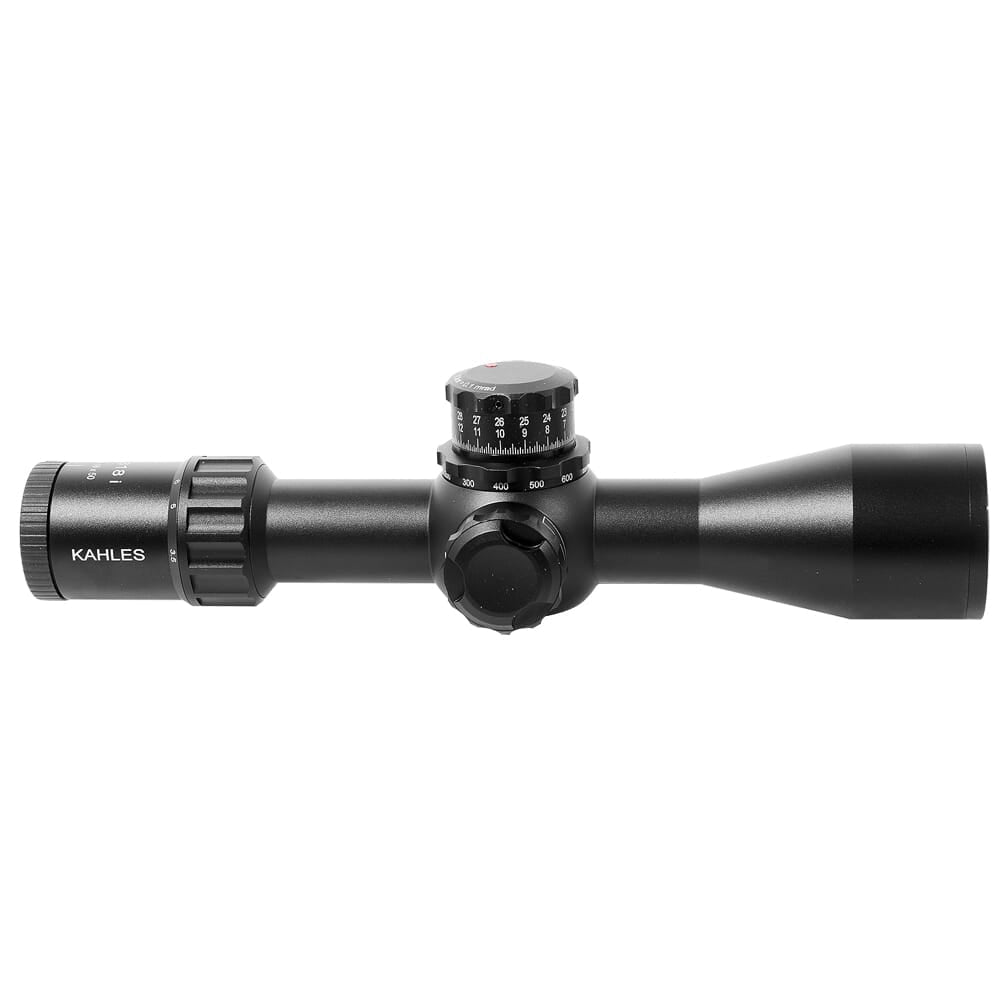

Kahles K318i Rifle Scope MSR Reticle 10653 is engineered for precision shooting with a versatile magnification range of 3.5-18x and a 50mm objective lens. The first focal plane illuminated MSR reticle adjusts size with magnification, ensuring accuracy at every distance. Built with a patented TWIST GUARD windage system, it prevents accidental adjustments while allowing for quick windage changes. The integrated parallax adjustment in the elevation turret offers a seamless shooting experience, making it suitable for both tactical and long-distance applications.
This riflescope features a robust 34mm main tube, enhancing durability and reliability in various shooting conditions. With its zero stop function, shooters can swiftly return to their zero setting, even in low-light scenarios. Designed for serious shooters, the Kahles K318i combines lightweight construction with high-performance optics, ensuring exceptional clarity and ease of use across diverse shooting environments.
Features – Key Benefits Bullets
- EXCEPTIONAL CLARITY: The 50mm objective lens and advanced optics deliver bright, clear images in low-light conditions.
- VERSATILE MAGNIFICATION: A 3.5-18x zoom range accommodates various shooting distances and scenarios effectively.

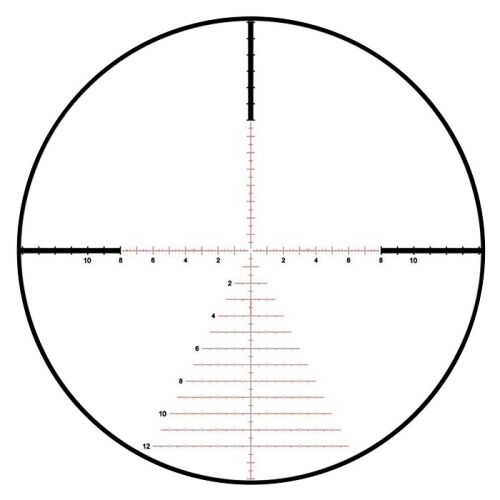

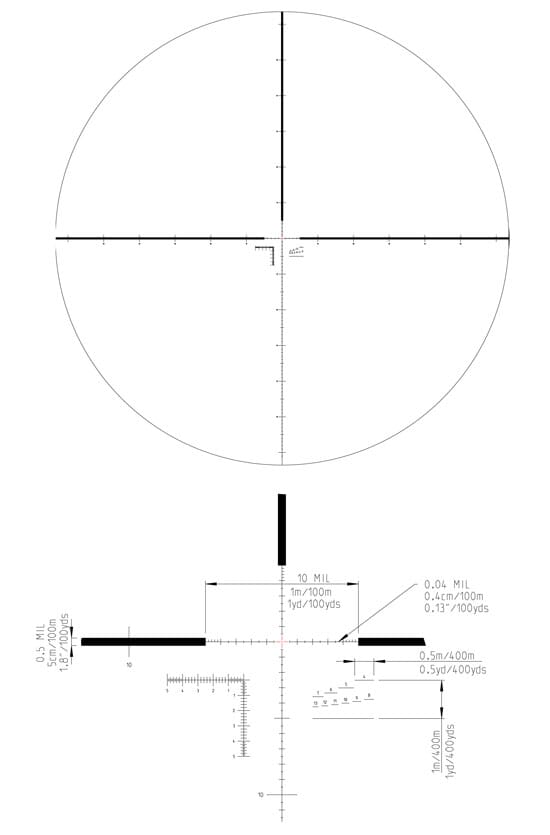

- PRECISE RETICLE: The first focal plane illuminated MSR reticle maintains accuracy at all magnification levels.
- INNOVATIVE WINDAGE SYSTEM: The TWIST GUARD windage system prevents unintentional adjustments for hassle-free shooting.
- ERGONOMIC DESIGN: Integrated parallax adjustment in the elevation turret enhances shooting comfort and precision.
- ZERO STOP FUNCTION: Quickly return to a zero setting enhances confidence and shooting accuracy.
- DURABLE CONSTRUCTION: Built with high-quality materials to withstand harsh environments and ensure long-lasting performance.
- LIGHTWEIGHT AND COMPACT: Its robust features come in a lightweight design for easy handling and mounting on various firearms.
Technical Specifications
| Feature | Specification |
|---|---|
| Magnification | 3.5 - 18x |
| Objective Lens Diameter | 50 mm |
| Exit Pupil | 6.9 - 2.8 mm |
| Eye Relief | 92 mm |
| Field of View | 9.3 - 2.0 m/100 m |
| Diopter Compensation | +2.5 / -3.5 dpt |
| Twilight Factor (DIN 58388) | 13.2 - 30.0 |
| Impact Correction per Click | 0.1 MRAD / ¼ MOA |
| Adjustment Range (E/W) | 3.0 / 1.5 m/100 m |
| Parallax Adjustment | 25 m to ∞ |
| Tube Diameter | 34 mm |
| Length | 313 mm |
| Weight | 940 g |
| Focal Plane | 1st |
| Illuminated | Yes |
| Warranty | 10 years |
What's in the Box?
- Rifle Scope
- Lens Covers
- Padded Case
- User Manual
Customer Reviews
"This scope is top-notch for long-distance shooting. The clarity is impressive, even at dusk!"
"The TWIST GUARD system works perfectly. I never worry about accidental adjustments now."
"Lightweight and compact, yet it performs like a much heavier scope. Highly recommend!"
FAQ
How does the zero stop function work?
The zero stop function allows you to easily return to your preset zero position after making adjustments. This is particularly useful in dynamic shooting situations where quick return to zero is essential.
Is the Kahles K318i suitable for low-light conditions?
Yes, the 50mm objective lens and high-quality optical coatings provide excellent light transmission, making it ideal for low-light conditions such as dawn or dusk.
How does this scope compare to others in its class?
The Kahles K318i features advanced optics and durable construction that competes well with other premium brands. Its ergonomic design and user-friendly features distinguish it in the tactical shooting market.
Similar Models
Looking for more options? Explore our extensive Kahles lineup, including models like Kahles K624i for higher magnification and Kahles K16i for a compact solution. Discover our full collection for exceptional optics tailored to your shooting needs.Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
