Description

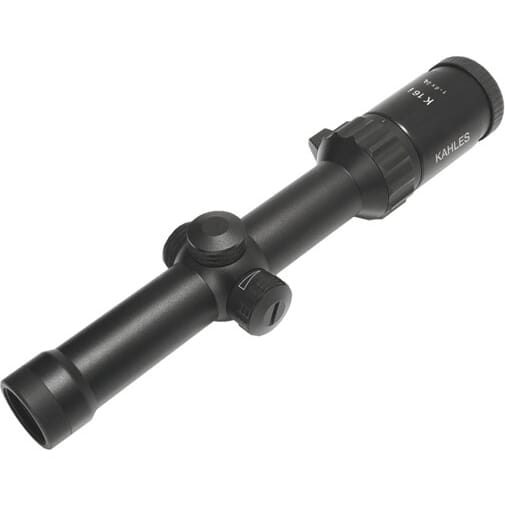

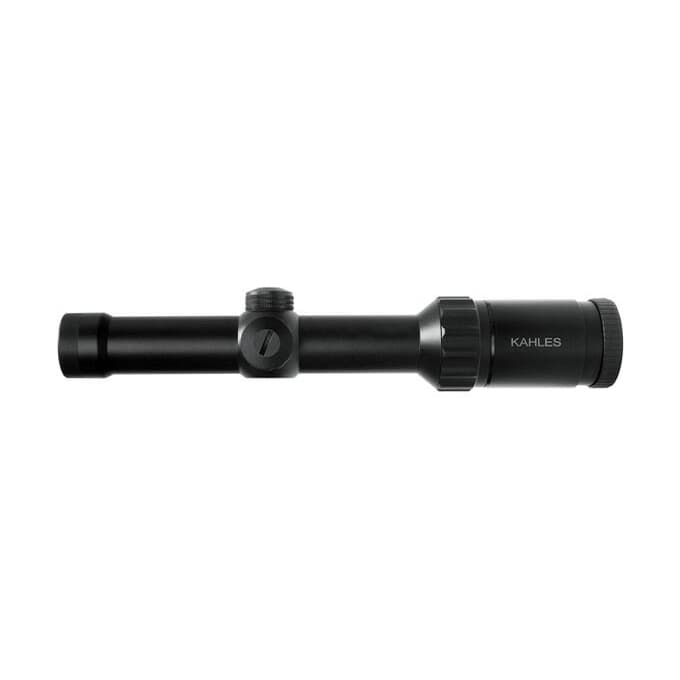

Kahles K 1-6x24 Illuminated SM1 Riflescope features a versatile magnification range of 1-6x, making it suitable for both close and long-range shooting. Its First Focal Plane (FFP) reticle allows for precise holdovers at any magnification, enhancing accuracy during dynamic shooting scenarios. The true daytime illumination offers a bright, clear sight picture in various lighting conditions, ensuring you're ready for any situation. Weighing just 16.9 oz, this riflescope is designed for all-day use, providing comfort without compromising performance.
Built with durable materials, the Kahles K 1-6x24 is both waterproof and fog-proof, ensuring reliability in extreme weather conditions. The adjustable turrets allow for quick and precise windage and elevation adjustments, making it easy to adapt to changing shooting environments. With a generous eye relief of 3.74 inches, it accommodates a range of shooting positions, enhancing user experience and comfort while maintaining a clear image. This riflescope is a reliable choice for hunting enthusiasts and competitive shooters alike.
Features – Key Benefits Bullets
- LARGEST FIELD OF VIEW for superior situational awareness.
- TRUE DAYTIME ILLUMINATION ensures clarity even in bright sunlight.
- INTEGRATED MAGNIFICATION THROW LEVER allows for seamless zoom adjustments.
- FIRST FOCAL PLANE RETICLE maintains accurate reticle size across all magnifications.
- WATERPROOF AND FOG-PROOF construction provides reliability in all weather.
- HIGH-QUALITY GLASS delivers clear images with enhanced light transmission.
- ADJUSTABLE TURRETS for precise windage and elevation corrections.
- LIGHTWEIGHT DESIGN at only 16.9 oz, ideal for all-day use.
Technical Specifications Table
| Specification | Details |
|---|---|
| Magnification Range | 1-6x |
| Lens Diameter | 24mm |
| Eye Relief | 3.74" |
| Field of View | 138.8 - 26.2' (ft./100 yd.) |
| Weight | 16.9 oz. |
| Length | 10.5" |
| Tube Size | 30 mm |
| Twilight Factor | 3.1 - 12 |
What’s in the Box?
- Lens covers
- Padded case
- Neck strap
Customer Reviews
"The clarity of this scope is unmatched. Perfect for my long-range shooting!"
"I love the illuminated reticle. It makes a huge difference in low light conditions."
"Lightweight and durable, this is my go-to scope for all my hunts!"
FAQ
How does the Kahles K 1-6x24 compare to other scopes? This scope stands out for its optical clarity and the versatility of its illuminated reticle, which enhances quick target acquisition. Its FFP design allows for accurate holdovers at any magnification, a feature not found in many competing models.
What maintenance is required? Regular lens cleaning with a microfiber cloth is essential to maintain clarity. Store the scope in the padded case to protect it from damage. Avoid exposing it to extreme temperatures when not in use for optimal performance.
Similar Models
Looking to expand your optics collection? Check out the Kahles K 3-12x50 for greater magnification options or the Kahles K 5-25x56 for unmatched performance in long-range scenarios. Explore our full collection for exceptional optics tailored to your adventures.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
