Description

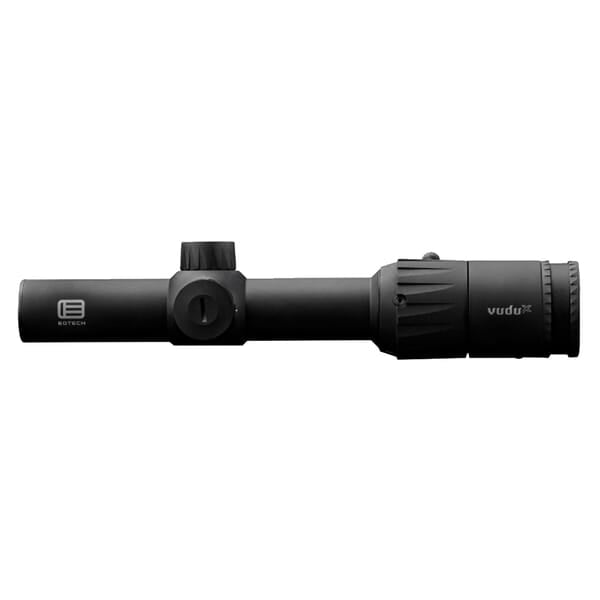

EOTech VuduX 1-6x24mm SFP Red DP1 Riflescope offers a versatile design suitable for short and medium-range shooting. This second focal plane (SFP) reticle maintains a constant size across all magnification levels, providing reliable aiming points. The illuminated red DP1 reticle features ten brightness settings, adaptable for changing light conditions and powered by a single CR2032 battery.
Constructed from durable aircraft-grade aluminum, this riflescope is built to endure harsh environments. It is water-resistant, fog-resistant, and shock-resistant, ensuring reliable performance in the field. With a 24mm objective lens and high-density, low-dispersion glass, the VuduX delivers exceptional clarity and sharpness for accurate target acquisition. Precision turrets allow for quick adjustments, while the removable throw lever facilitates fast magnification changes, making it ideal for tactical shooting and competitive scenarios.
Features – Key Benefits Bullets
- ILLUMINATED RETICLE: Red DP1 reticle with ten brightness levels for optimal visibility in various lighting conditions.
- DURABLE CONSTRUCTION: Made from aircraft-grade aluminum, ensuring water, fog, and shock resistance.
- PRECISE ADJUSTMENTS: Precision turrets with laser-etched indicators for accurate windage and elevation adjustments.
- HIGH-QUALITY GLASS: High-density, low-dispersion glass with anti-reflective coatings for superior clarity and light transmission.
- REMOVABLE THROW LEVER: Allows for quick and easy magnification changes.
- GENEROUS EYE RELIEF: Provides comfortable and safe viewing at all magnifications.
- WIDE FIELD OF VIEW: Enables rapid target acquisition and situational awareness.
- POWER SOURCE: Operates on a single CR2032 battery, ensuring long-lasting performance.
Technical Specifications
| Specification | Details |
|---|---|
| Magnification | 1-6x |
| Objective Lens Diameter | 24 mm |

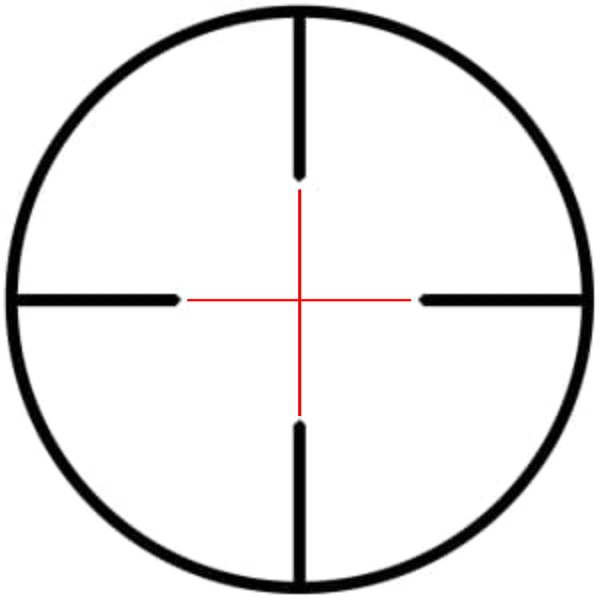

| Reticle Type | DP1 (Second Focal Plane) |
| Illumination | Red, 10 brightness levels |
| Power Source | CR2032 battery |
| Eye Relief | 1X: 3.3-3.9" (84-99 mm), 6X: 3.3-3.9" (84-99 mm) |
| Field of View @ 100 Yds | 1X: 110 ft (33.5 m), 6X: 19 ft (5.8 m) |
| Tube Diameter | 30 mm |
| Overall Length | 10.3" (261 mm) |
| Weight | 17.8 oz (505 g) |
| Adjustment per Click | 0.5 MOA |
| Total Elevation Travel | 160 MOA |
| Total Windage Travel | 160 MOA |
| Finish | Matte |
| Construction Material | Aircraft-grade aluminum |
| Water Resistance | Yes |
| Fog Resistance | Yes |
| Shock Resistance | Yes |
What's in the Box?
- VuduX 1-6x24mm SFP Riflescope
- Operator Manual
- Reticle Manual
- Throw Lever
- Flip-Up Protective Lens Caps
- Lens Cleaning Cloth
- Battery
Customer Reviews
"This scope performs exceptionally well in low light. The clarity is impressive!"
"The adjustments are precise, and I love the throw lever for quick changes during matches."
"Solid construction. I've used it in tough conditions, and it holds up well."
FAQ
Many buyers often wonder about the performance of the EOTech VuduX in low-light conditions. Its illuminated reticle with ten brightness levels enhances visibility even in dim environments, making it a solid choice for hunting at dawn or dusk.
Maintenance is another common concern. This riflescope features a durable, fog-resistant design, which minimizes the need for extensive upkeep. Regular cleaning of the lenses with the provided cloth should suffice for maintaining clarity.
When comparing the VuduX to other models, shooters often ask how it stands up against brands like Nightforce or Trijicon. The VuduX offers competitive features such as a wide field of view and precision adjustments, making it suitable for both tactical and competitive shooting scenarios.
Similar Models
Looking for more options? Explore our complete EOTech collection, which includes models tailored for various shooting needs. Check out the EOTech Vudu 1-8x28mm for extended range capabilities or the EOTech VuduX 2-10x28mm for even greater versatility. Discover the full lineup for top-quality optics that enhance your shooting experience.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
