Description

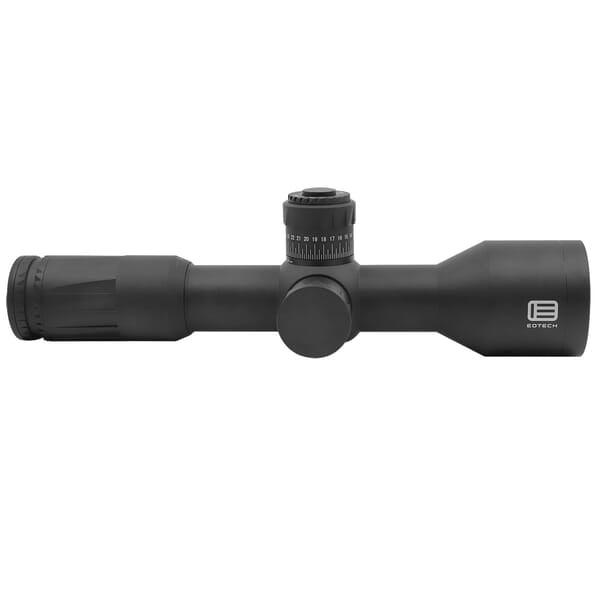

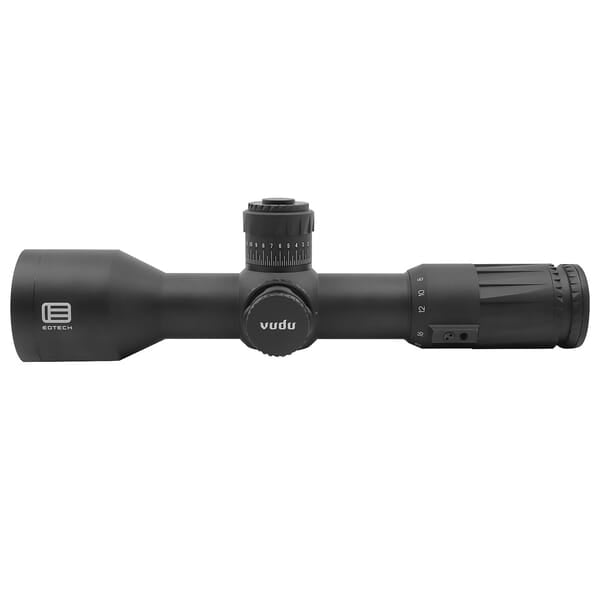

EOTech Vudu 5-25x50mm FFP MD4 Riflescope delivers precision for long-range shooting with its versatile 5-25x magnification. Its compact design, measuring just 11.2 inches, is ideal for short platform rifles, while the aircraft-grade aluminum construction ensures durability. Equipped with an MD4 reticle, this riflescope allows for accurate holdovers and windage adjustments, making it suitable for both competitive and tactical applications. With exceptional light transmission provided by XC™ high-density, low dispersion glass, this optic performs well in various lighting conditions.
The 34mm tube diameter allows for extensive elevation adjustments, and the push/pull locking elevation turret combined with the EZ Chek Zero Stop feature enables quick, precise adjustments. Nitrogen-purged to eliminate fogging and O-ring sealed for water resistance, this riflescope maintains reliability in diverse environments. Whether you're engaged in tactical operations or precision shooting, the EOTech Vudu 5-25x50mm FFP MD4 Riflescope offers unmatched performance and functionality.
Features – Key Benefits Bullets
- COMPACT DESIGN: At 11.2 inches, ideal for short platform rifles without sacrificing performance.
- DURABLE CONSTRUCTION: Aircraft-grade aluminum ensures resilience against tough conditions.
- PRECISE ADJUSTMENTS: Push/pull locking elevation turret and EZ Chek Zero Stop for fast, accurate adjustments.
- HIGH-QUALITY GLASS: XC™ high-density, low dispersion glass with anti-reflective coatings for superior light transmission.
- FOG RESISTANT: Nitrogen-purged to prevent internal fogging across a wide temperature range.
- WATER RESISTANT: O-ring sealed to keep moisture and dust out, ensuring reliable performance.
- VERSATILE MAGNIFICATION: 5-25x magnification range allows for both mid-range and long-range shooting.

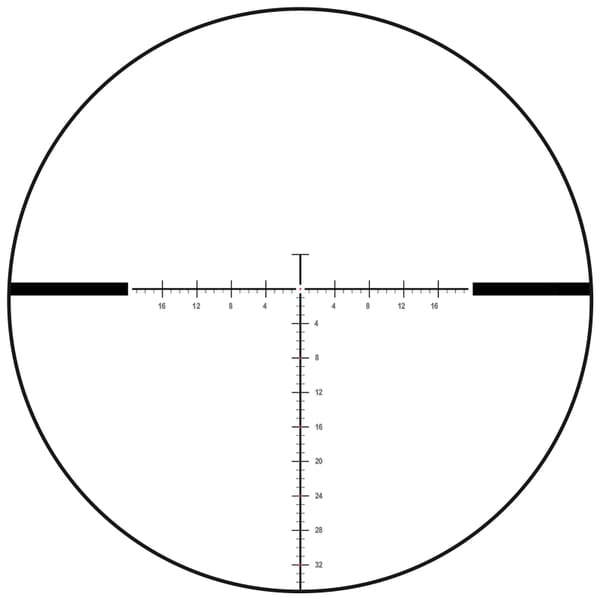

- RETICLE: MD4 reticle provides precise holdovers and windage adjustments for enhanced accuracy.
Technical Specifications
| Specification | Details |
|---|---|
| Model | VDU5-25FFMD4 |
| Magnification | 5-25x |
| Objective Diameter | 50 mm |
| Tube Diameter | 34 mm |
| Overall Length | 11.2 inches (285 mm) |
| Weight | 29.5 oz (835 g) |
| Eye Relief | 5X: 2.96-3.71" (75-94 mm) |
| Eye Relief | 25X: 3.27-3.63" (83-92 mm) |
| Field of View @ 100 yds | 5X: 23.3 ft (7.1 m) |
| Field of View @ 100 yds | 25X: 4.7 ft (1.43 m) |
| Power Source | CR2032 |
| Reticle | MD4 |
| Elevation Adjustment | 34.7 mils |
| Windage Adjustment | 34.7 mils |
| Finish | Anodized |
| Water Resistance | Yes |
| Fog Resistance | Yes |
What's in the Box?
- Vudu® 5-25X50 Rifle Scope
- Operator Manual
- Reticle Manual
- Throw Lever
- Sunshade
- Lens Cleaning Cloth
- Battery
- Zero Stop Wrench
Customer Reviews
“This scope performs exceptionally well at all distances, even in low light.”
“Very durable and easy to adjust, perfect for my competitive shooting needs.”
“I love the clarity and ease of use, it has improved my accuracy significantly.”
FAQ
What is the effective range of the EOTech Vudu 5-25x50mm FFP MD4 Riflescope? This riflescope is designed for precision shooting, making it suitable for engagements beyond 1,000 yards. Its versatile magnification allows for quick target acquisition and fine adjustments for long-range accuracy.
How do I maintain the EOTech Vudu 5-25x50mm FFP MD4? Regular cleaning of the lenses with the provided cloth will enhance visibility. Ensure the scope is stored in a dry, protected environment to maintain its waterproof and fog-resistant features. Avoid exposing it to extreme temperatures for prolonged periods.
How does this scope compare to other tactical optics? The EOTech Vudu offers a unique combination of compact design and high-quality optics that stand out among competitors. Its lightweight construction and advanced glass technology provide an edge for tactical and competitive shooters alike.
Similar Models
Looking for other high-performance optics? Explore our EOTech collection, including the EOTech Vudu 1-6x24 for versatile close-range shooting and the EOTech Vudu 3-18x50 for extreme long-range precision. Discover the full lineup to find the perfect scope for your shooting needs.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
