Description

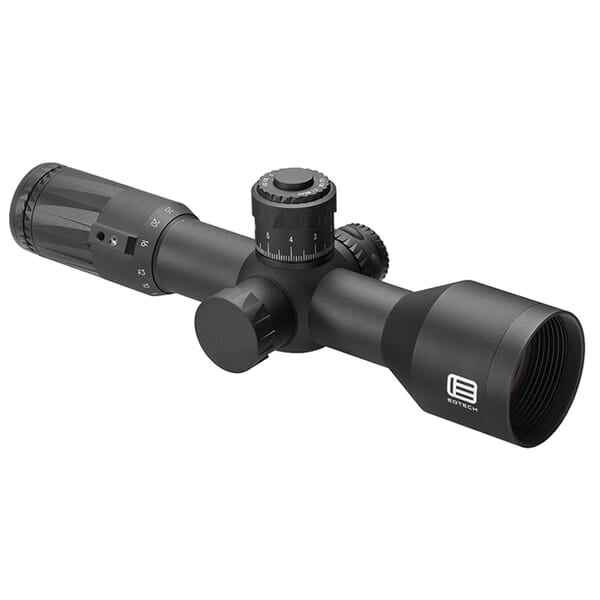

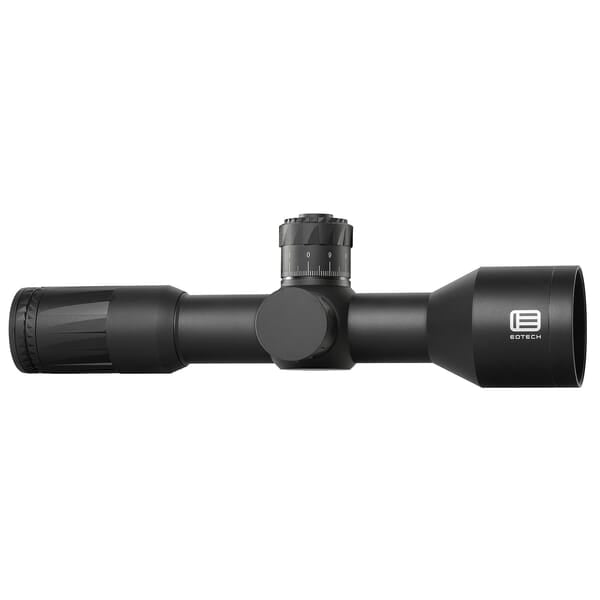

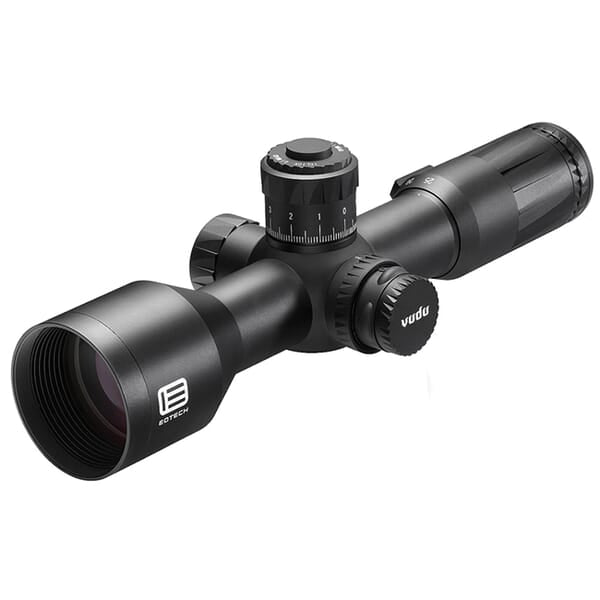

EOTech Vudu 5-25x50 FFP H59 Riflescope VDU5-25FFH59 delivers precision shooting in a compact form. This riflescope features a first focal plane design that allows the reticle to remain proportional at all magnification levels, simplifying range estimation and holdover calculations. Its advanced optical system, equipped with XC™ high-density, low dispersion glass, ensures excellent clarity and light transmission, making it effective even in low-light scenarios. Built to withstand the rigors of tactical use, this scope is crafted from aircraft-grade aluminum, ensuring durability and long-lasting performance.
With a total magnification range of 5-25x, users can easily switch between short-range engagements and long-distance shots. The EOTECH EZ Chek Zero Stop turret system allows for precise adjustments, enabling quick returns to zero after elevation changes. This scope is also fog-proof, waterproof, and shock-resistant, ensuring reliable operation under various environmental conditions. Additionally, compatibility with clip-on night vision devices enhances its versatility for tactical applications.
Features – Key Benefits Bullets
- AIRCRAFT-GRADE CONSTRUCTION: Built with aircraft-grade aluminum for extreme durability, ensuring reliability in demanding environments.
- ADVANCED OPTICAL SYSTEM: XC™ high-density, low dispersion glass with anti-reflective coatings delivers superior light transmission and edge-to-edge clarity.

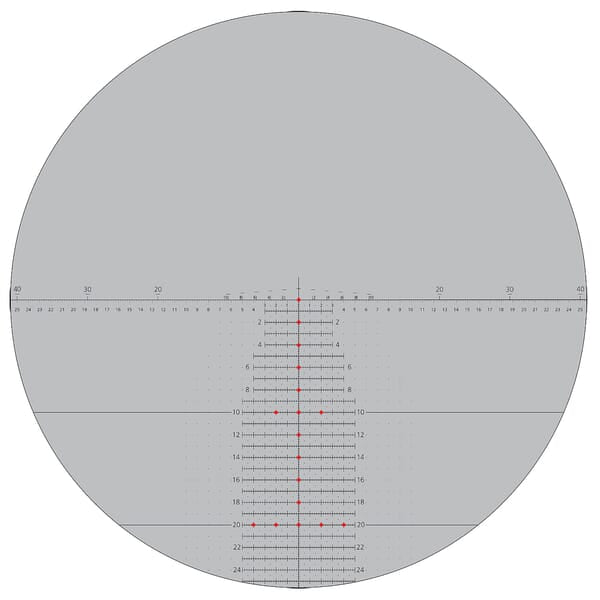

- FIRST FOCAL PLANE RETICLE: The Horus H59 reticle maintains its size relative to the target across all magnification levels, simplifying rangefinding.
- COMPACT DESIGN: Measures just 11.2 inches, making it ideal for short platform rifles while enhancing weapon handling.
- ENVIRONMENTAL RESISTANCE: Nitrogen-purged and O-ring sealed for waterproof, fog-proof, and shockproof performance in harsh conditions.
- PRECISION ADJUSTMENTS: Features a push/pull locking turret and EOTECH's EZ Chek Zero Stop for quick, accurate adjustments.
- VERSATILE MAGNIFICATION: 5-25x magnification range accommodates both close-quarter and long-range shooting needs.
- NIGHT VISION COMPATIBILITY: Accommodates clip-on night vision or thermal devices for enhanced low-light capabilities.
Technical Specifications
| Specification | Details |
|---|---|
| Magnification | 5-25x |
| Objective Lens Diameter | 50 mm |
| Tube Diameter | 34 mm |
| Overall Length | 11.2 inches (285 mm) |
| Weight | 29.5 oz (835 g) |
| Eye Relief | 5x: 2.96-3.71 inches (75-94 mm), 25x: 3.27-3.63 inches (83-92 mm) |
| Field of View at 100 yards | 5x: 23.3 ft (7.1 m), 25x: 4.7 ft (1.43 m) |
| Adjustment Per Click | 0.1 MRAD |
| Total Elevation Travel | 29 MRAD |
| Total Windage Travel | 23 MRAD |
| Parallax Adjustment | Side focus, 50 yards to infinity |
| Illumination | Yes, with multiple brightness settings |
| Reticle | Horus H59 (First Focal Plane) |
| Battery Type | CR2032 |
| Waterproof | Yes |
| Fog Proof | Yes |
What's in the Box?
Operator Manual, Reticle Manual, Throw Lever, Sunshade, Lens Cleaning Cloth, Battery, Zero Stop Wrench
Customer Reviews
“This scope exceeded my expectations in low light. The clarity is unmatched.”
“The quick adjustments are a game changer for tactical shooting.”
“Compact and durable, perfect for my short platform rifle.”
FAQ
How does the first focal plane reticle work? The reticle in a first focal plane scope changes size with magnification. This feature allows you to use the reticle for accurate range measurements and holdovers at any magnification level, making it especially useful for long-range shooting.
Is this scope suitable for low-light conditions? Yes, the EOTech Vudu 5-25x50 FFP H59 is designed with high-density, low dispersion glass and anti-reflective coatings, which enhance light transmission and improve clarity in low-light scenarios, making it ideal for dawn or dusk hunting.
Can I use this scope with night vision devices? This riflescope is compatible with clip-on night vision and thermal devices, providing versatility for use in varying lighting conditions. This feature is beneficial for tactical applications where night engagements may be necessary.
What maintenance does this scope require? Regular cleaning of the lenses with a soft cloth and the use of lens covers when not in use will help maintain optimal performance. Ensure the turret mechanisms are free of debris and operate smoothly for precise adjustments.
How does this scope compare to other high-end brands? The EOTech Vudu series offers competitive features such as advanced optical systems and durable construction at a comparable price point to other high-end brands. Its unique features like the EZ Chek Zero Stop turret system and versatile reticle design provide significant advantages for shooters.
Similar Models
Looking for more options? Explore our extensive EOTech collection, including models like the EOTech Vudu 1-6x24 for versatile close-range engagements and EOTech Vudu 3.5-18x50 for enhanced long-range capabilities. Discover the full lineup tailored to your shooting needs.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
