Description
EOTech Vudu 1-6x24mm FFP SR3 Riflescope features a first focal plane (FFP) reticle that maintains accuracy for holdovers across all magnifications. The green illuminated SR3 reticle is designed specifically for 5.56mm ballistics, allowing for quick target acquisition in low-light conditions. Constructed from lightweight aircraft-grade aluminum, this riflescope balances durability with portability, making it suitable for both competitive shooting and hunting scenarios.
With a magnification range of 1-6x, this scope is ideal for rapid target engagement at low power and precise shooting at higher magnifications. The XC high-density, low dispersion glass provides exceptional clarity and light transmission, while the anti-reflective coatings enhance visibility regardless of lighting. Built to withstand harsh conditions, the Vudu 1-6x24mm is waterproof, fog-resistant, and shock-resistant, ensuring reliable performance in any environment.
Features – Key Benefits Bullets
- FIRST FOCAL PLANE: Reticle size adjusts with magnification for accurate holdovers.
- DURABLE CONSTRUCTION: Aircraft-grade aluminum with anodized finish for extreme durability.

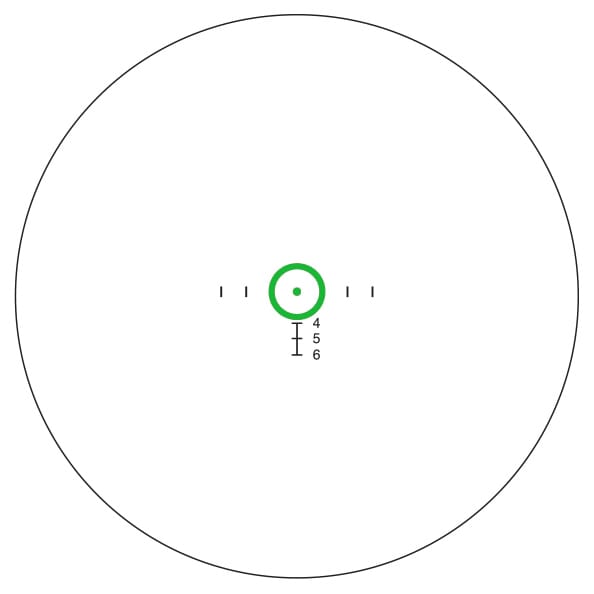

- ILLUMINATED RETICLE: Green illuminated SR3 reticle for enhanced visibility in low-light environments.
- HIGH-QUALITY GLASS: XC high-density, low dispersion glass ensures superior clarity and light transmission.
- WATER, FOG, AND SHOCK RESISTANT: Reliable performance in harsh weather conditions.
- EASY ADJUSTMENTS: Push-button illumination and laser-etched indicators for user-friendly operation.
- QUICK MAGNIFICATION: Throw lever allows fast changes between magnification settings.
- COMPACT DESIGN: Lightweight and compact, perfect for AR platforms and bolt-action rifles.
Technical Specifications
| Specification | Detail |
|---|---|
| Magnification | 1-6x |
| Objective Lens Diameter | 24mm |
| Focal Plane | First Focal Plane (FFP) |
| Reticle | SR3 Green Illuminated MOA |
| Tube Diameter | 30mm |
| Overall Length | 10.63 inches (270mm) |
| Weight | 20.1 oz (570g) |
| Eye Relief | 1x: 3.27-3.94 inches (83-100mm), 6x: 3.23-3.94 inches (82-100mm) |
| Field of View @ 100 Yards | 1x: 102.4 ft (31.2m), 6x: 16.7 ft (5.09m) |
| Exit Pupil | 1x: 11.4mm, 6x: 4.0mm |
| Exterior Finish | Flat Black, Type III anodized |
| Illumination Controls | Push Buttons |
| Windage & Elevation Adjustment | 0.5 MOA per click |
| Total Elevation Adjustment | ± 50 MOA |
| Total Windage Adjustment | ± 50 MOA |
| Battery Type | CR2032 |
| Battery Life | Approx. 500 hrs at middle brightness |
| Auto Power Shut-Off | Approx. 2 hrs |
What's in the Box?
- Vudu 1-6x24mm Riflescope
- Operator Manual
- Reticle Manual
- Throw Lever
- Lens Cleaning Cloth
- Battery
Customer Reviews
"The clarity of this scope is unmatched for the price. Perfect for my AR setup!"
"Fast target acquisition and great in low light. Highly recommend for competitive shooting."
"Lightweight and durable. It holds zero perfectly even after rough use."
FAQ
Many customers wonder about the performance of the EOTech Vudu 1-6x24mm under different conditions. This scope excels in low-light situations due to its illuminated reticle and high-quality glass, making it suitable for early morning or late evening hunts.
Maintenance is straightforward; simply use the included lens cleaning cloth to keep the optic free of dirt and smudges. For those comparing it to alternatives, the Vudu stands out with its combination of durability, lightweight design, and exceptional light transmission, making it a favorite among both hunters and competitive shooters.
Users also often inquire about the ease of adjustments. With push-button illumination and clear adjustment indicators, the EOTech Vudu ensures that making changes in the field is quick and intuitive, an essential feature for dynamic shooting scenarios.
Similar Models
Looking for the perfect riflescope? Explore our full collection of EOTech optics, including options like the EOTech Vudu 2-10x44mm for enhanced long-range capabilities and EOTech Vudu 3.5-18x50mm for precision at extended distances. Each model offers advanced features tailored for different shooting needs.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
