Description

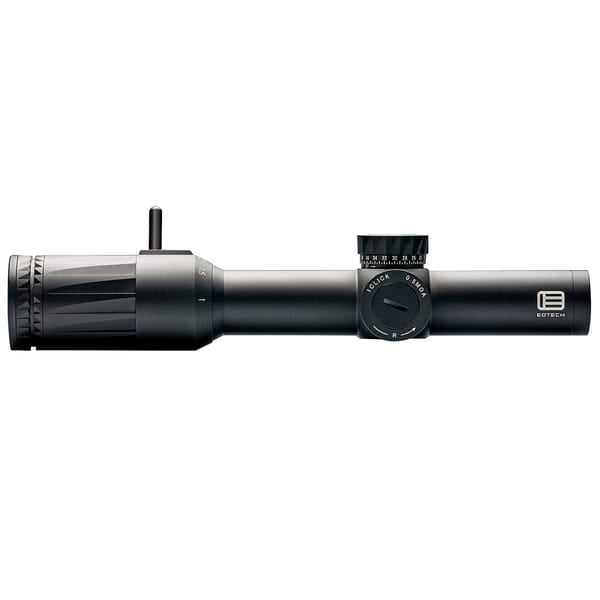

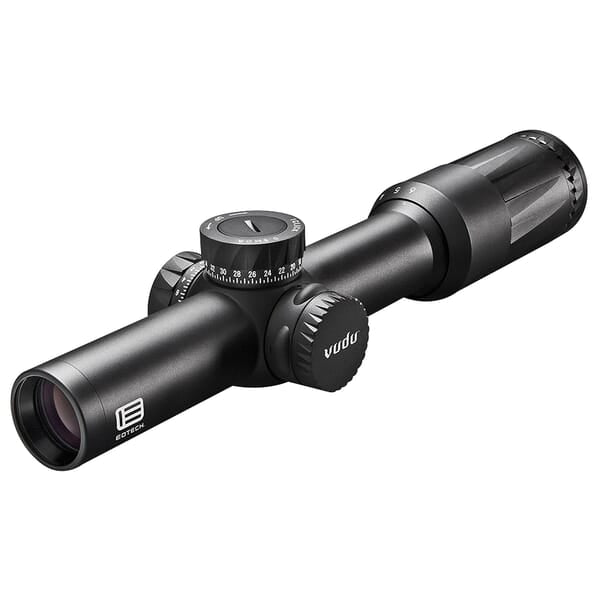

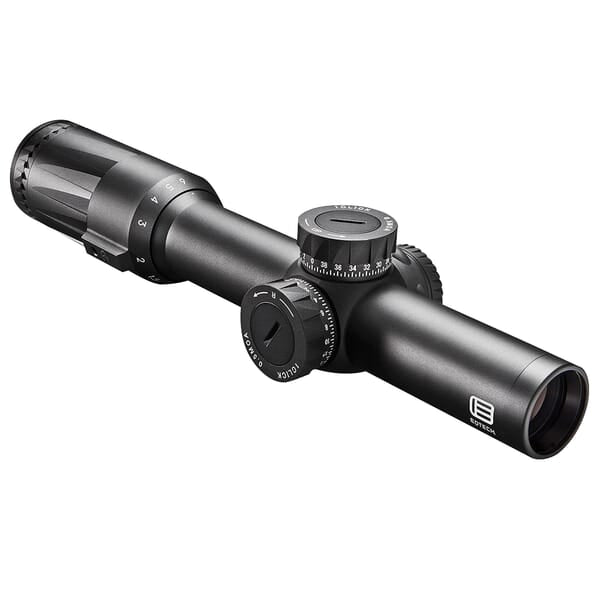

EOTech Vudu 1-6x24mm FFP SR2 Riflescope offers a versatile solution for both tactical and hunting applications. Featuring a first focal plane (FFP) reticle, this scope allows for accurate holdovers at any magnification level. The SR2 reticle is specifically designed for .308 Winchester cartridges, providing clear holdover points at 400, 500, and 600 yards, facilitating precision in both close-quarters and long-range scenarios.
Constructed from aircraft-grade aluminum, the Vudu scope ensures durability and longevity, even in demanding environments. The XC high-density glass, combined with anti-reflective coatings, delivers superior clarity and light transmission. Adjustments can be made with ease thanks to exposed windage and elevation turrets that provide tactile feedback, allowing for precise targeting in the field, whether you're in bright daylight or low-light conditions.
Features – Key Benefits Bullets
- FIRST FOCAL PLANE RETICLE: Accurate holdovers at any magnification level for consistent shooting.

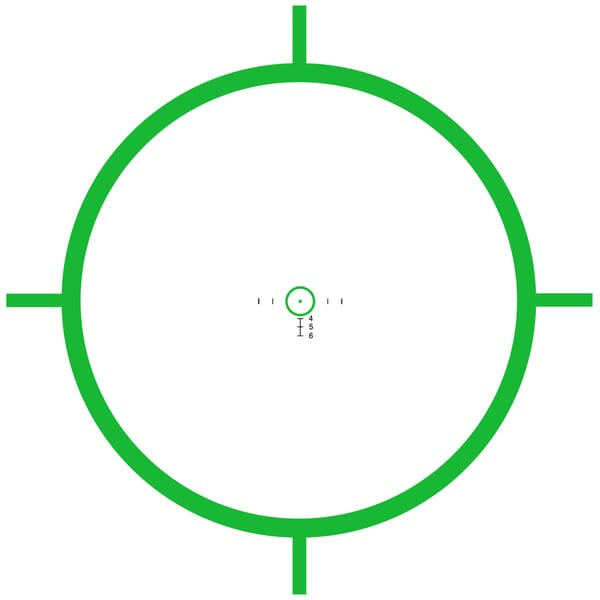

- SR2 RETICLE: Calibrated for .308 Winchester with holdover points for 400, 500, and 600 yards.
- AIRCRAFT-GRADE ALUMINUM: Robust, single-piece construction enhances durability in harsh conditions.
- HIGH-DENSITY GLASS: XC high-density, low-dispersion glass with multiple coatings for enhanced clarity.
- EXPOSED TURRETS: Windage and elevation turrets provide tactile feedback for precise adjustments.
- NITROGEN PURGED: Prevents internal fogging, ensuring clear optics in varying temperatures.
- WATER AND SHOCK RESISTANT: O-ring seals protect against moisture, dust, and recoil damage.
- EOTECH SPEED RING: Facilitates rapid target acquisition for both close and long-range shots.
Technical Specifications
| Specification | Detail |
|---|---|
| Magnification | 1-6x |
| Objective Lens Diameter | 24 mm |
| Tube Diameter | 30 mm |
| Overall Length | 10.63 inches (270 mm) |
| Weight | 20.1 oz (570 g) |
| Eye Relief | 1x: 3.27-3.94 inches (83-100 mm) |
| 6x: 3.23-3.94 inches (82-100 mm) | |
| Field-of-View @ 100 Yards | 1x: 102.4 ft (31.2 m) |
| 6x: 16.7 ft (5.09 m) | |
| Reticle | SR2 (MOA) |
| Adjustment Graduation per Click | 0.5 MOA |
| Total Elevation Travel | 100 MOA |
| Total Windage Travel | 80 MOA |
| Power Source | CR2032 battery |
| Illumination | Yes |
| Material | Aircraft-grade aluminum |
| Finish | Anodized |
| Waterproof | Yes |
| Fogproof | Yes |
| Shockproof | Yes |
What's in the Box?
- Vudu 1-6x24 FFP Riflescope
- Operator Manual
- Reticle Manual
- Throw Lever
- Lens Cleaning Cloth
- Battery
Customer Reviews
“The clarity and accuracy of the Vudu scope are impressive. Perfect for my .308 setup!”
“Excellent build quality and easy adjustments. Great for both tactical and hunting applications.”
“I love the quick target acquisition feature. Makes it easy to switch between distances.”
FAQ
Many potential buyers often ask about the performance of the EOTech Vudu 1-6x24mm FFP SR2 Riflescope in different lighting conditions. Thanks to its multi-coated lenses, the scope maintains clarity in low-light environments, making it suitable for dawn or dusk hunting. Additionally, the illuminated reticle further enhances visibility, ensuring you can acquire targets quickly, even in challenging conditions.
Another common concern is maintenance and durability. The Vudu scope is nitrogen purged, making it resistant to fogging and ensuring reliable performance in fluctuating temperatures. Its rugged construction protects it from shock and water damage, so you can rely on it in various outdoor scenarios without worry.
Similar Models
Looking for more options? Explore our extensive EOTech lineup, featuring models like the EOTech Vudu 2.5-10x44 for longer-range engagements and the EOTech Vudu 3.5-18x50, offering enhanced versatility for various shooting situations. Discover our full collection to find the perfect optic tailored to your needs.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
