Description

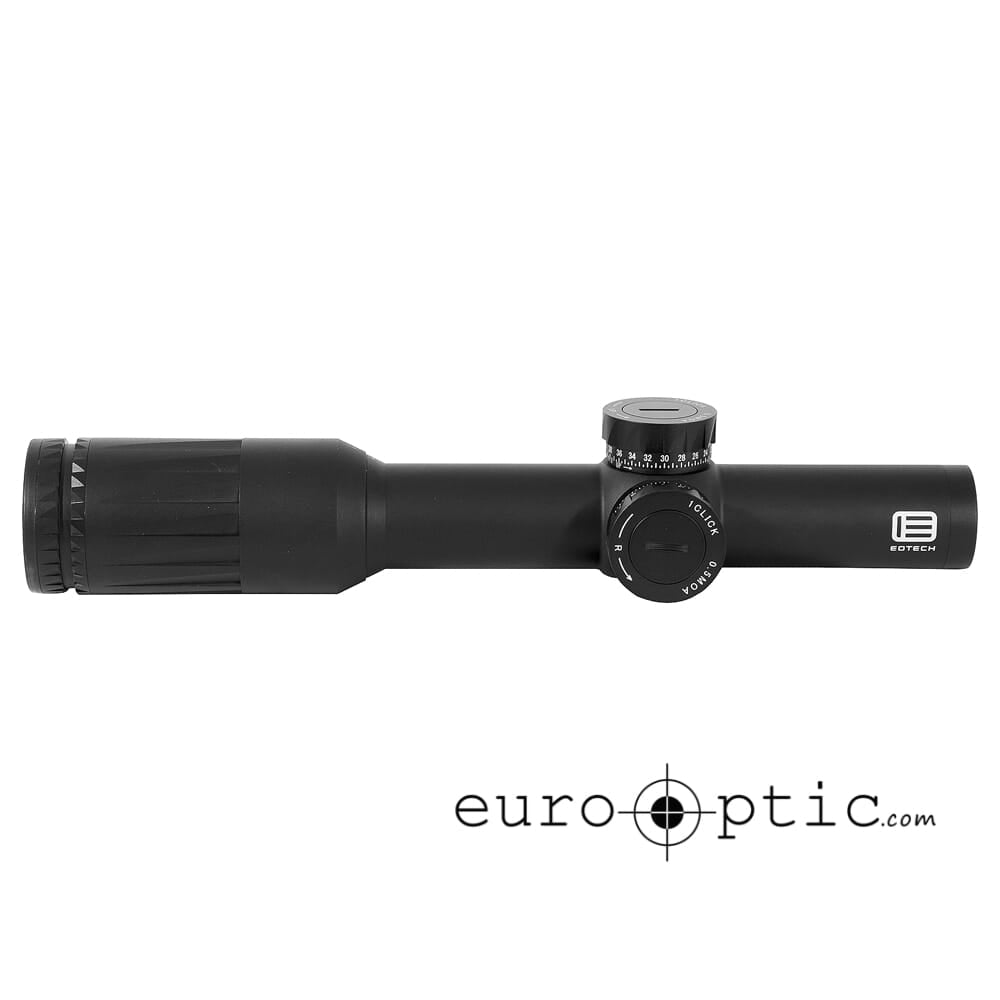

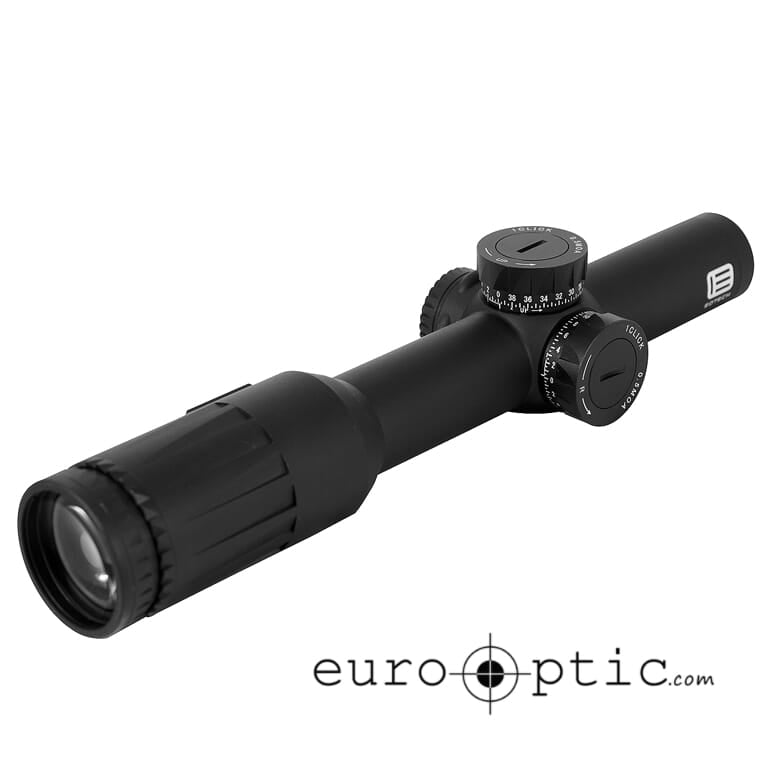

EOTech VUDU 1-6x24 FFP SR2 Riflescope delivers versatile performance tailored for tactical shooters and hunters alike. Its first focal plane design ensures the reticle maintains accuracy across all magnification levels, providing reliable holdovers no matter the distance. The Speed Ring reticle enhances rapid target acquisition, making it easier to engage targets quickly. Built from aircraft-grade aluminum, this scope withstands challenging conditions while maintaining a lightweight profile, ideal for various shooting platforms.
Featuring XC high-density glass with anti-reflective coatings, the VUDU riflescope offers exceptional light transmission and edge-to-edge clarity, enhancing visibility during low-light conditions. The tool-less adjustable turrets allow for precise adjustments, ensuring consistent accuracy shot after shot. With its water, fog, and shock-resistant construction, this optic is engineered for durability and reliability in the field, making it a trusted companion for serious shooters.
Features – Key Benefits Bullets
- FIRST FOCAL PLANE: Reticle size adjusts with magnification for precise holdovers at any distance.

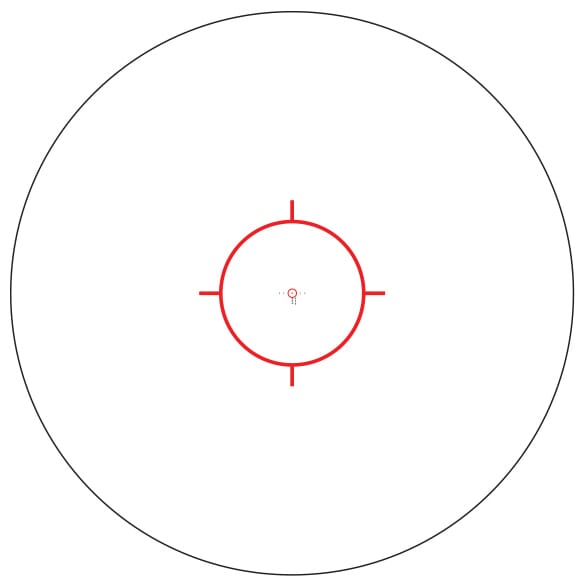

- SPEED RING RETICLE: Facilitates rapid target acquisition at low power, with high-magnification clarity.
- DURABLE CONSTRUCTION: Aircraft-grade aluminum body ensures resilience against harsh environments.
- HIGH-DENSITY GLASS: XC glass with anti-reflective coatings delivers superior light transmission and clarity.
- ILLUMINATED RETICLE: Push-button illumination offers 10 brightness settings for low-light adaptability.
- TOOL-LESS ADJUSTMENTS: Easy zeroing with precision turrets that require no tools for adjustments.
- WATER, FOG, AND SHOCK RESISTANCE: Nitrogen purged and O-ring sealed to protect against moisture and dust.
- COMPACT DESIGN: Lightweight and compact structure suitable for a variety of rifle configurations.
Technical Specifications
| Specification | Details |
|---|---|
| Magnification | 1-6x |
| Focal Plane | First |
| Tube Diameter | 30 mm |
| Objective Diameter | 24 mm |
| Overall Length | 10.63" (270 mm) |
| Weight | 20.1 oz (570 g) |
| Eye Relief | 1X: 3.27-3.94" (83-100 mm) |
| Field-of-View @ 100 Yards | 1X: 102.4 ft (31.2 m); 6X: 16.7 ft (5.09 m) |
| Adjustment Graduation | 0.2 MRAD per click |
| Total Elevation Travel | 29 MRAD |
| Total Windage Travel | 23 MRAD |
| Reticle | SR2 |
| Illumination | Yes |
| Battery Type | CR2032 |
| Water Resistance | Yes |
| Fog Resistance | Yes |
| Shock Resistance | Yes |
What's in the Box?
- VUDU 1-6x24 Rifle Scope
- Operator Manual
- Reticle Manual
- Throw Lever
- Lens Cleaning Cloth
- Battery
Customer Reviews
"This scope exceeded my expectations. The clarity is incredible, and the reticle is easy to use." - John D.
"Perfect for my AR setup. Fast target acquisition and very durable." - Sarah L.
"I took it hunting in low light, and it performed exceptionally well." - Mike T.
FAQ
What is the magnification range of the EOTech VUDU 1-6x24? The magnification range is 1-6x, providing versatility for both close and long-range shooting. This range makes it suitable for various shooting scenarios, from tactical applications to hunting.
How does the illuminated reticle work? The illuminated reticle features push-button controls with 10 brightness settings, allowing for optimal visibility in different lighting conditions. This feature is particularly beneficial during dawn or dusk when visibility may be low.
Is the VUDU riflescope suitable for competitive shooting? Yes, this riflescope is designed with features like rapid target acquisition and precise adjustments, making it an excellent choice for competitive shooters. Its lightweight and durable construction also enhance performance in high-pressure environments.
How do I maintain the EOTech VUDU scope? Regularly clean the lenses with a soft cloth to avoid scratches and ensure clarity. Additionally, check the seals for any signs of wear or damage to maintain waterproof and fog-proof performance.
How does this scope compare to other brands? The EOTech VUDU offers high-density glass and a first focal plane design that rivals other premium brands. Its combination of durability, performance features, and value for money makes it a strong competitor in the tactical and hunting optics market.
Similar Models
If you're exploring options, consider the EOTech VUDU alternatives for different specifications and features. Check out models like the EOTech VUDU 2.5-10x44 for extended range capabilities and EOTech VUDU 3.5-18x50 for a more powerful magnification. Browse our full collection to find the perfect riflescope tailored to your shooting needs.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
