Description

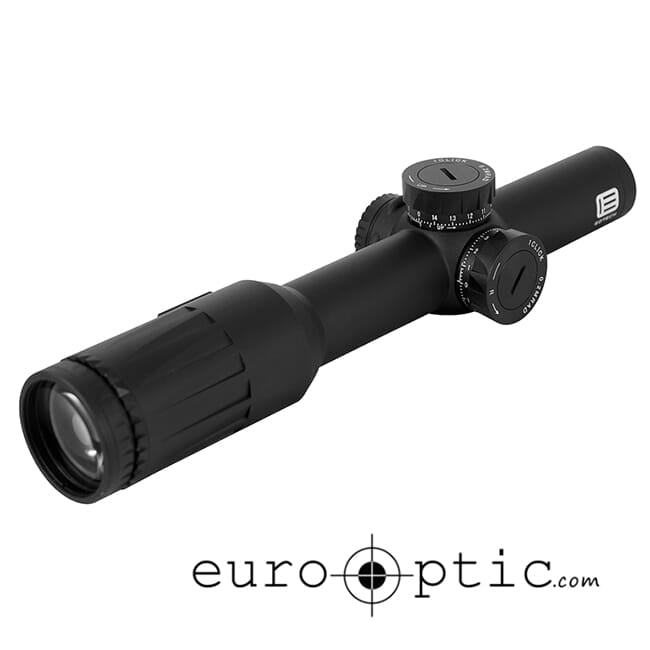

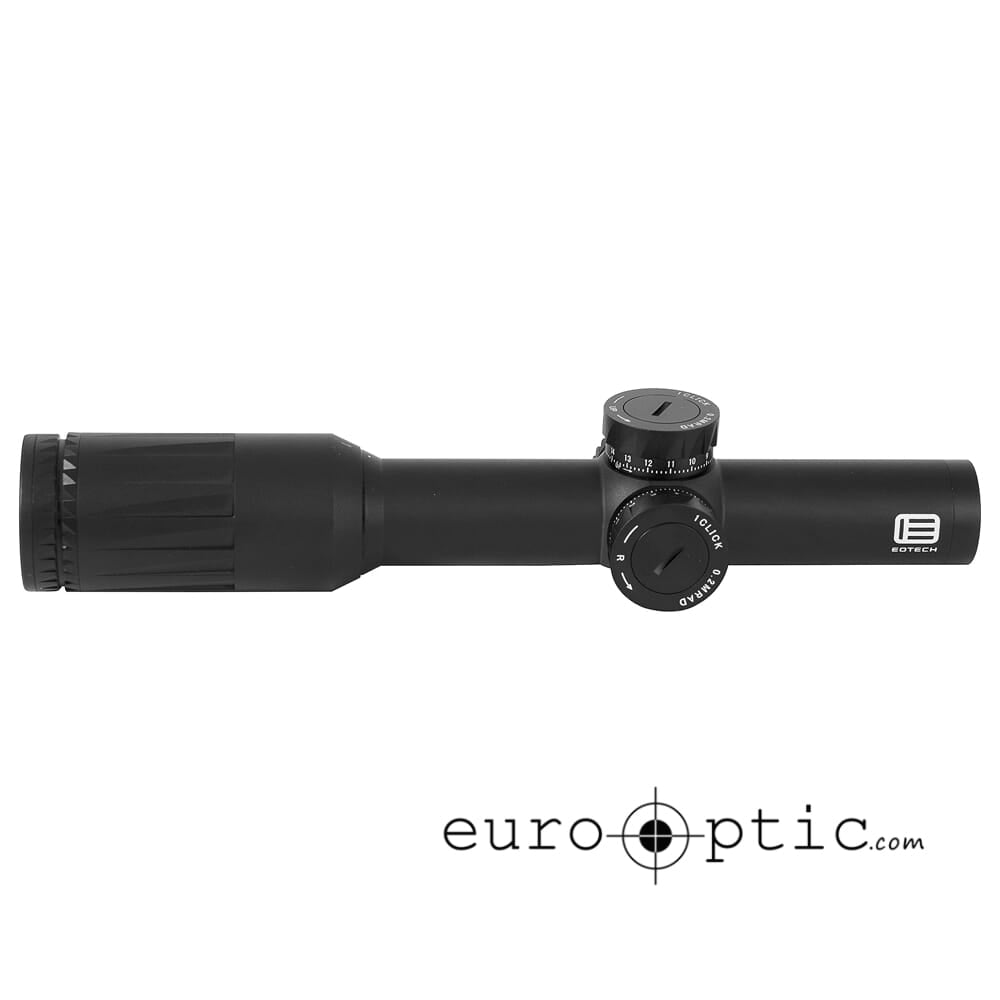

EOTech VUDU 1-6x24 FFP SR1 Riflescope offers precise targeting and versatility for various shooting scenarios. With its first focal plane design, the reticle maintains accuracy regardless of magnification level, allowing for reliable holdovers. The illuminated SR1 reticle enhances visibility in low-light conditions, making it suitable for dusk or dawn use. Built from aircraft-grade aluminum, this scope withstands tough environments and heavy recoil, ensuring durability and performance in demanding situations.
Equipped with XC™ high-density, low dispersion glass, the VUDU 1-6x24 delivers exceptional clarity and light transmission. The anti-reflective coating on the lenses minimizes glare, enhancing image quality for better target acquisition. This riflescope is nitrogen-purged and o-ring sealed, offering fog-resistance, water-resistance, and shock-resistance. Its compact design is compatible with AR platforms and bolt-action rifles, making it an ideal choice for tactical applications and competitive shooting alike.
Features – Key Benefits
- AIRCRAFT GRADE CONSTRUCTION: Built from aircraft-grade aluminum with an anodized finish for exceptional durability.
- FOG RESISTANT: Nitrogen gas purging prevents internal fogging, ensuring clear images in varying temperatures.
- SHOCK RESISTANT: Designed to withstand heavy recoil and rough handling for longevity in the field.
- WATER RESISTANT: O-ring seals keep moisture and dust out, protecting internal components.
- ANTI-REFLECTIVE COATINGS: XC™ high-density glass with anti-reflective coatings for bright, clear images.

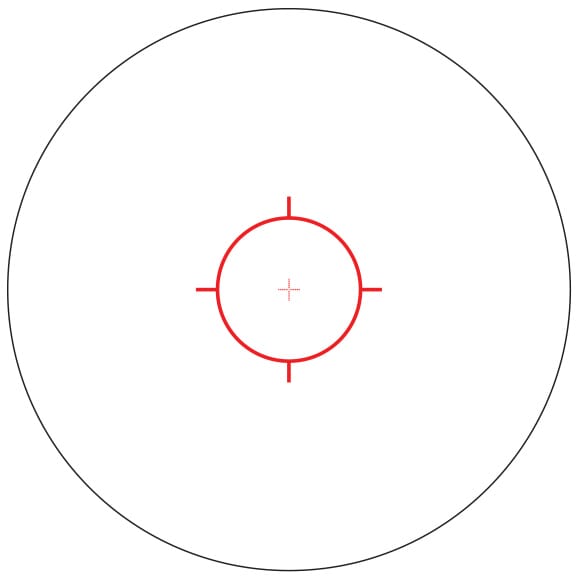

- ILLUMINATED RETICLE: SR1 reticle provides enhanced visibility in low light, aiding quick target acquisition.
- PRECISE ADJUSTMENTS: Tool-less elevation and windage turrets for easy zeroing and tracking.
- VERSATILE MAGNIFICATION: 1-6x magnification range suitable for both close and long-range shooting.
Technical Specifications
| Specification | Details |
|---|---|
| Magnification | 1-6x |
| Focal Plane | First |
| Tube Diameter | 30 mm |
| Objective Diameter | 24 mm |
| Overall Length | 10.63 inches (270 mm) |
| Weight | 20.1 oz (570 g) |
| Eye Relief | 1X: 3.27-3.94 inches (83-100 mm), 6X: 3.23-3.94 inches (82-100 mm) |
| Field-of-View @ 100 Yards | 1X: 102.4 ft (31.2 m), 6X: 16.7 ft (5.09 m) |
| Reticle | SR1 (MRAD) |
| Illumination | Yes |
| Battery Type | CR2032 |
| Adjustment Graduation | 0.2 MRAD |
| Total Elevation Travel | 29 MRAD |
| Total Windage Travel | 23 MRAD |
| Material | Aircraft-grade aluminum |
| Finish | Anodized |
| Water Resistance | Yes |
| Fog Resistance | Yes |
| Shock Resistance | Yes |
What's in the Box?
- Vudu® 1-6X24 Rifle Scope
- Operator Manual
- Reticle Manual
- Throw Lever
- Lens Cleaning Cloth
- Battery
Customer Reviews
“This scope has exceeded my expectations for clarity and ease of use. Perfect for competitive shooting!”
“The illuminated reticle is a game-changer for low-light conditions. Highly recommend!”
“Sturdy and reliable. I’ve been using it on my AR-15 without any issues.”
FAQ
How does the first focal plane reticle work in this riflescope? The first focal plane design ensures that the reticle size changes with magnification. This allows for accurate holdover calculations at any power setting, making it ideal for both close and long-range shooting.
Is the EOTech VUDU 1-6x24 suitable for low-light conditions? Yes, the illuminated SR1 reticle provides enhanced visibility, making it effective in low-light situations. The anti-reflective coatings on the lenses also improve clarity during such conditions.
Can I use this scope in wet conditions? Absolutely. The EOTech VUDU is water-resistant due to its O-ring seals, preventing moisture from entering the scope, which ensures reliable performance in rain or snow.
How does this scope compare to other brands? The VUDU 1-6x24 offers a competitive edge with its high-density glass and durable construction. It stands out for its clarity and precision, often being a preferred choice among tactical and competitive shooters.
What maintenance is required for this riflescope? Routine cleaning of the lenses with a soft cloth will maintain optimal performance. Ensure that the scope is stored in a dry place and check the battery regularly to ensure the illumination feature works when needed.
Similar Models
Looking for more options? Explore our extensive EOTech collection, including models like EOTech VUDU 3.5-18x50 for long-range precision and EOTech VUDU 5-25x50 for advanced tactical applications. Discover our full
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
