Description

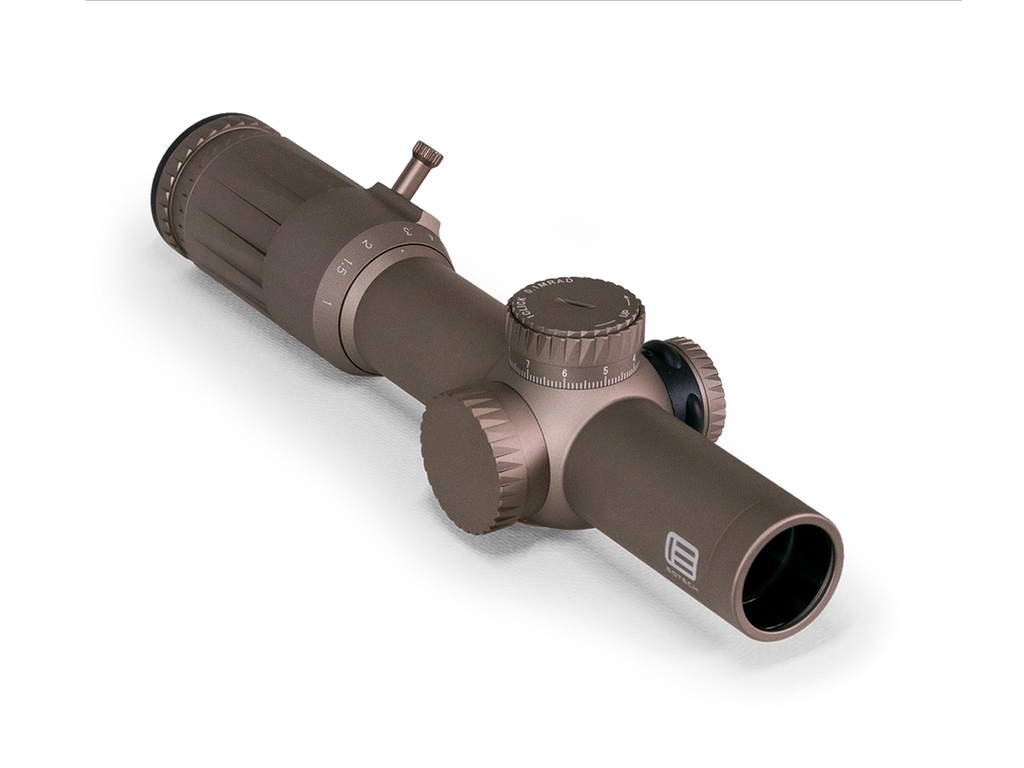

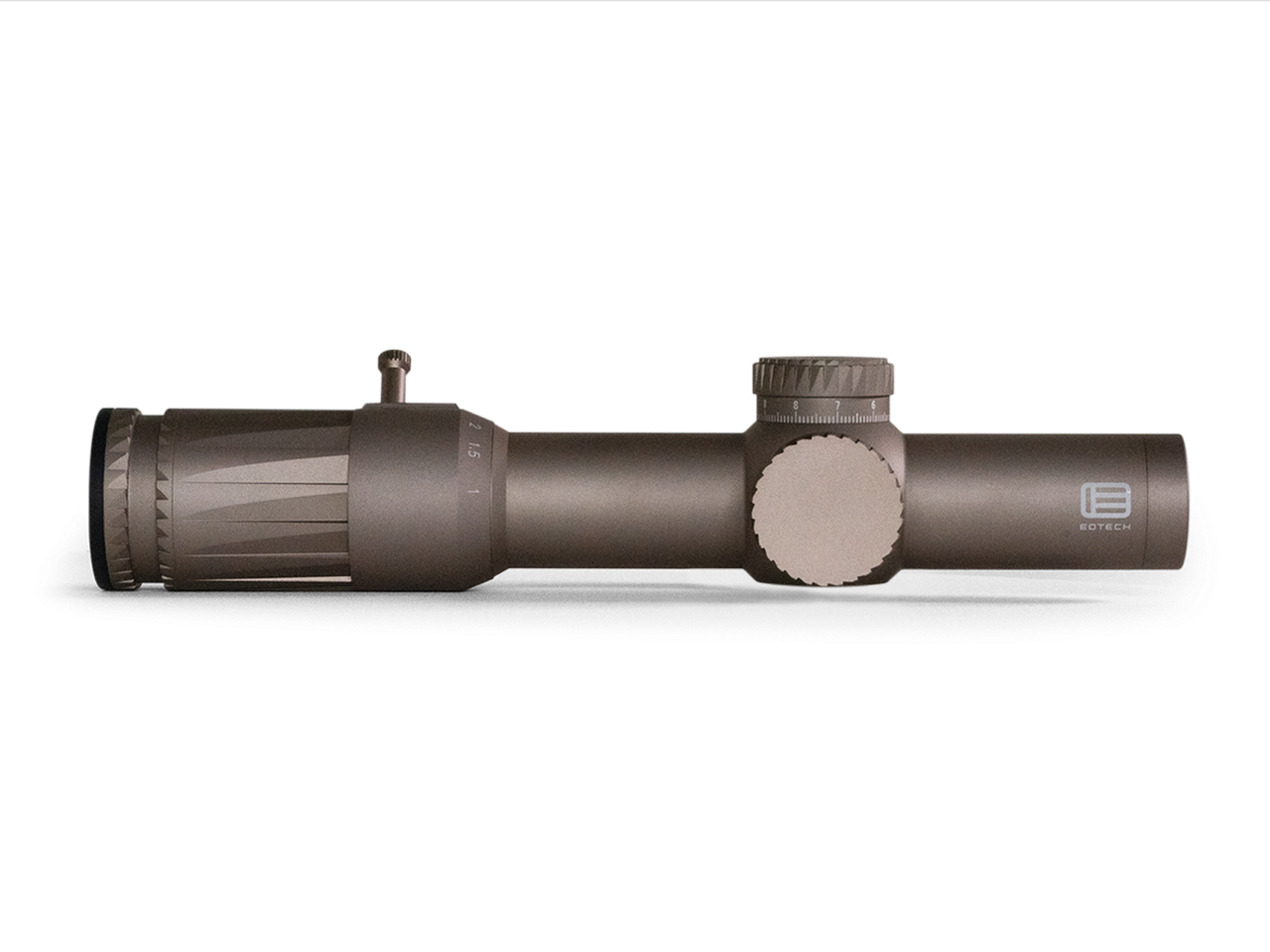

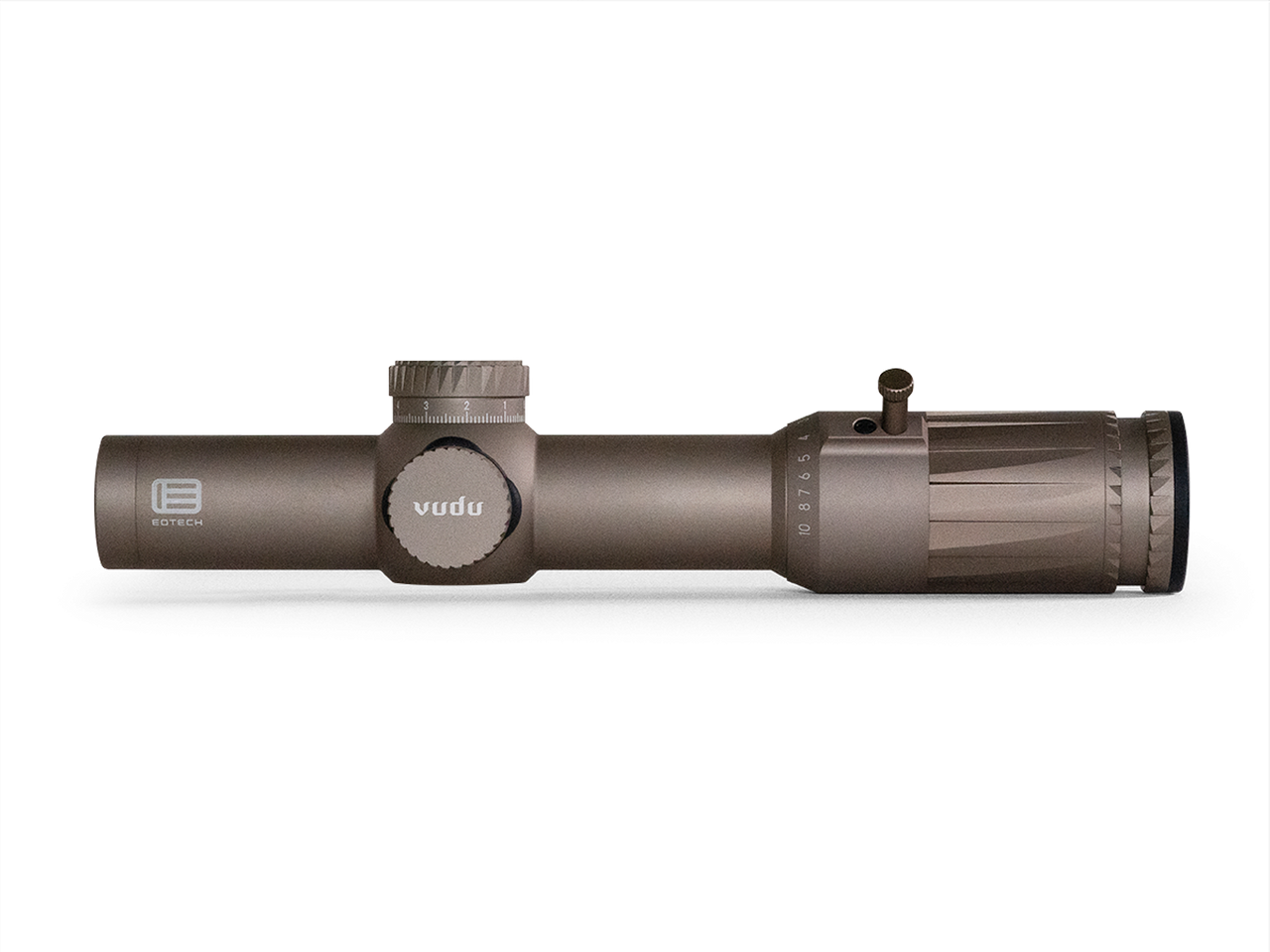

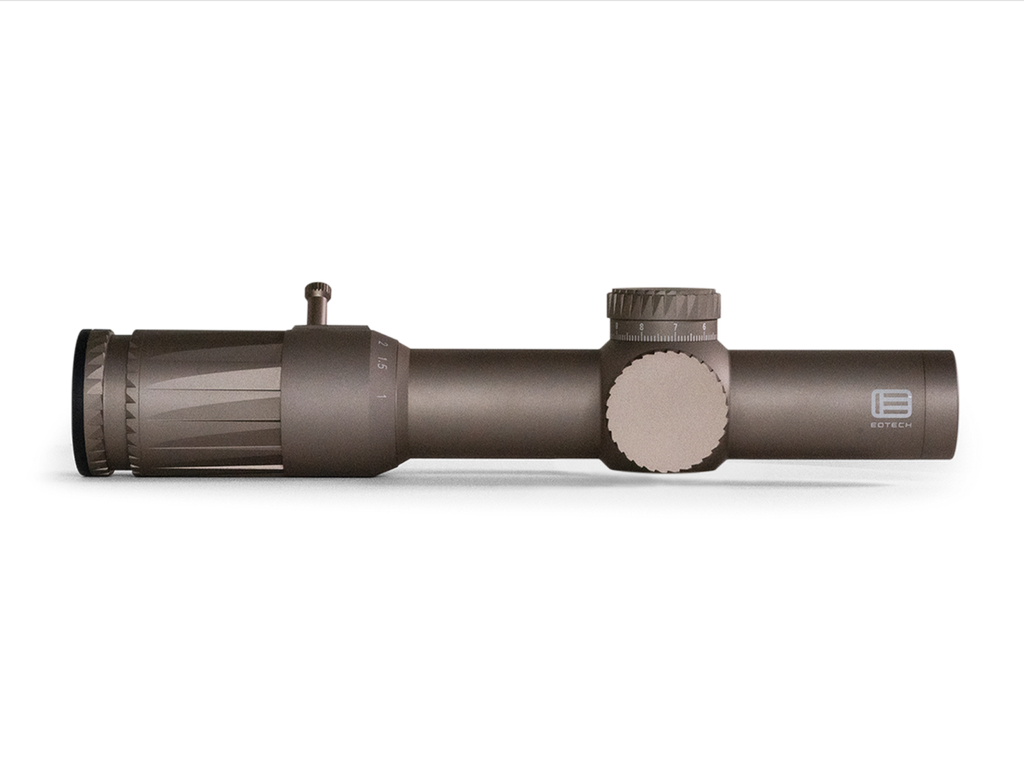

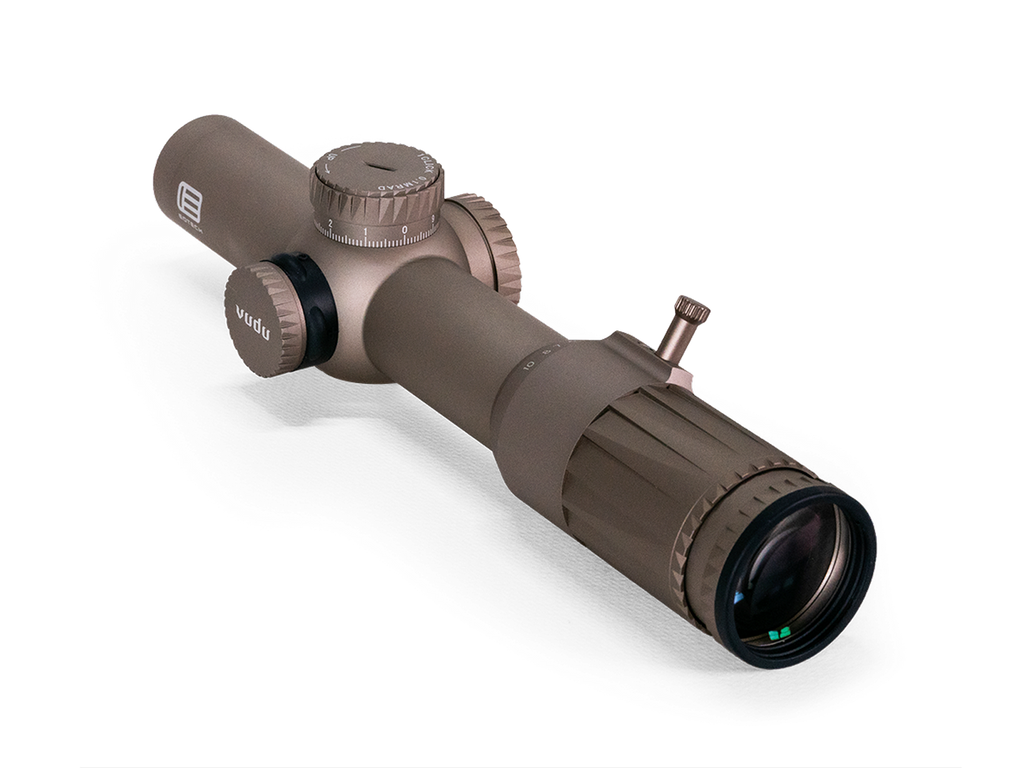

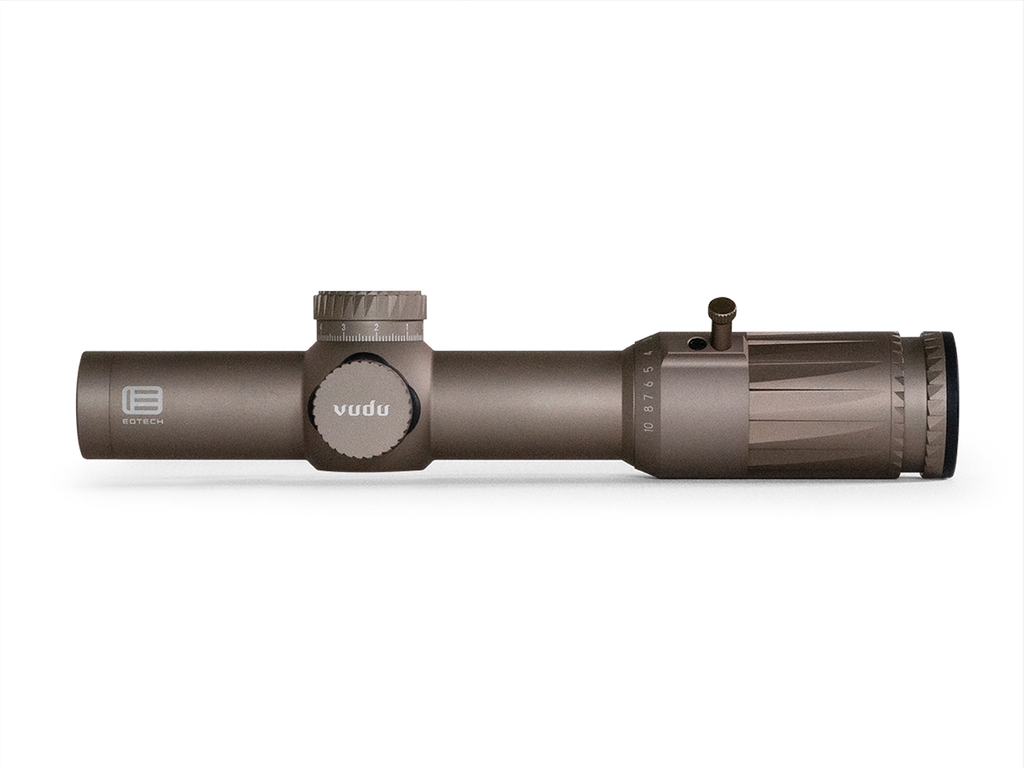

EOTech Vudu 1-10x28mm FFP Tan SR4 Riflescope offers a versatile solution for both close-quarters and long-range shooting. With a true 1X magnification, it functions effectively as a red dot sight, allowing for rapid target acquisition. The scope's 10X magnification enhances precision for distant shots, making it suitable for a range of shooting scenarios.
Equipped with the SR-4 MOA reticle, this riflescope features an illuminated speed ring and a hash-marked inner crosshair, designed for accurate ranging, holdover, and wind adjustments. The 1MOA center aiming dot ensures pinpoint targeting while the high-quality glass provides clear visibility. Built from aircraft-grade aluminum, the Vudu 1-10x28mm is lightweight yet rugged, providing reliable performance in varied conditions.
Features – Key Benefits Bullets
- AIRCRAFT GRADE: Constructed from durable aluminum for maximum strength and longevity.
- ILLUMINATION CONTROLS: User-friendly push-button controls feature 10 brightness settings for varied lighting conditions.

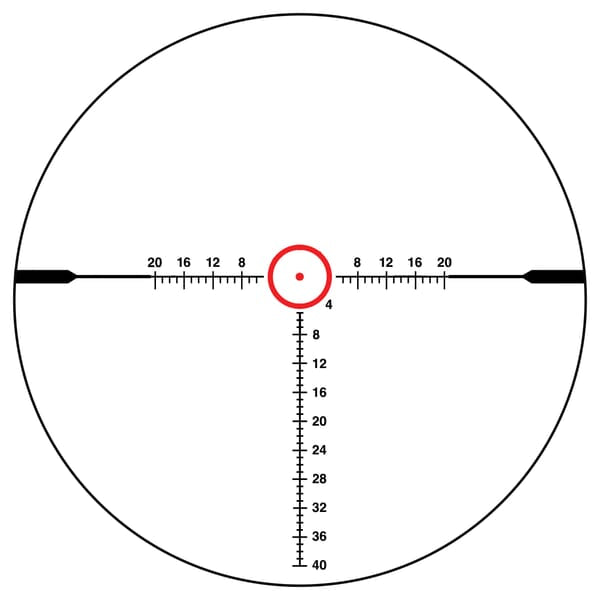

- RETICLE: SR-4 MOA reticle offers an illuminated speed ring and hash-marked crosshair for effective holdover and ranging.
- MAGNIFICATION: True 1X for close engagements and up to 10X for long-range precision shots.
- GLASS QUALITY: Anti-reflective coatings ensure exceptional clarity and light transmission in all conditions.
- SHOCK RESISTANT: Designed to withstand heavy recoil and rough handling without compromising performance.
- FOG RESISTANT: Nitrogen purging prevents internal fogging, ensuring clear visibility in changing temperatures.
- WATER RESISTANT: O-ring seals and single-piece construction keep moisture and dust out for reliable use in the field.
Technical Specifications Table
| Specification | Detail |
|---|---|
| Model | EOTech Vudu 1-10x28mm FFP Tan SR4 Riflescope |
| SKU | VDU1-10FFSR4TAN |
| Magnification Range | 1-10x |
| Objective Lens Diameter | 28mm |
| Tube Diameter | 34mm |
| Overall Length | 10.63" (270 mm) |
| Weight | 21.3 oz (603 g) |
| Field of View at 100 Yards (1x) | 116.6 ft (35.5 m) |
| Field of View at 100 Yards (10x) | 11.7 ft (3.6 m) |
| Eye Relief (1x) | 3.27-3.90" (83-99 mm) |
| Eye Relief (10x) | 3.35-3.62" (85-92 mm) |
| Reticle Options | SR-4 MOA, SR-5 MRAD, LE-5 MRAD |
| Adjustment Graduation Per Click | 0.25 MOA |
| Total Elevation Travel | 100 MOA |
| Total Windage Travel | 80 MOA |
| Power Source | CR2032 battery |
What's in the Box?
- Vudu® 1-10X28 Rifle Scope
- Operator Manual
- Reticle Manual
- Throw Lever
- Lens Cleaning Cloth
Customer Reviews
“This scope exceeded my expectations for both close and long-range shooting. The clarity is impressive.”
“I appreciate the easy illumination controls. Great for low light conditions.”
“Rugged and lightweight, making it perfect for my hunting trips. Highly recommend!”
FAQ
What is the effective range of the EOTech Vudu 1-10x28mm FFP? The scope provides excellent performance at both close and long-range distances. With its 1X magnification, it's ideal for quick target acquisition, while the 10X magnification allows for precision shooting beyond 300 yards. This versatility makes it suitable for various shooting scenarios, from tactical engagements to hunting.
How do I maintain my EOTech Vudu riflescope? Regular cleaning of the lenses is essential for optimal performance. Use a soft lens cloth and appropriate cleaning solution to remove debris and smudges. Ensure that the scope is stored in a dry environment to prevent moisture damage. Checking the mounting and adjustments periodically will help maintain its accuracy.
How does the Vudu compare to other riflescopes in the same category? The EOTech Vudu stands out due to its robust construction and versatile magnification range. Unlike some competitors, it offers a true 1X setting for close engagements, combined with high-quality optics for long-range accuracy. Many users find the illuminated reticle and user-friendly controls to be significant advantages over alternative models.
Similar Models
Looking for more options? Explore our full range of EOTech products, including the EOTech Vudu 1-6x24mm for enhanced versatility and the EOTech Vudu 2.5-10x44mm for a broader magnification range. Each model is designed to meet the needs of both novice and experienced shooters. Discover our complete collection for the ideal optics suited to your shooting style.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
