Description

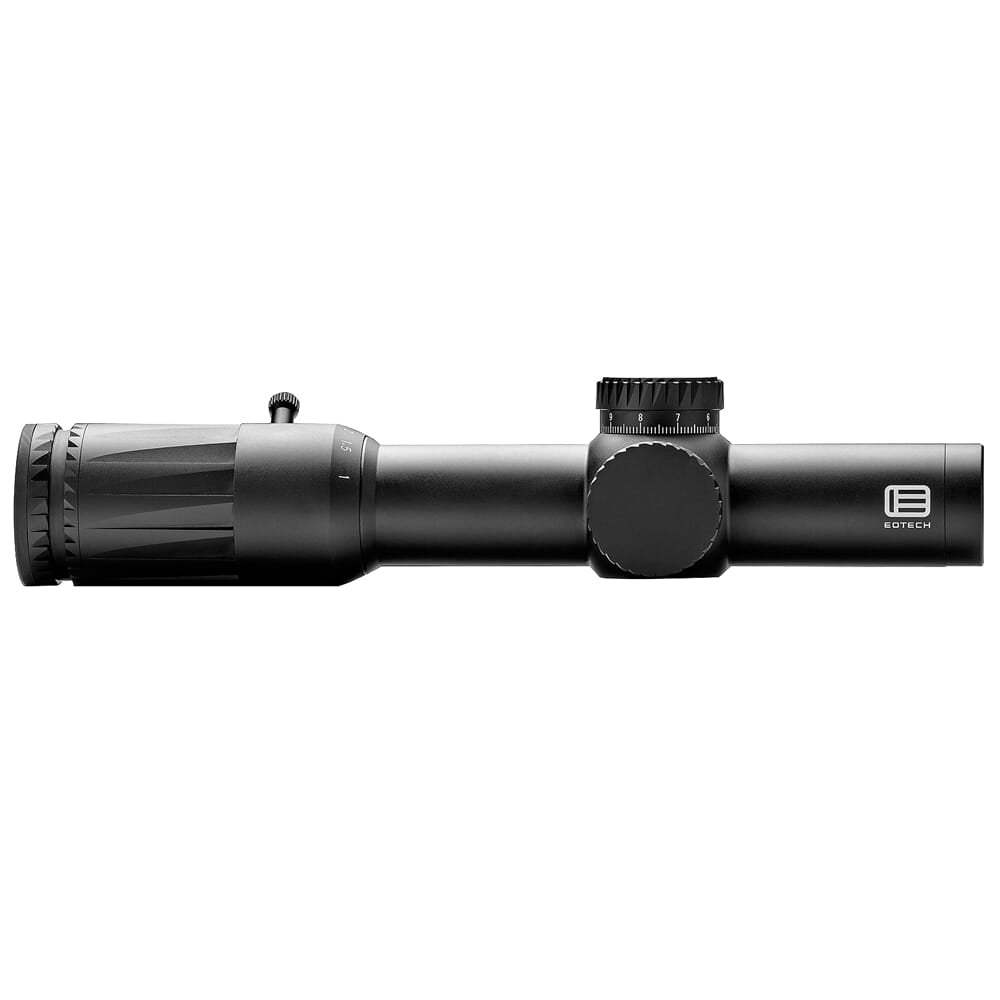

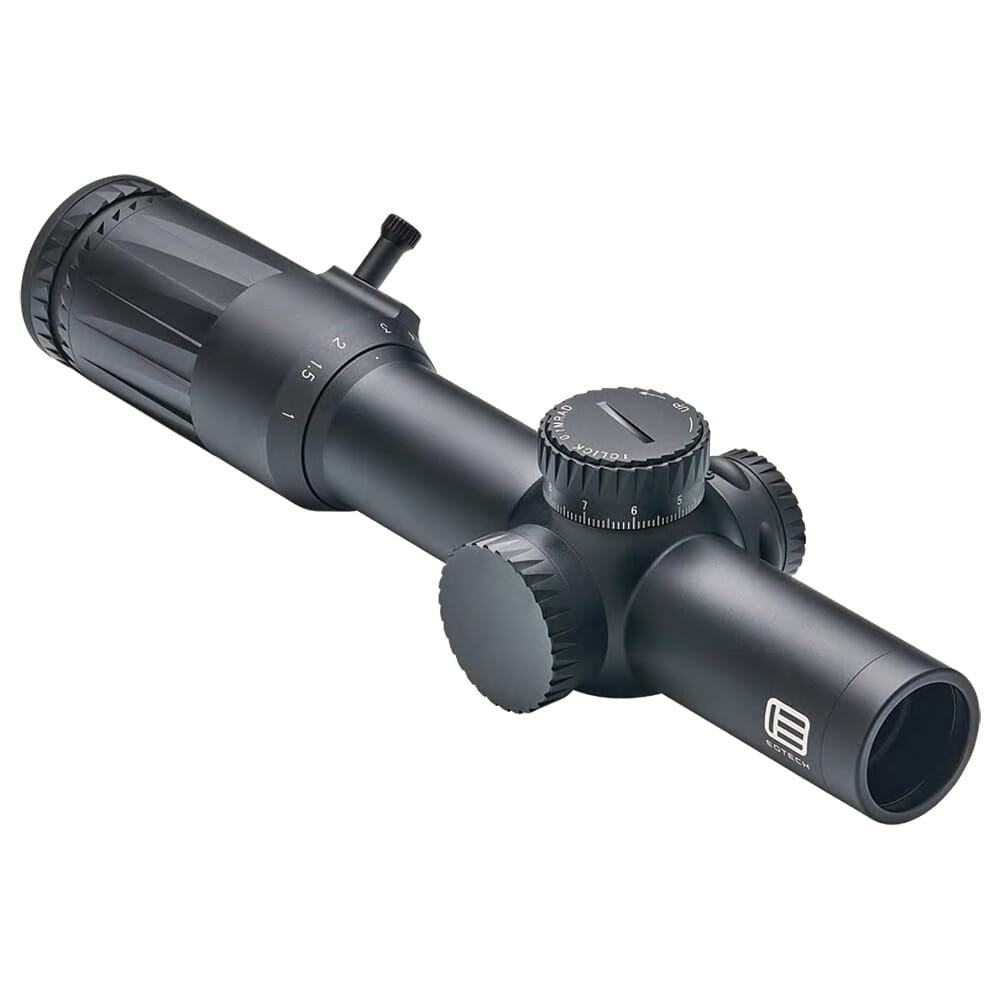

EOTech Vudu 1-10x28mm FFP SR5 Riflescope integrates advanced optics for both close-quarters and long-range shooting. Constructed from aircraft-grade aluminum, it features a robust single-piece design with an anodized finish, enhancing durability for rigorous use. The illuminated, glass-etched reticle and first focal plane configuration enable precise distance estimation across the entire magnification range, ensuring adaptability in various lighting conditions.
With a magnification range of 1-10x, this riflescope provides flexibility for dynamic shooting scenarios. The SR5 MRAD reticle is designed for quick target acquisition, using MOA subtension lines for accurate ranging and holdover. Low-profile locking turrets allow for secure adjustments, while the push-button illumination offers ten brightness levels for optimal visibility. Weighing just 21.3 oz and measuring 10.63 inches in length, this scope supports easy mounting and handling without compromising performance.
Features – Key Benefits Bullets
- AIRCRAFT-GRADE CONSTRUCTION: Built from aircraft-grade aluminum for maximum durability, ensuring reliable performance in harsh conditions.
- ILLUMINATED RETICLE: Features a glass-etched reticle with 10 brightness settings, allowing for quick target acquisition in varying light.
- FIRST FOCAL PLANE: Reticle size adjusts with magnification, providing accurate distance estimation and consistent holdovers at all zoom levels.
- LOCKING TURRETS: Low-profile turrets with secure locking mechanism, ensuring zero retention and easy adjustments on the fly.
- ENVIRONMENTAL RESISTANCE: Nitrogen purged to prevent fogging, with O-ring seals to protect against moisture and dust ingress.
- OPTICAL CLARITY: XC™ high-density glass and anti-reflective coatings deliver exceptional light transmission and clarity, even in low light.
- VERSATILE MAGNIFICATION: 1-10x magnification range accommodates both close and long-range shooting, enhancing tactical versatility.
- COMPACT AND LIGHTWEIGHT: Weighs only 21.3 oz and measures 10.63 inches, promoting weapon balance while maintaining superior optical quality.
Technical Specifications
| Specification | Details |
|---|---|
| Magnification Range | 1-10x |
| Objective Lens Diameter | 28mm |
| Tube Diameter | 34mm |
| Overall Length | 10.63 inches |
| Weight | 21.3 oz |
| Field of View at 100 Yards (1x) | 116.6 feet |
| Field of View at 100 Yards (10x) | 11.7 feet |
| Eye Relief (1x) | 3.27-3.90 inches |
| Eye Relief (10x) | 3.35-3.62 inches |
| Reticle | SR5 MRAD |
| Focal Plane | First Focal Plane (FFP) |
| Adjustment Graduation Per Click | 0.1 MRAD |
| Total Elevation Travel | 29 MRAD |
| Total Windage Travel | 23 MRAD |
| Power Source | CR2032 battery |
What's in the Box?
Included accessories: Throw lever, lens cleaning cloth, operator manual, reticle manual.
Customer Reviews
“This scope has transformed my shooting experience. The clarity at all magnifications is impressive.”
“Lightweight and easy to adjust. Perfect for both my tactical and hunting needs.”
“The first focal plane feature is a game changer for distance shooting. Highly recommend!”
FAQ
Many users ask about the performance of the EOTech Vudu 1-10x28mm in low-light conditions. Thanks to its illuminated reticle and high-density glass, this riflescope excels in diminished light, allowing for accurate targeting at dawn or dusk. Maintenance is straightforward; regular cleaning of lenses and checking of turrets will keep the scope in optimal condition.
When comparing the Vudu to other scopes, users often inquire about its versatility. With a magnification range of 1-10x, it provides the flexibility needed for both close-range and long-distance shooting, making it a preferred choice for competitive shooters and hunters alike. The locking turrets also enhance its reliability, ensuring that adjustments do not shift unexpectedly during use.
Similar Models
Looking for the perfect tactical optics? Explore our extensive EOTech collection, including models like the EOTech Vudu 1-6x24 for enhanced versatility and the EOTech Vudu 2.5-10x44 for superior long-range performance. Discover our full lineup for optics designed to elevate your shooting experience.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
