Description

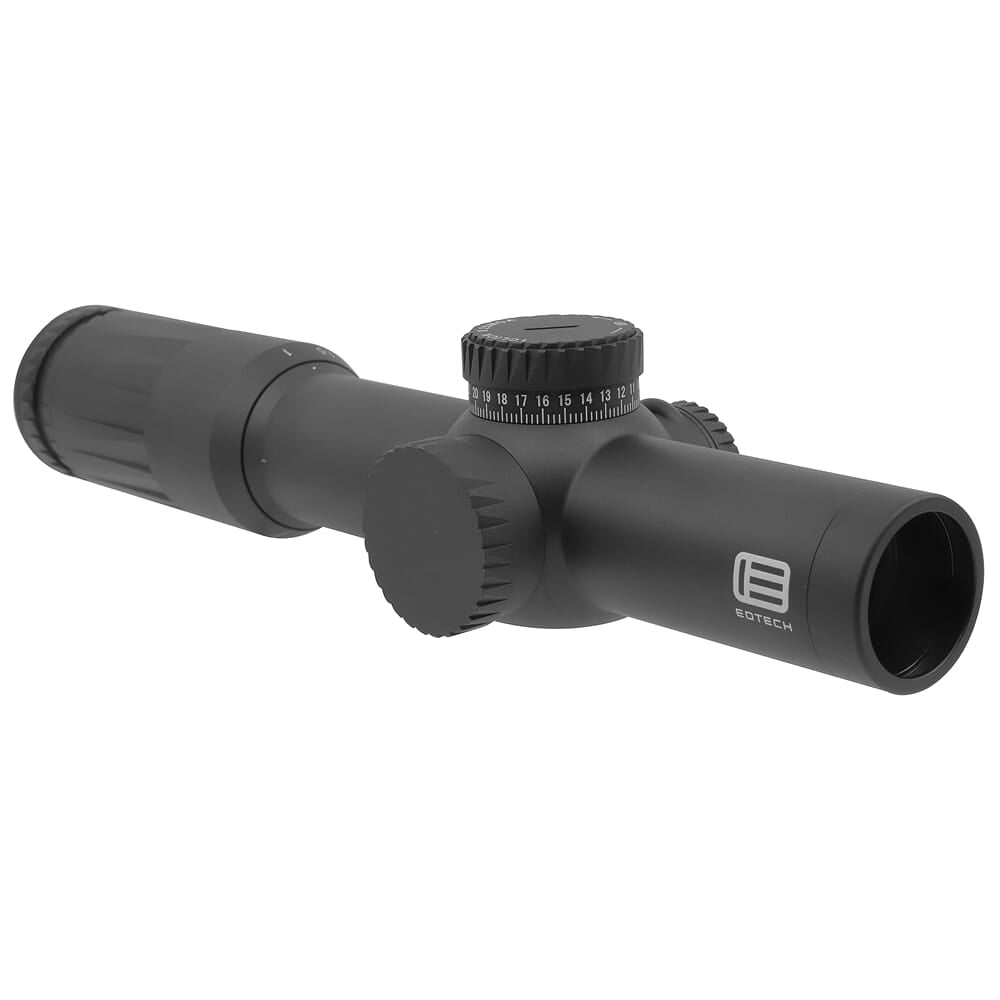

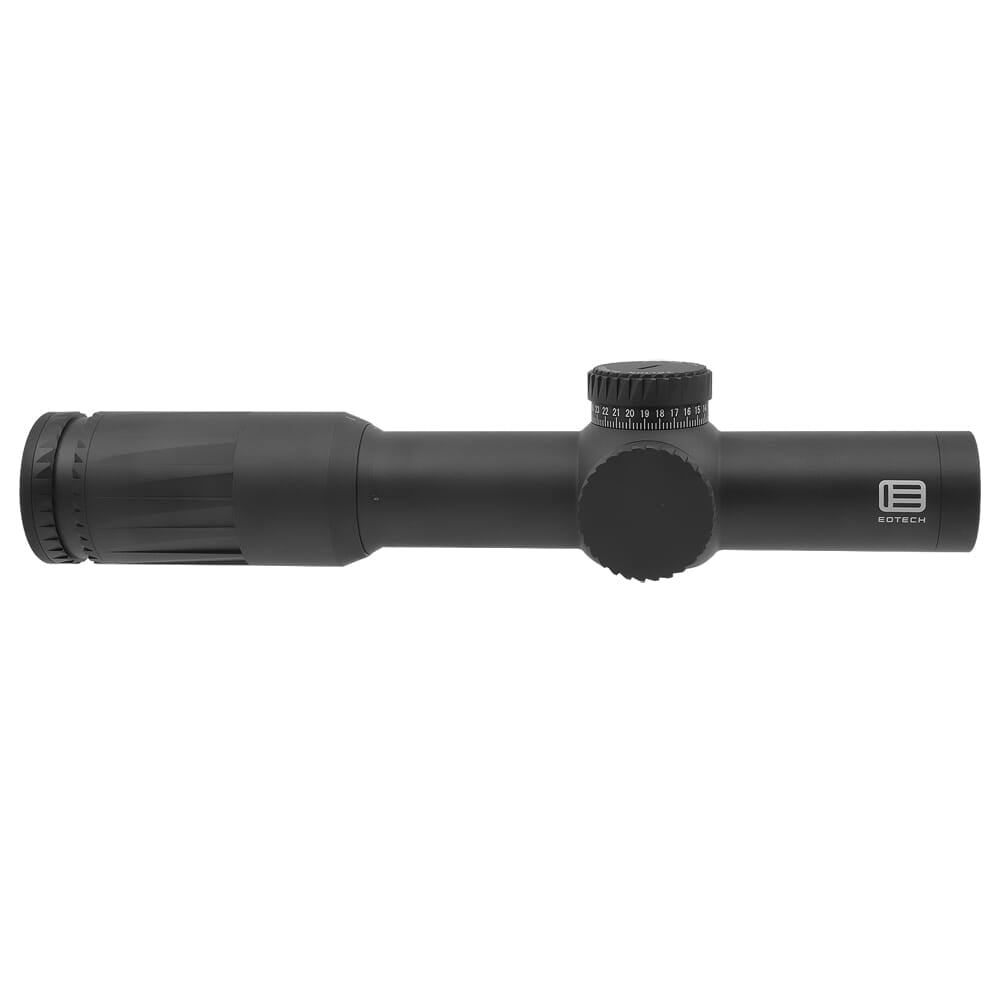

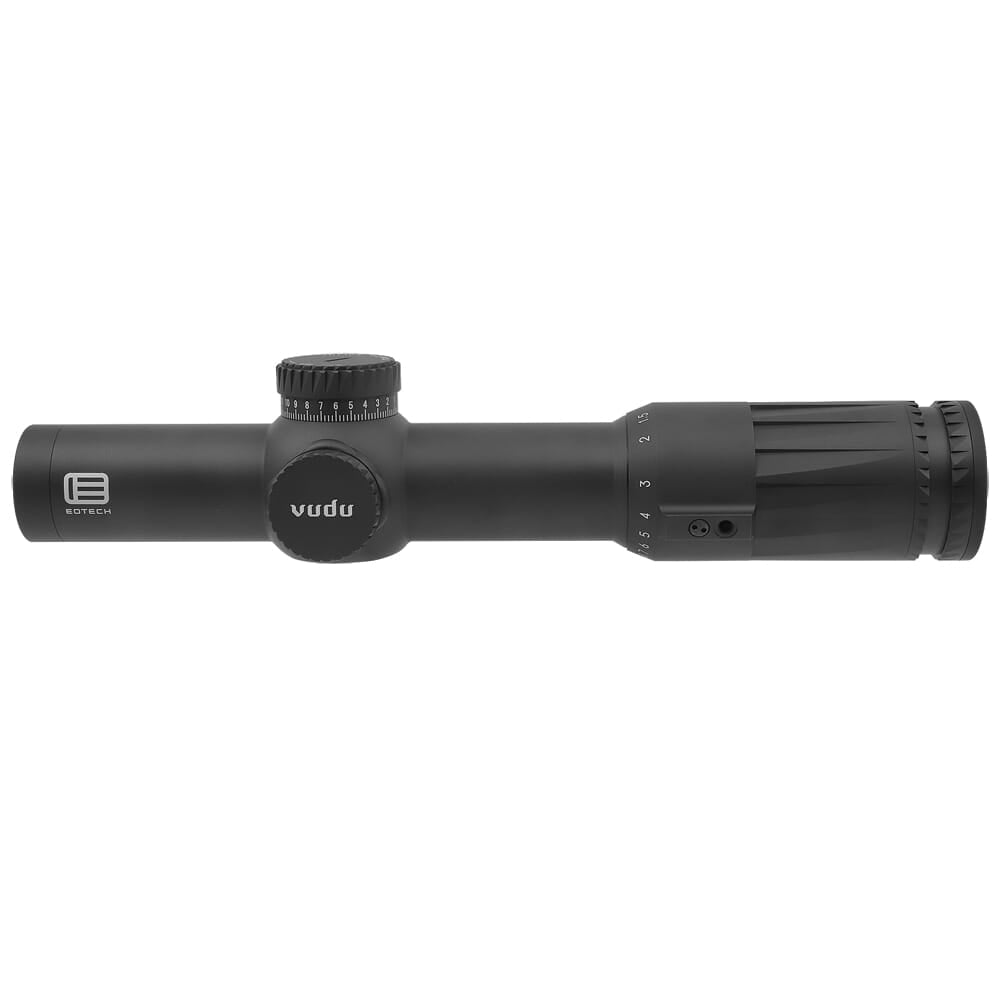

EOTech Vudu 1-10x28mm FFP SR4 Riflescope is engineered for precision in dynamic shooting environments. Featuring a robust 34mm aircraft-grade aluminum tube, this riflescope offers durability and reliability. The first focal plane (FFP) reticle facilitates accurate distance estimation at any magnification, suitable for various tactical and hunting scenarios. The illuminated glass-etched SR-4 reticle enhances visibility under diverse lighting conditions, allowing for swift target acquisition.
With a removable throw lever, the scope enables quick magnification adjustments to adapt to changing situations. Its low-profile elevation turret features a push/pull locking system, while the capped windage turret maintains a secure zero. The anti-reflective lenses ensure excellent light transmission and edge-to-edge clarity, contributing to a crisp sight picture. Designed to withstand harsh conditions, this riflescope is shock-resistant, water-resistant, and fog-resistant, making it ideal for any adventure.
Features – Key Benefits Bullets
- DURABLE CONSTRUCTION: Aircraft-grade aluminum with hard-anodized finish for long-lasting performance in tough conditions.
- FIRST FOCAL PLANE RETICLE: Accurate distance estimation at all magnifications for improved targeting.

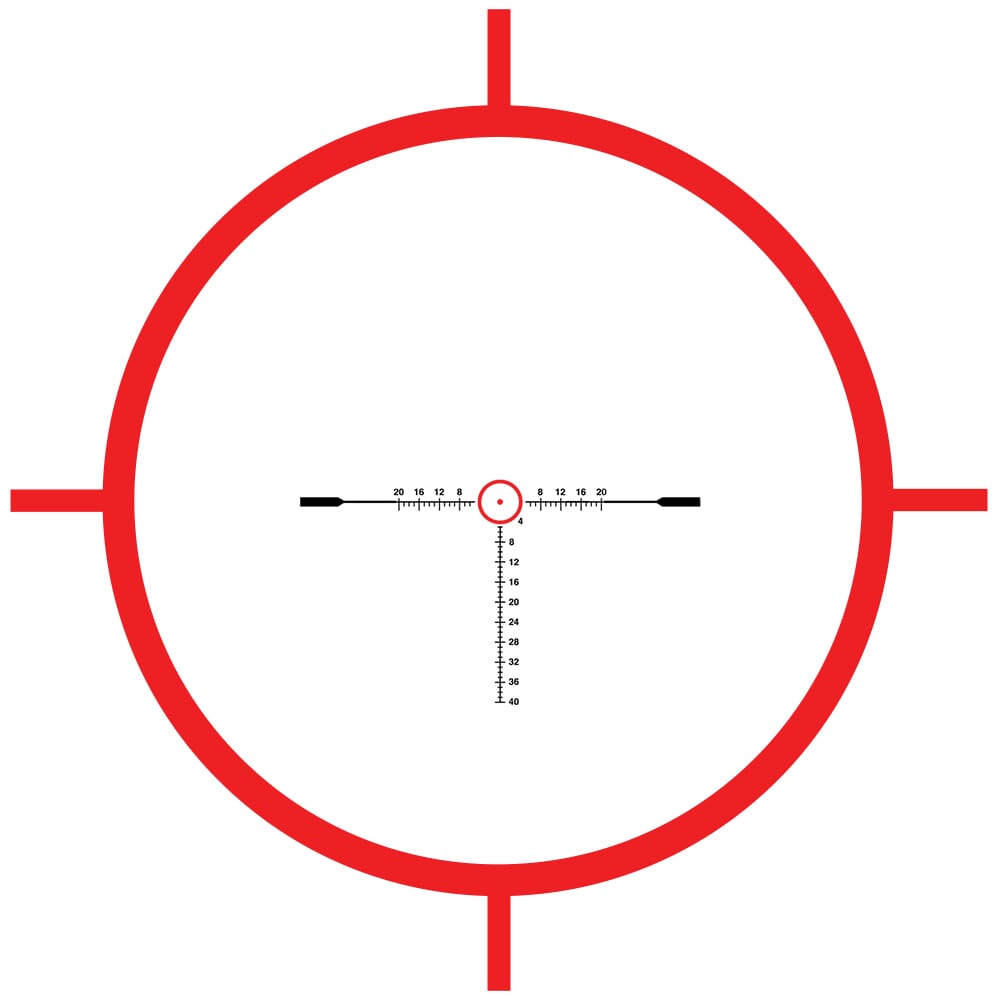

- ILLUMINATED RETICLE: Glass-etched SR-4 reticle with brightness settings for visibility in varying light.
- QUICK MAGNIFICATION ADJUSTMENT: Removable throw lever allows for fast magnification changes.

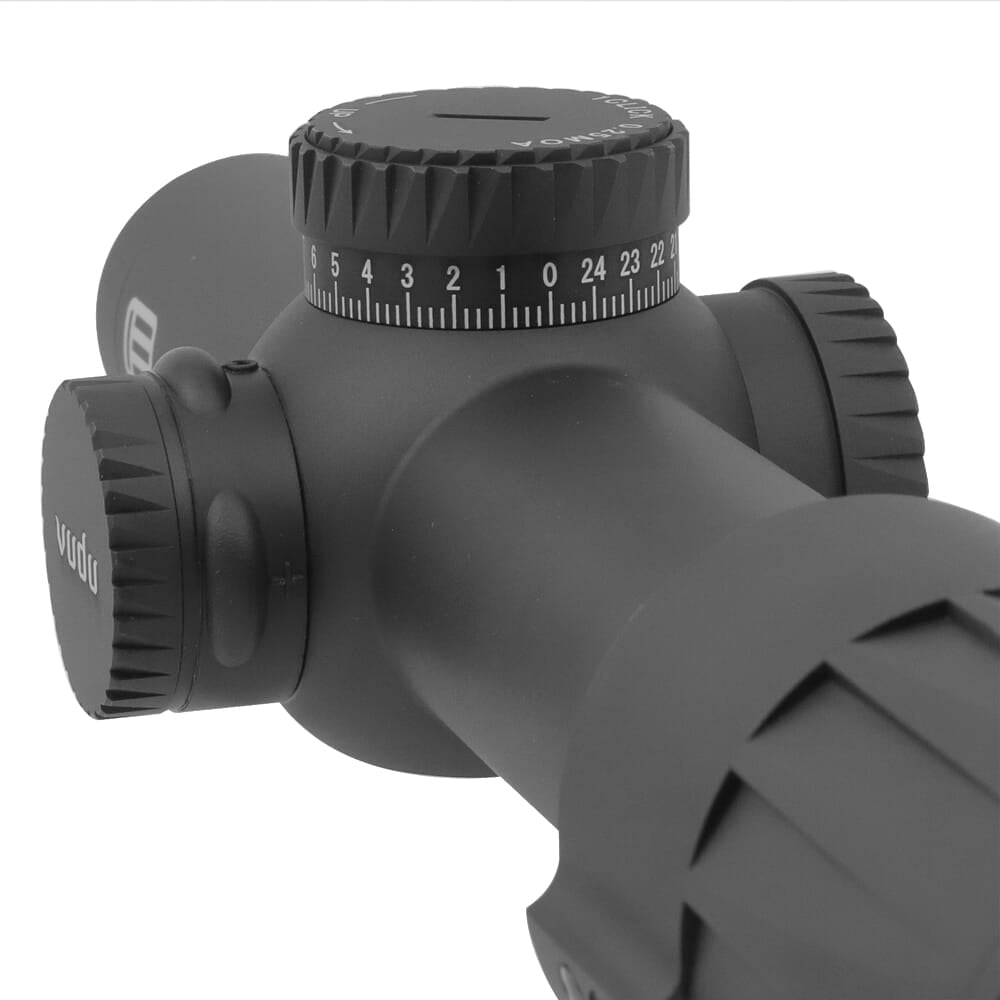

- SECURE ZERO: Low-profile elevation turret with push/pull locking and capped windage turret for reliable zero retention.
- ANTI-REFLECTIVE LENSES: High-density, low-dispersion glass with coatings for superior light transmission.
- SHOCK, WATER, AND FOG RESISTANT: Built to endure harsh environments and heavy recoil.
- GENEROUS EYE RELIEF: Comfortably accommodates users with a wide field of view at 1x magnification.
Technical Specifications
| Specification | Details |
|---|---|
| Magnification | 1-10x |
| Objective Lens Diameter | 28mm |
| Tube Diameter | 34mm |
| Focal Plane | First |
| Reticle | SR-4 (MOA) |
| Illumination | Yes |
| Battery Type | CR2032 |
| Overall Length | 10.63 inches (270mm) |
| Weight | 21.3 oz (603g) |
| Eye Relief | 1x: 3.27-3.90 inches (83-99mm) |
| 10x: 3.35-3.62 inches (85-92mm) | |
| Field of View @ 100 Yards | 1x: 116.6 ft (35.5m) |
| 10x: 11.7 ft (3.6m) | |
| Elevation Adjustment | Push/Pull locking system |
| Windage Adjustment | Capped turret |
| Lens Coating | Anti-reflective |
| Construction Material | Aircraft-grade aluminum |
| Water Resistance | Yes |
| Shock Resistance | Yes |
| Fog Resistance | Yes |
What's in the Box?
- EOTech Vudu 1-10x28mm FFP SR4 Riflescope
- CR2032 Battery
- Removable Throw Lever
- Operator Manual
- Reticle Manual
- Lens Cleaning Cloth
Customer Reviews
“The clarity at both 1x and 10x is outstanding. Perfect for my hunting needs!”
“Quick adjustments and a solid build. This scope exceeded my expectations.”
“Great eye relief and easy to zero. I feel confident using it in any environment.”
FAQ
What makes the EOTech Vudu 1-10x28mm different from other scopes? The first focal plane reticle offers accurate distance estimation at any magnification, which is essential for tactical shooting and hunting. Many scopes only provide this feature at one specific magnification.
How should I maintain the riflescope? Regularly clean the lenses with a soft cloth and ensure the body is free from dirt and moisture. Store it in a dry, cool environment, and check the battery regularly to ensure the illumination functions when needed.
Is the Vudu scope suitable for beginners? Yes, the user-friendly design, generous eye relief, and quick magnification adjustments make it an excellent choice for both novices and experienced shooters. It balances advanced features with ease of use.
Similar Models
Looking for more versatile optics? Explore our full EOTech collection, including models like the EOTech Vudu 3.5-18x50 for long-range precision and EOTech Vudu 2-12x50 for enhanced adaptability in various shooting scenarios. Discover the complete range tailored for performance and reliability.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
