Description

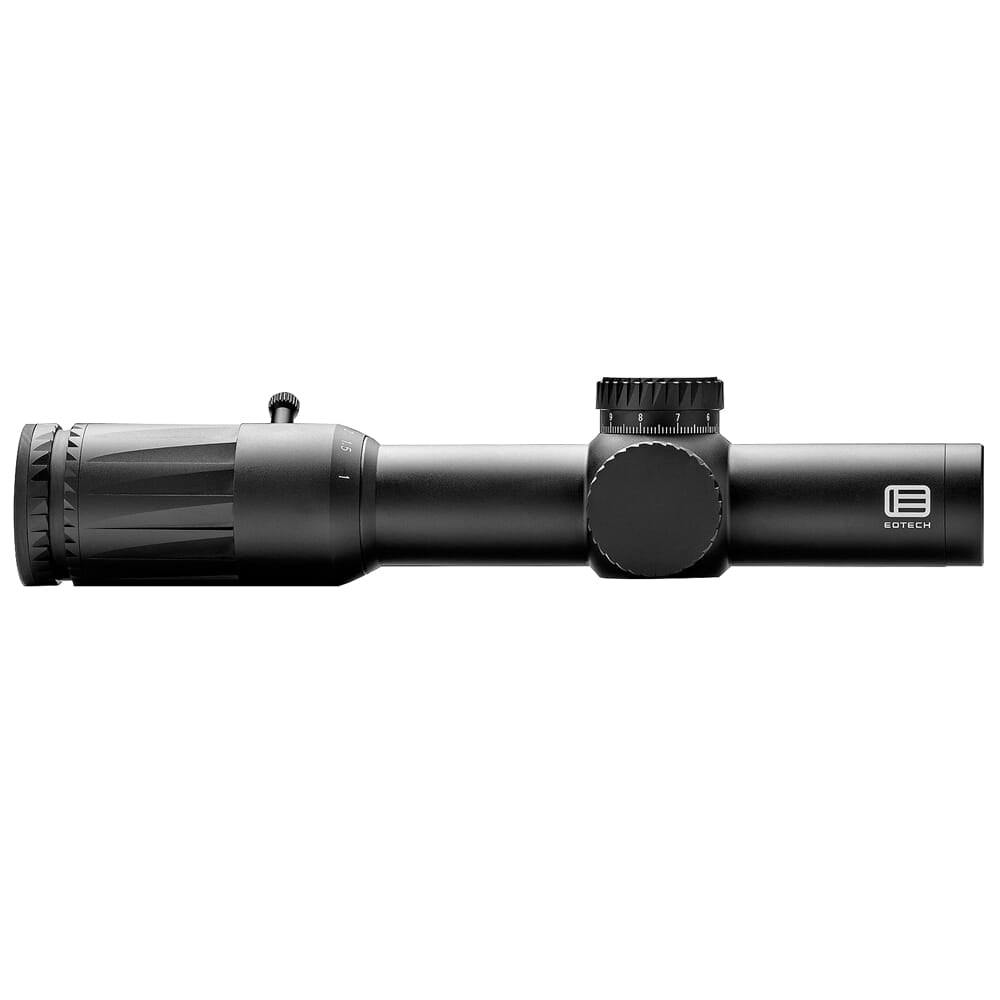

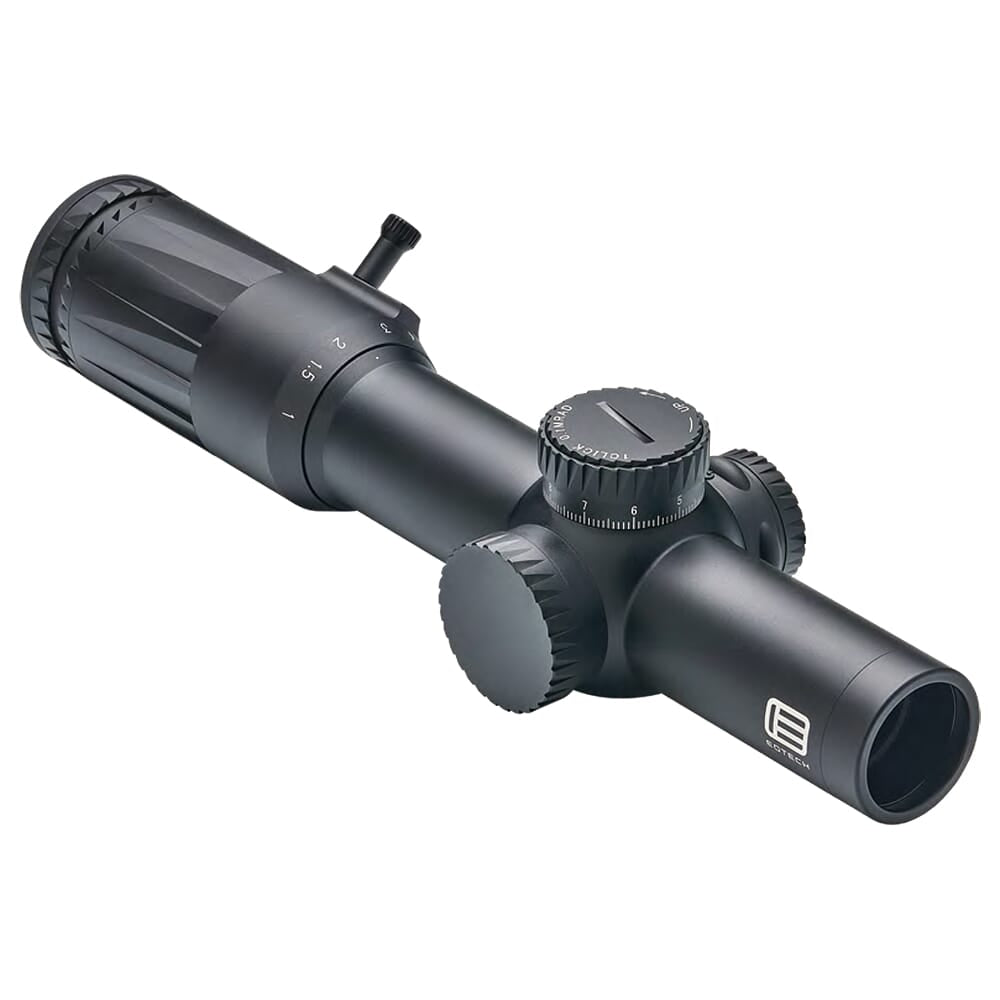

EOTech Vudu 1-10x28mm FFP LE5 Riflescope offers a versatile magnification range, allowing for quick transitions between close-quarters and long-range shooting. This scope features a first focal plane (FFP) design, ensuring that the reticle subtensions remain accurate at any magnification level. With its LE5 MRAD reticle, shooters benefit from clear holdover and windage references, enhancing precision in various shooting scenarios. The robust construction from aircraft-grade aluminum ensures durability, even in challenging conditions.
Illuminated with ten brightness settings, the reticle performs well in low-light environments. The scope's anti-reflective coatings on high-density glass provide excellent light transmission and edge-to-edge clarity. The tool-less elevation and windage turrets allow for quick adjustments, while the compact design and lightweight build make it suitable for various firearm platforms. Whether for competitive shooting or tactical applications, this riflescope delivers reliable performance and user-friendly features.
Features – Key Benefits Bullets
- PREMIUM OPTICS: XC high-density glass with anti-reflective coating for superior light transmission and clarity across the entire field of view.
- DURABLE CONSTRUCTION: Aircraft-grade aluminum 34mm main tube with a hard-anodized finish for extreme durability and weather resistance.

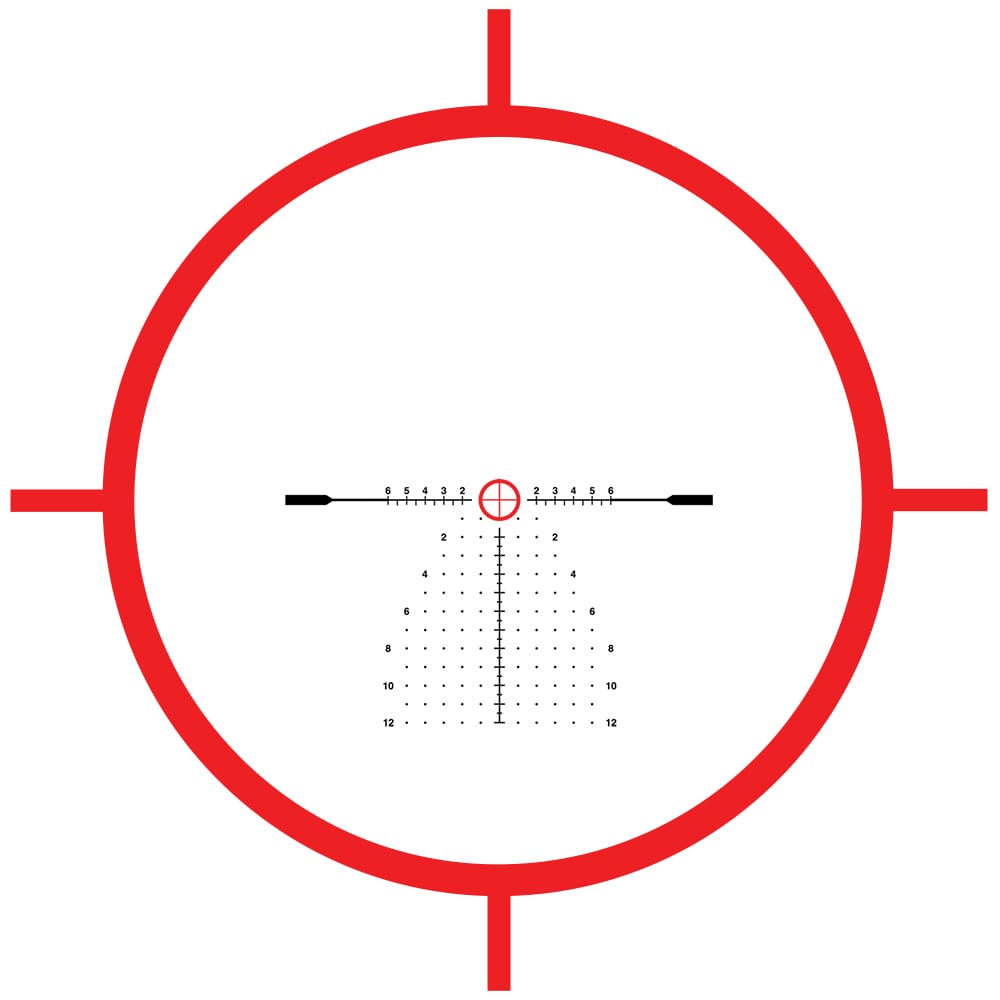

- FIRST FOCAL PLANE: LE5 MRAD reticle remains true at all magnifications, allowing for accurate rangefinding and holdovers.
- ILLUMINATED RETICLE: 10 brightness settings with auto-shutoff feature for enhanced low-light performance and extended battery life.
- PRECISION ADJUSTMENTS: Tool-less elevation and windage turrets with push/pull locking system for secure zero and easy field adjustments.
- VERSATILE MAGNIFICATION: True 1x to 10x zoom range with a removable throw lever for quick magnification changes in any situation.
- COMPACT DESIGN: 10.63" overall length and 21.3 oz weight make it suitable for a wide range of firearm platforms.
- ADVANCED FEATURES: Includes fog-resistant nitrogen purging, shock resistance, and water resistance for reliable performance in harsh conditions.
Technical Specifications
| Specification | Detail |
|---|---|
| Magnification | 1-10x |
| Objective Lens Diameter | 28mm |
| Tube Diameter | 34mm |
| Reticle | LE5 MRAD |
| Focal Plane | First Focal Plane (FFP) |
| Eye Relief | 3.27-3.90" (1x), 3.35-3.62" (10x) |
| Field of View | 116.6 ft @ 100 yds (1x), 11.7 ft @ 100 yds (10x) |
| Adjustment Per Click | 0.1 MRAD |
| Total Elevation Travel | 29 MRAD |
| Total Windage Travel | 23 MRAD |
| Length | 10.63" (270mm) |
| Weight | 21.3 oz (603g) |
| Illumination | Yes, 10 settings |
| Battery Type | CR2032 |
| Waterproof | Yes |
| Fog Proof | Yes |
| Shock Proof | Yes |
What's in the Box?
- EOTech Vudu 1-10x28mm FFP LE5 Riflescope
- Removable throw lever
- CR2032 battery
- Lens cloth
- User manual
Customer Reviews
"This scope has transformed my shooting experience. The clarity is unmatched, even in low light." - John D.
"Easy to adjust and very durable. I'm impressed with the performance at the range." - Sarah L.
"Perfect for competitive shooting! The reticle is clear and intuitive." - Mike T.
FAQ
How does the first focal plane feature benefit me? The first focal plane (FFP) ensures that the reticle's size and subtensions remain constant across all magnification levels. This means you can accurately gauge distance and holdovers regardless of how much you zoom in or out, making it ideal for both short and long-range shooting.
Is this scope suitable for low-light conditions? Yes, the EOTech Vudu features an illuminated reticle with ten brightness settings, allowing for effective use in low-light scenarios. The anti-reflective coatings on the XC high-density glass also enhance light transmission, providing better visibility at dawn or dusk.
How resistant is this scope to harsh conditions? The EOTech Vudu is built with an aircraft-grade aluminum body, making it shockproof, fog-proof, and waterproof. Nitrogen purging further protects against internal fogging, ensuring reliability in diverse environments.
Similar Models
Looking for more options? Explore our selection of EOTech products, including the Vudu 2.5-10x44mm for enhanced versatility and the Vudu 3-18x50mm for long-range precision. Each model is designed to meet the demands of tactical and competitive shooters. Discover the complete collection for exceptional optics tailored to your needs.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
