Description
Product Description

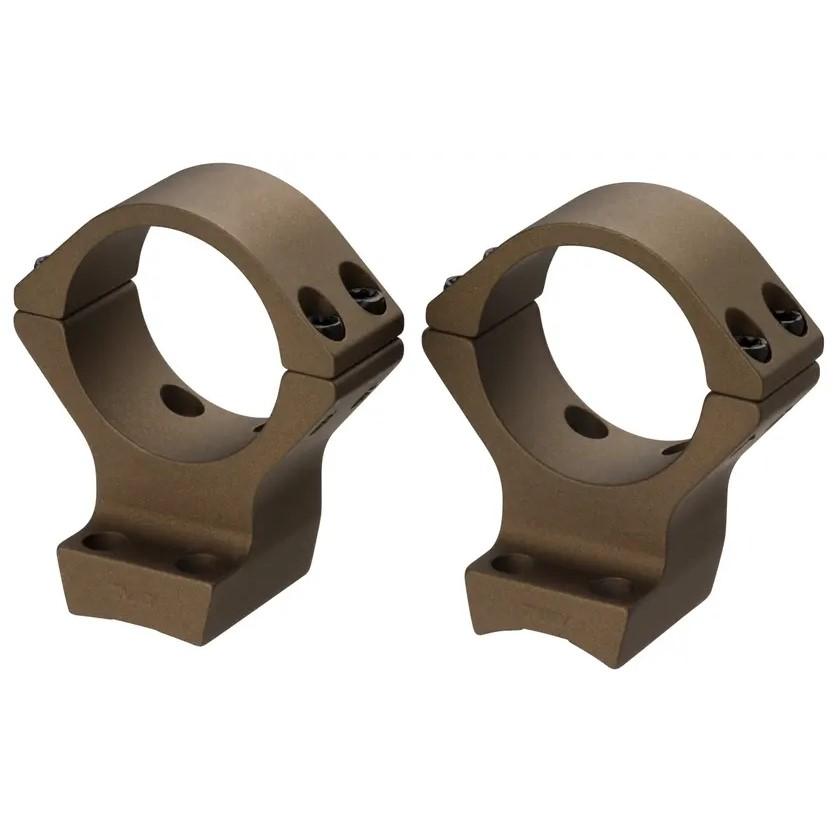

Browning's X-Bolt Integrated Scope Mount System combines the stability of a base and ring into one streamlined unit, crafted from 7000 series aluminum. This design minimizes alignment issues, ensuring a secure fit that prevents any loosening during intense use. The mount is compatible with 30mm scopes, providing a robust platform for your optics that enhances accuracy and reliability in the field.
The Smoke Bronze Cerakote finish offers excellent corrosion resistance while maintaining a sleek appearance. This mount system is engineered for easy installation, making it an ideal choice for both novice and experienced shooters. By integrating the ring and base, it simplifies the setup process and reinforces the connection between your scope and rifle, enhancing overall performance.
Features – Key Benefits Bullets
- INTEGRATED DESIGN for enhanced stability and easy installation.
- 7000 SERIES ALUMINUM provides durable, lightweight construction.
- 30MM COMPATIBILITY fits a wide range of high-performance scopes.
- SMOKE BRONZE CERAKOTE finish resists corrosion and wear.
- MINIMIZED ALIGNMENT ISSUES ensures a secure fit for reliable shooting.
- STREAMLINED SETUP saves time and effort during installation.
- IMPROVED ACCURACY through a solid connection between scope and rifle.
- LIGHTWEIGHT YET STRONG construction for better handling and performance.
Technical Specifications Table
| Feature | Details |
|---|---|
| Material | 7000 Series Aluminum |
| Scope Compatibility | 30mm |
| Finish | Smoke Bronze Cerakote |
| Weight | Lightweight |
| Type | Integrated Mount System |
| Dimensions | Standard |
What's in the Box?
- Integrated Scope Mount System
- Installation Hardware
- User Manual
Customer Reviews
"This mount is solid and easy to install. My scope has never felt more secure!"
"The Smoke Bronze finish looks great on my rifle, and the performance is outstanding."
"No alignment issues whatsoever. Highly recommend for anyone looking for a reliable mount."
FAQ
How does the integrated design benefit performance? The integrated design eliminates alignment issues that can arise when using separate rings and bases. This results in a more stable connection, which enhances accuracy during shooting.
Is this mount easy to install? Yes, the Browning X-Bolt Integrated Scope Mount System is designed for straightforward installation. The included hardware and user manual will guide you through the process, making it accessible for all skill levels.
Can I use this mount with other scope brands? This mount is primarily designed for 30mm scopes, which includes many popular brands. Always check your scope dimensions for compatibility.
What maintenance is required for the mount? Regular inspections for tightness and occasional cleaning to remove dirt or moisture are recommended to maintain the mount's performance and longevity.
How does this compare to other mounting systems? The integrated design offers superior stability compared to traditional mounting systems, reducing the risk of misalignment and enhancing overall shooting experience.
Similar Models
Looking for more reliable mounting solutions? Explore our comprehensive selection of Browning mounts, including options like the Browning X-Bolt Picatinny Rail Mount for versatile attachment capabilities and the Browning X-Bolt 1" Ring Set for added compatibility. Check out our full collection to find the perfect fit for your optics needs.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
