Description

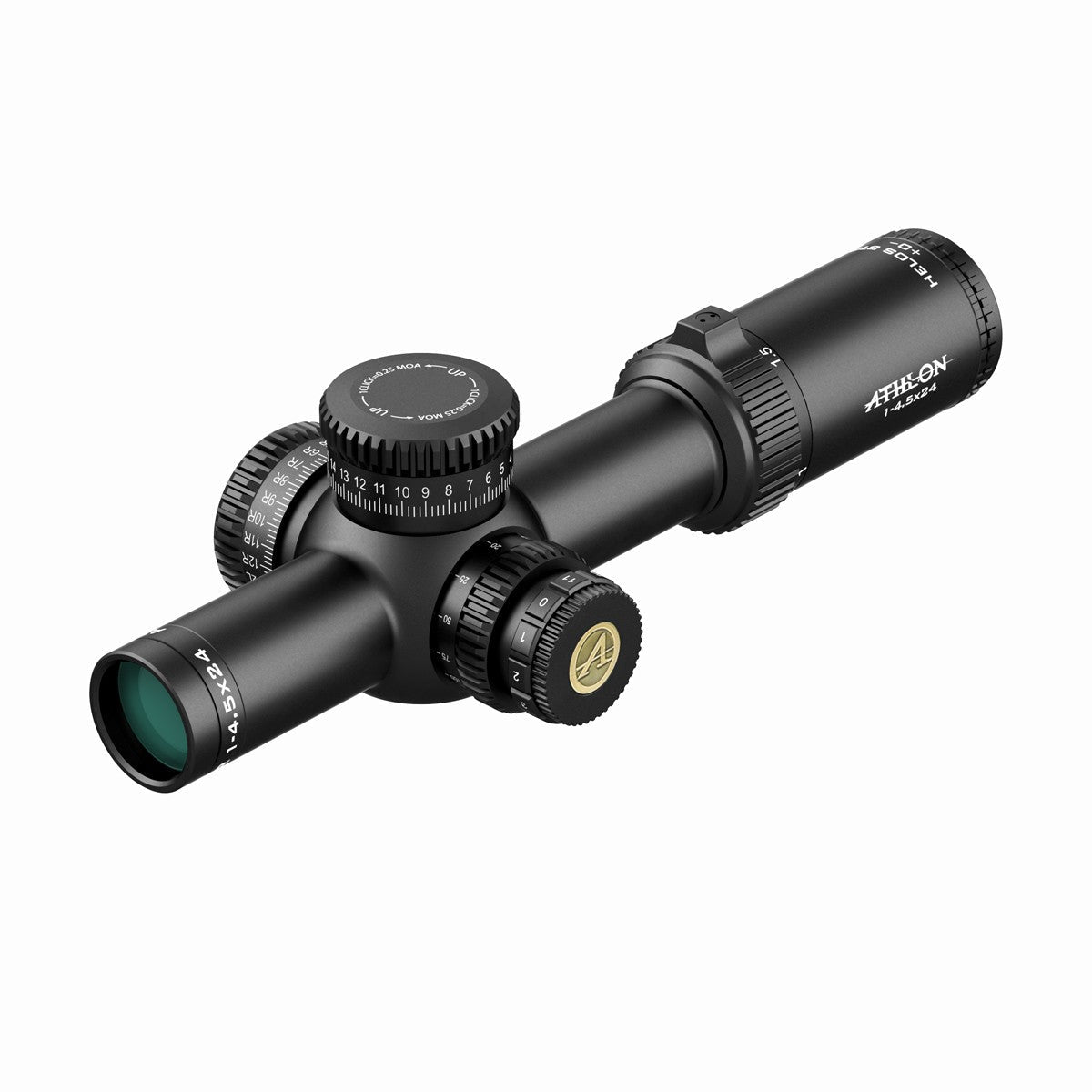

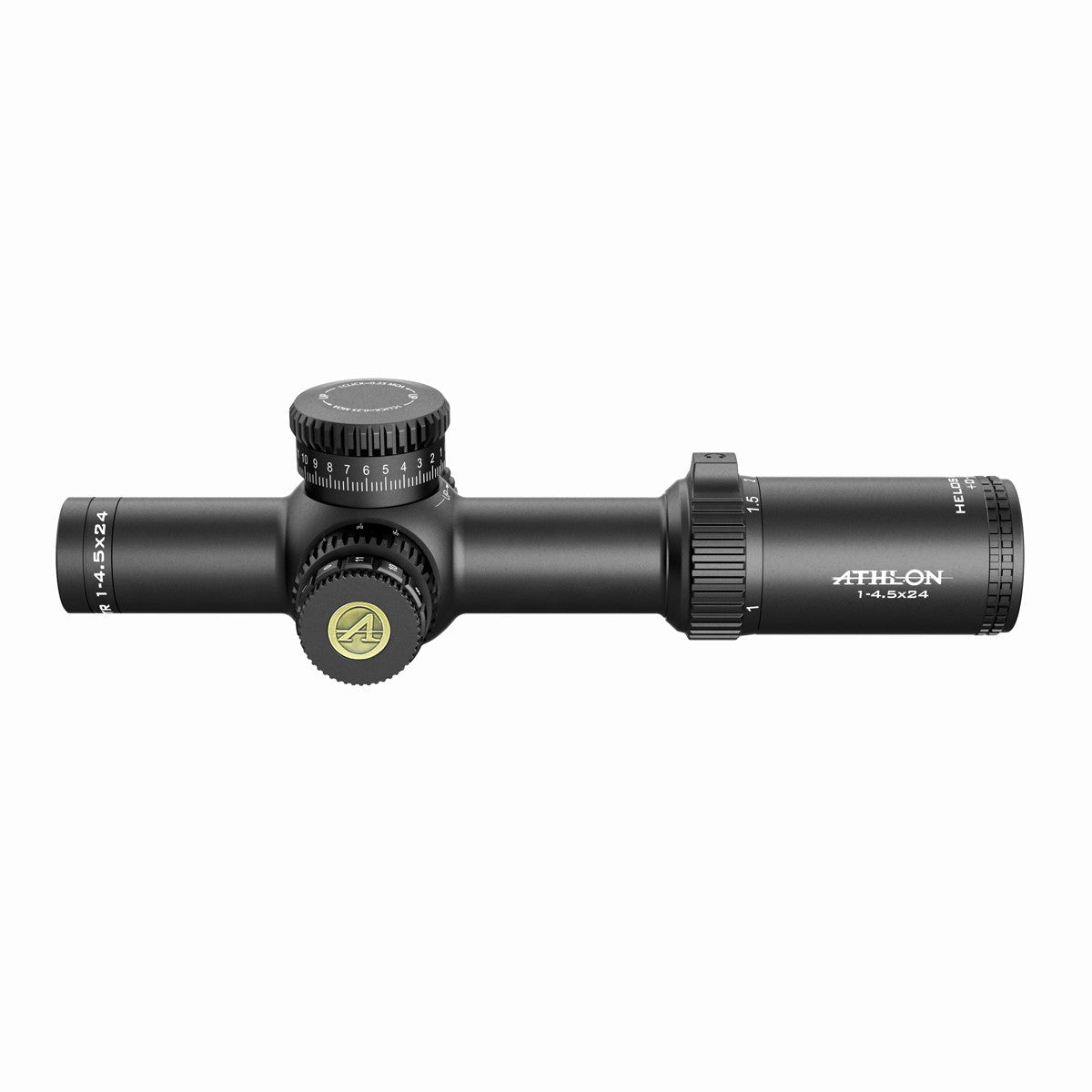

Athlon Optics Helos BTR 1-4.5x24 Riflescope is engineered for precision shooting, ideal for both competitive matches and AR platform applications. With a revolution lock feature, adjustments to the elevation turret remain secure, ensuring consistent accuracy. Fully multicoated lenses provide optimal light transmission, facilitating quick target acquisition, even in low-light scenarios. This riflescope is built to perform effectively whether at the range or in the field.
Constructed from durable 6061 T6 aluminum, this riflescope is both shockproof and waterproof, making it suitable for various environmental conditions. The illuminated reticle enhances visibility, allowing shooters to target effectively at dawn and dusk. Weighing in at just 22.9 ounces, its lightweight design and ergonomic features contribute to a more comfortable shooting experience, whether you’re a seasoned shooter or a beginner.
Features – Key Benefits Bullets
- PRECISION ZERO STOP for easy and accurate return to your zero position, even in low visibility.
- REVOLUTION LOCK ensures you're always aware of turret adjustments, enhancing shooting confidence.

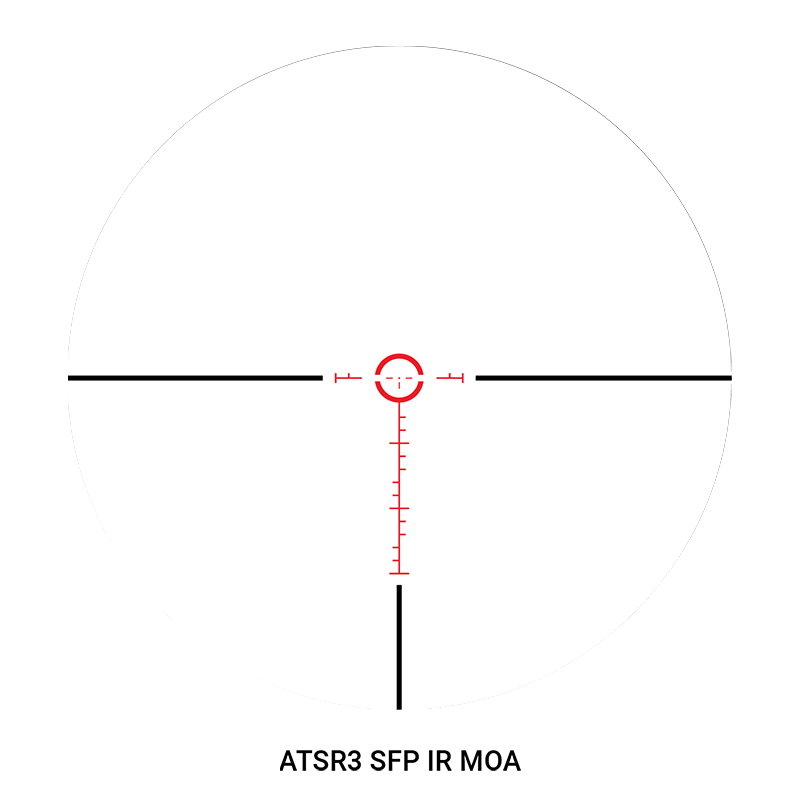

- ILLUMINATED RETICLE provides superior visibility in low-light conditions, making dusk hunts possible.
- ETCHED GLASS RETICLE offers enhanced durability and shock resistance, perfect for rugged use.
- FULLY MULTICOATED optics deliver a brighter image, making it easier to spot targets.
- 6061 T6 ALUMINUM builds strength to withstand harsh conditions, ensuring reliability on any trip.
- WATERPROOF & FOG PROOF design keeps the scope functional in all weather conditions.
- ARGON PURGED to enhance thermal stability and moisture protection, prolonging product life.
Technical Specifications
| Specification | Details |
|---|---|
| Magnification | 1-4.5 |
| Objective Lens Diameter | 24 mm |
| Weight | 22.9 ounces |
| Length | 9.5 inches |
| Tube Material | 6061 Aluminum |
| Tube Diameter | 30 mm |
| Eye Relief | 3.2 inches |
| Field of View @ 100 yards | 100-22 feet |
What’s in the Box?
- Lens covers
- Padded case
- Neck strap
Customer Reviews
"This scope exceeded my expectations! The clarity is amazing, and I love the illuminated reticle!"
"Perfect for my AR. I can see clearly at dawn and the revolution lock feature is a game changer!"
FAQ Section
- How does the illuminated reticle work? The illuminated reticle enhances visibility for better target acquisition in low-light conditions.
- Can this scope handle heavy recoil? Yes, it is designed to withstand 1000G recoil for exceptional durability.
- Is it waterproof? Absolutely! The scope is waterproof and fog proof for reliable performance in all conditions.
- What if I need to clean the lenses? Use a soft lens cloth and lens cleaner to maintain clarity and performance.
- How does it compare to other brands? The Athlon Optics Helos BTR 1-4.5x24 offers superior durability and precision at a competitive price.
Similar Models
Looking for more excellent optics? Check out our full collection of Athlon products, like the Athlon Optics Midas BTR series for enhanced long-range shooting. Discover the perfect scope tailored to your shooting needs today!
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
