Description

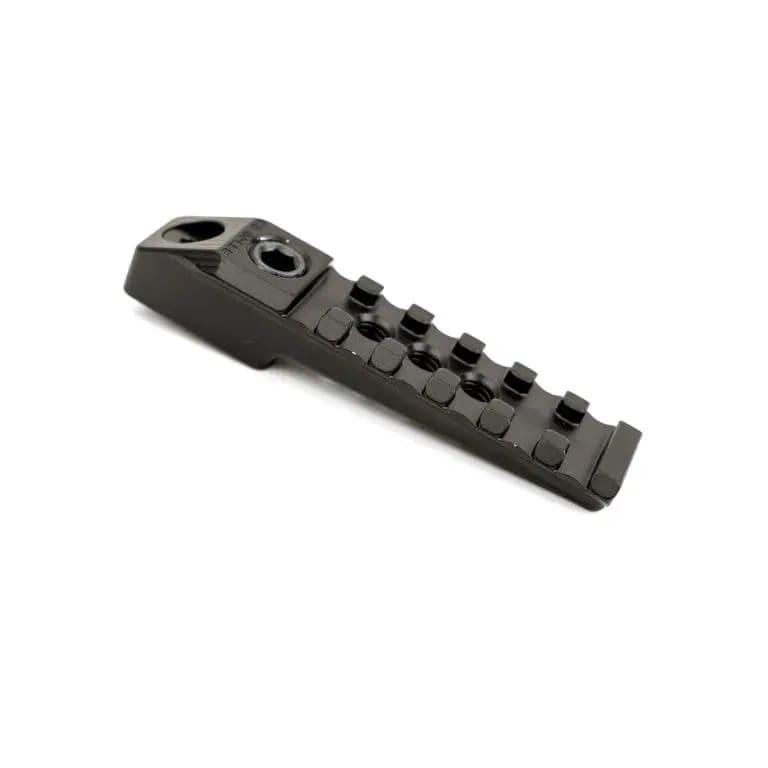

Area 419 Low Height Diving Board Attachment for Tactical Mounts secures firmly to your Tactical One-Piece Scope Mount using a patented dual taper mounting point. This design ensures stability, allowing you to confidently use accessories such as levels, dope cards, or red dot sights without performance compromises. With a low-profile design, it stands at just 0.70 inches high, making it an unobtrusive addition to your setup. Weighing only 1.5 oz, it minimizes additional weight while maintaining essential functionality.
Constructed from American 7075 Aluminum and finished with Type III Hardcoat Black anodization, this attachment is built for durability and reliability. Its robust design ensures consistent return to zero, even under rigorous use. The attachment also features three 1/4 x 20 holes for easy installation, making it a practical choice for enhancing your tactical equipment.
Features – Key Benefits Bullets
- SUPERIOR STABILITY with patented dual taper mounting point for unmatched attachment security.
- LIGHTWEIGHT DESIGN at only 1.5oz, ensuring minimal impact on your overall setup.
- LOW PROFILE measuring just 0.70 inches high, perfect for maintaining a sleek look.
- COMPATIBLE CONFIGURATION designed to fit most 34mm optics for versatile use.
- RIGID CONSTRUCTION made from American 7075 Aluminum for top-tier durability.
- EASY MOUNTING featuring three 1/4 x 20 holes for straightforward installation.
- MIL-SPEC RAIL with six slots to accommodate a variety of tactical accessories.
- PREMIUM FINISH with Type III Hardcoat Black anodization, ensuring longevity and resistance to wear.
Technical Specifications Table
| Specification | Details |
|---|---|
| Height | 0.70 inches |
| Optical Center to Top | 1.52 inches (on a 34mm optic) |
| Weight | 1.5 oz (including hardware) |
| Material | 7075 Aluminum |
| Rail Specification | MIL-STD-1913 (6 slots) |
What’s in the Box?
- Area 419 Low Height Diving Board Attachment
- Mounting Hardware
Customer Reviews
"An incredible addition to my setup! Everything stays secure, and the low height is perfect for my needs."
"Built like a tank! This diving board has made my scope setup so much easier to manage."
FAQ
How does the Area 419 Diving Board Attachment improve my scope setup?
Its design enhances stability and functionality, allowing you to mount additional accessories like red dots and range finders without compromising your aim.
Is this diving board compatible with other optics?
Yes, the diving board is designed to fit most 34mm optics, making it a versatile option for various setups.
Similar Models
Looking to expand your tactical gear? Discover our full range of Area 419 products, ensuring you have the best setup possible. Check out models like the Area 419 Scope Level for added precision or the Area 419 Quick Detach Mount for flexibility. Explore our collection for the ultimate in tactical accessories!
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
